TT 200 EM
OPERATING INSTRUCTIONS

Advertisement

Table of Contents
loading

Related Manuals for Norton TT 200 EM

Summary of Contents for Norton TT 200 EM

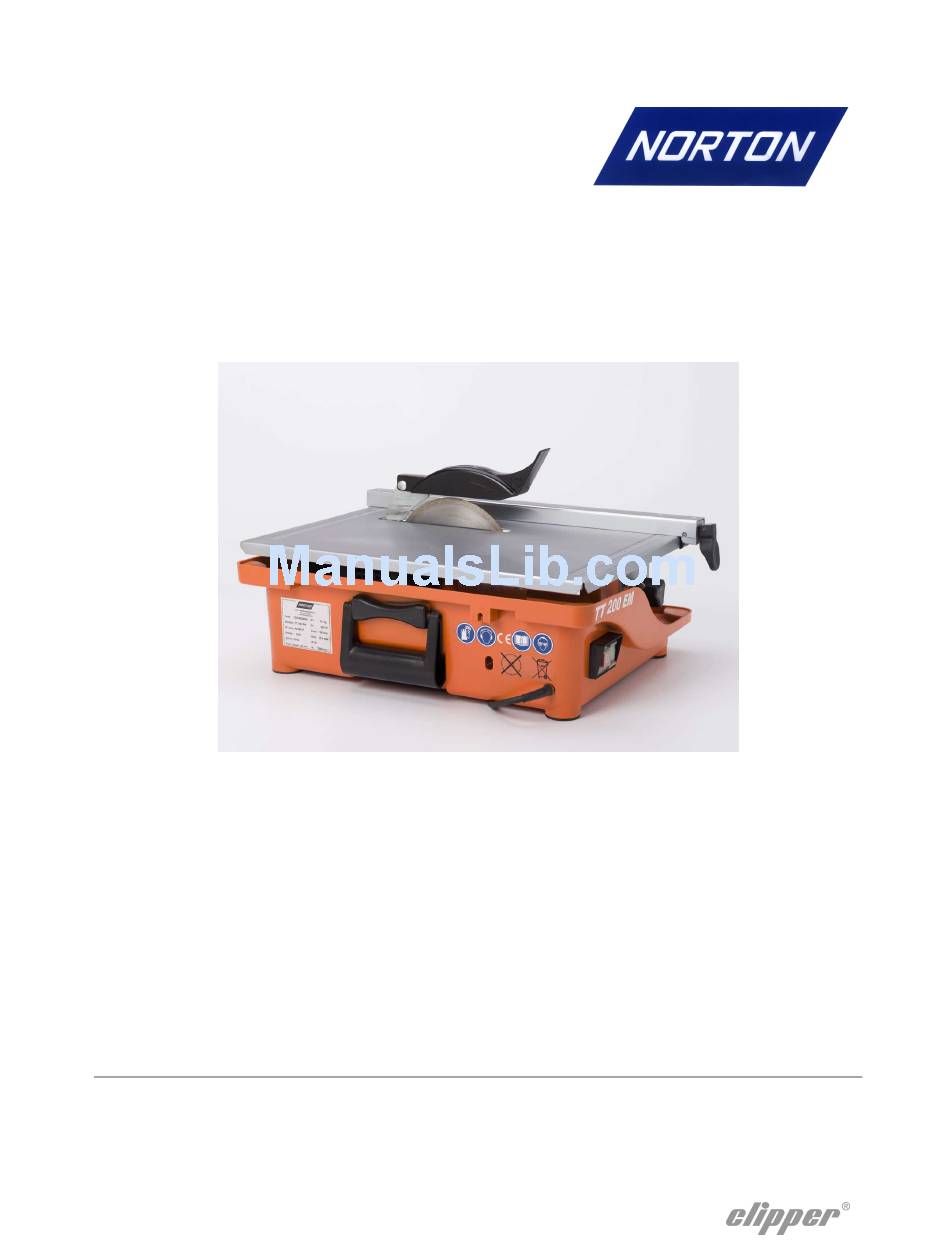

  • Page 1 TT 200 EM OPERATING INSTRUCTIONS...
  • Page 3 Déclaration de conformité Le constructeur soussigné: SAINT - GOBAIN ABRASIVES S.A. 190, BD. J. F. KENNEDY L-4930 BASCHARAGE Déclare que le matériel neuf désigné ci-après : TT 200 70184625701 Scie de carrelage: Code : est conforme aux dispositions des Directives : •...

  • Page 5: Table Of Contents

    TT200EM OPERATING INSTRUCTIONS Basic Safety Instructions Symbols Machine plate Safety instructions for particular operating phases Machine description Short description Purpose of use Layout Technical Data Assembly and commissioning Tool assembly Guide-a-cut assembly Electrical connections Starting the machine Water cooling system Transport and storing Securing for transport Long period of inactivity...

  • Page 6: Basic Safety Instructions

    1 Basic Safety Instructions The TT200EM is exclusively designed for the cutting of tiles mainly on construction sites. Uses other than the manufacturer's instructions shall be considered as contravening the regulations. The manufacturer shall not be held responsible for any resulting damage. Any risk shall be borne entirely by the user.

  • Page 7: Safety Instructions For Particular Operating Phases

    Machine type Serial number Power Safety standard Blade speed 1.3 Safety instructions for particular operating phases Before commencing work • Before commencing work, make yourself familiar with the working environment at the place of use. The working environment includes: obstacles in the area of work and manoeuvre, the firmness of the floor, necessary protection at the site relating to public thoroughfares and the availability of help in the event of accidents.

  • Page 8: Short Description

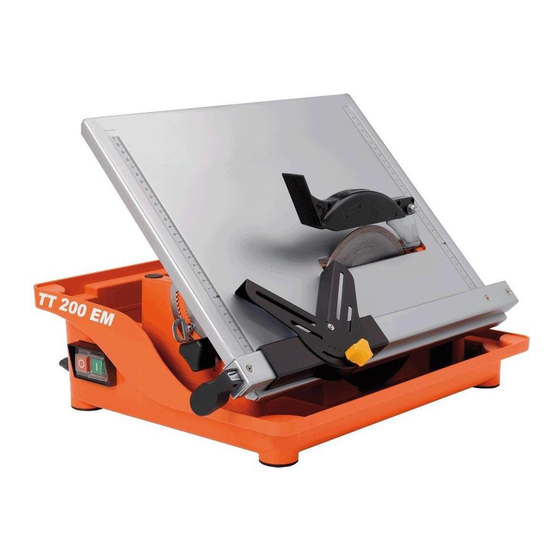

    2.1 Short description The TT200EM Tile saw is designed for durability and high performance for onsite wet and dry cutting operations of a wide range of tiles. As with all other CLIPPER products, the operator will immediately appreciate the attention given to detail and quality of materials used in construction.

  • Page 9: Technical Data

    Frame (1) The frame is made of a strong plastic to ensure perfect rigidity. It supports the motor, the cutting table and the switch. Cutting table (2) Zink coated steel top for an excellent resistance to corrosion with engraved measurements for precise guide-a-cut alignment.

  • Page 10: Assembly And Commissioning

    3 Assembly and commissioning The machine is delivered fully equipped. It is ready for operation after assembly the diamond blade, the blade guard and the guide-a-cut, and after connection to the appropriate power supply. 3.1 Tool assembly Only CLIPPER continuous rim blades with a maximum diameter of 200 mm can be used with the TT200EM.

  • Page 11: Water Cooling System

    3.5 Water cooling system • Fill the water pan with clean water up to 5mm from the upper edge of the water tray. • Ensure that water is delivered adequately to both sides of the blade, as insufficient water supply may result in premature failure of the diamond blade.

  • Page 12: Transport And Storing

    4 Transport and storing 4.1 Securing for transport Before transporting the machine, always remove the blade and empty the water pan. 4.2 Long period of inactivity If the machine is not going to be used for a long period, please take the following measures: •...

  • Page 13: Operating The Machine

    5 Operating the machine 5.1 Site of work 5.1.1 Siting the machine • Remove from the site anything, which might hinder the working procedure! • Make sure the site is sufficiently well lit! • Observe manufacturer's conditions for connecting to power supplies! •...

  • Page 14: Maintenance And Servicing

    6 Maintenance and servicing To ensure a long-term quality from the cutting with the TT200EM, please follow the maintenance plan below: Whole machine Visual control (general aspect, watertightness) Clean Flange and blade fixing devices Clean Motor cooling fans Clean Water pan Clean Engine housing Clean...

  • Page 15: Faults: Causes And Cures

    Spare parts for the motor can be ordered with the manufacturer of the motor or with their dealer, which is often quicker and cheaper. This machine has been manufactured by Saint-Gobain Abrasives S.A. 190, Bd. J.F. Kennedy L- 4930 BASCHARAGE Grand-Duché de Luxembourg. Tel. : 00352-50401-1 Fax : 00352- 50 16 33 http://www.construction.norton.eu e-mail: sales.nlx@saint-gobain.com...
  • Page 16 Holland: 0 8000 22 02 70 Tel : 0116 2632 302 e-mail: sales.nlx@saint-gobain.com Fax : 0800 622 385 e-mail : nortondiamonduk@saint-gobain.com Czech Republic Norton Diamantove Nastroje Sro Austria Vinohrdadska 184 Saint-Gobain Abrasives GmbH CS-13000 PRAHA 3 Telsenberggasse, 37 Tel: 0042 0267 13 20 21...
  • Page 20 SAINT-GOBAIN ABRASIVES 190, Bd. J. F. Kennedy L-4930 BASCHARAGE LUXEMBOURG Tel.: ++352 50401-1 Fax: ++352 501633 e-mail: sales.nlx@saint-gobain.com www.construction.norton.eu 08.12.2008...
