3.3.

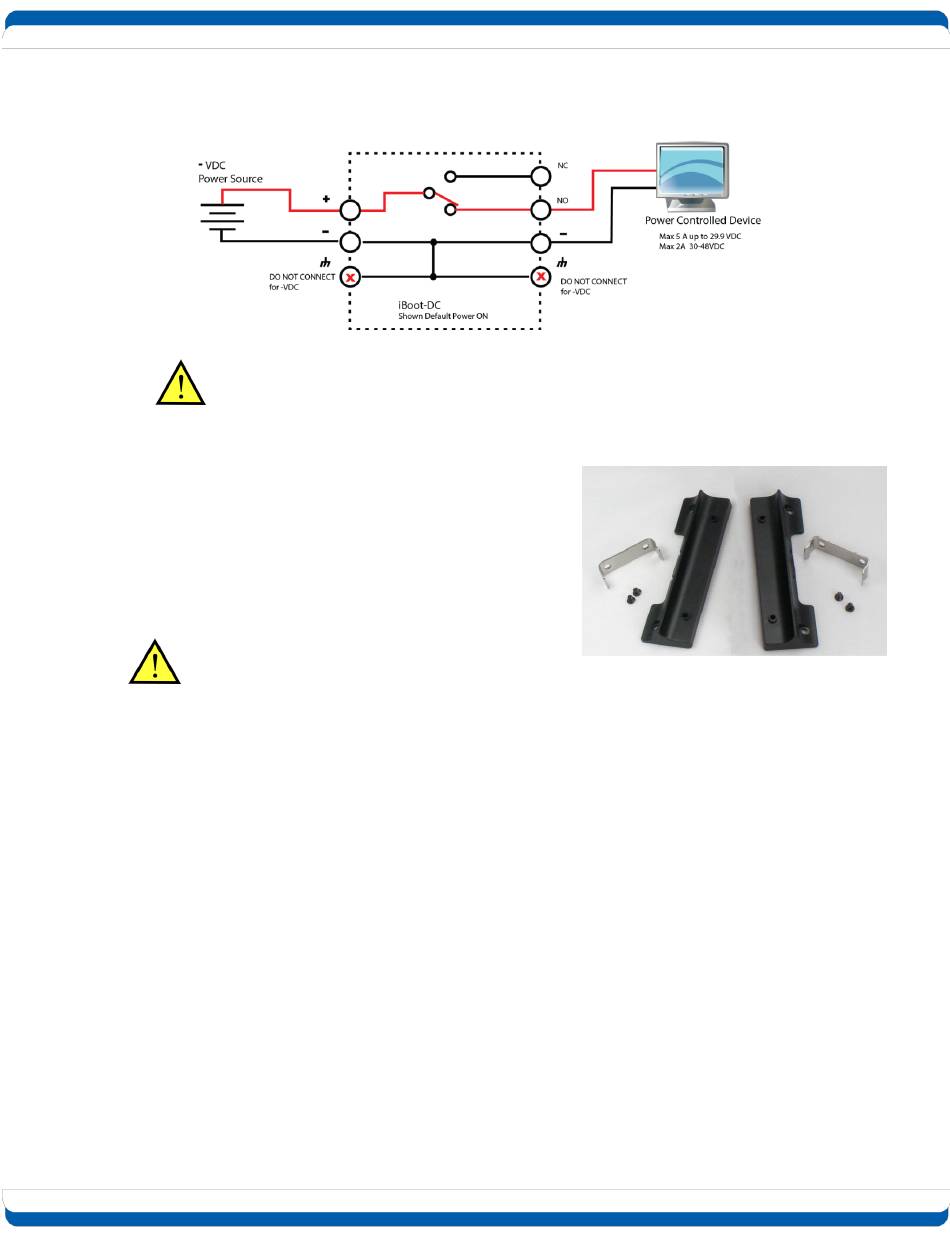

Connecting Negative Voltages
iBoot-DC will accept a negative (relative to ground) power source i.e. -48VDC. Insure the power leads are
connected so that "+" terminal voltage is positive RELATIVE to the "-" terminal voltage.
Do Not connect Chassis Ground when using –VDC Power.
3.4.
Mounting Options
iBoot-DC is suitable for desktop or shelf mounting.
mounting kit for wall and DIN rail mounting is available.
Order part:
1920034
Mounting Kit for iBoot Series
Remove all cables from the unit prior to
installing or removing any mounting hardware.
iboot-dc_v181024e
A
iBoot-DC
1920033 Mounting Kit
iBoot Series
Page 4
