Assembly On Valve - Flowserve FlowAct Series User Instructions

Minimum Clearance Zone

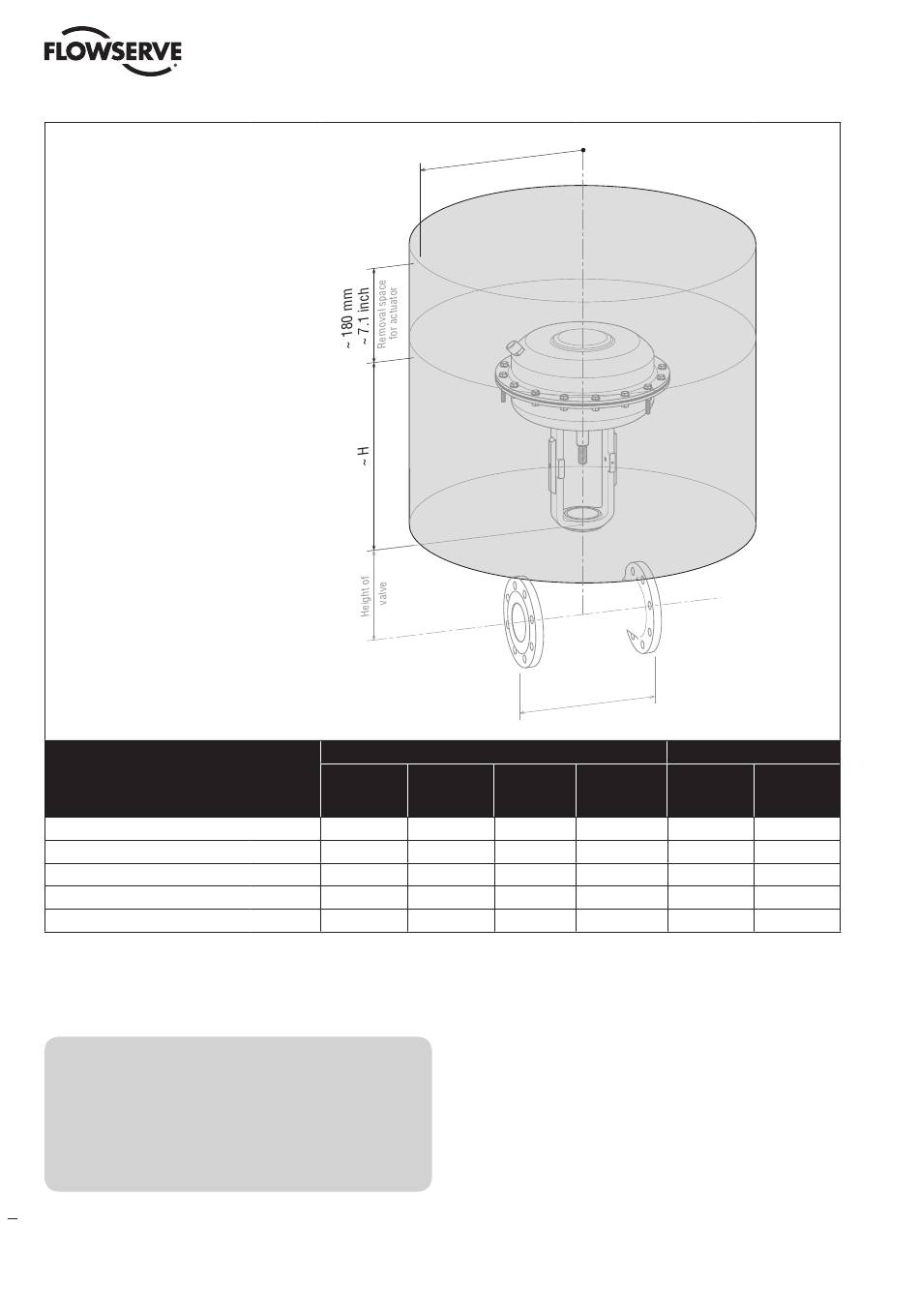

Figure 5: Overhead clearance drawing
Actuator Size
250
500
700
1500
3000

10 Assembly on valve

The FlowAct diaphragm linear actuator is al-
lowed to be assembled and reassembled only
by qualified staff - personnel who are familiar
with assembling, reassembling, installation and
commissioning of this product, and possess the
relevant qualifications in their field of activity.
8
When performing repairs, personnel are to follow these in-
FlowAct Diaphragm Linear Actuator
without accessories
accessories direct mounted
mm 135 195
mm 180 195
mm 205 205
mm 275 -
mm 275 -
Table 3: Overhead clearance dimensions / drawing
structions using only original equipment manufacturer
(OEM) spare parts and recommended special tools to ensure
the reliability of the FlowAct diaphragm linear actuator.
Only Flowserve trained and authorized personnel are allowed
to repair (disassemble and reassemble) the FlowAct in haz-
ardous areas.
Actuators for oil and grease-less service or oxygen service
may only be disassembled and reassembled in clean rooms
(ISO 14644- ISO 8, US FED STD 209 E - M 6.5, or equivalent).
~ R
F a c e to fa c e
s
d im e n s io n
~ R
accessories with
NAMUR - side mounted
mounted hand wheel
290 -
330 -
345 -
415 685
415 685
FCD VLENIMFACTA4 10/16
