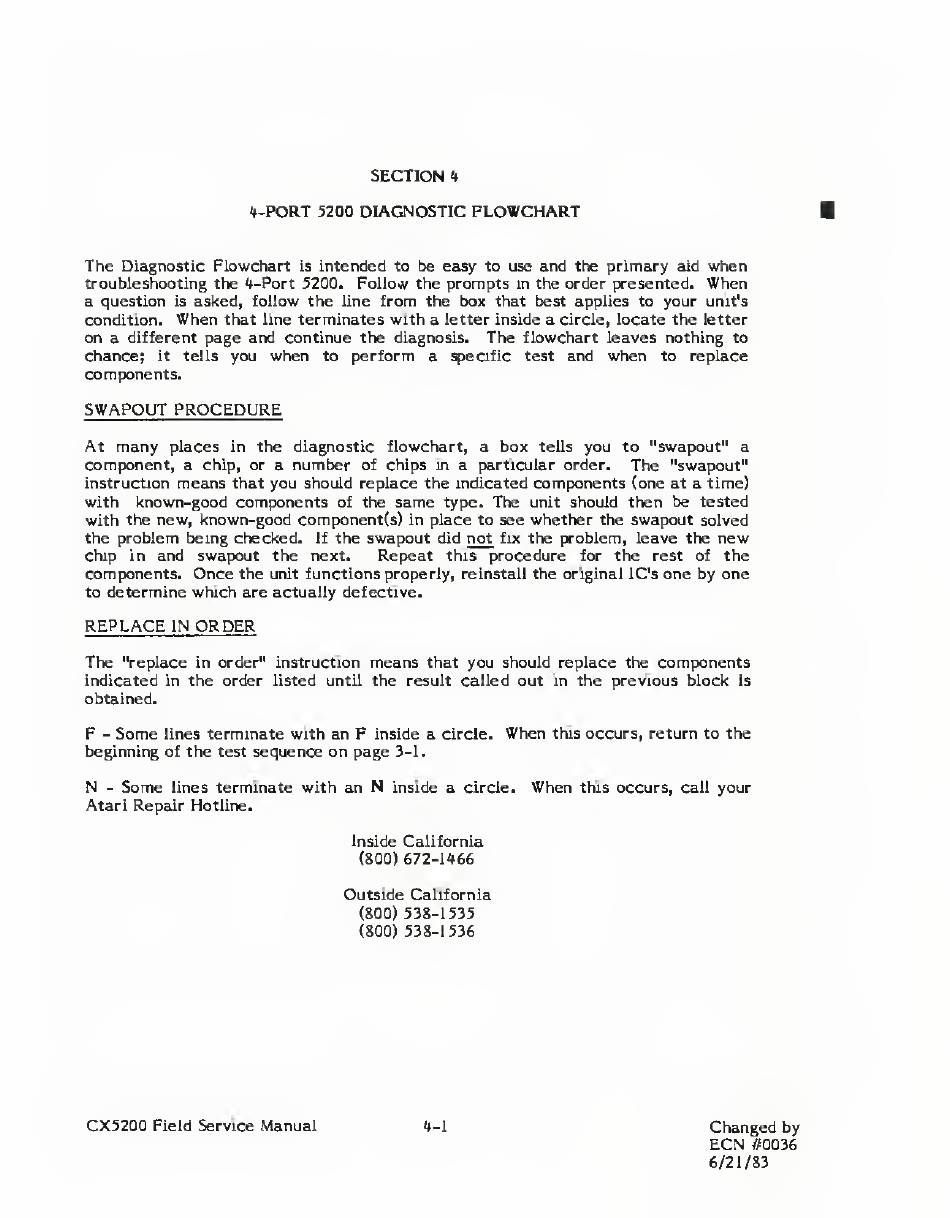

SECTION
4
4-PORT
5200
DIAGNOSTIC
FLOWCHART
The
Diagnostic Flowchart
is
intended
to
be easy
to use
and
the
primary
aid
when
troubleshooting the 4-Port 5200.
Follow the prompts
in
the order
presented.
When
a question
is
asked, follow the
line
from
the
box
that best applies to your
unit's
condition.
When
that
line
terminates with a
letter inside
a
circle,
locate the
letter
on a different page and continue the diagnosis.
The
flowchart leaves nothing
to
chance;
it
tells
you
when
to
perform a
specific
test
and
when
to
replace
components.
SWAPOUT PROCEDURE
At many
places
in
the diagnostic flowchart,
a box
tells
you
to
"swapout"
a
component,
a
chip, or
a number
of
chips
in
a
particular order.
The
"swapout"
instruction
means
that
you should replace the indicated
components
(one at a time)
with
known-good components
of the
same
type.
The
unit should
then
be tested
with the
new, known-good component(s)
in
place
to
see
whether
the
swapout
solved
the
problem being checked.
If
the
swapout
did not
fix
the
problem,
leave the
new
chip
in
and swapout the
next.
Repeat
this
procedure
for
the
rest of the
components.
Once
the
unit
functions properly,
reinstall
the
original IC's
one by one
to
determine which
are
actually defective.
REPLACE
IN
ORDER
The
"replace
in
order" instruction
means
that
you should replace the
components
indicated in the order listed until the
result called out
in
the previous block
is
obtained.
F
-
Some
lines
terminate with an
F
inside
a
circle.
When
this
occurs, return
to
the
beginning
of
the
test
sequence on page 3-1.
N
-
Some
lines
terminate with an
N
inside
a
circle.
When
this
occurs, call your
Atari Repair Hotline.
Inside California
(800)
672-1466
Outside California
(800)
538-1535
(800)
538-1536
CX5200
Field Service
Manual
4-1
Changed by
ECN
#0036
6/21/83
