Atari CX 5200 Field Service Manual page 23

Advanced video entertainment system
Hide thumbs Also See for CX 5200:
Table of Contents

Advertisement

NOTES.
UNLESS OTHERWISE
SPECIFIED:
ATARI
5200
Super
Game
2-4A
5200

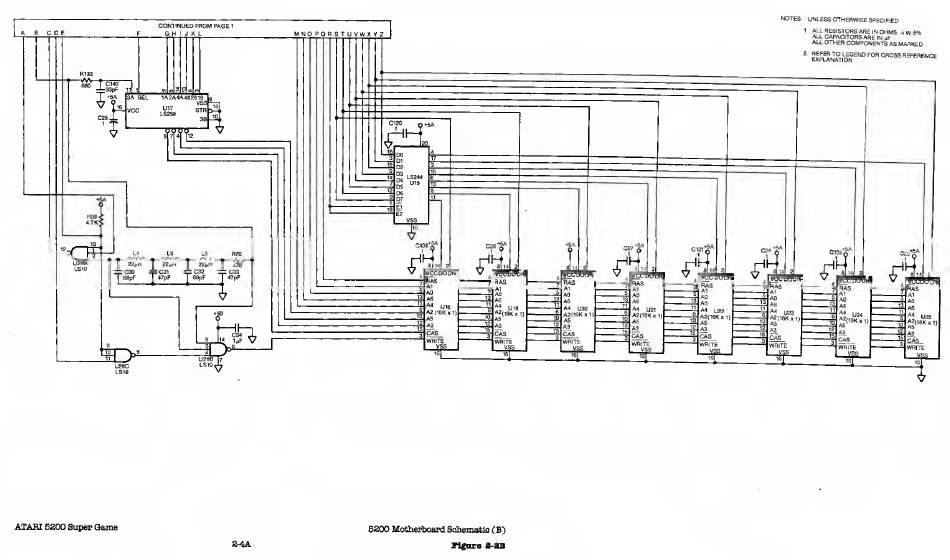

Motherboard Schematic
(B)
Figure 2-2B
