Assembly

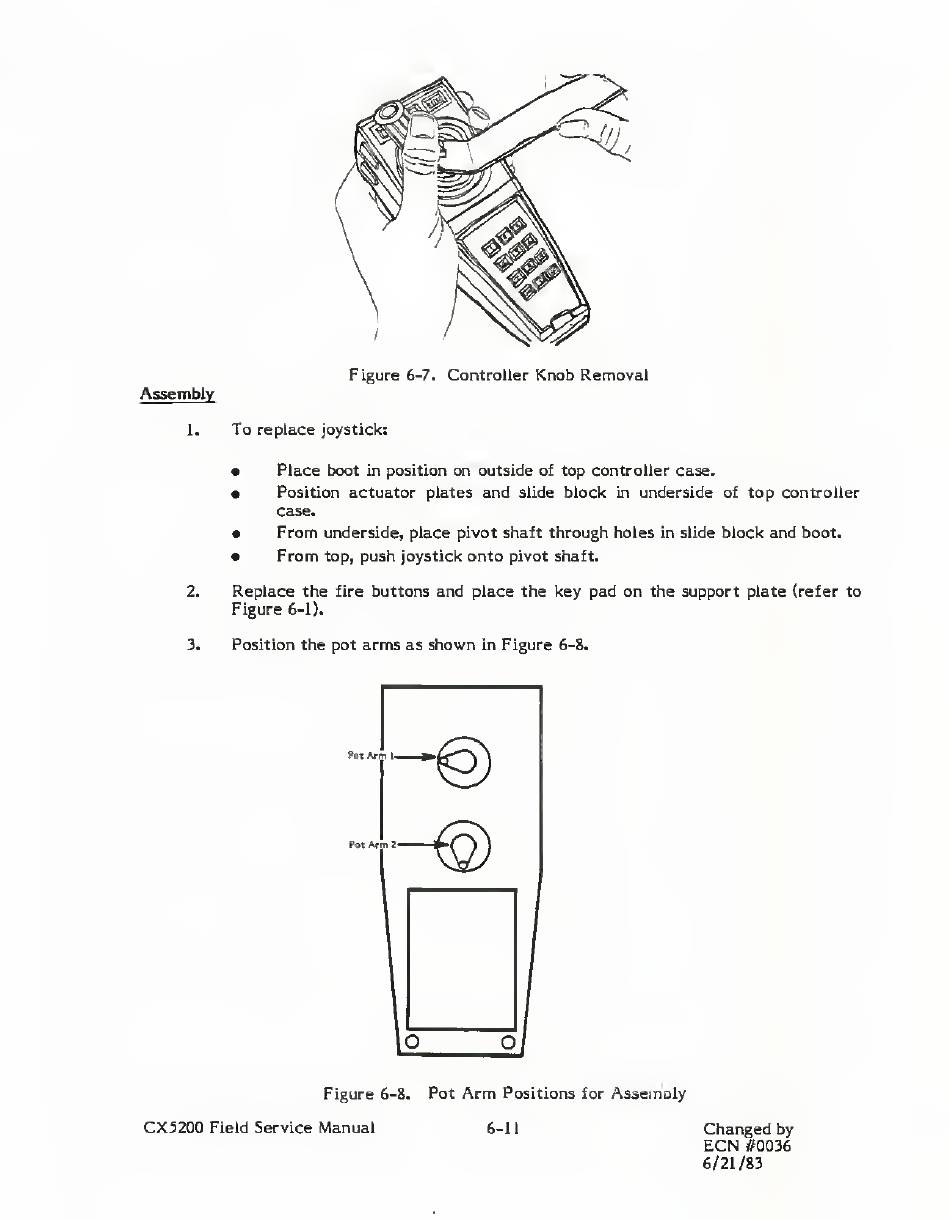

Figure
6-7.
Controller
Knob Removal
1.
To
replace
joystick:
•
Place
boot
in
position
on outside of top controller case.
•
Position actuator
plates
and
slide
block
in
underside
of
top
controller
case.
•
From
underside, place pivot shaft
through holes
in slide
block and
boot.
•
From
top,
push
joystick
onto pivot
shaft.
2.
Replace
the
fire
buttons and place the key pad on the support
plate (refer to
Figure
6-1).
3.
Position
the pot arms
as
shown
in
Figure
6-8.
Figure
6-8.
Pot
Arm
Positions
for
Assembly
CX5200
Field
Service
Manual
6-11
Changed
by
ECN
#0036
6/21/83
