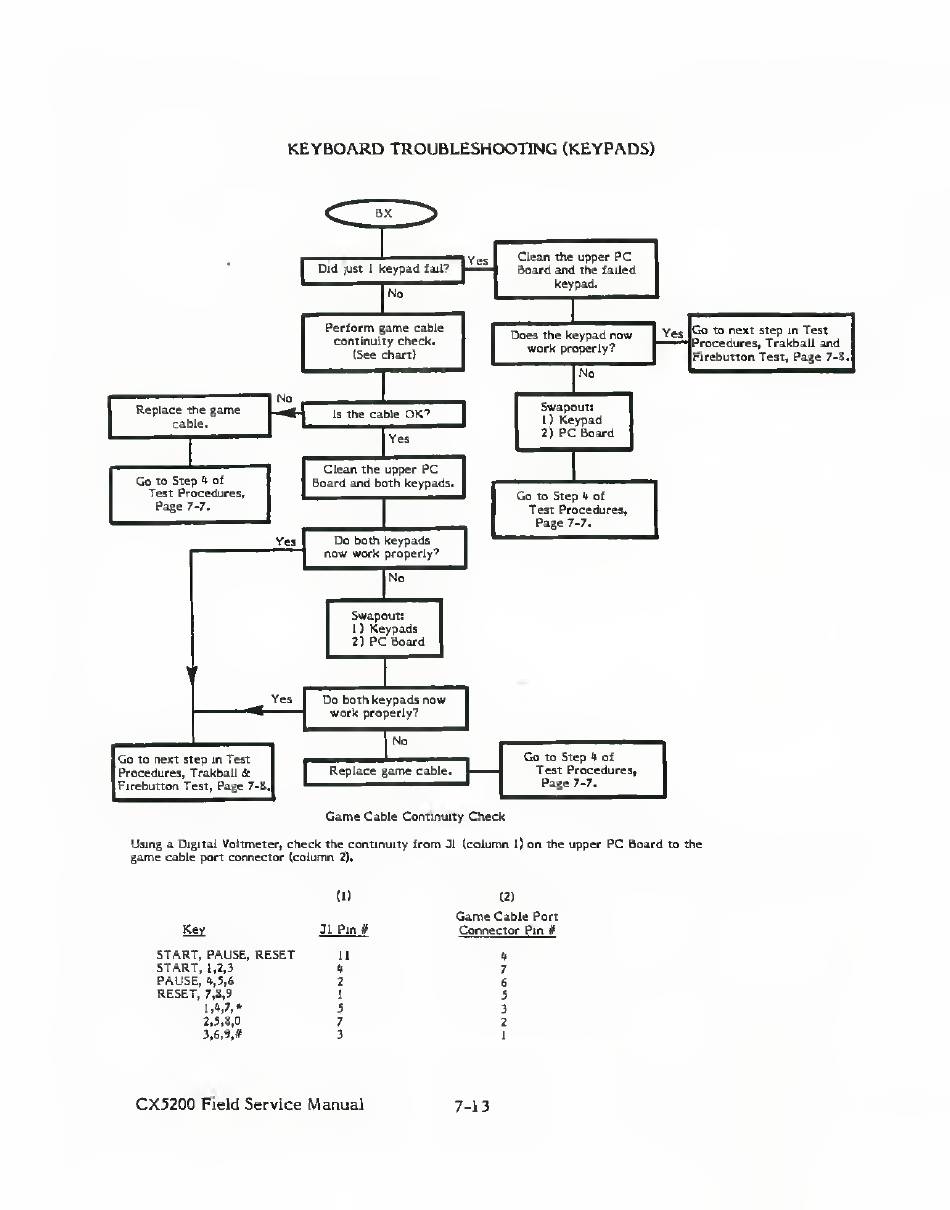

KEYBOARD
TROUBLESHOOTING
(KEYPADS)
Game
Cable
Continuity
Check
Using a
Digital
Voltmeter,
check
the continuity
from
31
(column
1)
on
the
upper
PC
Board
to
the
game
cable port connector
(column
2).
Key
(1)
31
Pin
#
(
2
)
Game
Cable
Port
Connector
Pin
#
START, PAUSE, RESET
1
START,
1,2,3
4
PAUSE,
4,5,6
2
RESET,
7,8,9
1
1,6,7,*
5
2,
5, 8,0
7
3,6,9,#
3
CX5200
Field
Service
Manual
7-13
