Outer
Case
The
outer case
consists
of a
bottom and
a
top
plastic cover
which are held together by
five
Phillips-head screws.
At
the rear of the
bottom
plastic
cover (Figure
1-2)
is:
a)
an opening
for
access to the
channel 2-3 switch
b)
a
removable
door which
allows access for future
development.
In
the base
is
a cable
wrap
post for
RF
cable
storage.
Channel 2-3
Future
Development Access

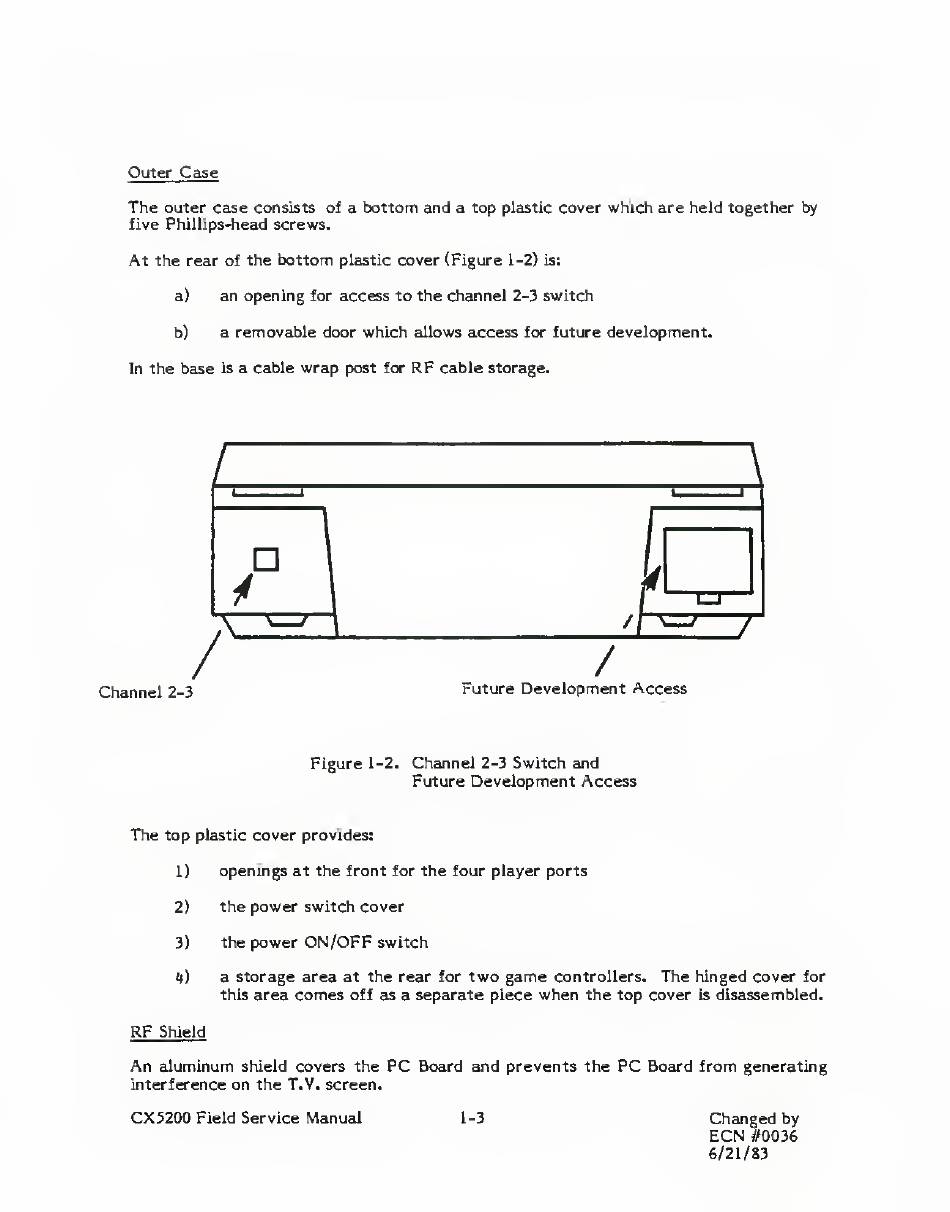

Figure
1-2. Channel
2-3
Switch and
Future Development Access
The
top
plastic
cover
provides:
1)
openings at the
front for the four player ports
2)
the
power switch cover
3)
the
power
ON
/OFF
switch
4)
a storage area at the rear for
two
game
controllers.
The
hinged cover
for
this
area
comes
off as
a separate piece
when
the top cover
is
disassembled.
RF
Shield
An aluminum
shield
covers the
PC
Board and prevents
the
PC
Board
from
generating
interference
on
the T.V. screen.
CX5200
Field
Service Manual
1-3
