Two-Port
Universal
PCB
differences:
1)
All of
the 4-port
universal
board differences
listed
above
are included on
the 2-port universal
PCB.
2)
Ports
3
and
4
and
their
associated discrete
components have been
removed.
3)
ICs
A12
and
A13
have been removed.
4)
The automatic
switchbox
has
been replaced with a manual
switchbox and
the
RF
cable has
been
replaced with the standard
RF
cable.
5)
The power
adaptor
plugs directly into
the rear of the console instead
of
plugging
into
the switchbox.
I

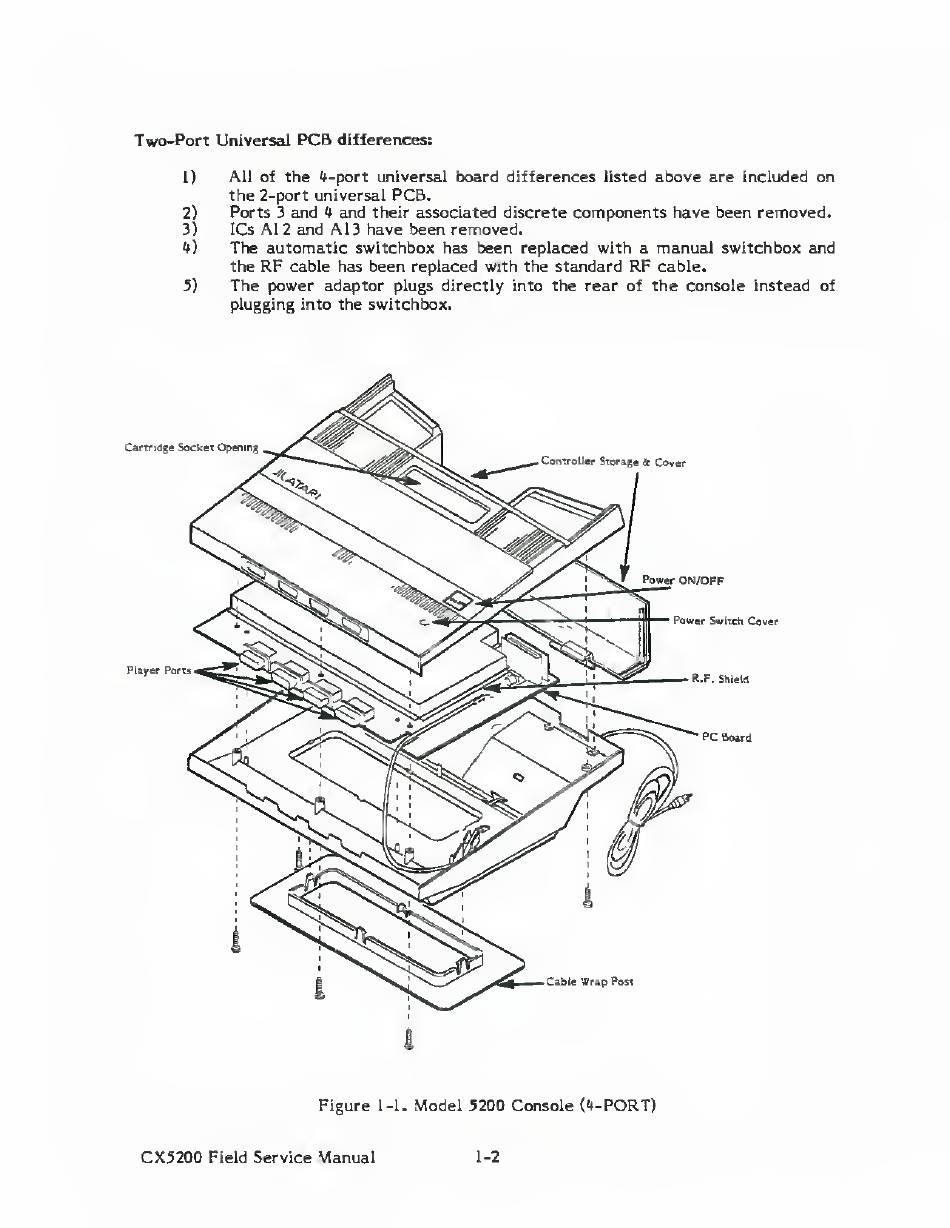

Figure 1-1.
Model
5200 Console
(4-PORT)
CX5200
Field
Service
Manual 1-2
