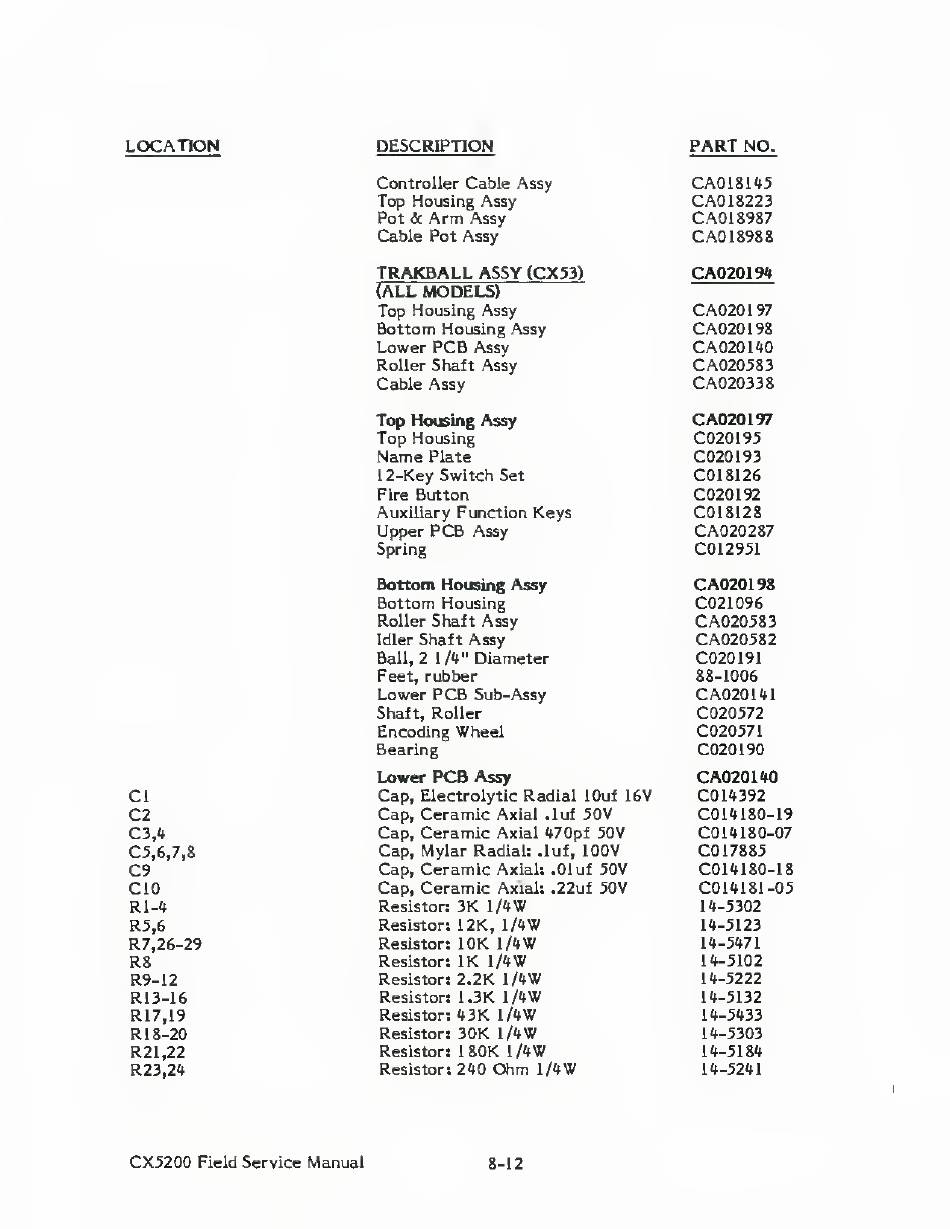

Atari CX 5200 Field Service Manual page 169

LOCATION
DESCRIPTION
PART
NO.
Controller Cable Assy
CA018145
Top Housing
Assy
CA018223
Pot
6c
Arm
Assy
CA018987
Cable Pot Assy
CA018988
TRAKBALL
ASSY
(CX53)
(ALL
MODELS)
CA020I94
Top Housing Assy
CA020197
Bottom
Housing Assy
CA020198
Lower
PCB
Assy
CA020140
Roller Shaft Assy
CA020583
Cable Assy
CA020338
Top Housing Assy
CA020197
Top
Housing C020195
Name
Plate C020193
1
2-Key Switch Set
C018126
Fire
Button C020192
Auxiliary Function Keys C018128
Upper
PCB
Assy
CA020287
Spring
CO
12951
Bottom
Housing Assy
CA0201
98
Bottom Housing C021096
Roller
Shaft Assy
CA020583
Idler
Shaft Assy
CA020582
Ball,
2
1/4" Diameter C020191
Feet,
rubber
88-1006
Lower
PCB
Sub- Assy
CA020141
Shaft, Roller
C020572
Encoding Wheel C020571
Bearing
C020190
Lower
PCB
Assy CA020140
Cl Cap,
Electrolytic Radial lOuf 16V
C014392
C2
Cap,
Ceramic
Axial .luf
50V
CO
14
180-19
C3,4 Cap,
Ceramic
Axial
470pf 50V C014180-07
C5,6,7,8
Cap, Mylar
Radial:
.luf,
100V CO
17885
C9 Cap,
Ceramic
Axial:
.01
uf
50V
C014180-1
CIO
Cap,
Ceramic
Axial: .22uf
50V
CO
141 81
-05
Rl-4
Resistor:
3K 1/4W
14-5302
R5,6 Resistor:
12K,
1/4W
14-5123
R7, 26-29
Resistor:
10K 1/4W
14-5471
R8
Resistor:
IK 1/4W 14-5102
R9-12 Resistor:
2.2K 1/4W 14-5222
R13-16
Resistor;
1.3K 1/4W 14-5132
R17,19 Resistor:
43K 1/4W
14-5433
R
18-20 Resistor:
30K 1/4W
14-5303
R21,22
Resistor:
1
80K 1/4W
14-5184
R23,24
Resistor:
240
Ohm
1/4W
14-5241
