CONTROLLER
DISASSEMBLY/
ASSEMBLY
Disassembly
1.
To remove
the select switches:
• Slide
a
flathead
screw
driver
under
the select
switch bezel
between
switches and pry out the
bezel (See
Figure
6-6).
•
Remove
the switches.

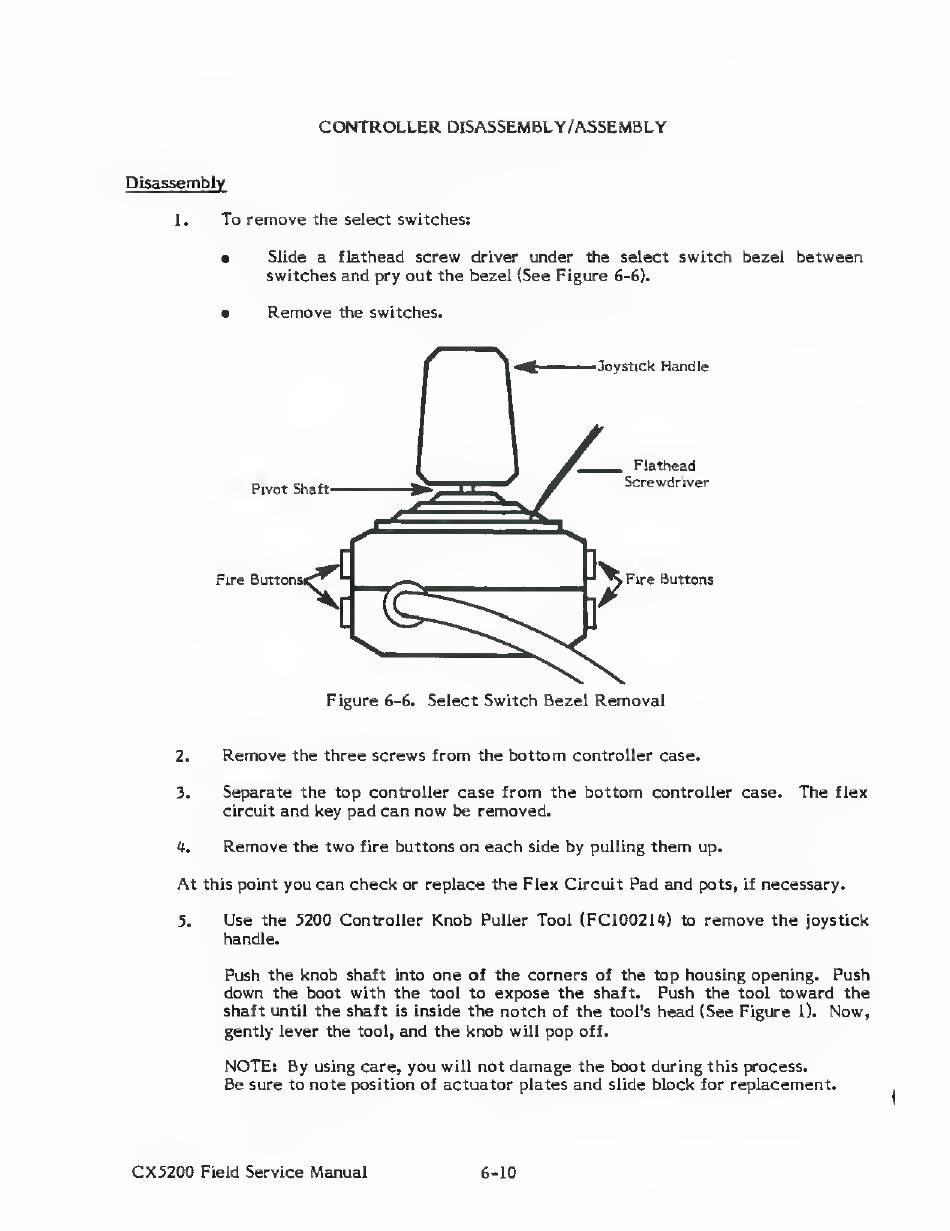

Figure
6-6.
Select
Switch Bezel
Removal
2.
Remove
the three
screws from
the
bottom
controller case.
3.
Separate the top
controller case
from
the
bottom
controller case.
The
flex
circuit
and
key pad
can
now
be removed.
4.
Remove
the
two
fire
buttons on each
side
by
pulling
them
up.
At
this
point
you can check
or
replace the
Flex
Circuit
Pad and
pots,
if
necessary.
5.
Use
the
5200
Controller
Knob
Puller
Tool
(FC100214)
to
remove
the
joystick
handle.
Push the knob shaft
into
one
of the
corners
of
the top housing opening.
Push
down
the boot with the
tool to expose
the shaft.
Push the
tool
toward
the
shaft until
the
shaft
is
inside the notch of the
tool's
head (See Figure
1).
Now,
gently lever the
tool,
and the knob
will
pop
off.
NOTE:
By
using care,
you
will not
damage
the boot during
this process.
Be
sure to note position of actuator plates
and
slide block
for
replacement.
CX5200
Field
Service
Manual
6-10
