NOTE:

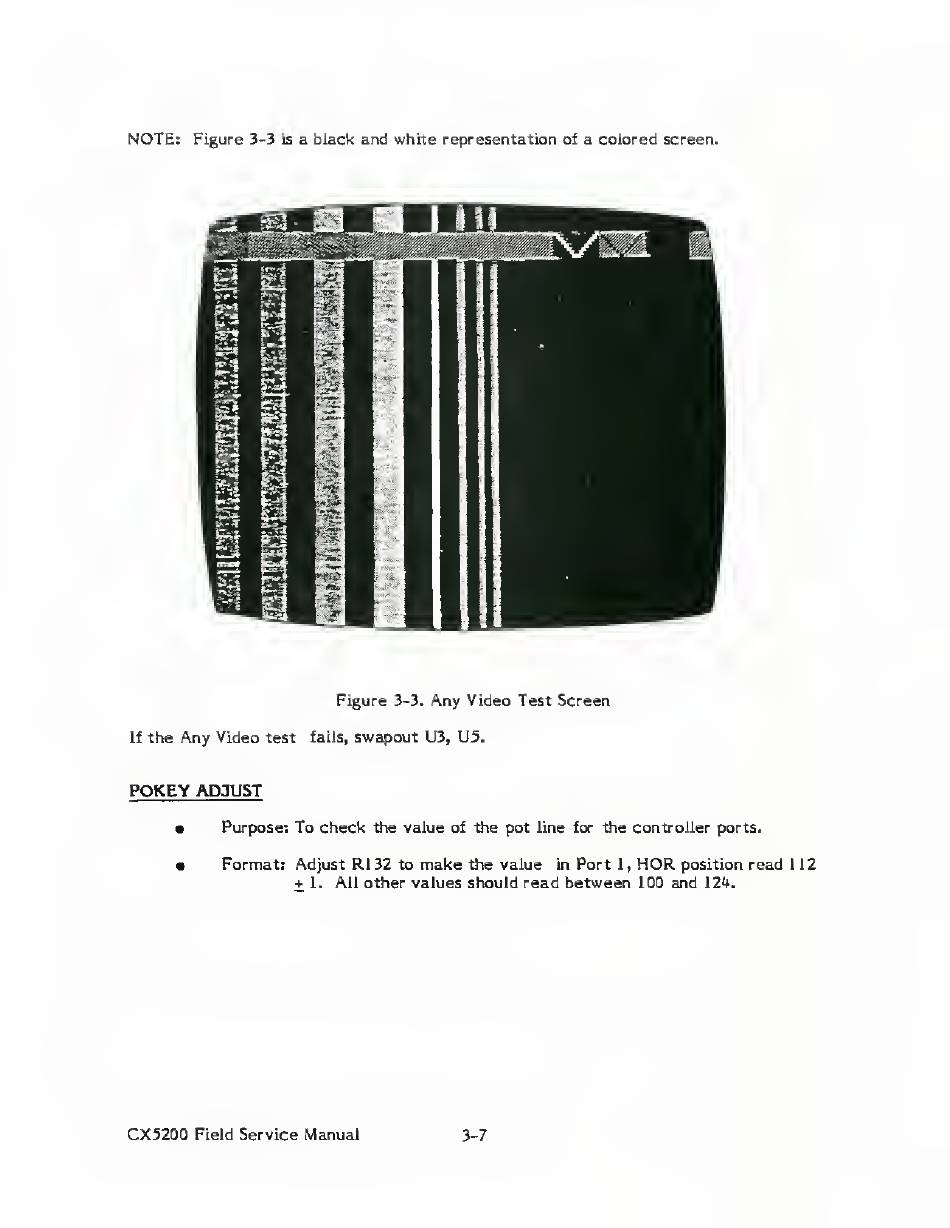

Figure 3-3
is
a black
and white
representation
of
a colored screen.
Figure
3-3.
Any
Video Test Screen
If
the
Any
Video
test
fails,
swapout
U3, U5.
POKEY
ADJUST
Purpose:
To check
the
value
of the pot
line for
the controller ports.
Format:
Adjust
R132
to
make
the
value
in
Port
1,
HOR
position
read 112
+
1.
All
other values should read
between
100 and
124.
CX5200
Field
Service
Manual
3-7
