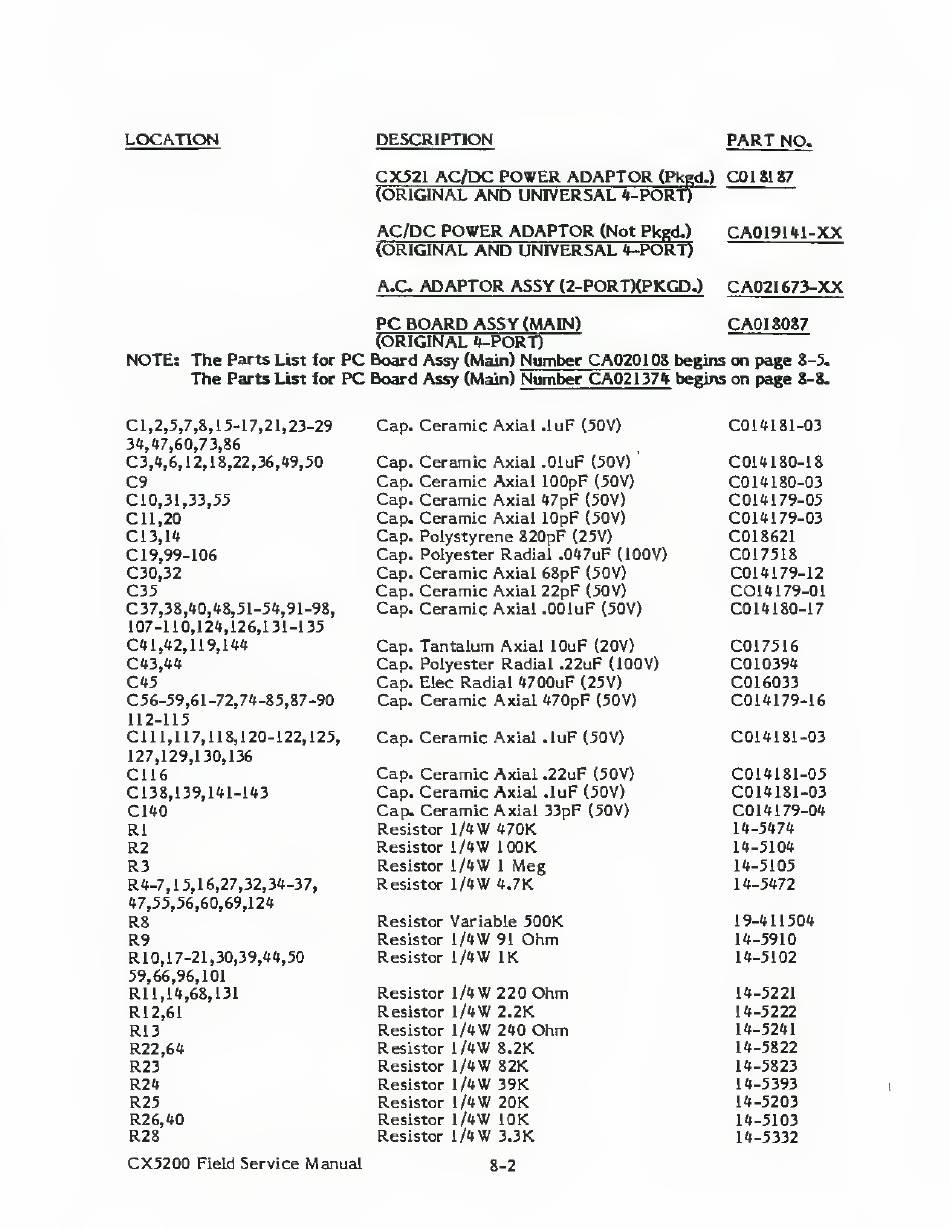

Atari CX 5200 Field Service Manual page 159

LOCATION
DESCRIPTION
CX521
AC/DC
POWER ADAPTOR
(Pked.)
(ORIGINAL
AND
UNIVERSAL
4-PORT)
AC/DC POWER ADAPTOR
(Not Pkgd.)
(ORIGINAL
AND
UNIVERSAL 4-PORT)
A.C.
ADAPTOR
ASSY
(2-PORT)(PKGD.)
PART
NO.
C018187
CA019141-XX
CA021673-XX
PC BOARD
ASSY
(MAIN)
CAP
1
8087
(ORIGINAL 4-PORT)
NOTE: The
Parts List
for
PC
Board Assy
(Main)
Number CA020108
begins on page 8-5.
The
Parts List
for
PC
Board Assy
(Main)
Number CA021374
begins on
page
8-8.
Cl,
2, 5, 7, 8,
15-17,
21,
23-29
34,47,60,73,86
Cap. Ceramic
Axial .luF (50V)
C014181-03
C3,
4, 6, 12, 18,
22, 36, 49, 50
Cap.
Ceramic
Axial .OluF
(50V)
C014180-18
C9 Cap.
Ceramic
Axial
lOOpF
(50V)
CO
14
180-03
CIO,
31,
33,
55
Cap. Ceramic
Axial
47pF
(50V)
C014
179-05
Cl
1,20
Cap.
Ceramic
Axial
lOpF
(50V) C01
4
179-03
C13,14
Cap.
Polystyrene
820pF
(25V)
C018621
C19, 99-106 Cap. Polyester Radial .047uF
(100V)
C017518
C30,32 Cap.
Ceramic
Axial
68pF
(50V)
C014179-12
C35 Cap. Ceramic
Axial
22pF
(50V)
CO!4
179-01
C37,
38, 40, 48, 51-54, 91-98,
107-110,124,126,131-135
Cap. Ceramic
Axial .OOluF
(50V)
C0141 80-17
C41,42,
119,144
Cap. Tantalum
Axial
lOuF
(20V)
C017516
C43,44 Cap. Polyester Radial .22uF (100V) C010394
C45
Cap. Elec Radial
4700uF
(25V)
C016033
C56-59, 61 -72,74-85,87-90
112-115
Cap.
Ceramic
Axial
470pF
(50 V)
C014179-16
Clll,
117, 118,
120-122,
125,
127,129,130,136
Cap. Ceramic
Axial .luF (50V)
C014181-03
C116
Cap. Ceramic
Axial .22uF (50V) C014181-05
C138,
139,
141-143 Cap.
Ceramic
Axial .luF (50V)
C014181-03
C140 Cap.
Ceramic
Axial 33pF
(50V)
C01
4
179-04
R1 Resistor
1/4W 470K 14-5474
R2
Resistor
1/4W 100K
14-5104
R3
Resistor
1/4W
1
Meg
14-5105
R4-7,
15,
16,27,32,34-37,
47,55,56,60,69,124
Resistor
1/4W 4.7K
14-5472
R8
Resistor Variable
500K 19-411504
R9
Resistor
1/4W
91
Ohm
14-5910
R10,
17-21,
30, 39, 44,
50
59,66,96,101
Resistor
1/4W IK
14-5102
R1
1,14,68,131
Resistor
1/4W 220
Ohm
14-5221
R12,61 Resistor
1/4W 2.2K 14-5222
R13
Resistor
1/4W
240
Ohm
14-5241
R22,64 Resistor
1/4W 8.2K 14-5822
R23
Resistor
1/4W 82K 14-5823
R24
Resistor
1/4W 39K 14-5393
R25
Resistor
1/4W 20K 14-5203
R26,40 Resistor
1/4W 10K
14-5103
R28
Resistor
1/4W 3.3K
14-5332
CX5200
Field
Service
Manual
8-2
