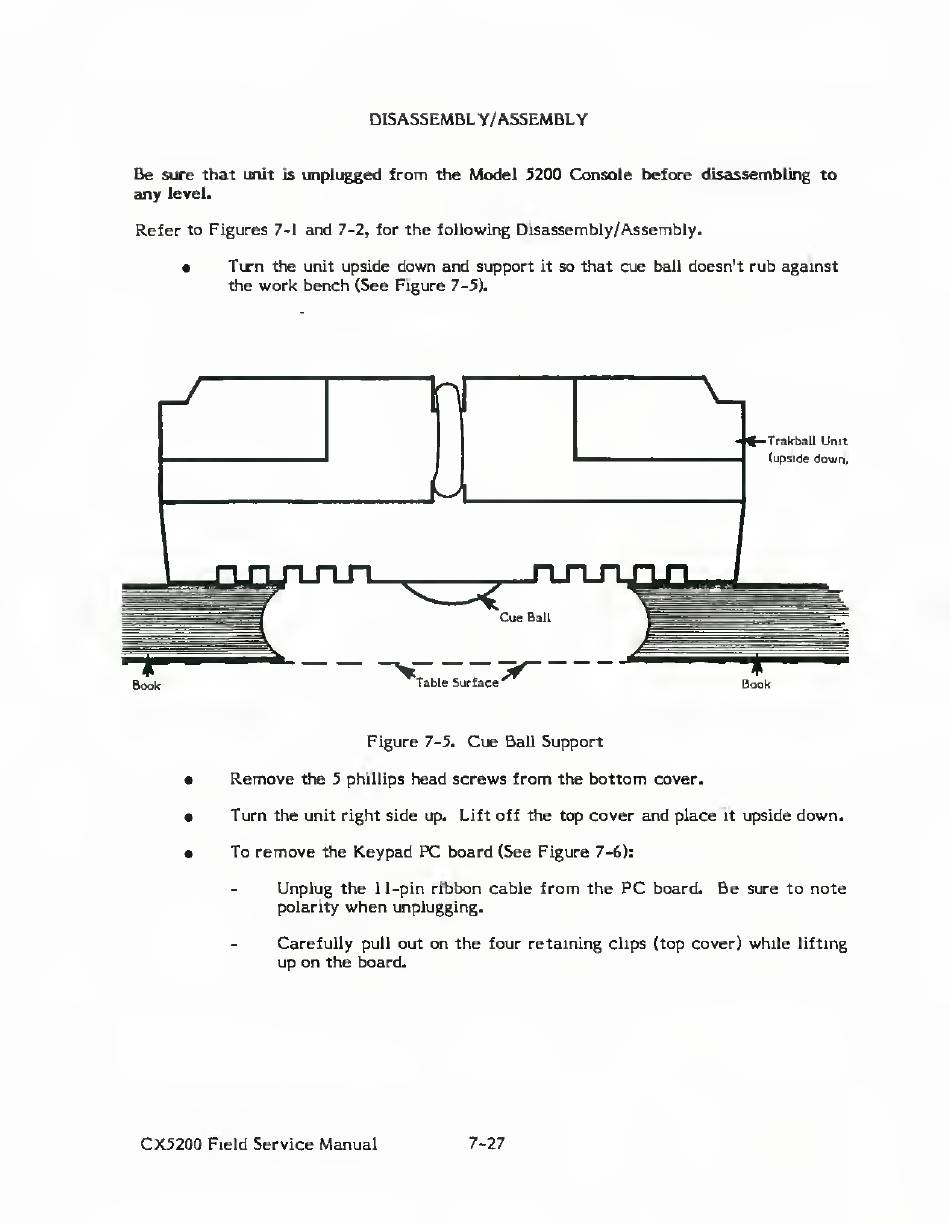

Atari CX 5200 Field Service Manual page 152

DISASSEMBLY/ ASSEMBLY
Be
sure that unit
is
unplugged from
the
Model 5200 Console before disassembling to
any
level.
Refer
to
Figures
7-1 and 7-2, for
the following
Disassembly/Assembly.
•
Turn
the
unit
upside
down
and support
it
so that cue
ball doesn't
rub against
the
work bench
(See Figure
7-5).
Figure
7-5.
Cue
Ball
Support
•
Remove
the
5
phillips
head screws from
the
bottom
cover.
•
Turn
the unit right side
up.
Lift off the top
cover and
place
it
upside
down.
•
To remove
the
Keypad
PC
board (See Figure
7-6):
Unplug
the
1
1-pin ribbon cable
from
the
PC
board.
Be
sure to
note
polarity
when
unplugging.
Carefully
pull
out on the four retaining
clips (top
cover) while
lifting
up
on
the board.
CX5200
Field
Service
Manual
7-27
