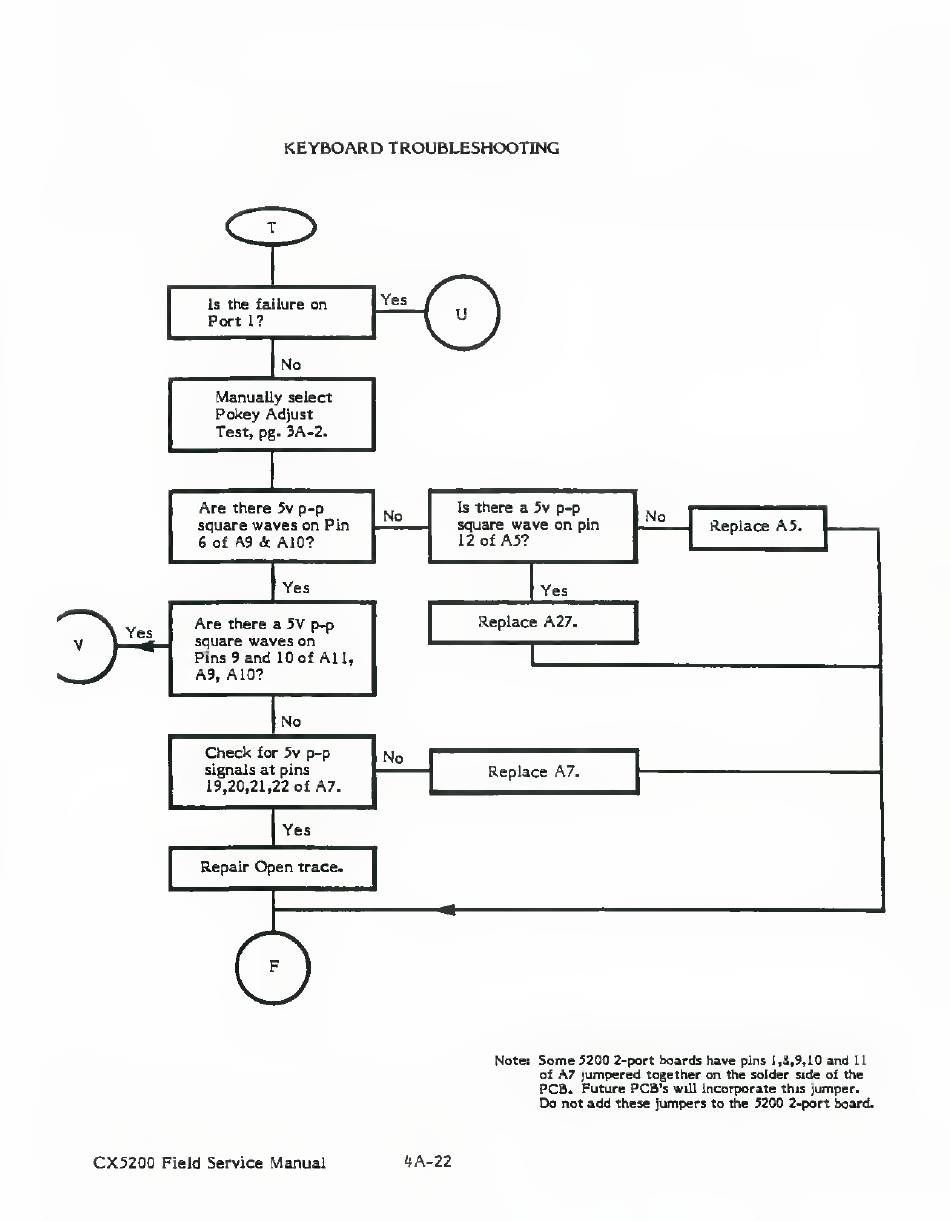

KEYBOARD
TROUBLESHOOTING
Note:
Some
5200
2-port boards
have
pins 1,8,9,10
and
11
of
A7
jumpered
together on
the solder
side
of the
PCB.
Future PCB's
will
incorporate
this
jumper.
Do
not
add
these
jumpers
to the
5200 2-port
board.
CX5200
Field Service
Manual
4A-22
