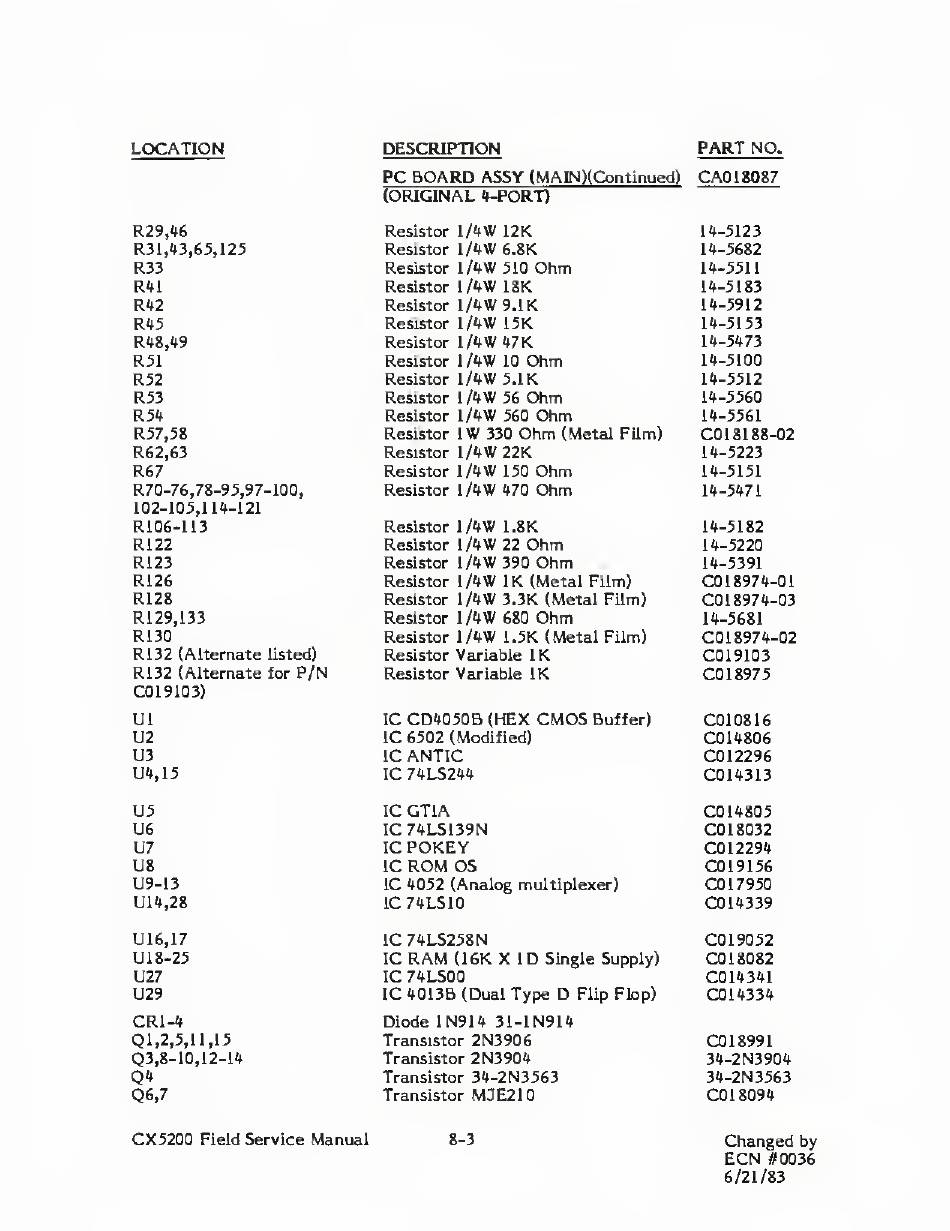

Atari CX 5200 Field Service Manual page 160

LOCATION
DESCRIPTION
PART
NO.
PC BOARD
ASSY
(MAIN)(Continued)
CA018Q87
(ORIGINAL 4-PORT)
R29,46
Resistor
1/4W 12K
14-5123
R31,43,65,125
Resistor
1/4W
6.8K 14-5682
R33
Resistor
1/4W
510
Ohm
14-5511
R41
Resistor
1/4W 18K 14-5183
R42
Resistor
1/4W
9.1
K
14-5912
R45
Resistor
1/4W 15K
14-5153
R48,49
Resistor
1/4W
47
K
14-5473
R51
Resistor
1/4W
10
Ohm
14-5100
R52
Resistor
1/4W
5.1
K
14-5512
R53
Resistor
1/4W
56
Ohm
14-5560
R54
Resistor
1/4W
560
Ohm
14-5561
R57,58 Resistor
1W
330
Ohm
(Metal Film) C01
81
88-02
R62,63
Resistor
1/4W 22K 14-5223
R67
Resistor
1/4W
150
Ohm
14-5151
R70-76, 78-95, 97-100,
102-105,114-121
Resistor
1/4W
470
Ohm
14-5471
R106-1
13
Resistor
1/4W
1.8K 14-5182
R122
Resistor
1/4W
22
Ohm
14-5220
R123
Resistor
1/4W
390
Ohm
14-5391
R126
Resistor
1/4W IK
(Metal Film)
CO
1897 4-01
R128
Resistor
1/4W 3.3K (Metal Film)
C018974-03
R129,133
Resistor
1/4W
680
Ohm
14-5681
R130
Resistor
1/4W
1.5K (Metal Film)
C018974-02
R132
(Alternate
listed)
Resistor Variable
IK
C019103
R132
(Alternate
for
P/N
C019103)
Resistor Variable
IK CO
18975
U1
IC
CD4050B (HEX
CMOS
Buffer) C010816
U2
IC 6502
(Modified) C014806
U3
IC
ANTIC
CO
12296
U4,15
IC
74LS244 C014313
U5
IC
GTIA
C014805
U6
IC
74LS139N CO
18032
U7
IC
POKEY
CO
12294
U8
IC
ROM
OS
C019156
U9-13
IC
4052 (Analog multiplexer)
CO
17950
U14,28
IC
74LS10 CO 14339
U16,17
IC
74LS258N C019052
U
18-25
IC
RAM
(16K
X ID
Single Supply)
CO
18082
U27
IC
74LS00
C014341
U29
IC
4013B
(Dual
Type
D
Flip Flop) C014334
CR1-4
Diode
1N914
31-1
N914
Ql,
2, 5,
11,
15
Transistor
2N3906 CO
18991
Q3, 8-10,
12-14
Transistor
2N3904
34-2N3904
Q4
Transistor
34-2N3563 34-2N3563
Q6,7 Transistor
M3E210 CO
18094
CX5200
Field Service
Manual
8-3
Changed
by
ECN
#0036
6/21/83
