Throw away the Jøtul F 145 / F 145 S
installation manual included with the
burn chambre. Use the manual that
comes with the conversion kit from
F145 to S A 4-5

Table of contents

Installation manual with technical data
1.0 Relationship to the authorities ..................... 3
2.0 Technical data ............................................ 3
3.0 Safety ......................................................... 7
4.0 Installation / Conversion to Scan Andersen......7
5.0 Daily use .................................................... 12
6.0 Service ....................................................... 14
7.0 Maintenance .............................................. 15
8.0 Operational problemes -
troubleshooting .......................................... 15
9.0 Optional Equipment / Delivery units ......... 16
10.0 Guarantee terms ...................................... 16

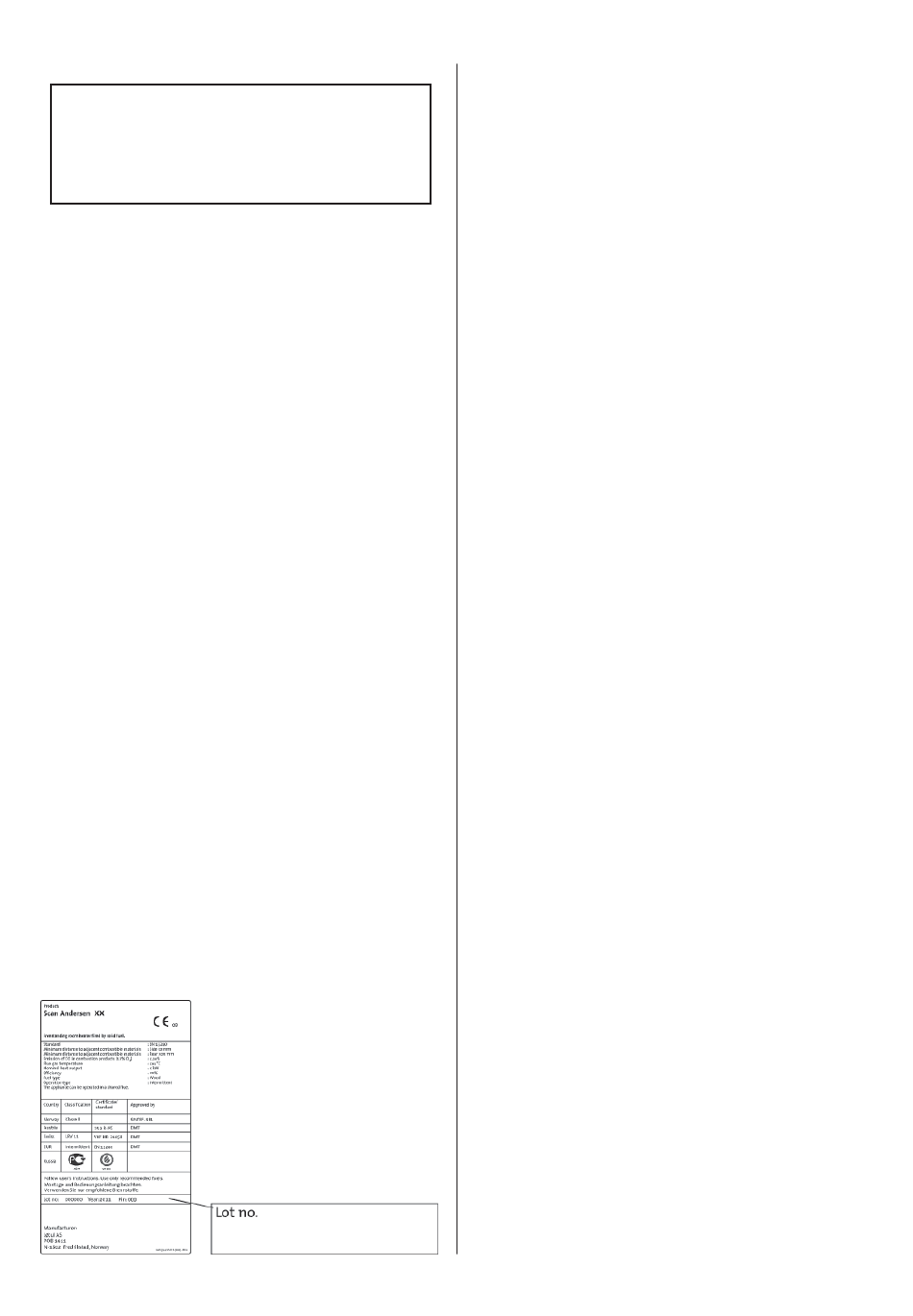

The lot number and year are
marked on a label on all our
products. Write this number in the
place indicated.
If you need to contact your dealer,
you must always provide the serial
number and guarantee
receipt for the guarantee to be
valid.
1.0 Relationship to the
authorities
Installation of a fi replace must be according to local codes and
regulations in each country.
All local regulations, including those that refer to national and
European standards, shall be complied with when installing
the product.
Before use read the Installation and Operating Instructions
carefully. We recommend that the installed product be
inspected by a qualifi ed professional before use.
A heat-resistant rating plate is attached to the rear of the
heat shield. This contains information about identifi cation and
documentation for the product.

2.0 Technical data

Material:
Finish:
Fuel:
Log length, max.:
Flue outlet:
Flue pipe dimension:
Weight with convection panels:
Weight with soapstone panels:
Dimensions, distances:
Technical data according to EN 13240:
Nominal heat output:
Recommended chimney draught: 13 Pa
Effi ciency:
CO emission (13% O
CO emission (13% O
chimney temperature:
Operational type:
Intermittent combustion in this context means normal use of
the fi replace, i.e. fuel is added as soon as the fuel has burnt
down to a suitable amount of embers.
card/
English
Cast iron
Black paint
Wood
30 cm
Top, rear
Ext: Ø 125 mm/Ø130 mm
Approx. 94 kg
Approx. 178 kg
See fi g. 1
4 kW
77%
): 0.09%
2
1178 mg/Nm 3
):
2
269 o C
Intermittent
3
