SCAN 83 series Assembly And Instruction Manual

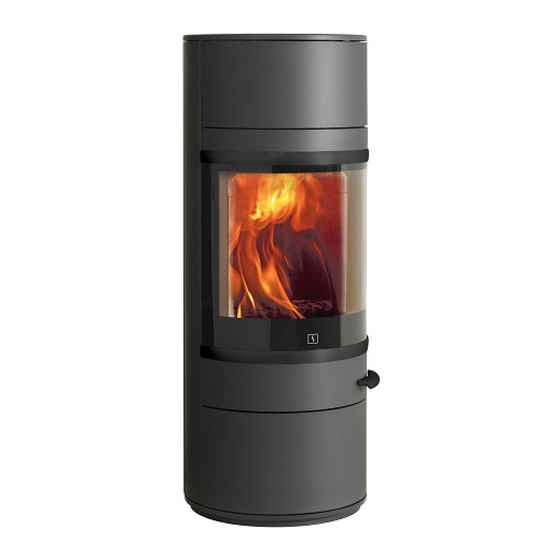

Wood-burning stove
Hide thumbs Also See for 83 series:
Table of Contents

Advertisement

Quick Links

83
UK - ASSEMBLY AND INSTRUCTIONS MANUAL
SCAN 83
ASSEMBLY AND INSTRUCTIONS MANUAL SCAN 83

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 83 series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SCAN 83 series

Summary of Contents for SCAN 83 series

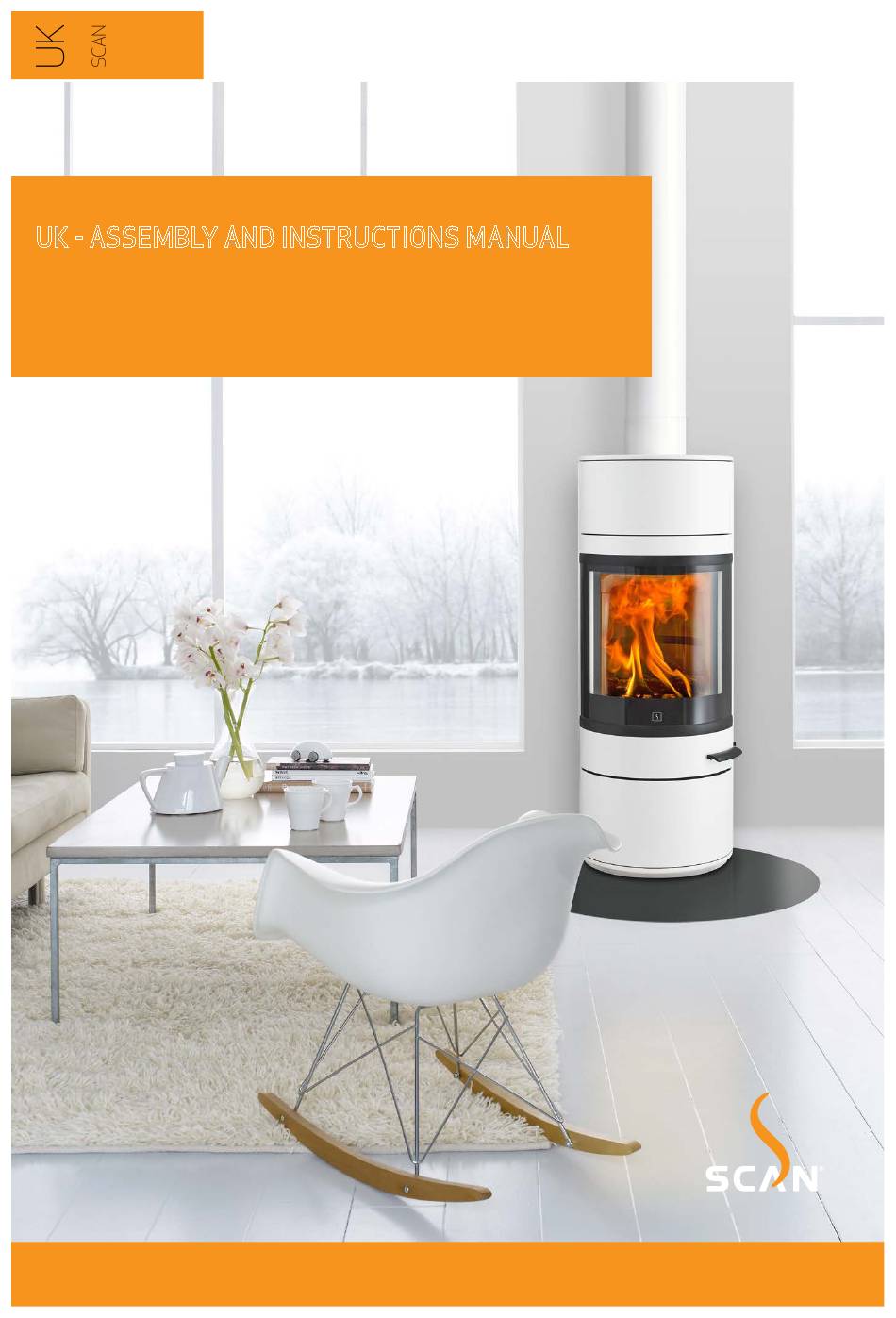

  • Page 1 UK - ASSEMBLY AND INSTRUCTIONS MANUAL SCAN 83 ASSEMBLY AND INSTRUCTIONS MANUAL SCAN 83...
  • Page 2 CONGRATULATIONS ON YOUR NEW SCAN WOOD-BURNING STOVE You have purchased a product by one of Europe’s leading manufacturers of wood-burning stoves, and we are sure that you will have years of pleasure from your purchase. To make the best possible use of your stove, it is important that you follow our advice and instructions.
  • Page 3 SCAN 83-5 SCAN 83-7 MAXI SCAN 83-6 SCAN 83-8 MAXI TILES / SOAPSTONES...
  • Page 4 PLEASE NOTE! YOU GET THE BEST USE OF THE STOVE BY USING A TOP-DOWN LIGHTING METHOD "INSTRUCTIONS FOR HEATING"...

  • Page 5: Table Of Contents

    TABLE OF CONTENTS ¬ ¬ TECHNICAL DATA Installation Dimension Safety Type plate The clean air act 1993 and smoke control areas Product registration number Technical data and dimensions ¬ ¬ ASSEMBLY Tools needed for mounting of the stove Installation with rotating base Loose parts Removal of packaging Additional accessories...

  • Page 6: Technical Data

    Any changes made to the product by the dealer, fitter or user could result in the product and safety functions not functioning as intended. The same applies to the fitting of accessories or extra equipment not supplied by Scan A/S. This could also be the case if parts that are necessary for the operation and safety of the stove are dismantled or removed.

  • Page 7: Technical Data And Dimensions

    Dust @ 13% O 3 mg/Nm Max. wood length (vertical position) 35 cm No x @ 13% O 106 mg/Nm Weight Scan 83-1 / 83-2 ca. 117 kg Efficiency 81 % Weight Scan 83-3 / 83-4 ca. 125 kg Energy efficiency index...

  • Page 8: Dimension

    STI: Centre of fresh air intake rear outlet Centre of fresh air intake bottom All measurements are in millimeters 230**** DIMENSION SKETCH SCAN 83-3 AND 83-4 MAXI Scan 83 Målskitse Scan 83-1 NAVN: EMNE: TG.NR: MATERIALE: VÆGT:...
  • Page 9 Centre of fresh air intake rear outlet Centre of fresh air intake bottom All measurements are in millimeters 230**** 230**** DIMENSION SKETCH SCAN 83-7 AND 83-8 MAXI (SOAPSTONES) Scan 83 Scan 83 Målskitse Scan 83 med fedtsten Målskitse Scan 83 med fedtsten...

  • Page 10: Type Plate

    PRODUCT REGISTRATION NUMBER All Scan wood-burning stoves are provided with a product registration number. Please make a note of this number at the rear page of this manual; you will always need to quote it when contacting your dealer or Scan A/S.

  • Page 11: Assembly

    ¬ Scan 83-5 and Scan 83-6:Tile sides and top ¬ Scan 83 Maxi (4 items approx. 40 kg): Heat accumulating stones DISPOSAL OF PACKAGING Your Scan stove may come supplied with the following packaging: The wood packaging can be reused and after final use can be incinerated as a CO...

  • Page 12: Closed Combustion System

    AREAL: Krog Iversen & Co A/S DK-5492 Vissenbjerg© If you intend to connect your stove to an existing chimney, it makes sense to contact an authorised Scan dealer, or a local chim- C:\Working Folder\Designs\Scan 83\90583040.idw STI: ney sweep, for advice. These experts will also let you know if your chimney needs renovating.

  • Page 13: Requirements For Chimney

    SAFETY DISTANCE European, national and local regulations concerning safety distances for wood-burning stoves must be complied with. Scan 83 Ovn med buet knærør NAVN: EMNE: TG.N 28-02-13 MATERIALE: VÆGT: DATO: DIMENSION: AREAL: Krog Iversen & DK-5492 Vissen C:\Working Folder\Designs\Scan 83\90583030.idw STI:...

  • Page 14: Distance To Flammable Materials

    To ensure optimum function of the rotating solution for the stove, it is important that assembly be performed in a meticulous AREAL: Krog Iversen & Co A/S fashion by a qualified fitter. DK-5492 Vissenbjerg© g Folder\Designs\Scan 83\90583006.idw See the separate instructions supplied with the rotating base. Opstilling mod brændbart materiale Scan 83 90583006...

  • Page 15: Removal Of Packaging

    30184327 mm^2 DIMENSION: AREAL: Krog Iversen & Co A/S 01-03-13 MATERIALE: VÆGT: DATO: DK-5492 Vissenbjerg© Afmontage ovn fra palle Scan 83 C:\Working Folder\Designs\Scan 83\90583033.idw NAVN: EMNE: TG.NR: STI: DIMENSION: AREAL: Krog Iversen & Co DK-5492 Vissenbj 01-03-13 MATERIALE: C:\Working Folder\Designs\Scan 83\90583032.idw VÆGT:...

  • Page 16: Height Adjustment Of Stove

    Justering af ovn Scan 83 NAVN: EMNE: TG.NR: 01-03-13 DATO: MATERIALE: VÆGT: SIGN: Justering af ovn Scan 83 NAVN: EMNE: DIMENSION: AREAL: Krog Iversen & Co A/S MATERIALE: DK-5492 Vissenbjerg© C:\Working Folder\Designs\Scan 83\90583034.idw STI: DIMENSION: AREAL: C:\Working Folder\Designs\Scan 83\90583034.idw STI:...

  • Page 17: Fitting The Flue Connection Piece

    NAVN: EMNE: TG.NR: 21-02-13 MATERIALE: VÆGT: DATO: SIGN: DIMENSION: AREAL: Krog Iversen & Co A/S DK-5492 Vissenbjerg© C:\Working Folder\Designs\Scan 83\90583018.idw STI: Montage røgstuds i topafgang Scan 83 NAVN: EMNE: TG.NR: 905830 4 pcs. M5X10 mm screws 21-02-13 MATERIALE: VÆGT: DATO:...
  • Page 18 FITTING THE FLUE CONNECTION PIECE IN THE REAR OUTLET Important! Only Scan 83 Maxi: Fit the connecting piece with the four screws found in the stove’s ash drawer Using cutting pliers, cut off the cover plate from the rear plate and the heat shield at its securing points...

  • Page 19: Height Adjustment Of Top Plate

    Use the tree adjustment screws to level the top plate. FITTING THE SOAPSTONES Scan 83-5, 83-6, 83-7 and 83-8 are delivered with loose soap- stones for mounting on the sides of the stove. Remove the steel top plate and the cover plate in the stove’s base...
  • Page 20 FITTING THE SOAPSTONES The delivered gasket (7/9 m) should be cut in appropiate lengths and sticked onto the sides of the stove as shown below Scan 83-7 / 83-8 Scan 83-7 / 83-8 Gasket Scan 83-5 / 83-6 Scan 83-5 / 83-6 Scan 83 Tætningsbånd for fedtsten Maxi...
  • Page 21 TG.NR: 90583019 21-02-13 MATERIALE: VÆGT: DATO: SIGN: DIMENSION: AREAL: Krog Iversen & Co A/S DK-5492 Vissenbjerg© C:\Working Folder\Designs\Scan 83\90583019.idw STI: 2 pcs. M5x12 RH socket head cap screws Fedtstensmontage Scan 83 NAVN: EMNE: Fedtsten samlet, Maxi Scan 83 90583024 EMNE: TG.NR:...

  • Page 22: Fitting The Soapstone Top

    EMNE: TG.NR: Fedtstenstopplade topafgang Scan 83 NAVN: EMNE: DATO: 01-02-13 MATERIALE: VÆGT: SIGN: 01-02 MATERIALE: VÆGT: DATO: DIMENSION: AREAL: Krog Iversen & Co A/S DIMENSION: AREAL: Krog Ivers DK-5492 Vissenbjerg© C:\Working Folder\Designs\Scan 83\90583010.idw STI: DK-5492 V C:\Working Folder\Designs\Scan 83\90583011.idw STI:...

  • Page 23: Fitting The Ceramic Tiles

    FITTING THE CERAMIC TILES (ACCESSORY) Ceramic tiles are available for Scan 83-5 and 83-6. Please note that the tiles are made of natural materials, and therefore they can vary in structure and form. There may be minor cracks in the glazing which is especially visible in the bright colours.

  • Page 24: Heat-Storage System

    HEAT-STORAGE SYSTEM (ACCESSORY) Heat-storage stones are available for Scan 83-3, 83-4, 83-7 and 83-8. Heat-storage stones are made from a special material with a high heating capacity. The stones are heated up during the firing and gives off the heat again after the firing, which means that the stove stays warm for a longer time.

  • Page 25: Load-Bearing Foundation

    Your local Scan dealer can advise you on regulations concerning protection of flammable materials in the vicinity of your stove. The floor plate’s function is to protect the floor and flammable material against any sparks that may occur. A floor plate can be made of steel or glass, but the stove can also be erected on clinker concrete, natural stone or similar materials.

  • Page 26: Instructions For Use

    INSTRUCTIONS FOR USE CB-TECHNOLOGY (CLEAN BURN) The stove is equipped with CB technology. In order to ensure optimal combustion of gases released during the combustion process, air passes through a specially developed system of channels. The heated air is conducted into the combustion chamber through the holes in the rear lining of the combustion chamber and at the baffle plates.

  • Page 27: Operation With Door Left Open

    Rysterist - askeskuffe Scan 83 NAVN: EMNE: Baffle plates Handle for riddling grate DIMENSION: AREAL: Krog Iversen & Co A/S DK-5492 Vissenbjerg© C:\Working Folder\Designs\Scan 83\90583013.idw MATERIALE: VÆGT: DATO: STI: DIMENSION: AREAL: C:\Working Folder\Designs\Scan 83\90583013.idw STI: Ash drawer Adjustment of air supply,...

  • Page 28: Instructions For Heating

    LIGHTING We recommend the use of fire lighters, or similar products, which are available from your Scan dealer. Using fire lighters helps light the wood more quickly and keeps the combustion process clean. See our video about correct firing on www.scan.dk or scan the QR-code. Please note that this...

  • Page 29: Continuous Operation

    CONTINUOUS OPERATION It is important to obtain as high a temperature as possible in the combustion chamber. This results in best possible use of the stove and fuel, as well as achieving clean combustion. In this way you will avoid build-up of soot on the combustion chamber lining and glass pane.

  • Page 30: General Notes

    GENERAL NOTES PLEASE NOTE! Parts of the wood-burning stove, especially the outer surfaces, become hot during use. Due care should be exercised. ¬ Never empty ashes into a flammable container. Ashes can contain glowing embers long after you finish operating the stove. ¬...

  • Page 31: Handling Of The Fuel

    HANDLING OF THE FUEL SELECTING WOOD/FUEL You can use any type of wood as fuel. However harder woods, such as beech or ash, are generally better for heating, as they burn more evenly and create less ash. Other woods, such as maple, birch and spruce, are excellent alternatives. PREPARATION The best fuel is obtained where the tree has been felled and the wood sawn and split before May 1st.

  • Page 32: Maintainance

    Clean your wood-burning stove by wiping it down with a dry, lint-free cloth. If the paint finish gets damaged, you can purchase repair paint in spray form from your Scan dealer. As slight differences in colour shade are possible, we recommend you spray a larger area to achieve a natural blend. For best results, apply repair spray when the stove is warm enough for you to just keep your hand on it, but no hotter.

  • Page 33: Baffle Plates And Combustion Chamber Lining

    SIGN: 23750265 mm^2 23750265 mm^2 ENSION: AREAL: AREAL: Krog Iversen & Co A/S Krog Iversen & Co A/S DK-5492 Vissenbjerg© DK-5492 Vissenbjerg© \Designs\Scan 83\90583008.idw C:\Working Folder\Designs\Scan 83\90583008.idw Scan 83 Brændkammerforing NAVN: EMNE: TG.NR: 90583009 3,50 kg MATERIALE: VÆGT: DATO: 25-01-13...
  • Page 34 90585038 EMNE: TG.NR: 339,26 kg MATERIALE: VÆGT: 19-11-10 VÆGT: DATO: SIGN: AREAL: Krog Iversen & Co A/S 23750265 mm^2 DIMENSION: AREAL: DK-5492 Vissenbjerg© ng\TEGNING\Scan85\90585038.idw C:\Working Folder\Designs\Scan 83\90583008.idw STI: Øverste røgvenderplade Scan 85 NAVN: EMNE: MATERIALE: VÆGT: DIMENSION: AREAL: I:\Udvikling\TEGNING\Scan85\90585039.idw STI:...

  • Page 35: Cleaning The Glass

    DATO: DIMENSION: AREAL: DISPOSAL OF STOVE PARTS Krog Iversen & Co Afmontage brændkammerforing (side) Scan 83 90583035 EMNE: TG.NR: DK-5492 Vissenbje C:\Working Folder\Designs\Scan 83\90583036.idw STI: 05-03-2013 ALE: VÆGT: DATO: SIGN: Steel/cast iron Send for recycling SION: AREAL: Krog Iversen & Co A/S...
  • Page 36 TROUBLESHOOTING SMOKE ESCAPING ¬ Damp wood ¬ Chimney not drawing properly ¬ Chimney is not properly dimensioned for the stove ¬ Check if the smoke gas pipe/chimney are blocked ¬ Is the chimney the right height for its surroundings? ¬ Vacuum in room ¬...
  • Page 37 THE DOOR DOES NOT CLOSE It may occur during transport that the locking device moves out if its correct position, so that the door does not close properly. This can easily be adjusted. Remove the cover plate Press the locking device in its correct position ÷...
  • Page 38 You must quote your stove‘s product registration number when you contact us or your authorized Scan dealer with a warranty claim. The warranty covers all parts which in the opinion of Scan A/S require repair or replacement due to manufacturing or construc- tion error The warranty applies to the original purchaser of the product only, and is not transferable (except on prior sale).
  • Page 39 NOTES...
  • Page 40 Product registration number Quote this number at all enquiries Edition: UK 90583500 SCAN A/S Glasvænget 3-9 DK-5492 Vissenbjerg www.scan.dk 16.01.2019...
