41
EU - ASSEMBLY AND INSTRUCTIONS MANUAL
EU - ASSEMBLY AND INSTRUCTIONS MANUAL

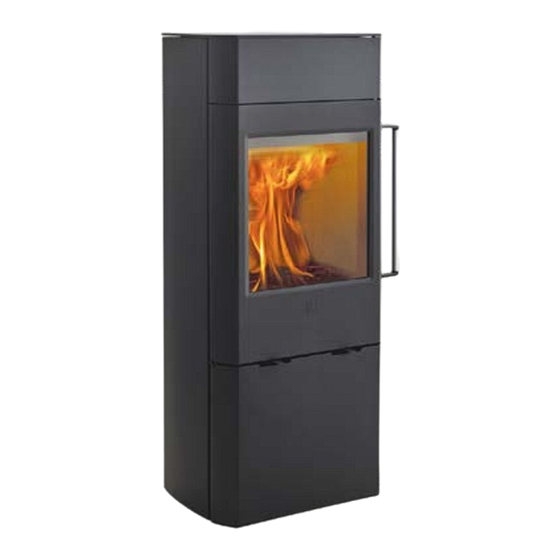

SCAN 41
ASSEMBLY AND INSTRUCTIONS MANUAL SCAN 41

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 41 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SCAN 41

Summary of Contents for SCAN 41

  • Page 1 EU - ASSEMBLY AND INSTRUCTIONS MANUAL EU - ASSEMBLY AND INSTRUCTIONS MANUAL SCAN 41 ASSEMBLY AND INSTRUCTIONS MANUAL SCAN 41...
  • Page 2 CONGRATULATIONS ON YOUR NEW SCAN WOOD-BURNING STOVE You have purchased a product by one of Europe’s leading manufacturers of wood-burning stoves, and we are sure that you will have years of pleasure from your purchase. To make the best possible use of your stove, it is important that you follow our advice and instructions.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS   ¬ TECHNICAL DATA Installation Dimension sketch and minimum distances Safety Type plate Technical data and dimensions Product registration number   ¬ ASSEMBLY Tools needed for mounting of the stove Distance to furniture Loose parts Safety distance Additional accessories Removal of packaging Disposal of packaging...

  • Page 4: Technical Data

    Any changes made to the product by the dealer, fitter or user could result in the product and safety functions not functioning as intended. The same applies to the fitting of accessories or extra equipment not supplied by Scan A/S. This could also be the case if parts that are necessary for the operation and safety of the stove are dismantled or removed.

  • Page 5: Technical Data And Dimensions

    TECHNICAL DATA AND DIMENSIONS Steel plate Scan 41-1 - Test in compliance with EN 13240 Cast iron Materials CO Emission at 13% O 0,08 % Galvanised sheet Vermicolite CO Emission at 13% O 975 mg/Nm Surface treatment Senotherm Dust @ 13% O <20 mg/Nm...

  • Page 6: Dimension Sketch And Minimum Distances

    DIMENSION SKETCH AND MINIMUM DISTANCES...
  • Page 7 MINIMUM DISTANCES...
  • Page 8 MINIMUM DISTANCES...

  • Page 9: Type Plate

    TYPE PLATE All Scan wood-burning stoves are fitted with a type plate that specifies the approval standards and the distance to flammable materials. The type plate is located at the rear of the stove. Type plate Scan 41-1 (without side windows)

  • Page 10: Assembly

    Large shaped floor plate in glass or steel ¬ Adjustment key for height adjustment DISPOSAL OF PACKAGING Your Scan stove may come supplied with the following packaging: The wood packaging can be reused and after final use can be incinerated as a CO neutral Wood packaging product or sent for recycling.

  • Page 11: Closed Combustion System

    EXISTING CHIMNEY AND PRE-FABRICATED ELEMENT CHIMNEY If you intend to connect your stove to an existing chimney, it makes sense to contact an authorised Scan dealer, or a local chimney sweep, for advice. These experts will also let you know if your chimney needs renovating.

  • Page 12: Distance To Furniture

    DISTANCE TO FURNITURE Distance to furniture from glass: 1000 mm. You should however assess whether furniture or other items might become excessively dry due to being too close to the stove. SAFETY DISTANCE European, national and local regulations concerning safety distances for wood-burning stoves must be complied with. There are no demands concerning the distance to non-flammable materials, but we recommend a distance of 50 mm in order to facilitate the cleaning of the stove, the flue pipes and the chimney and to prevent possible damages to the wall.

  • Page 13: Removal Of Packaging

    Put back the upper plate on the pins, as the protection pushes the plate upwards Brændeovn på palle 90064020 EMNE: TG.NR: 21-08-12 VÆGT: DATO: SIGN: AREAL: Krog Iversen & Co A/S DK-5492 Vissenbjerg© esigns\Scan 64\90064020.idw...

  • Page 14: Height Adjustment Of Stove

    Krog Iversen & Co A/S DK-5492 Vissenbjerg© 38,6 DOOR (SELF-CLOSING) C:\Working Folder\Designs\Scan 64\90064044.idw STI: 136,9 The door is delivered without self-closing function. NB: If you want a self-closing door, the spring can be tightened by turning the long screw (inside the spring) clockwise using a...

  • Page 15: Fitting The Flue Connection Piece

    NAVN: EMNE: 380,39 kg 16-03-20 MATERIALE: VÆGT: DATO: topafg vend studs 90041013 EMNE: TG.NR: 30171790 mm^2 DIMENSION: AREAL: Krog Iversen 11-03-2016 DATO: VÆGT: SIGN: DK-5492 Viss C:\Working Folder\Designs\Scan 41\90041014.idw STI: AREAL: Krog Iversen & Co A/S DK-5492 Vissenbjerg© lder\Designs\Scan 41\90041013.idw...
  • Page 16 441 mm^2 Krog Iversen & Co A/S Fit the cover and tighten it. DK-5492 Vissenbjerg© C:\Working Folder\CAD\Inventor 2016\Templates\Standard - Manual.idw STI: DK-5492 Vissenbjerg© orking Folder\Designs\Scan 41\90041013.idw Replace the top plate Afmontage dæksel for bagafgang Scan 64 90064025 NAVN: EMNE: TG.NR:...

  • Page 17: Load-Bearing Foundation

    Your local Scan dealer can advise you on regulations concerning protection of flammable materials in the vicinity of your stove. The floor plate’s function is to protect the floor and flammable material against any sparks that may occur. A floor plate can be made of steel or glass, but the stove can also be erected on clinker concrete, natural stone or similar materials.

  • Page 18: Instructions For Use

    INSTRUCTIONS FOR USE CB-TECHNOLOGY (CLEAN BURN) The stove is equipped with CB technology. In order to ensure optimal combustion of gases released during the combustion process, air passes through a specially developed system of channels. The heated air is conducted into the combustion chamber through the holes in the rear lining of the combustion chamber and at the baffle plates.
  • Page 19 90041059 23-10-2018 MATERIALE: VÆGT: DATO: SIGN: SETTINGS DIMENSION: AREAL: Krog Iversen & Co A/S FOR NORMAL LOAD: DK-5492 Vissenbjerg© C:\Working Folder\Designs\Scan 41\90041059.idw STI: Primary air: 0 - 45% Secondary air: 50 - 70% Luftspjæld Scan 41 NAVN: EMNE: DATO: 23-10-20 MATERIALE: VÆGT:...

  • Page 20: Instructions For Heating

    LIGHTING We recommend the use of fire lighters, or similar products, which are available from your Scan dealer. Using fire lighters helps light the wood more quickly and keeps the combustion process clean. See our video about correct firing on www.scan-stoves.com or scan the QR-code. Please note...

  • Page 21: Continuous Operation

    CONTINUOUS OPERATION It is important to obtain as high a temperature as possible in the combustion chamber. This results in best possible use of the stove and fuel, as well as achieving clean combustion. In this way you will avoid build-up of soot on the combustion chamber lining and glass pane.

  • Page 22: Chimney Fire

    CHIMNEY FIRE In the event of a chimney fire, keep the stove door, the ash container, and all dampers on the stove closed. In an emergency, call the fire service. ¬ We recommend that you get a chimney sweep to check the chimney before using the stove again GENERAL NOTES PLEASE NOTE! Parts of the wood-burning stove, especially the outer surfaces, become hot during use.

  • Page 23: Handling Of The Fuel

    HANDLING OF THE FUEL SELECTING WOOD/FUEL You can use any type of wood as fuel. However harder woods, such as beech or ash, are generally better for heating, as they burn more evenly and create less ash. Other woods, such as maple, birch and spruce, are excellent alternatives. PREPARATION The best fuel is obtained where the tree has been felled and the wood sawn and split before May 1st.

  • Page 24: Maintainance

    Clean your wood-burning stove by wiping it down with a dry, lint-free cloth. If the paint finish gets damaged, you can purchase repair paint in spray form from your Scan dealer. As slight differences in colour shade are possible, we recommend you spray a larger area to achieve a natural blend. For best results, apply repair spray when the stove is warm enough for you to just keep your hand on it, but no hotter.

  • Page 25: Removal Of Baffle Plates And Combustion Chamber Lining

    Scan 41 halv ovn NAVN: EMNE: MATERIALE: DATO: VÆGT: DIMENSION: AREAL: C:\Working Folder\Designs\Scan 41\90041033.idw STI: SCAN 41-1 SCAN 41-2 (without side windows) (with side windows) Scan 41 halv ovn halv ovn 90041033 90041033 EMNE: EMNE: TG.NR:...

  • Page 26: Cleaning The Glass

    CLEANING THE GLASS Our wood-burning stoves are designed to prevent serious soot build-up on the glass. The best way to achieve this is to make sure you have a good supply of combustion air. It is also very important that the wood is dry and the chimney correctly dimensioned. You can Even if you operate the stove in accordance with our instructions, a slight film of soot may still accumulate on the glass.
  • Page 27 TROUBLESHOOTING SMOKE ESCAPING ¬ Damp wood ¬ Chimney not drawing properly ¬ Chimney is not properly dimensioned for the stove ¬ Check if the smoke gas pipe/chimney are blocked ¬ Is the chimney the right height for its surroundings? ¬ Vacuum in room ¬...
  • Page 28 You must quote your stove‘s product registration number when you contact us or your authorized Scan dealer with a warranty claim. The warranty covers all parts which in the opinion of Scan A/S require repair or replacement due to manufacturing or construc- tion error The warranty applies to the original purchaser of the product only, and is not transferable (except on prior sale).
  • Page 29 NOTES...
  • Page 32 Product registration number Quote this number at all enquiries Edition: EU 90041500 SCAN A/S Damsbovej 1 DK-5492 Vissenbjerg www.scan-stoves.com 08.02.2024...
