Technical
Information
TI 04L01L01-08EN
Foreword
The contents of this document are subject to change without prior notice as a result of improvements in performance or functionality.
Copying or reproduction by any means of all or any part of the contents of this document without permission is strictly prohibited.
Use of this document is at the users risk.
■ Overview

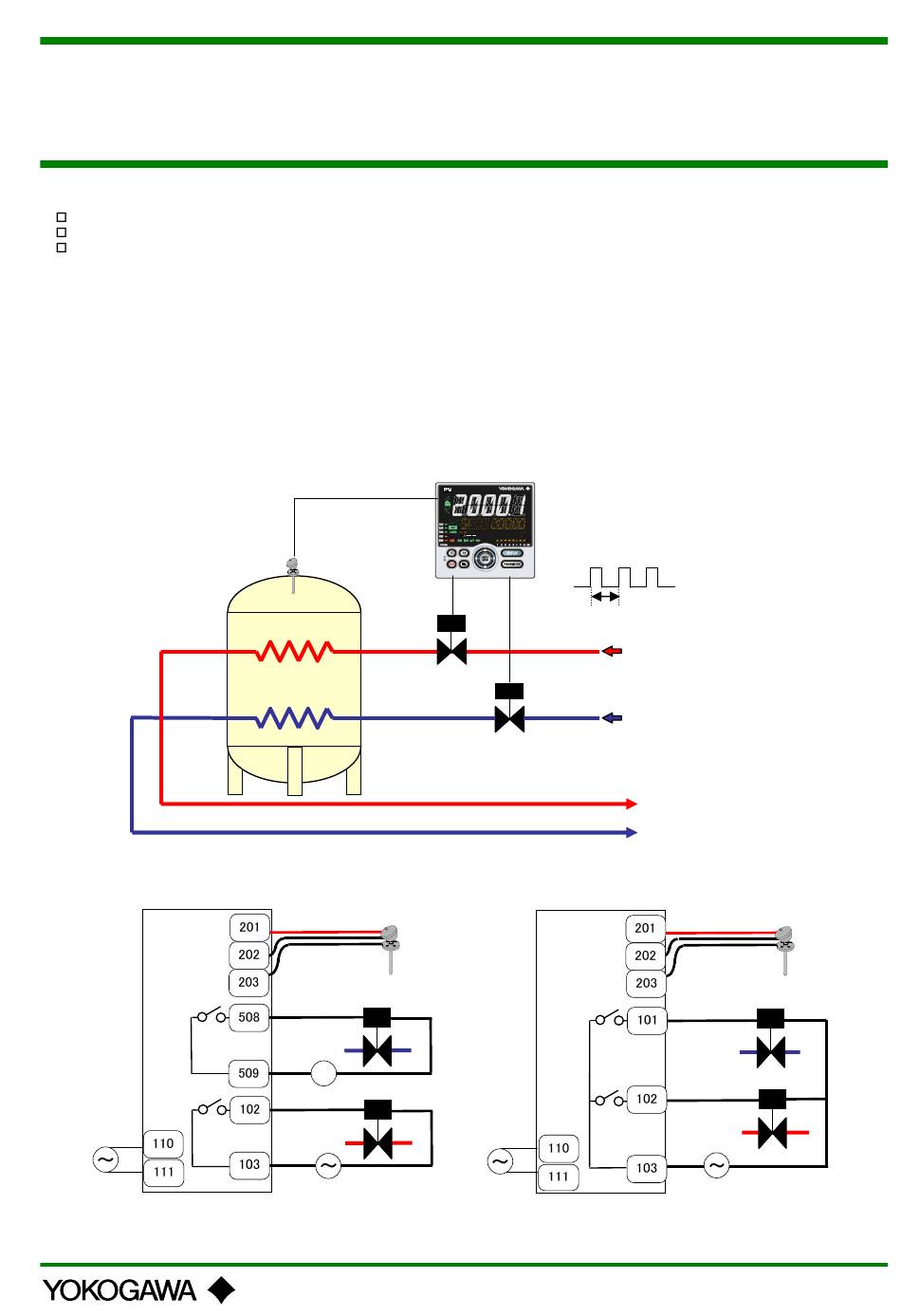

This is an example of wiring and settings using the UTAdvanced Quick Setting function for "tank
temperature control." For more details, see the user's manual.
■ Relevant models

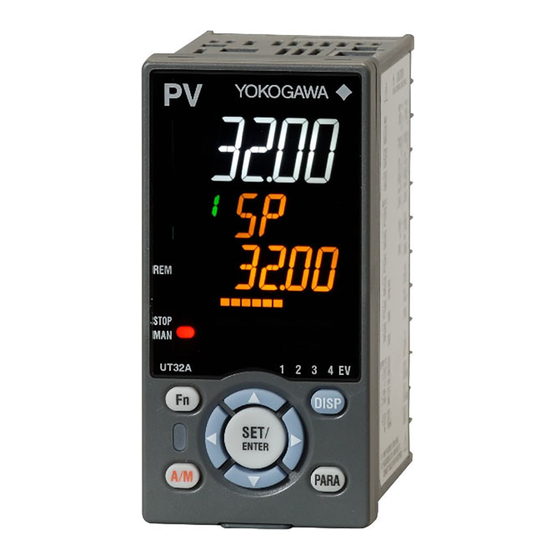

Heating/cooling models of the UT32A, UT35A, UT52A, and UT55A
■ System
■ Wiring
For the UT55A
PV b
Power
supply
Setup Procedure
UTAdvanced Quick Setting
(Controlling Tank Temperature)
RTD (Pt100) applicable
standard: RTD (ITS-90:
JIS '97)
A
B
Solenoid valve,
refrigerator side
Solenoid valve,
heater side
This document is subject to change without notice.
Pt100 0–100℃
Time-proportional PID relay control output
Cycle time
For the UT32A, UT35A, and UT52A
PV b
Power
supply
Hot
Cold
RTD (Pt100) applicable
standard: RTD (ITS-90:
JIS '97)
A
B
Solenoid valve,
refrigerator
Solenoid valve,
heater side
TI04L01L01-08EN
2011.12.16 1st Edition (YK)

Advertisement

loading
Need help?

Need help?

Do you have a question about the UT32A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for YOKOGAWA UT32A

  • Page 1 This is an example of wiring and settings using the UTAdvanced Quick Setting function for "tank temperature control." For more details, see the user's manual. ■ Relevant models Heating/cooling models of the UT32A, UT35A, UT52A, and UT55A ■ System Pt100 0–100℃...
  • Page 2 ■ Settings To set heating/cooling control, input signal (Pt100 range 0.0 to 100.0°C), and time proportional control output (relay output), set the following parameters. (1) Select the desired parameter with the UP or DOWN key (2) Press SET/ENTER (the setting value blinks) (3) Change the setting with the UP or DOWN key Press SET/ENTER to set the new value (the setting value stops blinking but remains bright)
  • Page 3 Set RH (maximum value of PV input range) to = 100.00 °C . MAXIMUM MAXIMUM VALUE OF PV VALUE OF PV INPUT RANGE INPUT RANGE 100.0 100.0 MINIMUM MINIMUM Set RL (minimum value of PV input range) to 0.0 °C (the initial value). VALUE OF PV VALUE OF PV INPUT RANGE...
