Technical
Information
TI 04L01L01-02EN
Foreword
The contents of this document are subject to change without prior notice as a result of improvements in performance or functionality.
Copying or reproduction by any means of all or any part of the contents of this document without permission is strictly prohibited.
Use of this document is at the users risk.
■ Overview
This is an example or wiring and settings using the UTAdvanced Quick Setting function for "temperature
control in an electric furnace with an SCR (thyristor)." For more details, see the user's manual.

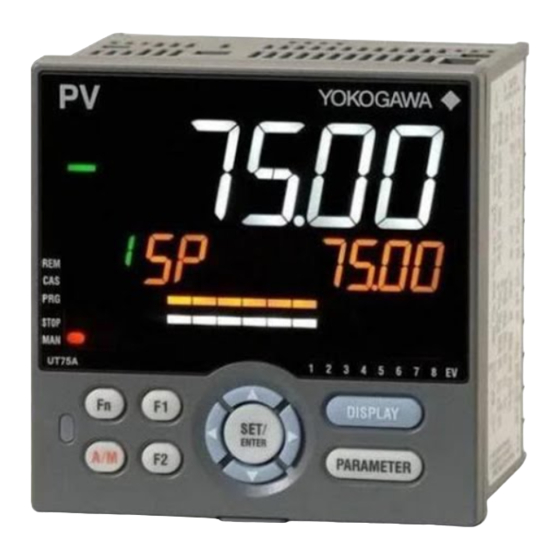

■ Relevant models
Standard models of the UT32A, UT35A, UT52A, and UT55A.

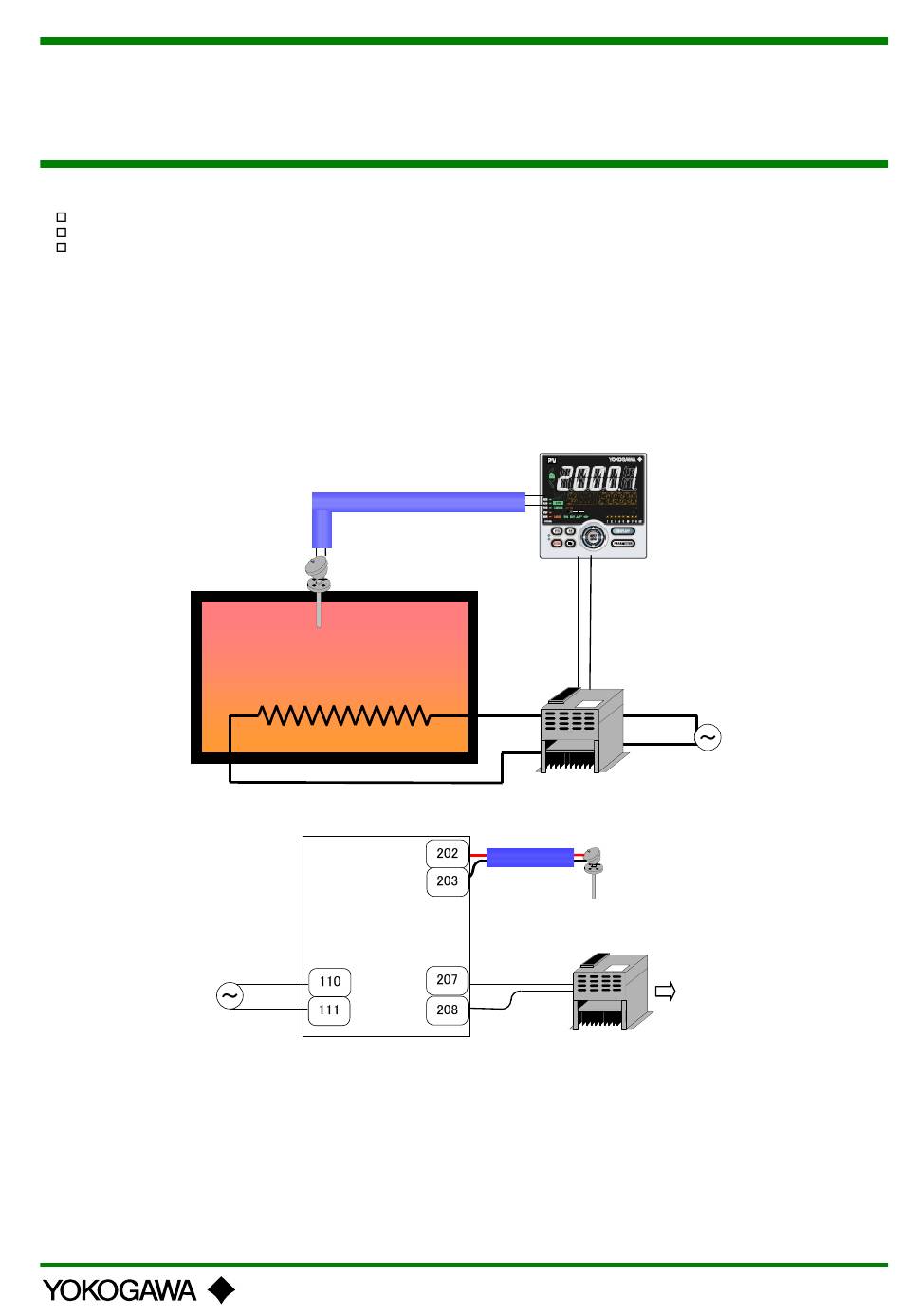

■ System
■ Wiring
Power
supply
Setup Procedure
UTAdvanced Quick Setting
(Controlling Furnace Temperature with a Thyristor)
Compensating
Thermocouple type K
Heater
PV
L
OUT
N
This document is subject to change without notice.
Current
output
4–20 mA
Compensating lead wire
＋
－
Thermocouple type K
Current output
4–20 mA
＋
－
Thyristor
SCR (thyristor)
Heater
TI04L01L01-02EN
2011.12.16 1st Edition (YK)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for YOKOGAWA UT32A
Summary of Contents for YOKOGAWA UT32A
- Page 1 This is an example or wiring and settings using the UTAdvanced Quick Setting function for "temperature control in an electric furnace with an SCR (thyristor)." For more details, see the user's manual. ■ Relevant models Standard models of the UT32A, UT35A, UT52A, and UT55A. ■ System Compensating...
- Page 2 ■ Settings To set PID control, thermocouple type K (range 0.0 to 500.0°C), and current control output (4 to 20 mA), set the parameters below. (1) Select the desired parameter with the UP or DOWN key (2) Press SET/ENTER (the setting value blinks) (3) Change the setting with the UP or DOWN key (4) Press SET/ENTER to set the new value (the setting value stops blinking but remains bright)
- Page 3 Set RH (maximum value of PV input range) to 500.00°C (the initial value). MAXIMUM MAXIMUM VALUE OF PV VALUE OF PV INPUT RANGE INPUT RANGE 500.0 500.0 Set RL (minimum value of PV input range) to 0.0°C (the initial value). MINIMUM MINIMUM VALUE OF PV...
