TI 04L01L01-09EN
Foreword
The contents of this document are subject to change without prior notice as a result of improvements in performance or functionality.
Copying or reproduction by any means of all or any part of the contents of this document without permission is strictly prohibited.
Use of this document is at the users risk.

■ Overview

This is an example wiring and settings using the UTAdvanced Quick Setting function for "temperature
control in a furnace with a motorized valve." For more details, see the user's manual.

■ Relevant models

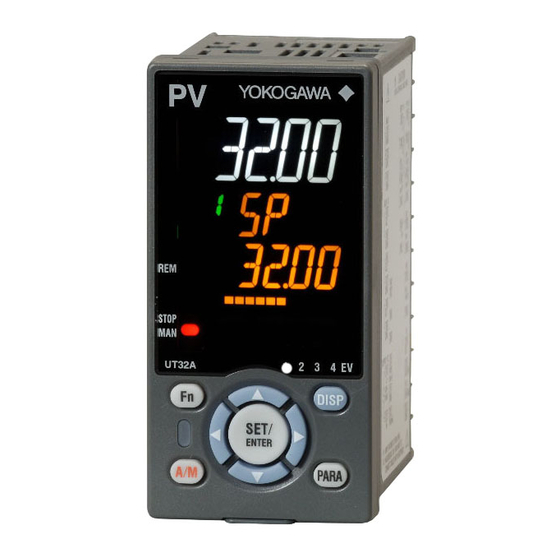

Position proportional models of the UT32A, UT35A, UT52A, and UT55A

■ System

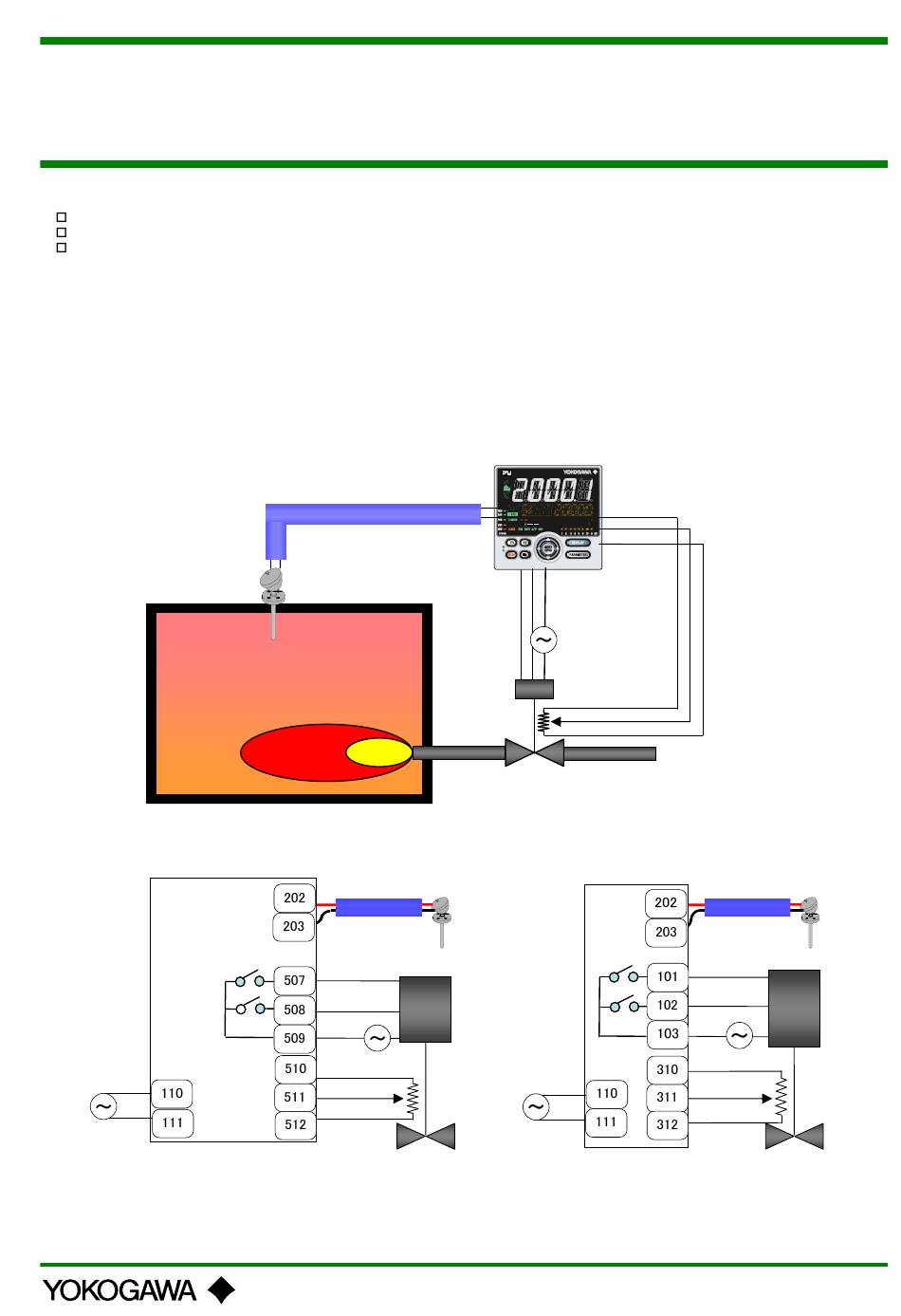

■ Wiring

UT35A, UT55A position proportional model
Power
supply
Setup Procedure
UTAdvanced Quick Setting
(Controlling Furnace Temperature with a Motorized Valve)
Compensating
Thermocouple type K
Compensating lead wire
PV
OUT
Normal rotation
Reverse
rotation
COM
100%
0%
This document is subject to change without notice.
Opening signal
UT32A, UT52A position proportional model
PV
OUT
Power
supply
Compensating lead wire
Thermocouple
type K
Normal rotation
Reverse
rotation
COM
100%
0%
TI04L01L01-09EN
2011.12.16 1st Edition (YK)
