Temposonics GB-Series
®
Brief Instructions

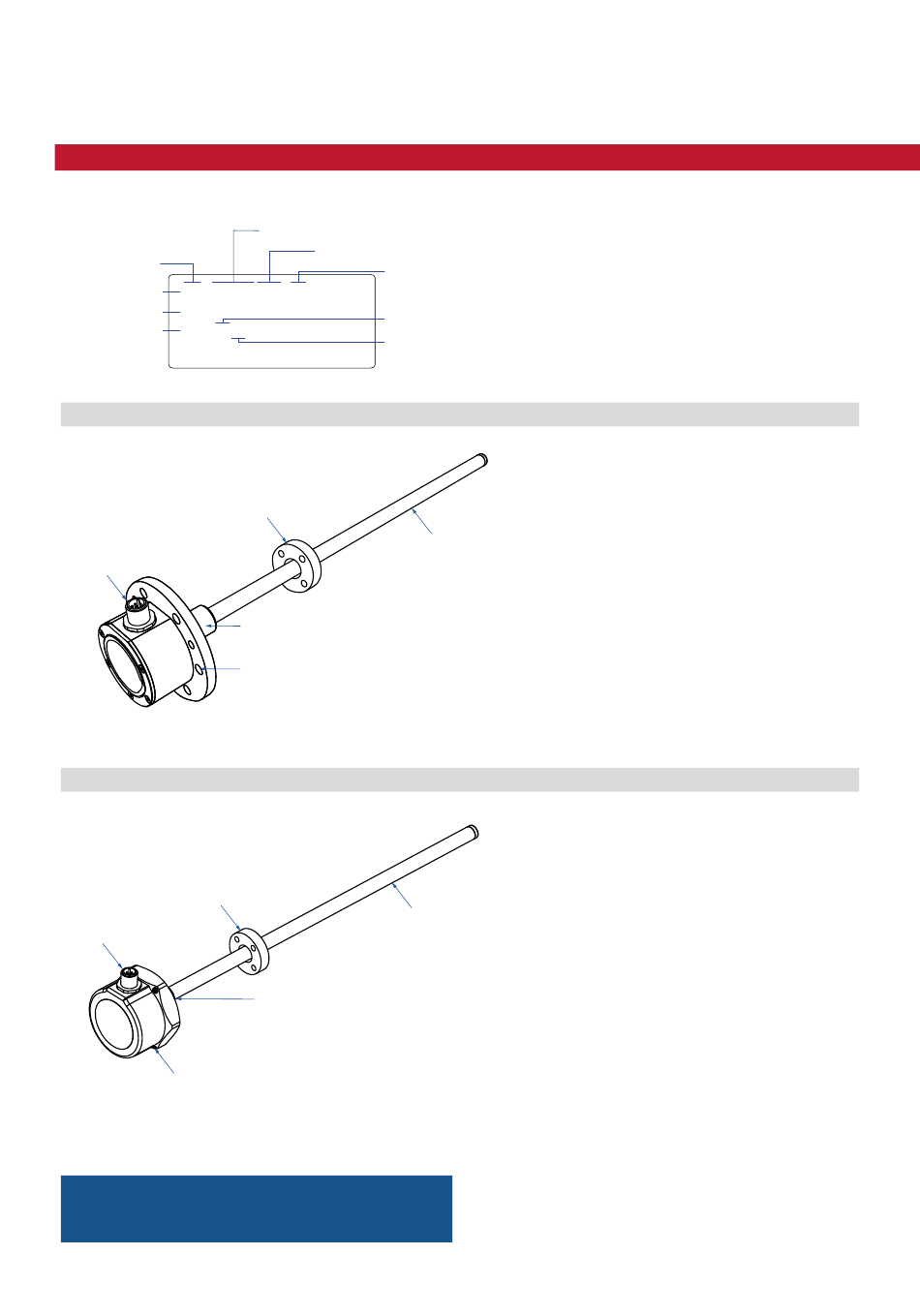

3. Identification

Nameplate (e.g. GB-Series GB-S Analog)
Sensor model
Part no.
GBS0850MD601A0SC
4 - 20 mA
Output
FNr. 1601 0376
Production no.
1601037616010376160103761601
3.1 Temposonics GB-Series with pressure fit flange (GB-J / GB-K / GB-N / GB-S)
®
Position magnet
(Ring or U-magnet)
Connector or
cable outlet
3.2 Temposonics GB-Series GB-M / GB-T with threaded flange (GB-M / GB-T)
®
Position magnet
(Ring or U-magnet)
Connector or
cable outlet
Fastened with 3 screws DIN 915 M4×6 A2
Fastening torque: 1.6 Nm
Manuals, Software & 3D Models available at:
www.mtssensors.com
Stroke length (e.g. 850 mm)
Connection type
Output
version
Year
Week
Pressure-proof
rod (Ø 10 mm / Ø 12.7 mm)
with sensor
element
Pressure fit flange Ø 18 mm / Ø 21 mm
Fastened via 6 machine
screws M6 (ISO 4762)
Fastening torque: 6 Nm
Pressure-proof
rod (Ø 10 mm)
with sensor
element
Threaded flange
(M18×1.5-6g or
¾"-16 UNF-3A)
I
Approvals and certificates
You will find approvals and certificates in the sensor specific
operation manuals.
Available outputs:
• Analog
• SSI
Available outputs:
• Analog
• SSI
