Ssi - MTS Systems Temposonics GB Series Brief Instructions

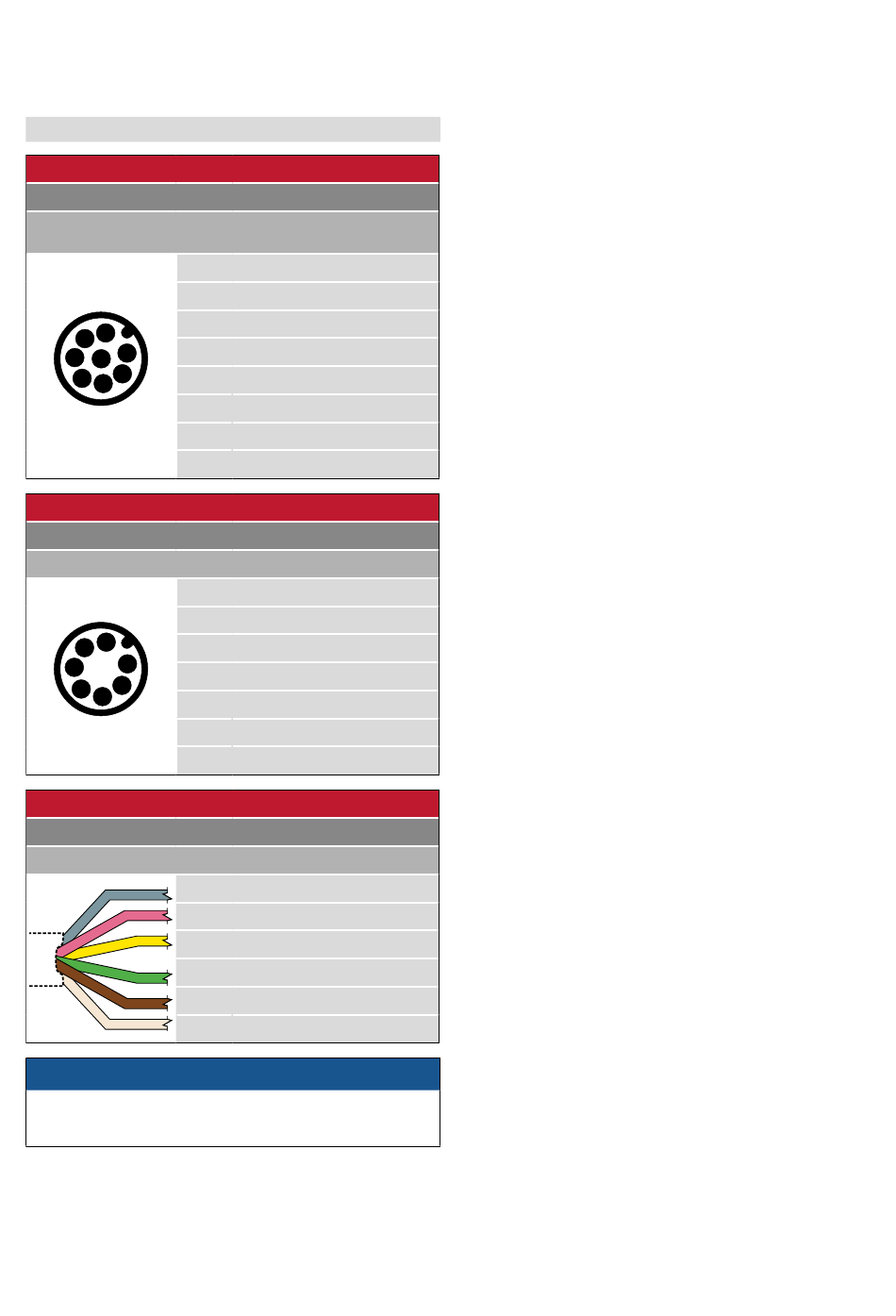

5.2 SSI

D84
Signal + power supply
M12 male connector Pin
(A-coded)
2
3
1
4
8
7
5
6
View on sensor
D70
Signal + power supply
M16 male connector Color
6
1
7
4
3
2
5
View on sensor
GB with cable outlet (HXX / TXX / VXX)
Signal + power supply
Cable Color
GY
PK
YE
GN
BN
WH
NOTICE
Connect the sensor electronics housing to the machine
ground via fitting flange respectively via threaded flange.
Function
1 Clock (+)
2 Clock (−)
3 Data (+)
4 Data (−)
5 Not connected
6 Not connected
7 +24 VDC (−15 / +20 %)
8 DC Ground (0 V)
Function
1 Data (−)
2 Data (+)
3 Clock (+)
4 Clock (−)
5 +24 VDC (−15 / +20 %)
6 DC Ground (0 V)
7 Not connected
Function
Data (−)
Data (+)
Clock (+)
Clock (−)
+24 VDC (−15 / +20 %)
DC Ground (0 V)
I 11 I
