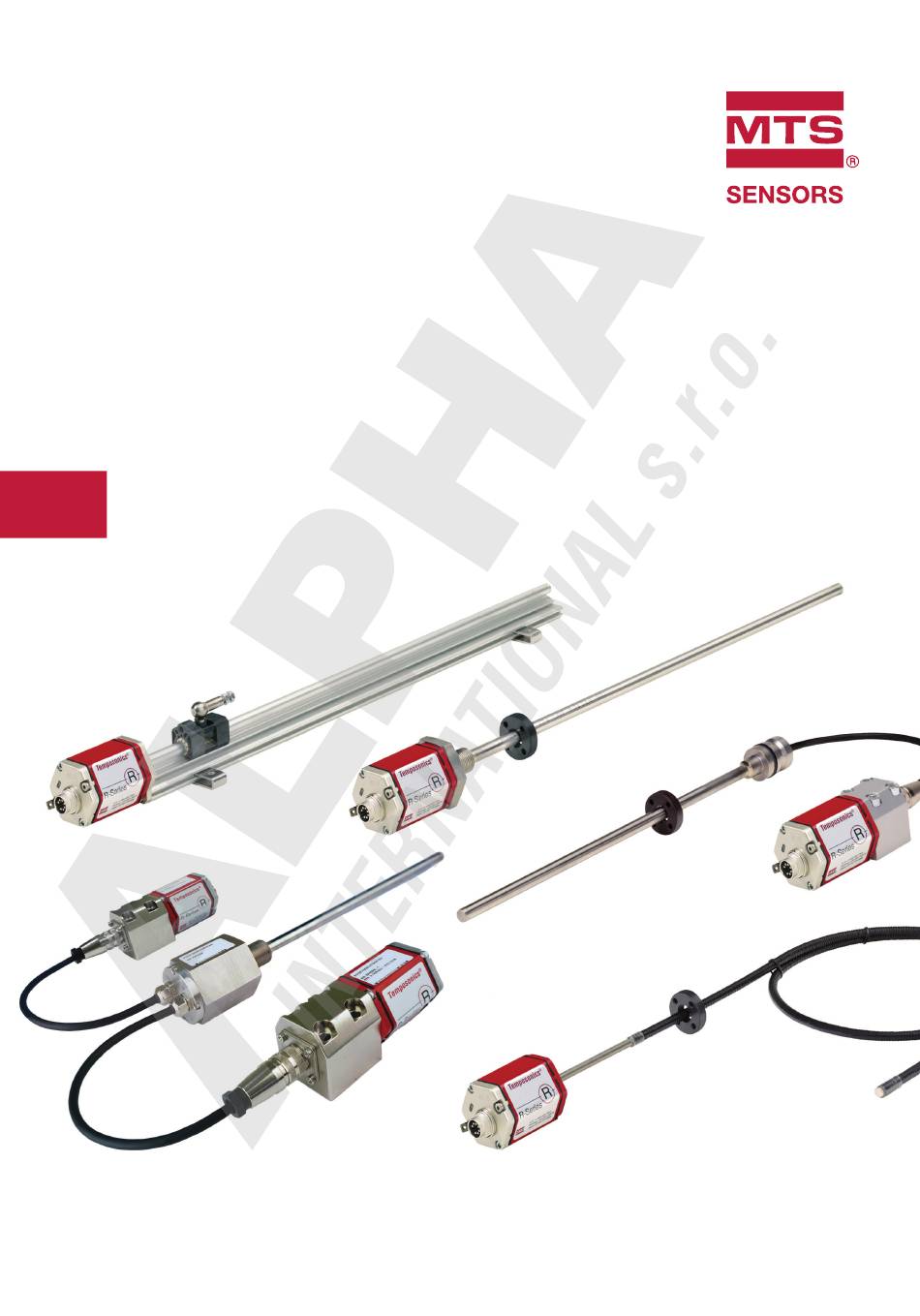

- Page 1 Temposonics ® Magnetostrictive Linear Position Sensors R-Series Brief Instructions...
-
Page 2: Table Of Contents
Temposonics R-Series ® Brief Instructions Table of contents 1. Introduction ..................................3 2. Safety instructions ................................4 2.1 Intended use ..................................4 2.2 Forseeable misuse .................................4 2.3 Installation, commissioning and operation ........................5 2.4 Safety instructions for use in explosion-hazardous areas ....................5 2.5 Warranty ..................................5 2.6 Return ....................................5 2.7 Maintenance &... -
Page 3: Introduction
Temposonics R-Series ® Brief Instructions 1. Introduction 1.1 Purpose and use of this manual Before starting the operation of Temposonics® position sensors, read this documentation thoroughly and follow the safety information. Keep this manual for future reference! The content of this technical documentation is intended to provide information on mounting, installation and commis- sioning by qualified automation personnel or instructed... -
Page 4: Safety Instructions
Temposonics R-Series ® Brief Instructions 2. Safety instructions 2.1 Intended use Do not reprocess the sensor. The sensor might be damaged. This product may be used only for the applications defined under item 1 and only in conjunction with the third-party de- vices and components recommended or approved by MTS Sensors. -
Page 5: Installation, Commissioning And Operation
Temposonics R-Series ® Brief Instructions 2.3 Installation, commissioning and operation 2.5 Warranty The position sensors must be used only in technically safe MTS Sensors grants a warranty period for the Temposonics ® condition. To maintain this condition and to ensure safe oper- position sensors and supplied accessories relating to materi- ation, installation, connection and service, work may be per- al defects and faults that occur despite correct use in accor-... -
Page 6: Identification
Temposonics R-Series ® Brief Instructions 3. Identification Nameplate (e.g. RH SSI) Approvals and certificates Order code RHM0425MD701S1G2100 You will find approvals and certificates in the sensor specific operation manuals. Code output 0.01 mm / 25 Bit gray dependent Grd.: 2797.14 m/s Serial no. -
Page 7: Temposonics ® Rd4
Temposonics R-Series ® Brief Instructions 3.3 Temposonics (sensor rod with detached electronics) ® Position magnet Available outputs: (Ring- or U-magnet) • Analog Pressure proof rod • SSI with sensor element Cable • Profibus • CANbus • DeviceNet • EtherCAT ® Threaded or fitting flange •... -
Page 8: Installation & Mounting
Temposonics R-Series ® Brief Instructions 4. Installation & mounting Typical use of magnets Centered mounting of block magnet For: RH, RD4, RT4 & RF Concentric mounting Concentric mounting • Rotationally symmetrical magnetic field of block magnet of block magnet Ring magnet For: RP, RH, RD4, RT4 &... -
Page 9: Mounting Dimensions Of R-Series
Temposonics R-Series ® Brief Instructions 4.2 Mounting dimensions of R-Series RP with magnet slider “S” / “N” / “V” / “G” RH with block magnet Sensor electronics housing Sensor electronics housing Reference edge of mounting Reference edge of mounting Start position End position Start position End position... - Page 10 Temposonics R-Series ® Brief Instructions RT4-D / -M with ring magnet / U-magnet RF-C with ring magnet / U-magnet Sensor electronics housing Reference edge of mounting Reference edge of mounting End position Start position Start position End position See table 61 (2.4) 51 (2.01) 64 (2.52)
-
Page 11: Multi-Position Measurement Distances
Temposonics R-Series ® Brief Instructions 4.3 Multi-position measurement distances Multi-position measurements are output signal dependent Please note that the stroke length influences the maximum possible. The acquisition of up to 20 positions or 5 positions number of magnets. and their velocities. RP with magnet sliders “S”... -
Page 12: Electrical Connections
Temposonics R-Series ® Brief Instructions 5. Electrical connections and LED status Placement of installation and cabling have decisive influence LED status Outputs on the sensor‘s electromagnetic compatibility (EMC). Hence • Analog correct installation of this active electronic system and the •... - Page 13 Temposonics R-Series ® Brief Instructions 5.1 Analog 5.2 SSI Signal + power supply Signal + power supply M16 male connector Output Pin Function M16 male connector Color Function Position: Magnet 1 Data (−) DC Ground Data (+) Position: Magnet 2 or Clock (+) Velocity: Magnet 1 Clock (−)
- Page 14 Temposonics R-Series ® Brief Instructions 5.3 Profibus Signal Signal Cable Color Function M12 male connector Function (B-coded) RxD / TxD-N (bus) Not connected RxD / TxD-P (bus) RxD / TxD-N (bus) Cable Color Function Not connected RxD / TxD-N (bus) RxD / TxD-P (bus) RxD / TxD-P (bus) View on sensor...
- Page 15 Temposonics R-Series ® Brief Instructions 5.4 CANbus Signal Signal + power supply M12 male connector M16 male connector Function Function (A-coded) CAN_L Shield CAN_H Not connected Not connected Not connected Not connected CAN_H +24 VDC (−15 / +20 %) View on sensor View on sensor CAN_L DC Ground (0 V)
- Page 16 Temposonics R-Series ® Brief Instructions 5.5 DeviceNet 5.6 EtherCAT ® Signal + power supply Signal M12 male connector M12 female connector Function Function (A-coded) (D-coded) Shield Tx (+) +24 VDC (−15 / +20 %) Rx (+) DC Ground (0 V) Tx (−) CAN_H Rx (−)
- Page 17 Temposonics R-Series ® Brief Instructions 5.7 EtherNet / IP™ Ethernet/IP™ LED status Signal Network status M12 female connector Green Information Function (D-coded) Connection established Tx (+) Flashing No connection Rx (+) Unrecoverable error Tx (−) Flashing Recoverable error Rx (−) Port 1 (In) View on sensor Not connected...
-
Page 18: Powerlink
Temposonics R-Series ® Brief Instructions 5.8 Powerlink 5.9 Profinet Signal Signal M12 female connector M12 female connector Function Function (D-coded) (D-coded) Tx (+) Tx (+) Rx (+) Rx (+) Tx (−) Tx (−) Rx (−) Rx (−) View on sensor View on sensor Not connected Not connected... - Page 19 Temposonics R-Series ® Brief Instructions Notes...
- Page 20 MTS, Temposonics and Level Plus are registered trademarks of MTS Systems Corporation in the United States; MTS SENSORS and the MTS SENSORS logo are trademarks of MTS Systems Corporation within the United States. These trademarks may be protected in other countries. All other trademarks are the property of their respective owners. Copyright © 2018 MTS Systems Corporation. No license of any intellectual property rights is granted.
