Summary of Contents for Elma Instruments 3037

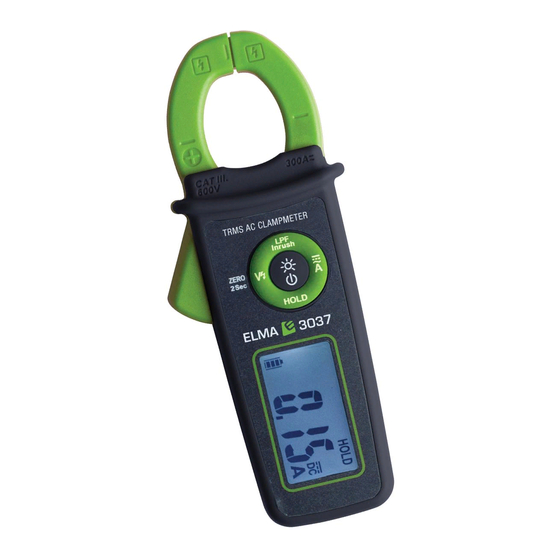

- Page 1 Elma 3037 & 3039 Clamp Meter Elma 3039 https://www.elso.sk/product.php?id_product=3219 EAN: 5706445900046/5706445900053...
- Page 2 Elma 3037/3039 Elma 3037/3039 User manual Safety Information • Use the Meter only as specified in this manual or the protection by the Meter might be impaired. • Always use proper terminals, switch position, and range for measurements. • Verify the Meter’s operation by measuring a known voltage. If in doubt, have the Meter serviced.
- Page 3 Elma 3037/3039 Instrument CAT III 600V with respect to earuth for the jaw The barrier on the jaw is indicating the limit of safe access of the handheld part, do not hold over the barrier when in use. Power on/off...
- Page 4 Elma 3037/3039 Data hold Push the button to freeze the present value in the displat. ”Hold” is shown in the display. The display will flash continuously if the measured signal is 50 counts larger than the display reading. However, it cannot detect across the AC and DC Current.
- Page 5 Add 3.0% for C.F. 1.0 ~ 2.0. Add 5.0% for C.F. 2.0 ~ 2.5. Add 7.0% for C.F. 2.5 ~ 3.0. Position Error of Clamp: (Elma 3039) ±1.5% rdg. (Elma 3037) ±2% rdg (max 4% near tip) Adjacent conduct influence (Elma 3037) <0.08A/A...
- Page 6 Elma 3037/3039 DC Current (Only Elma 3039) Range Resolution Accuracy 60.00A * 0.01A ±(1.5%+10 digits) ** 300.0A 0.1A ±(1.5%+5 digits) * < 0.3A variations as measuring in different directions ** Add 10 digits to accuracy of 60.00A range in Auto detection function.
- Page 7 Maintenance Do not attempt to repair this instrument. The instrument contains no user serviceable parts. The instrument should be turned in to Elma Instruments for service. Cleaning Periodically wipe the case with a dry cloth and detergent. Do not use abrasives or solvents.
- Page 8 Elma 3037/3039 MD 20131023 v1.4...
