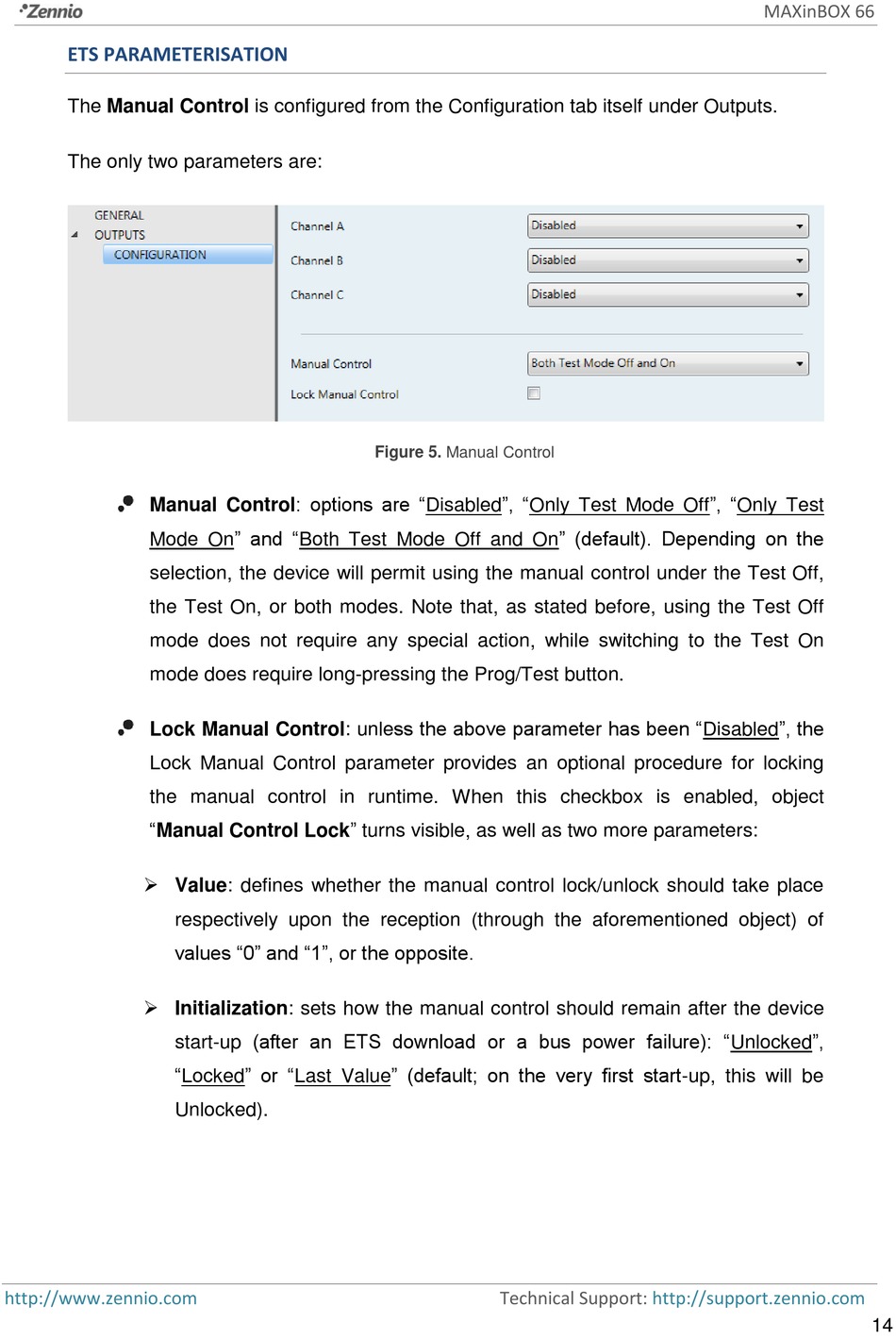

ETS PARAMETERISATION

The Manual Control is configured from the Configuration tab itself under Outputs.
The only two parameters are:
Manual Control: options are "Disabled", "Only Test Mode Off", "Only Test
Mode On" and "Both Test Mode Off and On" (default). Depending on the
selection, the device will permit using the manual control under the Test Off,
the Test On, or both modes. Note that, as stated before, using the Test Off
mode does not require any special action, while switching to the Test On
mode does require long-pressing the Prog/Test button.
Lock Manual Control: unless the above parameter has been "Disabled", the
Lock Manual Control parameter provides an optional procedure for locking
the manual control in runtime. When this checkbox is enabled, object
"Manual Control Lock" turns visible, as well as two more parameters:
 Value: defines whether the manual control lock/unlock should take place
 Initialization: sets how the manual control should remain after the device
http://www.zennio.com
respectively upon the reception (through the aforementioned object) of
values "0" and "1", or the opposite.
start-up (after an ETS download or a bus power failure): "Unlocked",
"Locked" or "Last Value" (default; on the very first start-up, this will be
Unlocked).
Figure 5. Manual Control
