Zennio ZoningBOX 6 Technical Documentation

Ducted Air Zoning Actuator for up to 6 Zones
ZCL-ZB6
FEATURES
 6 outputs for 12 or 24V motorised grilles*.
 Zoning module allowing the control of up to 12 zones and up to
2 zone groups.
 Total data saving on power failure.
 Manual control through buttons and status indicator LED.
 230V supply required for feeding of the 6 outputs.
 KNX BCU integrated.
 Size 67 x 90 x 80 mm (4.5 DIN units).
 DIN rail unit assembly (EN 50022), with snap fit clamp.
 CE directives compliant (CE-mark on the right side).
* Before connecting the device to the facility, it must be assured that the switch position
agree with the grilles voltage.
1. 230V input 2. Power indicator LED
5. Grille outputs
Programming/test button: short button press to set programming mode. If this button is held while plugging the device into the KNX bus, it goes into
safe mode.
Programming/Test LED: programming mode indicator (red). When the device goes into safe mode, it blinks (red) every half second. The manual
mode is indicated by the green color. During start up (after reset or power failure) and if the device is not in safe mode, LEDs indicator blink red once.
GENERAL SYSTEM SPECIFICATIONS
CONCEPT
Type of device
Voltage (typical)
Voltage range
KNX
Maximum
supply
consumption
Bus connection
External power supply
Ambient temperature
Storage temperature
Ambient humidity
Storage humidity (relative)
Complementary characteristics
Safety class
Operation type
Device action type
Electrical stress period
Degree of protection
Assembly
Minimum clearances
KNX bus failure response
Response when restarting KNX bus
Operation indication
Weight
PCB CTI index
Housing material
(1)
Maximum consumption in the worst case scenario (KNX Fan-In model)
© Zennio Avance y Tecnología S.L.
6. 12/24V switch 7. Programming/test button
DESCRIPTION
Electric operation control device
29VDC SELV
21...31VDC
Voltage
29VDC (typical)
(1)
24VDC
Typical TP1 bus connector; 0.80mm² section
230VAC 50/60Hz
from 0ºC to +45ºC
from -20ºC to +55ºC
5 to 95% RH (no condensation)
5 to 95% RH (no condensation)
Class B
II
Continuous operation
Type 1
Long
IP20, clean environment
Independent device to be mounted inside electrical panels with DIN rail (EN 50022).
Not required
Data saving according to parameterization
Data recovering according to parameterization
Programming LED indicates programming mode (red) and test mode (green). Power
indicator LED (green) represents correct feeding. Each output LED indicates its status
(fixed = open grille/dumper; off = closed grilled/dumper; flashing = error, see Fig. 2)
201g
175V
PC FR V0 halogen free
Edition 3
3. Grille control button
mA
6
10
Further information
ZoningBOX 6
Technical Documentation
6*
5
4
3
2
1

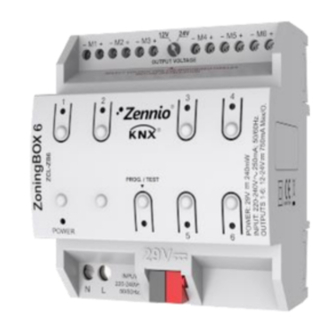

Figure 1. ZoningBOX 6
4. Grille status indicator LED
8. Programming/test LED
mW
174
240
www.zennio.com
5
7
8
9
9. KNX connector
