3 Operating Instruction
These settings can be changed either in the Measurement settings menu or
18
directly by clicking to the appropriate item.
In the bottom of the display, additional parameters can be displayed (see

Subpanels )

11
Precision of the Readout Value
The precision of the power or energy readout can simply be changed by clicking
on the power or energy value in the numeric or needle screen. The reading will
toggle between 3, 4 or 5 significant digits.
Units of Measure
The units of measure can be selected by clicking on the measurement unit in the
numeric or needle display. A list box will open and offer sensor depending
choices of the selectable measurement unit in W, dBm, J, A or V.

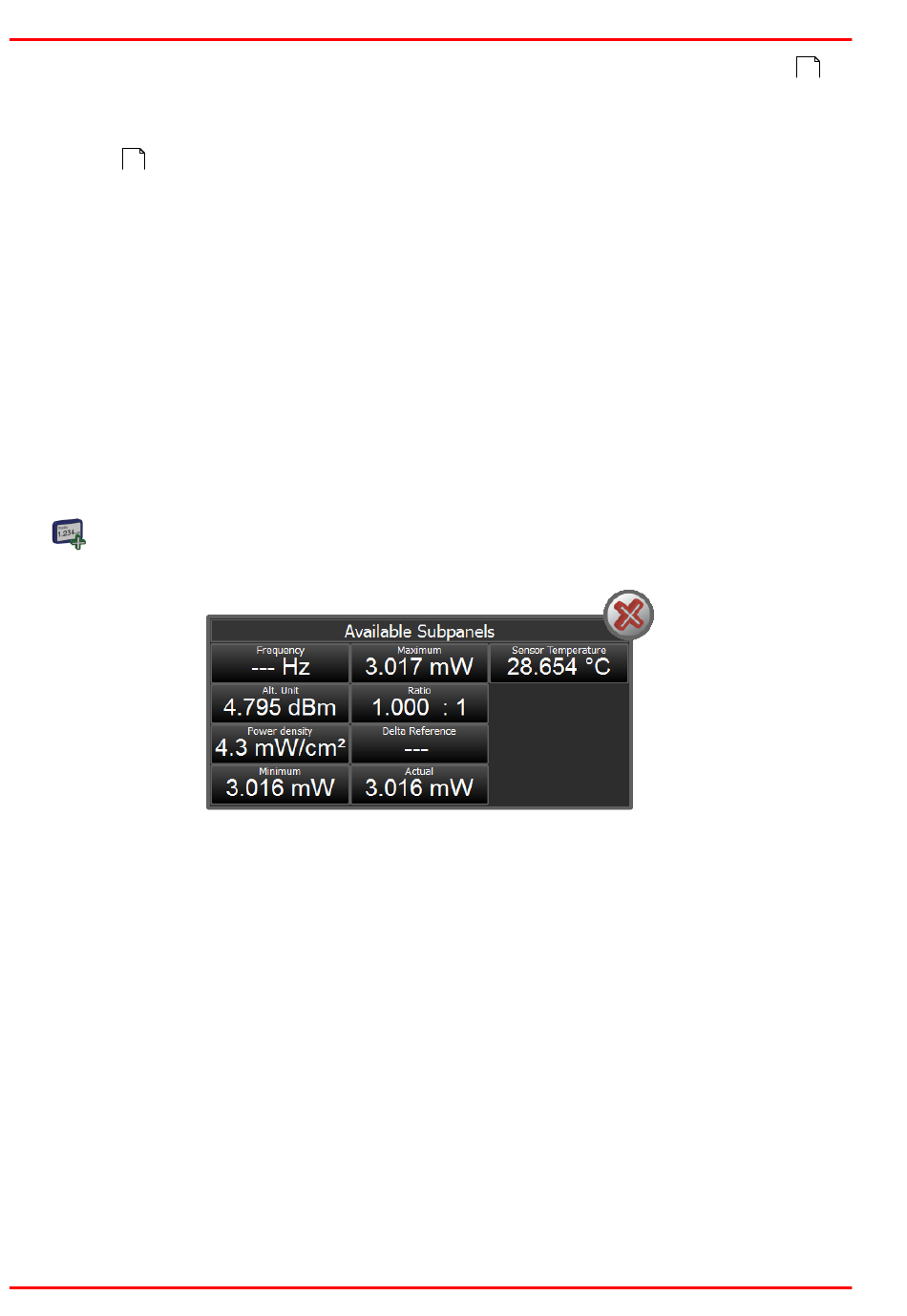

3.5.1.1 Subpanels
In the numeric display it is possible to configure supplementary displays. Click to
the , a choice of available, depending on the connected sensor, subpanels
will appear (below shown for a S120C sensor):
Up to 6 subpanels can be enabled by drag and drop to the measurement screen.
To remove items, the container needs not to be opened, just pick the item and
drag it back to the container.
Frequency
The PM200 can measure and display frequencies of pulsed, modulated or
chopped light sources up to 100kHz. The maximum measurable frequency is
depending on the sensor type and instrument settings. The measured frequency
is displayed in a subpanel.
Alternative Unit
Depending on the sensor type, alternative measurement units are available and
can be selected in both the numeric and needle view panels by clicking to the
appropriate unit.
Photodiode sensors - they deliver a current, proportional to the incident power,
but also wavelength dependent:
© 2011 Thorlabs 11
