Vacuum pump

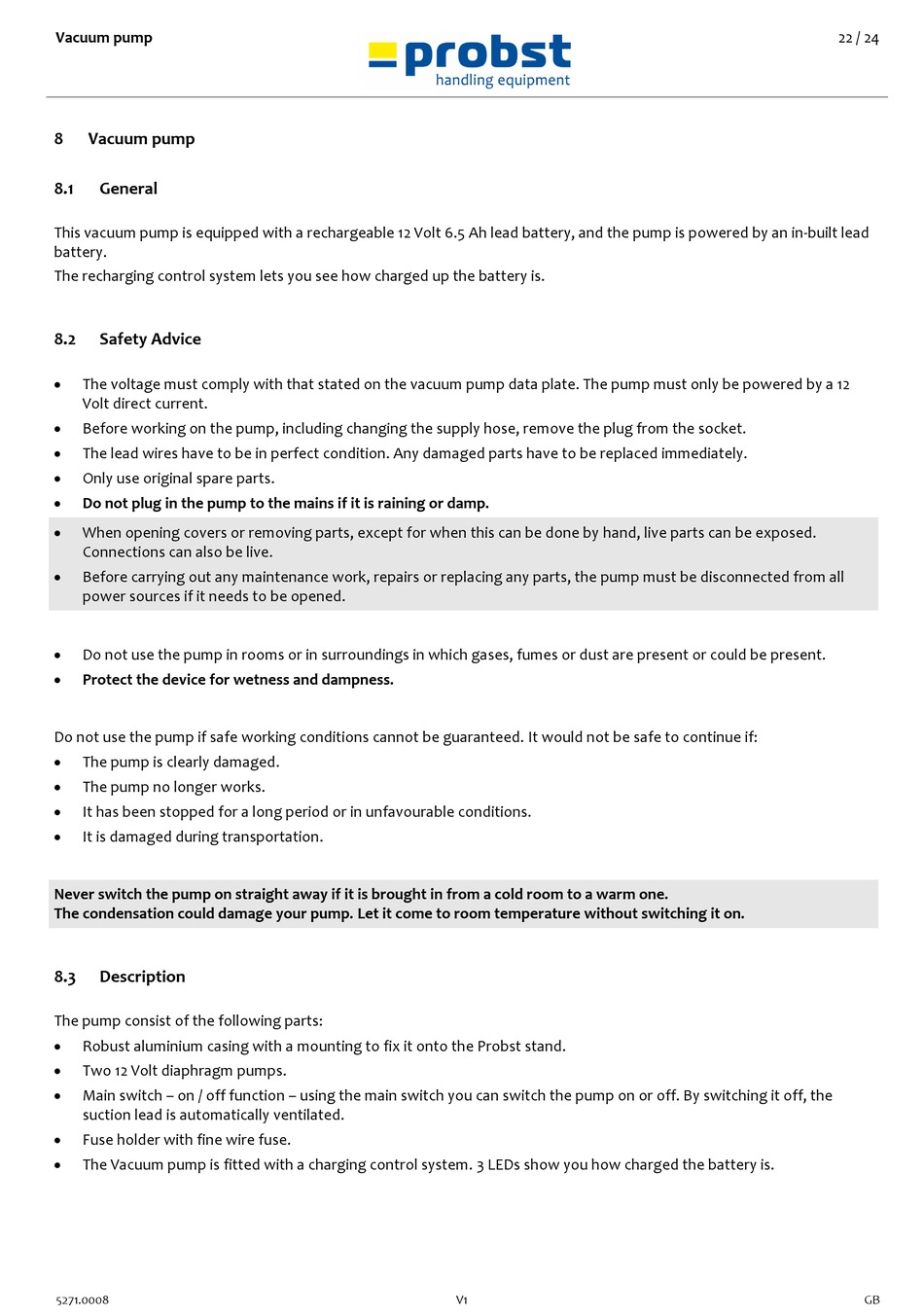

8 Vacuum pump
8.1

General

This vacuum pump is equipped with a rechargeable 12 Volt 6.5 Ah lead battery, and the pump is powered by an in-built lead
battery.
The recharging control system lets you see how charged up the battery is.
8.2

Safety Advice


The voltage must comply with that stated on the vacuum pump data plate. The pump must only be powered by a 12
Volt direct current.

Before working on the pump, including changing the supply hose, remove the plug from the socket.

The lead wires have to be in perfect condition. Any damaged parts have to be replaced immediately.

Only use original spare parts.

Do not plug in the pump to the mains if it is raining or damp.

When opening covers or removing parts, except for when this can be done by hand, live parts can be exposed.
Connections can also be live.

Before carrying out any maintenance work, repairs or replacing any parts, the pump must be disconnected from all
power sources if it needs to be opened.

Do not use the pump in rooms or in surroundings in which gases, fumes or dust are present or could be present.

Protect the device for wetness and dampness.
Do not use the pump if safe working conditions cannot be guaranteed. It would not be safe to continue if:

The pump is clearly damaged.

The pump no longer works.

It has been stopped for a long period or in unfavourable conditions.

It is damaged during transportation.
Never switch the pump on straight away if it is brought in from a cold room to a warm one.
The condensation could damage your pump. Let it come to room temperature without switching it on.
8.3

Description

The pump consist of the following parts:

Robust aluminium casing with a mounting to fix it onto the Probst stand.

Two 12 Volt diaphragm pumps.

Main switch – on / off function – using the main switch you can switch the pump on or off. By switching it off, the
suction lead is automatically ventilated.

Fuse holder with fine wire fuse.

The Vacuum pump is fitted with a charging control system. 3 LEDs show you how charged the battery is.
5271.0008 V1
22 / 24
GB
