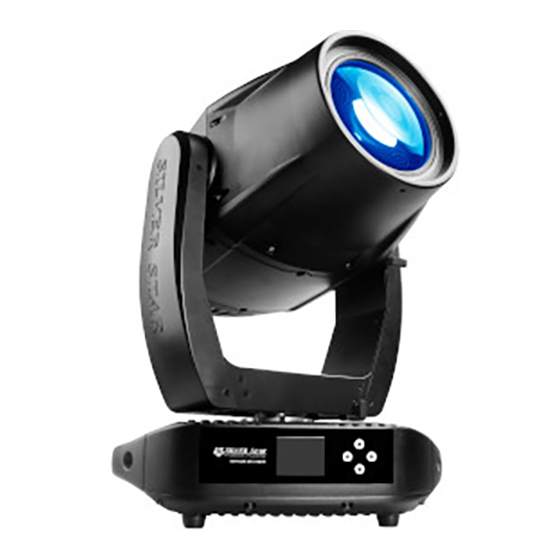

NEPTUNE 400 HYBRID
USER MANUAL
LEDMOV640

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LEDMOV640 and is the answer not in the manual?

Questions and answers

Related Manuals for ShowPro LEDMOV640

Summary of Contents for ShowPro LEDMOV640

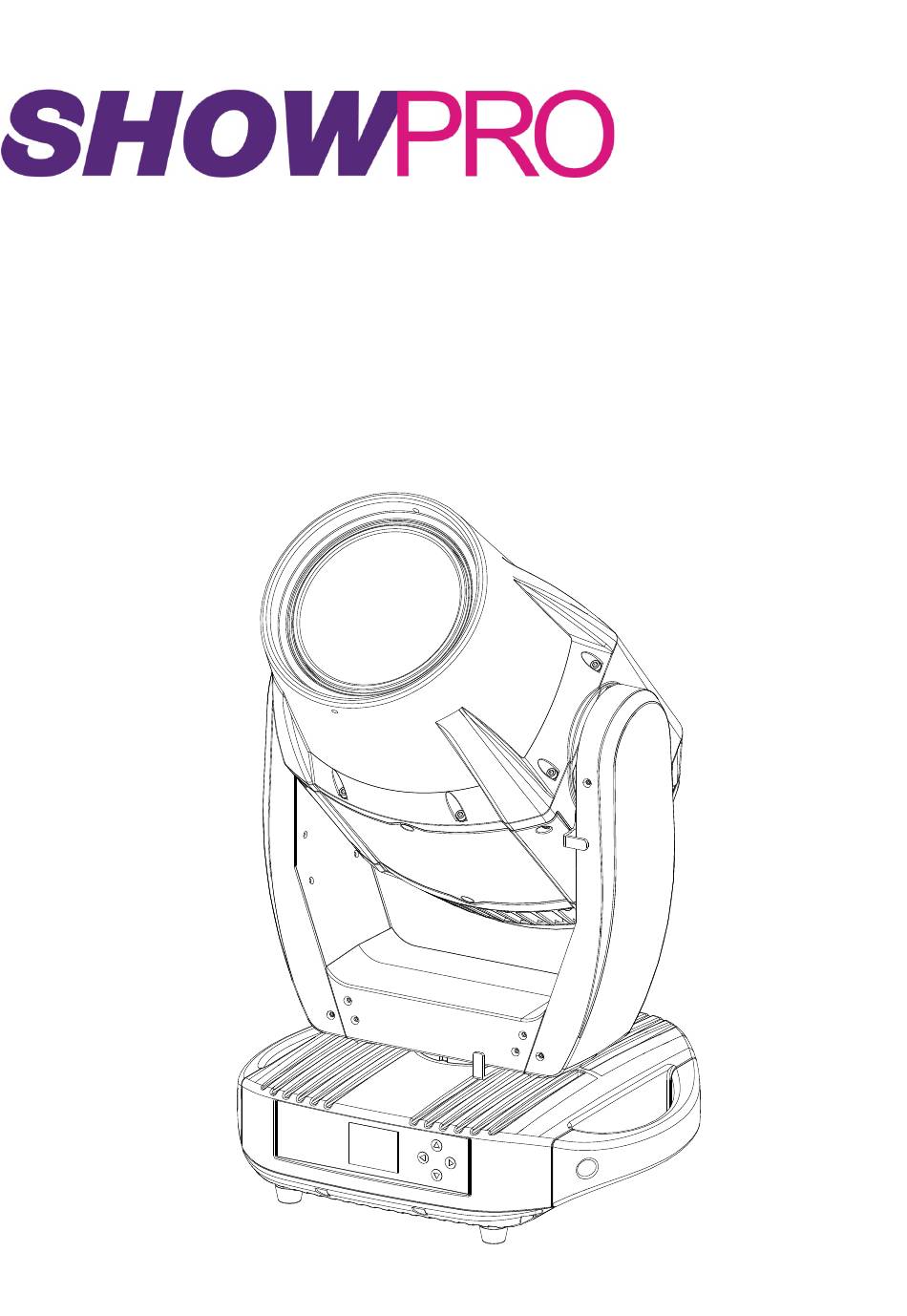

  • Page 1 NEPTUNE 400 HYBRID USER MANUAL LEDMOV640...

  • Page 2: Product Introduction

    Product Introduction 1.1 Specification LEDMOV640 Product Code Unit D imensions 416×356×670(mm) 34KG Weight 400W Rated Power Input Voltage AC100~240VAC,50/60Hz Max Current Ambient Temperature -20℃ to 45℃ 3°~30° Beam Angle DMX512/RDM/ArtNet/sACN Control Protocols Light Engine 300W White LED 552mm 416 mm...

  • Page 3: Safety Warning

    1.2 Safety warning IMPORTANT This lighting fixture is for professional use only and must be installed by a qualified technician. It is not for household use. It presents risks of severe injury or death due to fire hazards, electric shock and falls. It can create a fire hazard or a risk of eye injury if the safety precautions below are not followed.

  • Page 4: Fuse Replacement

    All local safety regulations and legal requirements must be observed when installing and connecting the fixture. Installation must be carried out by qualified professionals only. Contact your ShowPRO supplier for assistance if you have any questions about how to install this product safely. HANGING UPRIGHT 2.2 Fuse replacement...

  • Page 5: Power Connections

    2.3 Power connections This product has Seetronic PowerKon input and link output connections. Display panel operation 3.1 Display operation Back Down Enter Ÿ <UP> Scroll 'UP' through the menu list or increase the value of the current function. Ÿ <DOWN> Scroll 'DOWN' through the menu list or decrease the value of the current function.
  • Page 6 Menu MENU ADDRESS 001-512 PERSON BASIC STANDARD EXTEND RUNMODE DMX512 ARTNET ARTNET TO DMX sACN AUTO CUSTOM1 CUSTOM2 OPTION PAN INVERT TILT INVERT FANS SLOW NORMAL FAST AUTO OFF/ON BACKOUT DIMMER DIM4 DIM3 DIM2 DIM1 LED PWM 1200Hz 2400Hz 4000Hz 6000Hz 25000Hz SAVE/BLACK...
  • Page 7 WDMX FIRST WDMX TO XLR DMX STEP(01-30) 0~255 EDIT EDIT 1-2 TILT 0~255 PT SPEED 0~255 CMY_C 0~255 CMY_M 0~255 CMY_Y 0~255 COLOR 0~255 ROTA.GOBO 0~255 GOBO.ROTA 0~255 FIXED GOBO 0~255 PRISM 0~255 FROST 0~255 ZOOM 0~255 FOCUS 0~255 DIMMER 0~255 STROBE 0~25...
  • Page 8 INFO FIXTURE HOURS LED USE HOURS TEMPERATURE VERSION NETWORK 0x388Axxxxxxxx LABEL NEPTUNE 400 HYBRID MEMORY IC SYSTEM ERROR ANGLE SENSOR PAN SENSOR PAN ENCODER PAN DRIVER IC TILT SENSOR TILT ENCODER TILT DRIVER IC TEMPERATURE CMY_C RESET CMY_M RESET CMY_Y RESET COLOR RESET FGOBO RESET GOBO RESET...

  • Page 9: Dmx Address

    DMX Address MENU 001-512 ADDRESS Enter the【DMX】mode to set the DMX address. • Enter Up/Down select 1~512 address. 【 】 • Enter【MENU】return. • 3.4 Personality(Person) MENU PERSON BASIC STANDARD EXTEND • Enter the【PERSON】mode to select DMX mode:【 TANDARD】 (24CH) B ,【...
  • Page 10 3.6 Performance(Option) MENU OPTION PAN INVERT TILT INVERT FANS SLOW NORMAL FAST AUTO BACKOUT OFF/ON DIMMER DIM4 DIM3 DIM2 DIM1 LED PWM 1200Hz 2400Hz 4000Hz 6000Hz 25000Hz SAVE/BLACK DMX ERROR OFF/ON DISPLAY ON OFF/ON DISPLAY LOCK NO/YES LOAD PARA SETTING RECOVERY **** CLEAN EDIT 1...
  • Page 11 [PAN INVERT] Invert Pan [TILT INVERT] Invert Tilt [FANS] Set Fan Speeds [BLACKOUT] Blackout Mode [DIMMER] Set Dimmer Curve [LED PWM] Set PWM Frequency [DMX ERROR] Hold or Black with loss of DMX [DISPLAY ON] Display Timeout [DISPLAY LOCK] Display Lock Mode [LOAD PARA] Load Settings [SETTING]...
  • Page 12 3.7 EDIT STEP(01-30) 0~255 MENU EDIT EDIT 1-2 TILT 0~255 PT SPEED 0~255 CMY_C 0~255 CMY_M 0~255 CMY_Y 0~255 COLOR 0~255 ROTA.GOBO 0~255 GOBO.ROTA 0~255 FIXED GOBO 0~255 PRISM 0~255 FROST 0~255 ZOOM 0~255 FOCUS 0~255 DIMMER 0~255 STROBE 0~25 TIME 0~255(×0.1S) YES/NO...
  • Page 13 3.8 MANUAL MENU MENU MANUAL AUTO TEST CHANNEL 0~255 TILT 0~255 PT SPEED 0~255 CMY_C 0~255 CMY_M 0~255 CMY_Y 0~255 COLOR 0~255 ROTA.GOBO 0~255 GOBO.ROTA 0~255 FIXED GOBO 0~255 PRISM 0~255 FROST 0~255 ZOOM 0~255 FOCUS 0~255 DIMMER 0~255 STROBE 0~25 YES/NO DEBUG HIDE...

  • Page 14: Zoom Reset

    3.9 INFO MENU INFO FIXTURE HOURS LED USE HOURS TEMPERATURE VERSION NETWORK 0x388Axxxxxxxx LABEL NEPTUNE 400 HYBRID MEMORY IC SYSTEM ERROR ANGLE SENSOR PAN SENSOR PAN ENCODER PAN DRIVER IC TILT SENSOR TILT ENCODER TILT DRIVER IC TEMPERATURE CMY_C RESET CMY_M RESET CMY_Y RESET COLOR RESET...
  • Page 15 3.10 SERVICE MENU SERVICE ±127 **** TILT ±127 CMY-C ±127 CMY-M ±127 CMY-Y ±127 COLOR ±127 FIXED GOBO ±127 ROTA. GOBO ±127 GOBO.ROTA ±127 PRISM ±127 FROST ±127 ZOOM ±127 FOCUS ±127 [SERVICE] Enter password to enter the options page. [PAN] Pan fine adjustment +/- 127...

  • Page 16: Using A Dmx512 Controller

    Using a DMX512 Controller 4.1 Channel Assignment This fixture has three DMX personalities: 【BASIC】，【STANDARD】，【EXTEND】. BASIC STANDARD EXTEND VALUE FUNCTION (20CH) (24CH) (28CH) CH.1 CH.1 CH.1 000~255 PAN 0-540° CH.2 CH.2 000~255 PAN FINE TILT 0-270° CH.2 CH.3 CH.3 000~255 000~255 TILT FINE CH.4 CH.4...
  • Page 17 BASIC STANDARD EXTEND VALUE FUNCTION (20CH) (24CH) (28CH) CMY SPEED(SPEED 100%->1) 000~255 CH.8 CH.10 CH.10 COLOR WHEEL1 7+1 000~007 WHITE 008~014 COLOR 1 015~021 COLOR 2 022~028 COLOR 3 COLOR 4 029~035 036~042 COLOR 5 CH.9 CH.11 CH.11 043~049 COLOR 6 COLOR 7 050~056 COLOR 8...
  • Page 18 BASIC STANDARD EXTEND VALUE FUNCTION (20CH) (24CH) (28CH) 128~190 ROTATING GOBO FLOWING WATER EFFECT (SPEED 100 —> 1%) STOP WATER EFFECT 191~192 193~255 ROTATING GOBO FLOWING WATER EFFECT (SPEED 1 —> 100%) GOBO ROTATING ROTATING GOBO ANGLE ADJUSTMENT (0 —> 360°) 000~120 STOP 121~125...
  • Page 19 BASIC STANDARD EXTEND VALUE FUNCTION (20CH) (24CH) (28CH) 104~108 FIXED GOBO 10 SHAKE (SPEED 1 > 100%) 109~113 FIXED GOBO 11 SHAKE (SPEED 1 > 100%) 114~118 FIXED GOBO 12 SHAKE (SPEED 1 > 100%) 119~127 WHITE 128~190 STATIC GOBO JUMPING WATER EFFECT (SPEED 100 > 1%) 191~192 STOP WATER EFFECT STATIC GOBO FLOWING WATER EFFECT (SPEED 1 >...
  • Page 20 BASIC STANDARD EXTEND VALUE FUNCTION (20CH) (24CH) (28CH) 229~255 21 METER 000~255 AUTO FOCUS FINE CH.24 000~255 DIMMER CH.18 CH.25 CH.21 DIMMER FINE 000~255 CH.22 CH.26 STROBE 000~009 NO FUNCTION STROBE ( SLOW > FAST） 010~099 CH.19 CH.23 CH.27 NO FUNCTION 100~109 LIGHTNING STROBE 110~179...
  • Page 21 BASIC STANDARD EXTEND VALUE FUNCTION (20CH) (24CH) (28CH) 231~240 GOBO RESET 241~255 FOCUS-ZOOM-PRISM-FROST RESET...
