ShowPro R2 Beam Wash User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

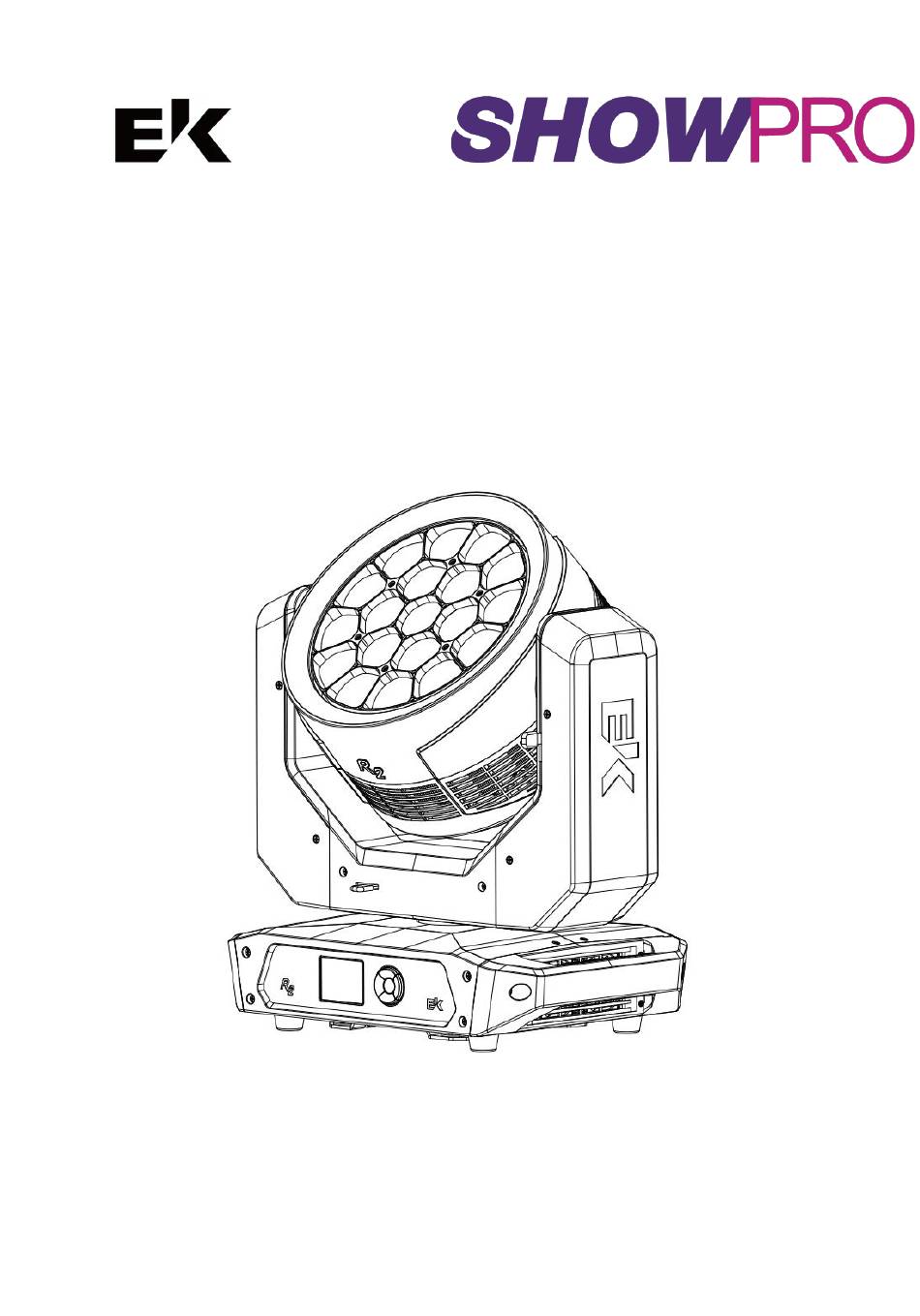

R2 Beam Wash
USER MANUAL
LEDMOV422
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the R2 Beam Wash and is the answer not in the manual?

Questions and answers

Related Manuals for ShowPro R2 Beam Wash

Summary of Contents for ShowPro R2 Beam Wash

  • Page 1 R2 Beam Wash USER MANUAL LEDMOV422...
  • Page 2 SAFETY WARNING! Before carrying out any operations with the unit, carefully read this instruction manual and keep it with care for future reference, it contains important information about the installation, use and maintenance of the unit. General instructions - The products referred to in this manual conform to Australian Standards and are therefore marked with the Regulatory Compliance Mark (RCM).
  • Page 3 Warnings and installation precautions - Always conform to the safety instructions and procedures laid out in this manual. Failure to do so will void the warranty. Any unauthorized operation may lead to dangers like short circuit, burns, electric shock, etc. - Before starting any maintenance work or cleaning the fixture, cut off power from the main supply.
  • Page 4 SPECIFICATIONS Light Source: 19 x 40W RGBW LEDs Output: 38,000 lux @ 5m Linear Zoom: 4° to 60° Mains: 100~240 VAC, 50/60 Hz Consumption: 910W/120V, 858W/230V Power Connections: Powercon In/Out Colour Mixing: RGBW Macros: Colours, Patterns, Strobe, Pan/Tilt Layers: Background layer dimming, strobe, patterns, colours, CT, tints and macros Pan: 540°...
  • Page 5 PHOTOMETRICS...
  • Page 6 DIMENSIONS...
  • Page 7 OVERVIEW...
  • Page 8 FUNCTIONS AND OPERATION POWER ON/OFF The fixture is powered on by connecting the included power cable to mains power (100 - 240 VAC, 50/60 Hz). Upon receiving power, the fixture will cycle through a motor reset program. To power on, disconnect the power cable or turn on power remotely using a switch. MENU NAVIGATION The control panel features five-button navigation of the onboard menu.
  • Page 9 FUNCTIONS AND OPERATION Main Menu Sub Menu Sub Menu Values Default DMX Address 001 – 512 DMX Mode 16CH 16CH 17CH 43CH 86CH Settings Display Reverse On/Off Display Backlight On/30s DMX Fail DMX Fail Hold/Blackout Hold Dimmer Curve Dimmer Curve Linear Linear S-Curve...
  • Page 10 Only Artnet Universe 000 – 255 Universe Group 000 – 127 Only sACN Universe 001 – 256 Universe Group 000 – 249 Artnet + DMX Universe 000 – 255 Universe Group 000 – 127 DMX Address 001 – 512 sACN + DMX Universe 001 –...
  • Page 11 DMX CHART 16CH Function Value Setting 000 – 255 Pan Coarse Pan Fine 000 – 255 Pan Fine Tilt 000 – 255 Tilt Coarse Tilt Fine 000 – 255 Tilt Fine Dimmer 000 – 255 0 – 100% Dimmer Fine 000 –...
  • Page 12 128 – 129 LED Frequency 12kHz (Hold 3s) 130 – 131 LED Frequency 25kHz (Hold 3s) 132 – 139 Spare 140 – 141 Display On (Hold 3s) 142 – 143 Display Off (Hold 3s) 144 – 159 Spare 160 – 161 LED Direction Normal (Hold 3s) 162 –...
  • Page 13 061 – 065 Effect 12 (2 Dots Running On Outer Circle) 066 – 070 Effect 13 (4 Dots Running On Outer Circle) 071 – 075 Effect 14 (Even/Odd) 076 – 080 Effect 15 (Random Single Dots Jump) 081 – 085 Effect 16 (Random Single Dots Fade) 086 –...
  • Page 14 43CH Function Value Setting 000 – 255 Pan Coarse Pan Fine 000 – 255 Pan Fine Tilt 000 – 255 Tilt Coarse Tilt Fine 000 – 255 Tilt Fine Dimmer 000 – 255 0 – 100% Dimmer Fine 000 – 255 0 –...
  • Page 15 190 – 193 795 Magical Magenta 194 – 197 128 Bright Pink 198 – 201 2 Rose Pink 202 – 204 Colour Jumping Stop 205 – 230 Colour Jumping Slow to Fast 231 – 255 Colour Fading Slow to Fast 000 –...
  • Page 16 226 – 230 231 – 235 236 – 240 241 – 245 246 – 250 251 – 255 000 – 005 006 – 010 011 – 015 016 – 020 021 – 025 026 – 030 031 – 035 036 – 040 041 –...
  • Page 17 071 – 075 Effect 14 (Even/Odd) 076 – 080 Effect 15 (Random Single Dots Jump) 081 – 085 Effect 16 (Random Single Dots Fade) 086 – 090 Effect 17 (Raindrop Jump) 091 – 095 Effect 18 (Raindrop Fade) 096 – 100 Effect 19 (All Effects) 101 –...
  • Page 18 150 – 153 71 Tokyo Blue 154 – 157 181 Congo Blue 158 – 161 799 Special KH Lavender 162 – 165 707 Ultimate Violet 166 – 169 343 Special Medium Lavender 170 – 173 798 Chrysalis Pink 174 – 177 701 Provence 178 –...
  • Page 19 236 – 237 Reset All Functions (Hold 3s) 238 – 245 Spare 246 – 255 No Function 86CH Function Value Setting 000 – 255 Pan Coarse Pan Fine 000 – 255 Pan Fine Tilt 000 – 255 Tilt Coarse Tilt Fine 000 –...
  • Page 20 Blue 000 – 255 0 – 100% White 000 – 255 0 – 100% 000 – 255 0 – 100% Green 000 – 255 0 – 100% Blue 000 – 255 0 – 100% White 000 – 255 0 – 100% 000 –...
  • Page 21 PIXEL MAP Pixel Order: Refer to the below illustration for programming the order of the R2 LEDs...
