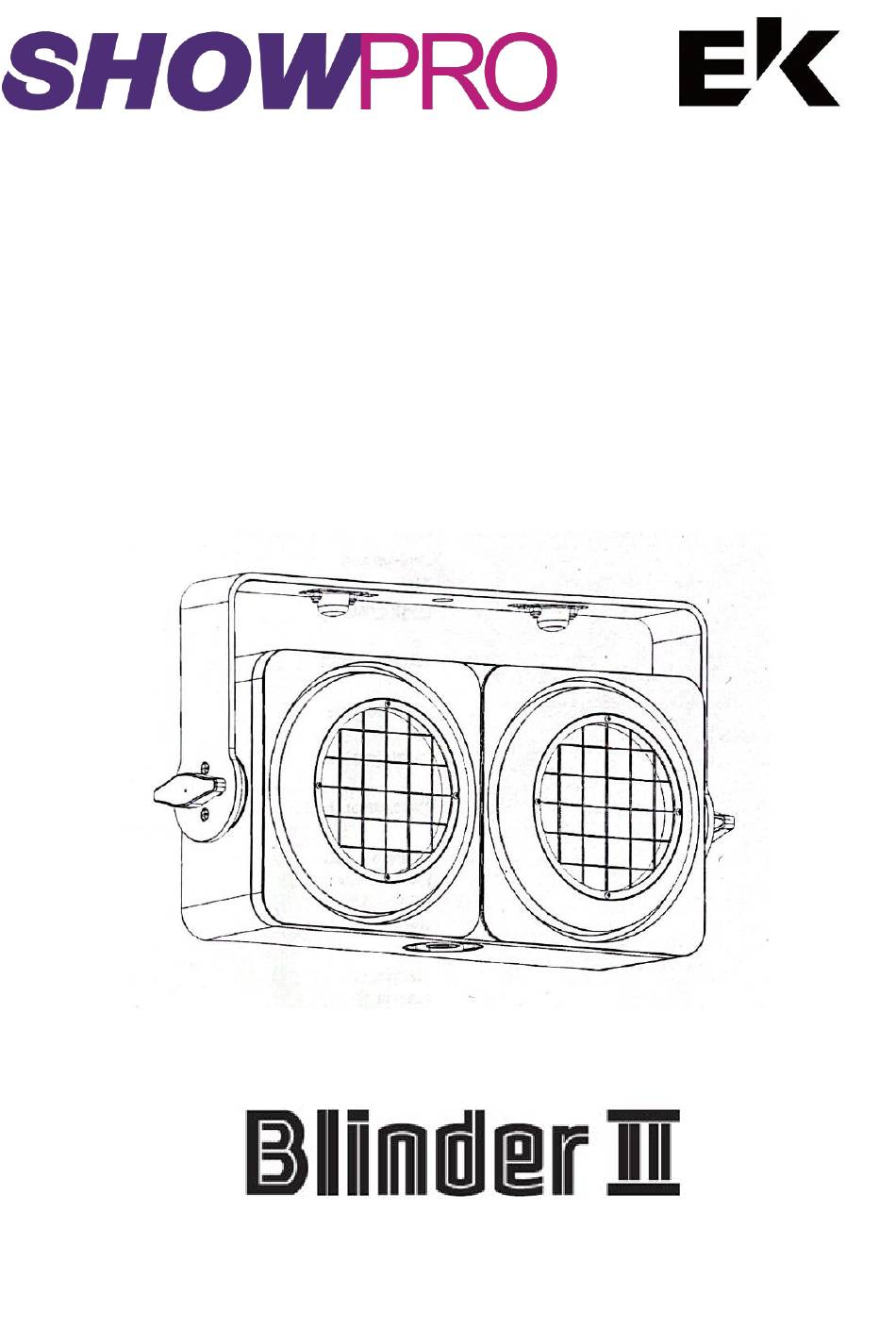

- Page 1 Blinder II IP USER MANUAL LEDPAR370...
-
Page 2: General Instructions
WARNING! Before carrying out any operations with the unit, carefully read this instruction manual and keep it with cure for future reference. It contains important information about the installation, usage, and maintenance of the unit. SAFETY General instructions • The products referred to in this manual conform to the European Community Directives and are therefore marked with CE. -
Page 3: Specifications
INTRODUCTION Blinder II is a warm white LED audience blinder with a modern design and advanced features designed to reproduce the look and feel of the classic incandescent effect. Features 147w 2800K bi-colour LEDs (WW/Amber), driven by 2x 70w LED drivers Advanced optical system delivers a super high output of 10600lm CRI ≥... -
Page 4: Maintenance And Cleaning The Unit
MAINTENANCE Maintenance and cleaning the unit • Make sure the area below the installation place is free from unwanted persons during setup. • Switch off the unit, unplug the main cable and wait until the unit has cooled down. • All screws used for installing the device and any of its parts should be tightly fastened and should not be corroded. -
Page 5: Basic Functions And Operation
OVERVIEW BASIC FUNCTIONS AND OPERATION DOWN MENU ENTER Increase the displayed Decrease the displayed Display main menu, or Confirm displayed value, or scroll thru value, or scroll thru return to higher menu values, or activate previous menu items next menu items levels displayed functions, or enter submenus, or... - Page 6 DIMENSIONS...
- Page 7 PHOTOMETRICS Diameter Beam Angle: 58.8° 112.6cm 337.9cm 562.2cm 788.5cm 1126.4cm (cm) Distance Full On (Lux) (C700) 11790 1310 471.6 240.6 117.9 DMX/POWER CONNECTIONS DMX MODE Fixture 1 Fixture 2 Fixture 3 Fixture 4 1-channel 2-channel 3-channel 4-channel 5-channel 8-channel...
- Page 8 MENU Main Menu Menu Level 2 Menu Level 3 Default DMX Address DMX Channel Dimmer <0 – 255> Dimmer: 255 Static Strobe <0 – 255> Strobe: 0 Auto 1 <0 – 100> Auto 2 <0 – 100> Auto 3 <0 – 100> Auto: 1 Auto Show Speed: 100...
-
Page 9: Dmx Charts
DMX CHARTS 1Ch Function Value Setting Dimmer 000 – 255 0 – 100% 2Ch Function Value Setting Dimmer Head 1 000 – 255 0 – 100% Dimmer Head 2 000 – 255 0 – 100% 3Ch Function Value Setting Master Dimmer 000 –... - Page 10 5Ch Function Value Setting Master Dimmer 000 – 255 0 – 100% Red Shift 000 – 000 001 – 255 Strobe 000 – 010 No Function 011 – 132 Strobe slow to fast 133 – 255 Random Strobe slow to fast Auto Show (Macros) 000 –...
