ShowPro Pluto 200 Spot Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

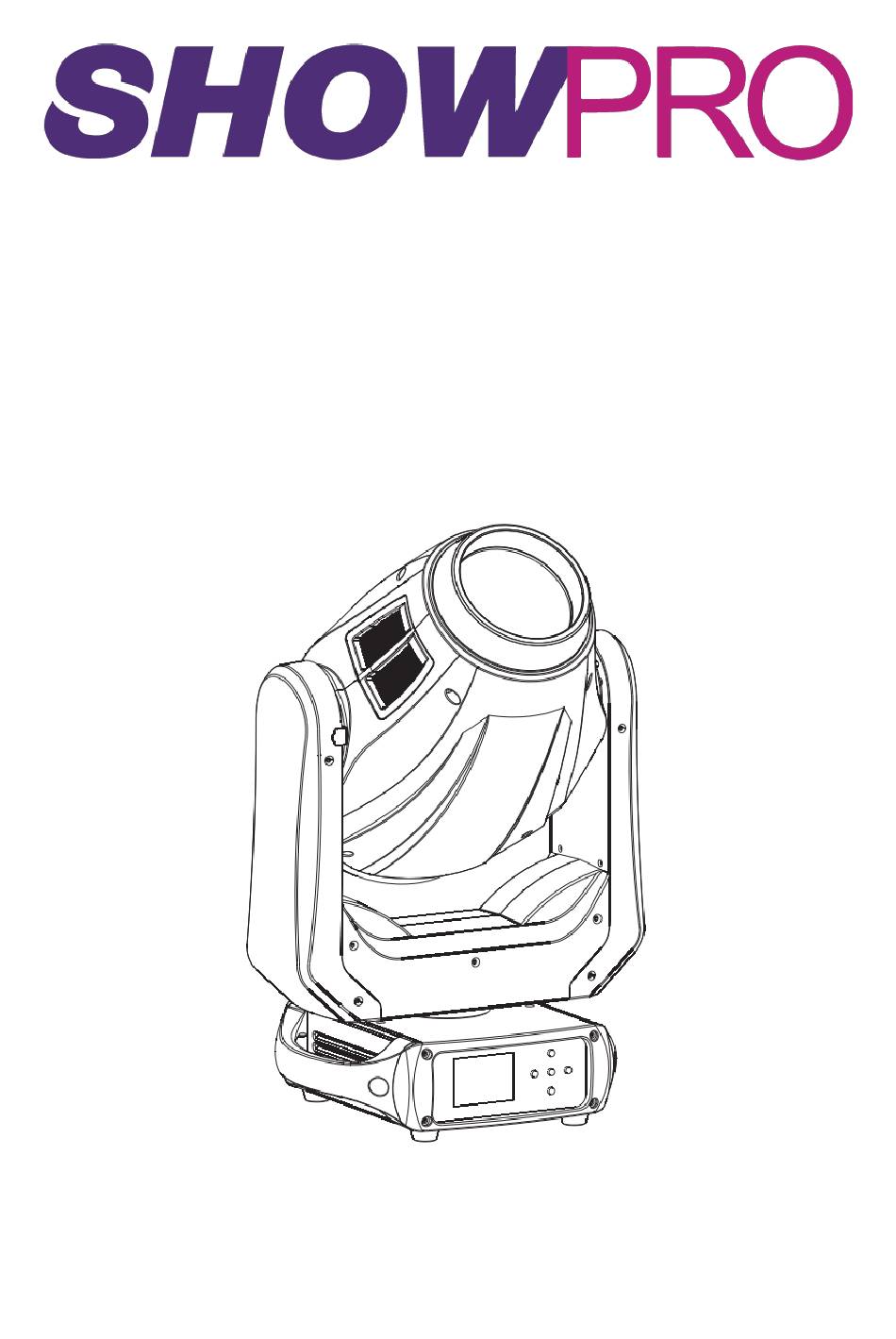

Pluto 200 Spot
MANUAL
LEDMOV500
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Pluto 200 Spot and is the answer not in the manual?

Questions and answers

Related Manuals for ShowPro Pluto 200 Spot

Summary of Contents for ShowPro Pluto 200 Spot

  • Page 1 Pluto 200 Spot MANUAL LEDMOV500...

  • Page 2: Product Specifications

    1 Product Specifications 1.1 Technical specifications Led module: • Voltage: AC 100V - 240V, 50/60Hz • Power: 280W • Dimensions: 359 x 249 x 555mm • Weight 16.5kg 1.2 Dimensions...

  • Page 3: Safety Warning

    1.2 Safety Warning IMPORTANT Always read the user manual before operation. Please confirm that the power supply stated on the product is the same as the mains power supply in your area. • This product must be installed by a qualified professional. •...

  • Page 4: Installation

    2 Installation 2.1 Mounting • The fixture can be mounted in any position. • Always ensure that mounting surface can withstand 10 times the weight of the fixture. • Always use a safety cable when mounting the fixture in any elevated position. IMPORTANT SAFETY NOTE Always use a safety cable when installing this unit.

  • Page 5: Fuse Replacement

    2.2 Fuse replacement • Remove the safety cap with a screwdriver. • Remove the old fuse from the safety cap. • Install a new fuse. • Install the safety cap. 2.3 Power connections This product uses input and output power cable. Note: If the signal cable is over 60m between the DMX512 controller and fixture or between two fixtures, then a DMX signal amplifier is needed as well.
  • Page 6 3.2 Menu...

  • Page 8: Dmx Address

    3.3 DMX Address Enter the DMX mode to set the DMX address. Enter UP/DOWN select 1~512 address. 3.4 Personality (Person) Enter the PERSON mode to select DMX mode: STANDARD, BASIC. 3.5 Runmode There are four modes: DMX512: DMX512 mode AUTO: auto run mode CUSTOM1: custom self-edited scene mode 1 CUSTOM2: custom self-edited scene mode 2 Press UP/DOWN to select mode, press ENTER to accept, press MENU to...
  • Page 9 3.6 Performance (Option) PAN/TILT INVERT: menu, select NORMAL for normal direction, select INVERT to invert the PAN/TILT direction. FANS: select Slow/Norm/Fast/Auto as required. BLACKOUT: Choose OFF and ON to control the blackout mode. DIMMER: select from DIM1/DIM2/DIM3/DIM4/OFF dimming curve. LED PWM: set the PWM refresh rate. Press UP/DOWN to choose 1200Hz, 2000Hz, 2400Hz, 6000Hz, 25000Hz.
  • Page 10 SETTING: maintenance settings. Select RECOVERY to restore default factory settings. Press ENTER, enter password, then press ENTER. CLEAN EDIT1: clean custom self-edited scene 1, press ENTER to confirm. CLEAN EDIT2: clean custom self-edited scene 2, press ENTER to confirm. WDMX HIDE: WDMX RESET and SIGNAL. Default is wired mode only. PT ENCODER XY: encoder switch.

  • Page 11: Manual Control Mode

    3.8 Manual Control Mode Press ENTER into AUTOTEST. Set and Adjust the value of PAN, TILT, PT SPEED, CTO, COLOR, FIXED GOBO, ROTA.GOBO, GOBO.ROTA, PRISM, FROST, IRIS, ZOOM, FOCUS, DIMMER, STROBE. Push UP/DOWN to set the value 0 – 255. DEBUGHIDE: factory testing mode.
  • Page 12 3.9 Info Press ENTER into INFO. FIXTURE HOURS: hours of fixture use LED USE HOURS: LED usage time TEMPERATURE: current LED temperature VERSION: display software version RDM: check fixture's ID SYSTEM ERROR: system information error: Memory IC，Angle Sensor， PanSensor， Pan Encoder，Pan Drive IC，Tilt Sensor，TiltEncoder，TiltDriveIC，FAN RUN， Temperature，Color Reset，FGobo Reset，Gobo Reset，RGobo Reset，Zoom Reset，...
  • Page 13 3.10 Service Press ENTER to access SERVICE. Enter password to access the options page. Use the Up/DOWN buttons to adjust the value ±127. Available for PAN, TILT, COLOR, FIXED GOBO, ROTA.GOBO, GOBO.ROTA, FOCUS, ZOOM, IRIS,PRISM. DIMMER: adjusts from 128~255.

  • Page 14: Channel Value

    4 Using a DMX512 Controller 4.1 Channel Assignment Note: this product has two DMX512 channel configurations: STANDARD, BASIC. STANDARD CHANNEL VALUE FUNCTION ° 000 – 255 Pan (0-540 000 – 255 Pan Fine °) 000 – 255 Tilt (0-270 000 – 255 Tilt Fine 000 –...
  • Page 15 Rotating Gobo 000 – 010 White 011 – 018 Rotating Gobo 1 019 – 026 Rotating Gobo 2 027 – 034 Rotating Gobo 3 035 – 042 Rotating Gobo 4 043 – 050 Rotating Gobo 5 051 – 058 Rotating Gobo 6 059 –...
  • Page 16 229 – 255 000 – 255 Manual Focus 000 – 255 Dimmer 000 – 255 Dimmer Fine Strobe 000 – 009 No Function 010 – 099 Strobe (Slow to Fast, 0-25Hz) 100 – 109 No Function 110 – 179 Lightning Strobe 180 –...
  • Page 17 223 – 224 Stop 225 – 255 Colour Wheel Spin CCW (1% - 100%) 000 – 255 Colour Wheel Fine Fixed Gobo Wheel 000 – 010 White 011 – 017 Fixed Gobo Wheel 1 018 – 024 Fixed Gobo Wheel 2 025 –...
  • Page 18 Prism 000 – 010 White °) 011 – 145 Prism Insert and Index (0-360 146 – 150 Stop 151 – 200 Prism Rotating CW (100% - 1%) 201 – 205 Stop 206 – 255 Prism Rotating CCW (1% - 100%) Frost 000 –...
  • Page 19 181 – 190 6000Hz 191 – 200 25000Hz 201 – 210 All Reset 211 – 220 Pan/Tilt Reset 221 – 230 Colour System Reset 231 – 240 Gobo System Reset 241 – 250 Optics System Reset 251 – 255 No Function...

This manual is also suitable for:

Ledmov500
