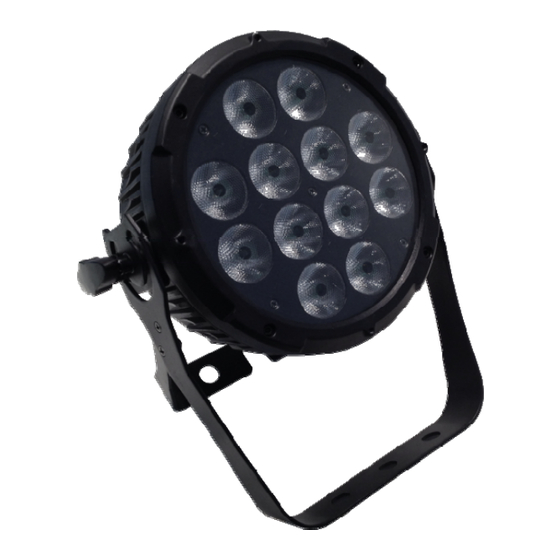

LED Par Quad 12
User Manual
LED Par Quad 12
12 High Powered Tri-Colour LEDs
www.showtech.com.au
1
LED Par Quad 12
Table of Contents
1. Safety instructions..................................................................3
1.1 Overhead rigging .............................................................4
1.2 Power Connection ...........................................................6
1.3 Cleaning and Maintenance ............................................6
2. Menu Navigation ............................................................7
3. DMX Allocation ..............................................................8
4. Technical Specifications ..................................................10
2
Advertisement
Table of Contents
Related Manuals for ShowPro LED Par Quad 12
Summary of Contents for ShowPro LED Par Quad 12
-
Page 1: Table Of Contents
LED Par Quad 12 LED Par Quad 12 Table of Contents User Manual 1. Safety instructions…………………………………………………………3 1.1 Overhead rigging …………………………………………………….4 1.2 Power Connection …………………………………………………..6 1.3 Cleaning and Maintenance ……………………………………..6 2. Menu Navigation ............7 3. DMX Allocation ..............8 4. Technical Specifications ..........10 LED Par Quad 12 12 High Powered Tri‐Colour LEDs www.showtech.com.au 1 2 ... -
Page 2: Safety Instructions
LED Par Quad 12 LED Par Quad 12 When not using the unit for an extended period of time be sure to disconnect the 1. Safety Instructions plug form the receptacle. FOR SAFE AND EFFICIENT OPERATION 1.1 . Overhead Rigging Be careful with heat and extreme temperature. Avoid exposing it to direct rays of sun near a heating appliance. This item must be built in a way that it can hold 10 times more of its weight for 1 Do not put it in a temperature below 41°F/5°C, or exceeding 95°F/35°C. hour without causing any damages. The installation must be secured with a secondary safety attachment. The Safety attachment has to be constructed in a way Keep away from humidity, water and dust. that no part of the installation can fall down. When rigging, de‐rigging or servicing Do not place the set in a location with a high humidity or lots of dust. the fixture staying in the area below the installation place, on bridges, under high Containers with water should not be placed on the set. working places and other endangered areas us forbidden. Before taking the device in operation, the installation must be approved by an expert. The operator has to make Keep away from sources of hum and noise sure that safety‐relating and machine‐technical installations are approved by a skilled Such as transformer motor, tuner, TV set and amplifier. person once a year. To avoid placing on un‐stable location Select a level and stable location to avoid vibration. IMPORTANT! OVERHEAD RIGGING REQUIRES EXTENSIVE EXPERIENCE. Including (but not limited to) calculating working load limits, installation material Do not use chemicals or volatile liquids for cleaning being used, and periodic safety inspection of all installation material and the Use a dry cloth to wipe off the dust, or a wet soft cloth for stubborn dirt. projector. If you lack these qualifications, do not attempt the installations yourself, ... -
Page 3: Danger Of Fire
LED Par Quad 12 LED Par Quad 12 1.2. Power Connection DANGER OF FIRE! !! CAUTION !! When installing the device, make sure there is no highly‐flammable material Never leave this device running unattended!! Every person that is involved with this (decoration articles, etc) within a distance of min. 0.5m. item has to be qualified!! Mount the projector with the mounting bracket to your trussing system using an Connect item with main plug. The voltage and frequency must exactly be the same as appropriate clamp. stated on the device. The power plug must always be inserted without force. For overhead use, always install a safety‐rope that can hold at least 10 times the weight of the fixture. You must only use safety –ropes with quick links with screw cap. Pull the safety‐rope through the hole in the mounting bracket and over the trussing system or a safe fixation spot. Insert the end in the quick link and tighten the safety 1.3. Cleaning and Maintenance screw. The maximum drop distance must never exceed 20cm A safety rope which already held the strain of a crash or which is defective must not Please make sure that safety‐relating and machine‐technical installations are be used again. inspected by a skilled person once a year. Make sure before installing that all screws are tightly connected and not corroded. DANGER TO LIFE! There must be no deformations on the housings, fixations and installations spots Before taking into operation for the first time, the installation has to be approved by No damages must be showed on the power supply cables, material fatigue and an expert. sediments If the exterior of the unit is going to be cleaned, please use moist, lint free cloths. Never use alcohol or solvents. The Cooling fan must be cleaned monthly and check to ensure it is free of obstructions. ... -
Page 4: Menu Navigation
LED Par Quad 12 LED Par Quad 12 2.0 Menu navigation 3.0 DMX Allocation 4CH MODE: Menu Level 2 Level 3 CHANNEL VALUES FUNCTION Auto 1 Speed (0-100) 000-255 Red 0~100% Auto 2 Speed (0-100) 000-255 Green 0~100% Auto Auto 3 Speed (0-100) 000-255... -
Page 5: Technical Specifications
LED Par Quad 12 LED Par Quad 12 4.0 Technical Specifications 151-170 R100~0% G100~0% B100% W 0~100% 171-200 R100% G100% B100% W100% 201-205 Colour Temperature 1 Warm Power supply: 100 ‐240 V AC, 50/60 Hz 206-210 Colour Temperature 2 Light source: 12 x 8W (500mA x 4) 211-215 Colour Temperature 3 216-220 Colour Temperature 4 Quad‐colour RGBW LEDs 50,000hrs ...
