ShowPro K SMART PROFILE Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
K SMART PROFILE
MANUAL
LEDMOV440
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the K SMART PROFILE and is the answer not in the manual?

Questions and answers

Related Manuals for ShowPro K SMART PROFILE

Summary of Contents for ShowPro K SMART PROFILE

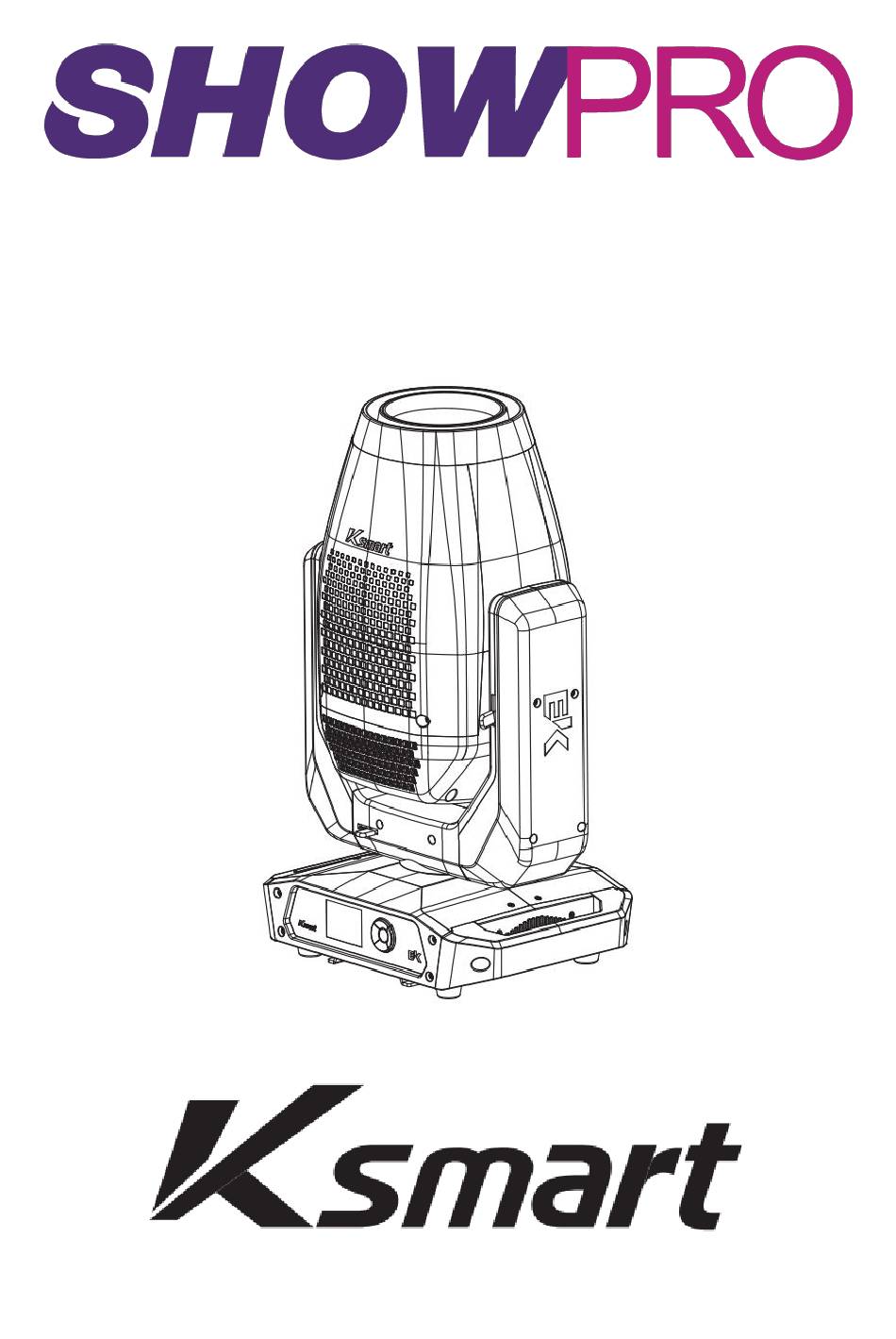

  • Page 1 K SMART PROFILE MANUAL LEDMOV440...

  • Page 2: Table Of Contents

    CONTENTS SAFETY - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3 INTRODUCTION - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4 SPECIFICATIONS - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5 PHOTOMETRICS - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 6...

  • Page 3: Safety

    SAFETY WARNING! Before carrying out any operations with the unit, carefully read this instruction manual and keep it with care for future reference, it contains important information about the installation, use and maintenance of the unit. General instructions - The products referred to in this manual conform to the European Community Directives and are therefore marked with CE.

  • Page 4: Introduction

    Warnings and installation precautions - If this device is operated in any way different to the way described in this manual, it may suffer damage and the warranty becomes void. Any unauthorized operation may lead to dangers like short circuit, burns, electric shock, etc. - Before starting any maintenance work or cleaning the fixture, cut off power from the main supply.

  • Page 5: Specifications

    SPECIFICATIONS Light source: 600W LED Beam angle: 6°~50° Output: 20322Lm(50°) / 12208Lm(6°) Color temperature: 6000K CRI: 70 / 90 (CRI filter) LED life: 20000hrs Pan/Tilt: 540° / 270° Color: CMY + colour wheel (7 + open) + CTO CTO: 3200K~6000K, linear Gobos(rotating): 7 interchangeable + open Animation:...

  • Page 6: Photometrics

    PHOTOMETRICS GOBOS COLOURS FRAMING ANIMATION SHUTTER...

  • Page 7: Dimensions

    DIMENSIONS...

  • Page 8: Overview

    OVERVIEW Fixture Illustration 1. Control Panel 6. Fuse 2. 3 Pin DMX In 7. PowerCon In 3. 3 Pin DMX Out 8. PowerCon Out 4. 5 Pin DMX In 9. Omega Bracket 5. 5 Pin DMX Out Control Panel Increase value or previous menu item DOWN: Decrease value or next menu item LEFT:...

  • Page 9: Installation

    INSTALLATION The K Smart must be set up on a solid and even surface. By means of the brackets on the baseplate, the unit can also be mounted upside down to a cross arm. For mounting, strong, stable clamps are required. The bolts of the brackets are placed into the openings provided in the base plate and turned clockwise until they lock.

  • Page 10: Connection

    CONNECTION Power Connection Using PowerCon In/Out. Power cables connected in series. Attention: due to power rating, one power cable can connect 2 units maximum Do not connect more than 2 units in series with one power cable. Do not use with damaged power cable. Power off the fixture when not in use.
  • Page 11 DMX Connection • Depending on the length of the DMX cable run, or other factors, it may be advisable to install a terminator at the last fixture in the run. • The illustration below shows the correct placement of a 120Ω 0.25W resistor in a terminator, as well as the standard DMX signal pin connections Example of DMX Addressing The below table shows an example of starting addresses for four fixtures assuming a first...

  • Page 12: Menu

    MENU Main Menu Menu Level 1 Menu Level 2 Menu Level 3 Default CONNECT DMX Address 1-480 Pan Invert Movement Setting Tilt Inert Encoder Pan/Tilt Warn Cue Backlight Display Setting Display Reverse Auto Key Lock °C Temperature °C OPTION °F Dimmer 1 Dimmer Mode Dimmer 2...
  • Page 13 Main Menu Menu Level 1 Menu Level 2 Menu Level 3 Default 32.Fr. Shutter 4 Swiv. 0 – 255 Channel 33.Function 0 – 255 Pan/Tilt Colour TEST Beam Auto Gobo Shutter 0 – 255 Tilt 0 – 255 Cyan 0 – 255 Magenta 0 –...

  • Page 14: Dmx Chart

    DMX CHART 33CH Function Value Setting 000 – 255 Pan Coarse Pan Fine 000 – 255 Pan Fine Tilt 000 – 255 Tilt Coarse Tilt Fine 000 – 255 Tilt Fine 000 – 010 No Function (Shutter Closed) 011 – 082 Shutter Effect Slow to Fast 083 –...
  • Page 15 33CH Function Value Setting 000 – 063 From Large to Small 064 – 127 Rapid Open/Close Slow to Fast Iris 128 – 191 Rapid Open Slow to Fast 192 – 255 Rapid Close Slow to Fast 000 – 127 Rotation from Left to Centre Framing Shutters Rotation Centre 129 –...

  • Page 16: Maintenance

    MAINTENANCE Maintenance and Cleaning the Unit - Make sure there are no persons standing below the unit when taking down/setting up. - Switch off the unit, unplug the main cable and wait till the unit has cooled down. - All screws used for installing the device and any of its parts should be tightly fastened and should not be corroded.
