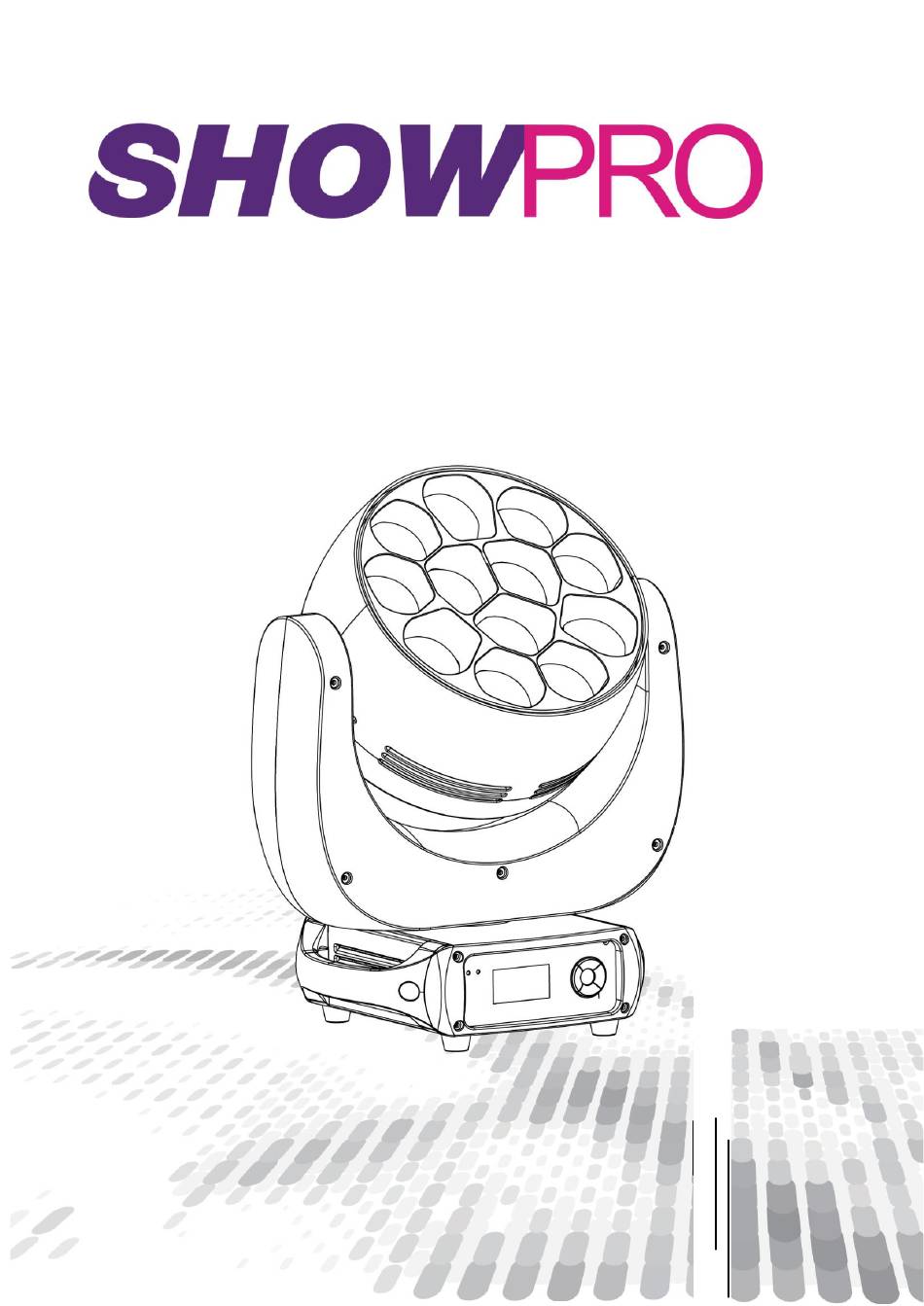

- Page 1 PLUTO 4000 XE/CCS3 USER MANUAL LEDMOV540 /LEDMOV545...
-
Page 2: Product Specifications
1 PRODUCT SPECIFICATIONS 1.1 PRODUCT SPECIFICATIONS Electrical ♦ Voltage:100V-240V 50/60Hz ♦ Max Power:460W ♦ Size: 478x390x251 mm ♦ Weight:15kg PRODUCT FEATURES... - Page 3 SAFETYWARNING IMPORTANT: • This product must be installed by a qualified professional. • AII maintenance must be carried out by a qualified electrician. • A minimum distance of 0.5m must be maintained between the equipment and a combustible surface. • The product must always be operated in a well ventilated area. •...
- Page 4 • Always ensure that mounting surface can withstand 10 times the weight of the fixture. • Always use a safety cable when mounting the fixture in any elevated position. • Contact your ShowPRO supplier for assistance if you have any questions about how to install this product safely. Clamp IMPORTANT SAFETY NOTE!! Always use a safety cable when installing this unit!! Be sure that the safety cable is connected to a solid load-bearing structure.
- Page 5 FUSE REPLACEMENT • Remove the safety cap by a screwdriver. • Fetch the old fuse from safety cap. • Install a new fuse. • Install the safety cap. POWER CONNECTIONS • 220~240V: 5 units may be connected in series • 110~120V: 2 units may be connected in series Note: If the signal cable is over 60m between the DMX512 controller and fixture or beween two fixtures, then a OMX signal amplifier is needed as well.
-
Page 6: Display Panel Operation
DISPLAY PANEL OPERATION 3.1 DISPLAY OPERATION Back Down Enter <UP> Scroll 'UP' through the menu list or increase the value of the current function. <DOWN> Scroll 'DOWN' through the menu list or decrease the value of the current function. <BACK> Scroll through the main menu or exit current function. -
Page 13: Using A Dmx512 Controller
4 USING A DMX512 CONTROLLER CHANNELASSIGNMENT • Note: This product have four DMX512 channel configuration: [HSIC] , [PERSON1 [PERSON2] , [CMY] , [PIXEL] • Note: [PERSON2] has different channels for the XE and CCS3 versions HSIC CHANNEL VALUE FUNCTION 000 – 255 PAN 000 –... - Page 14 040 – 049 FAN NORMAL 050 – 059 FAN FAST 060 – 069 FAN AUTO 070 – 079 AUTO1 080 – 089 AUTO2 090 – 099 CUSTOM 100 – 109 TEST 110 – 119 RESET 120 – 129 NO FUNCTION 130 –...
- Page 15 200 – 209 3200K 210 – 219 4200K 220 – 229 5600K 230 – 239 6500K 240 – 255 8000K A SINGLE POINT 000 – 009 NO FUNCTION 010 – 012 1 013 – 015 2 016 – 018 3 019 –...
- Page 16 2700K 138 – 141 Set Inner Circle Yellow, Running 1-2-3 in 2700K 142 – 145 Set Inner Circle Green, Running 1-2-3 in 2700K 146 – 149 Set Inner Circle Cyan, Running 1-2-3 in 2700K 150 – 153 Set Inner Circle Blue, Running 1-2-3 in 2700K 154 –...
- Page 17 110 – 179 LIGHTNING STROBE 180 – 189 NO FUNCTION 190 – 255 RANDOM STROBE 000 – 255 ZOOM CONTROL 000 - 009 NO FUNCTION 010 – 019 PAN/TILT BLACKOUT ON 020 – 029 PAN/TILT BLACKOUT OFF 030 – 039 FAN SLOW 040 –...
- Page 18 000 – 255 BLUE FINE 000 – 255 WHITE 000 – 255 WHITE FINE 000 – 255 DIMMER 000 – 255 DIMMER FINE MACROS 000 – 009 NO FUNCTION 010 – 029 RED 100% / GREEN UP / BLUE 0% 030 –...
- Page 19 070 – 073 4, 5, 6, 7, 8, 9, 10, 11, 12 074 – 077 1, 2, 3, 6, 7, 10, 12 078 – 081 1, 2, 3, 4, 7, 8, 10 082 – 085 1, 2, 3, 4, 7, 9, 12 086 –...
- Page 20 230 - 233 Set Inner Circle Cyan, Running 4-12 in 5600K 234 – 237 Set Inner Circle Blue, Running 4-12 in 5600K 238 – 241 Set Inner Circle Purple, Running 4-12 in 5600K Inner Circle Red, Outer Circle Blue, Inner Circle 242 –...
- Page 21 PERSON2 (CCS3) CHANNEL VALUE FUNCTION 000 – 255 PAN 000 – 255 PAN FINE 000 – 255 TILT 000 – 255 TILT FINE 000 – 255 PT SPEED 000 – 255 RED 000 – 255 RED FINE 000 – 255 GREEN 000 –...
- Page 22 040 – 042 11 043 – 045 12 046 – 049 1, 2, 3 050 – 053 5, 8, 11 054 – 057 6, 7, 8, 9, 4, 12 058 – 061 4, 5, 6 062 – 065 7, 8, 9 066 –...
- Page 23 198 – 201 Set Inner Circle Green, Running 4-12 in 2700K 202 – 205 Set Inner Circle Cyan, Running 4-12 in 2700K 206 – 209 Set Inner Circle Blue, Running 4-12 in 2700K 210 – 213 Set Inner Circle Purple, Running 4-12 in 2700K 214 –...
- Page 24 120 – 129 NO FUNCTION 130 – 139 DIM0 140 – 149 DIM1 150 – 159 DIM2 160 – 169 DIM3 170 – 179 DIM4 180 – 255 NO FUNCTION CHANNEL VALUE FUNCTION 000 – 255 PAN 000 – 255 PAN FINE 000 –...
- Page 25 A SINGLE POINT 000 – 009 NO FUNCTION 010 – 012 1 013 – 015 2 016 – 018 3 019 – 021 4 022 – 024 5 025 – 027 6 028 – 030 7 031 – 033 8 034 –...
- Page 26 154 – 157 Set Inner Circle Purple, Running 1-2-3 in 2700K 158 – 161 Set Inner Circle Red, Running 1-2-3 in 5600K Set Inner Circle Orange, Running 1-2-3 in 162 – 165 5600K 166 – 169 Set Inner Circle Yellow, Running 1-2-3 in 5600K 170 –...
- Page 27 010 – 019 PAN/TILT BLACKOUT ON 020 – 029 PAN/TILT BLACKOUT OFF 030 – 039 FAN SLOW 040 – 049 FAN NORMAL 050 – 059 FAN FAST 060 – 069 FAN AUTO 070 – 079 AUTO1 080 – 089 AUTO2 090 –...
- Page 28 CONTROL 000 - 009 NO FUNCTION 010 – 019 PAN/TILT BLACKOUT ON 020 – 029 PAN/TILT BLACKOUT OFF 030 – 039 FAN SLOW 040 – 049 FAN NORMAL 050 – 059 FAN FAST 060 – 069 FAN AUTO 070 – 079 AUTO1 080 –...
- Page 29 000 – 255 GREEN6 000 – 255 WHITE6 000 – 255 RED7 000 – 255 BLUE7 000 – 255 GREEN7 000 – 255 WHITE7 000 – 255 RED8 000 – 255 BLUE8 000 – 255 GREEN8 000 – 255 WHITE8 000 –...
- Page 30 Annex 1 PRESET COLOR Value Color Names 0-10 NO FUNCTION COLOR 1 11-15 L176 Loving Amber 0.407 0.321 COLOR 2 16-20 Light Salmon 0.499 0.321 COLOR 3 21-25 Scarlet 0.561 0.296 COLOR 4 26-30 L164 Flame Red 0.659 0.302 COLOR 5 31-35 L747 Easy White...
