ShowPro PLUTO 2000 XE User Manual

Hide thumbs

Advertisement

Table of Contents

PLUTO 2000 XE/CCS3
LEDMOV530
LEDMOV535

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PLUTO 2000 XE and is the answer not in the manual?

Questions and answers

Related Manuals for ShowPro PLUTO 2000 XE

Summary of Contents for ShowPro PLUTO 2000 XE

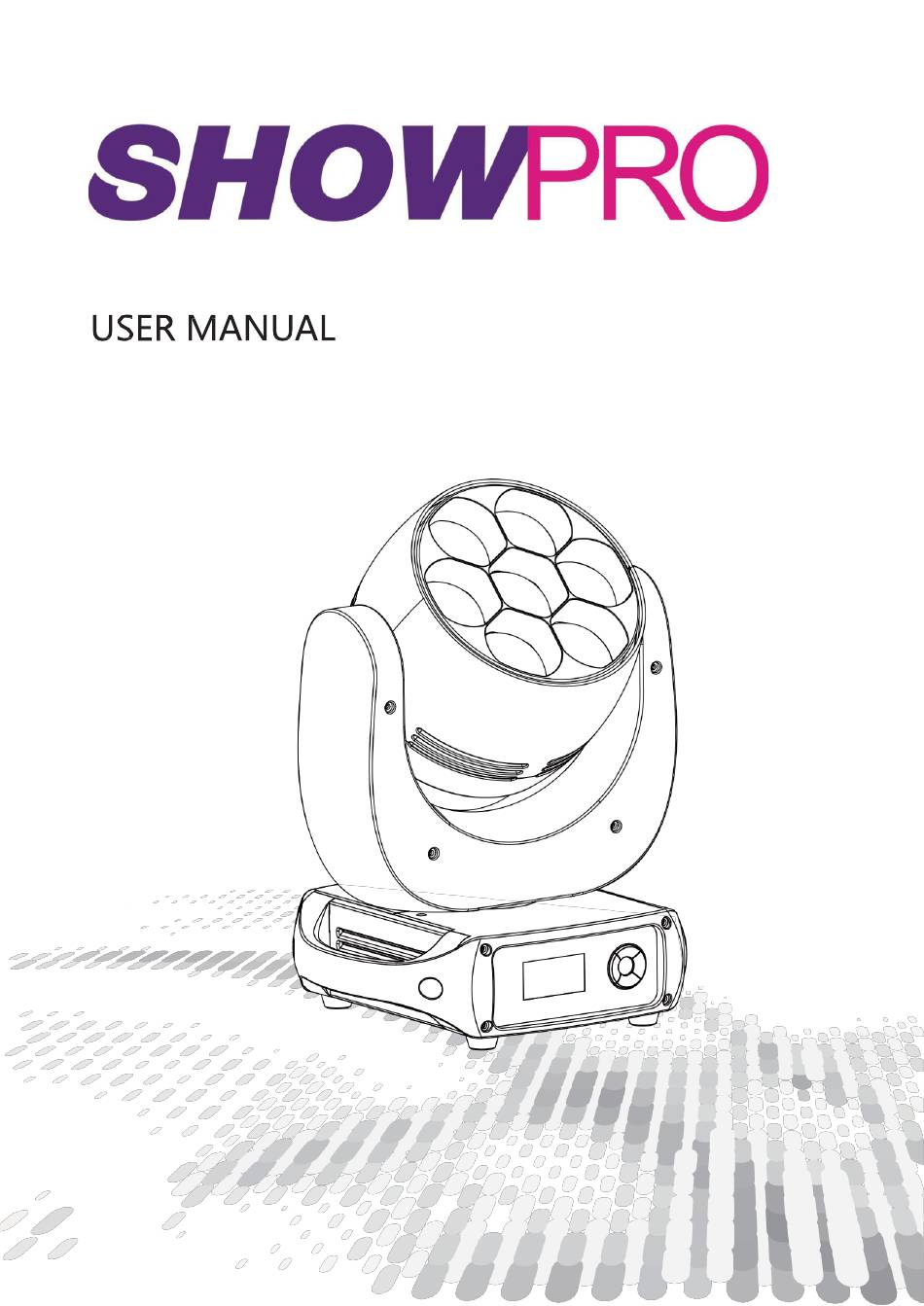

  • Page 1 PLUTO 2000 XE/CCS3 LEDMOV530 LEDMOV535...

  • Page 2: Product Specifications

    1 PRODUCT SPECIFICATIONS 1.1 PRODUCT SPECIFICATIONS Electrical ◆ Voltage:100V-240V~，50/60Hz ◆ Max Power:300W ◆ Size:375x302x251mm ◆ Weight:9.3kg PRODUCT FEATURES 301.5...
  • Page 3 SAFETY WARNING IMPORTANT： ● This product must be installed by a qualified professional. ● All maintenance must be carried out by a qualified electrician. ● A minimum distance of 0.5m must be maintained between the equipment and a combustible surface. ●...

  • Page 4: Installation

    ● Always use a safety cable when mounting the fixture in any elevated position. Clamp ● Contact your ShowPRO supplier for assistance if you have any questions about how to install this product safely. Bracket Safety cable IMPORTANT SAFETY NOTE!! Always use a safety cable when installing this unit!! Be sure that the safety cable is connected to a solid load-bearing structure.

  • Page 5: Display Panel Operation

    POWER CONNECTIONS ● 220~240V: 6 units may be connected in series ● 110~120V: 3 units may be connected in series Note: If the signal cable is over 60m between the DMX512 controller and fixture or beween two fixtures, then a DMX signal amplifier is needed as well. DISPLAY PANEL OPERATION 3.1 DISPLAY OPERATION Back...
  • Page 6 MENU MAP MENU 001-512 ADDRESS PERSON HSIC PERSON1 PERSON2 PIXEL PERFORM FANS SLOW NORMAL FAST AUTO PAN/TILT PAN INVERT NORMAL INVERT TITL INVERT NORMAL INVERT PT SPEED FAST SLOW PT RANGE P.START P.END T.START T.END BLACKOUT DIMMER DIM4 DIM3 DIM2 DIM1 COLOR RGB to W...
  • Page 7 RECOVERY ***** WDMXHIDE NETWORK MODE WDMX RESET STEP(01-50) 0-255 TITL 0-255 0-255 GREEN 0-255 BLUE 0-255 WHTIE 0-255 DIMMER 0-255 STROBE 0-25 ZOOM 0-255 TIME 0-255 INFO 0X388Axxxxxxxx MANUAL ALL RESET PT RESET SERVICE 0-255 RGBtoW 0-255 GREEN 0-255 BLUE CALIB.C 2700K 0-255...
  • Page 8 DMX512 SETTINGS ADDRESS ● Enter the【DMX】mode to set the DMX ADDRESS. PERSONALITY PERSON PERSON1 PERSON2 PIXEL ● Enter the【PERSON】mode to select DMX mode:【HSIC】, 【PERSON1】,【PERSON2】,【CMY】,【PIXEL】, 3.5 PERFORM PERFORM DIM4 DIM3 DIM2 DIM1 COLOR RGB to W 3200K 4200K 10000K NORMAL 1200Hz 2000Hz 2400Hz 6000Hz...
  • Page 9 DMX RESET YES/NO DISPLAY YES/NO DISPLAY ON SHORT LONG DISPLAY LOCK LOAD PARA UPLOAD LOAD EDIT MENU SETTINGS LOCK PERFORM SETTING SERVECE LOCK Recovery ***** WDMXHIDE NETWORK Net SWITCH IP MODE DEFAUL IP CUSTOM IP XX.XX.XX.XX CUSTOM IP EDIT UNIVERS ADDR XXX WDMX WDMX POWER...
  • Page 10 ● 【DMXERROR】menu, select 【SAVE】to maintain last command in case of DMX error or 【BLACK】for blackout ● 【DMXRESET】menu, select 【DMX】to allow remote reset using DMX controller or 【DISPLAY】for reset only available at on-fixture display ● 【DISPLAY ON】menu, select 【LONG/SHORT/DISPLAY LOCK】for length of time for display backlight ●...
  • Page 11 ● Enter the【 EDIT 】mode to edit the custom programs by adjusting the value of【PAN】,【TILT】,【RED】,【GREEN】,【BLUE】, 【WHITE】,【DIMMER】,【STROBE】,【ZOOM】,【 TIME】 ● Enter【 USE】 【YES】 and select to run the steps user need. ‘ Note: if user want to circulate the created steps, please set the last step 【Time】...
  • Page 12 3.10 SERVICE 0-255 SERVICE RGBtoW 0-255 GREEN 0-255 BLUE CALIB.C 2700K 0-255 3200K 0-255 GREEN 4200K 0-255 BLUE 5600K 0-255 WHTIE 6500K 8000K CALR **** � Enter the 【RGBtoW】to adjust the RGB parameter to make different whites. � When the new setting is activated, the DMX controller choose RGB = 255,255,255 the white color will be made by the actual RGB values on the 【RGBtoW】.

  • Page 13: Using A Dmx512 Controller

    4 USING A DMX512 CONTROLLER CHANNEL ASSIGNMENT Note: This product has five DMX512 channel configurations: 【HSIC】,【PERSON1】,【PERSON2】,【CMY】,【PIXEL】. Note: [PERSON2] has different channels for the XE and CCS3 versions HSIC CHANNEL VALUE FUNCTION 000 – 255 PAN 000 – 255 PAN FINE 000 –...
  • Page 14 020 – 029 PAN/TILT BLACKOUT OFF 030 – 039 FAN SLOW 040 – 049 FAN NORMAL 050 – 059 FAN FAST 060 – 069 FAN AUTO 070 – 079 AUTO1 080 – 089 AUTO2 090 – 099 CUSTOM 100 – 109 TEST 110 –...
  • Page 15 130 – 149 RED 100% / GREEN UP / BLUE UP 150 – 169 RED DOWN / GREEN DOWN / BLUE 100% 170 – 189 ALL LED FULL OUTPUT 190 – 199 2700K 200 – 209 3200K 210 – 219 4200K 220 –...
  • Page 16 124 – 127 BLACK 128 – 135 ALL ON 136 – 145 2-3-4-5-6-7 146 – 155 2,3-4,5-6,7 156 – 165 2,5-3,6-4-7 166 – 175 1,2-1,3-1,4-1,5-1,6-1,7 176 – 185 2,3,4-5,6,7 186 – 195 1,2,3-1,4,5-1,6,7 196 – 205 1,2,5-1,3,6-1,4,7 206 – 215 2,5,7-1,4,6 216 –...
  • Page 17 160 – 169 DIM3 170 – 179 DIM4 180 – 255 NO FUNCTION PERSON2 (XE) CHANNEL VALUE FUNCTION 000 – 255 PAN 000 – 255 PAN FINE 000 – 255 TILT 000 – 255 TILT FINE 000 – 255 PT SPEED 000 –...
  • Page 18 210 – 219 4200K 220 – 229 5600K 230 – 239 6500K 240 – 255 8000K A SINGLE POINT 000 – 007 NO FUNCTION 008 – 011 1 012 – 015 2 016 – 019 3 020 – 023 4 024 –...
  • Page 19 166 – 175 1,2-1,3-1,4-1,5-1,6-1,7 176 – 185 2,3,4-5,6,7 186 – 195 1,2,3-1,4,5-1,6,7 196 – 205 1,2,5-1,3,6-1,4,7 206 – 215 2,5,7-1,4,6 216 – 225 2,3,4-3,4,5-4,5,6-5,6,7-6,7,2-7,2,3 226 – 235 1,2,3,5,6-1,3,4,6,7-1,4,5,7 236 – 245 1,2,3,5,6-1,3,4,6,7-1,4,5,7,2 246 – 255 1-2,3,4,5,6,7 000 – 255 AUTO SPEED (SLOW TO FAST) STROBE 000 –...
  • Page 20 PERSON2 (CCS3) CHANNEL VALUE FUNCTION 000 – 255 PAN 000 – 255 PAN FINE 000 – 255 TILT 000 – 255 TILT FINE 000 – 255 PT SPEED 000 – 255 RED 000 – 255 RED FINE 000 – 255 GREEN 000 –...
  • Page 21 048 – 051 2,5 052 – 055 3,6 056 – 059 4,7 060 – 063 2,3,4 064 – 067 5,6,7 068 – 071 1,2,3 072 – 075 1,4,5 076 – 079 1,6,7 080 – 083 1,2,5 084 – 087 1,3,6 088 –...
  • Page 22 190 – 255 RANDOM STROBE 000 – 255 ZOOM CONTROL 000 - 009 NO FUNCTION 010 – 019 PAN/TILT BLACKOUT ON 020 – 029 PAN/TILT BLACKOUT OFF 030 – 039 FAN SLOW 040 – 049 FAN NORMAL 050 – 059 FAN FAST 060 –...
  • Page 23 MACROS 000 – 009 NO FUNCTION 010 – 029 RED 100% / GREEN UP / BLUE 0% 030 – 049 RED DOWN / GREEN 100% / BLUE UP 050 – 069 RED 0% / GREEN 100% / BLUE UP 070 – 089 RED 0% / GREEN DOWN / BLUE 100% 090 –...
  • Page 24 092 – 095 3,5,7 096 – 099 5,6,7 100 – 103 1,3,5,7 104 – 107 1,5,6,7 108 – 111 1,2,4,5,7 112 – 115 1,2,3,5,6 116 – 119 1,3,4,6,7 120 – 123 2,3,4,5,6,7 124 – 127 BLACK 128 – 135 ALL ON 136 –...
  • Page 25 090 – 099 CUSTOM 100 – 109 TEST 110 – 119 RESET 120 – 129 NO FUNCTION 130 – 139 DIM0 140 – 149 DIM1 150 – 159 DIM2 160 – 169 DIM3 170 – 179 DIM4 180 – 255 NO FUNCTION PIXEL CHANNEL VALUE FUNCTION...
  • Page 26 080 – 089 AUTO2 090 – 099 CUSTOM 100 – 109 TEST 110 – 119 RESET 120 – 129 NO FUNCTION 130 – 139 DIM0 140 – 149 DIM1 150 – 159 DIM2 160 – 169 DIM3 170 – 179 DIM4 180 –...
  • Page 27 Annex 1 PRESET COLOR Value Color Names 0-10 NO FUNCTION COLOR 1 11-15 L176 Loving Amber 0.407 0.321 COLOR 2 16-20 Light Salmon 0.499 0.321 COLOR 3 21-25 Scarlet 0.561 0.296 COLOR 4 26-30 L164 Flame Red 0.659 0.302 COLOR 5 31-35 L747 Easy White...

This manual is also suitable for:

Pluto 2000 ccs3Ledmov530Ledmov535
