Maxxus RunMAXX 90 PRO Installation & Operating Manual page 5

Carefully unpack all delivered parts. Have someone there to help you as some of the training device parts are
bulky and heavy. Check that all the parts and fixing materials (screws, nuts, etc.) have been delivered.
Assemble the parts carefully as any damages or defects occurring due to mistakes made at the time of assem-
bly are not covered by the warranty or guarantee. Therefore, read through the assembly instructions carefully
before you start assembling, follow each assembly step exactly as described and keep to the correct sequence
of assembly as instructed. Assembly of the training device must be carried out thoroughly by an adult person
only. Assemble the training device in a location which is level, clean and clear of obstructions.2 people are re-
quired to carry out the assembly. Training can only start when the training device has been fully assembled.

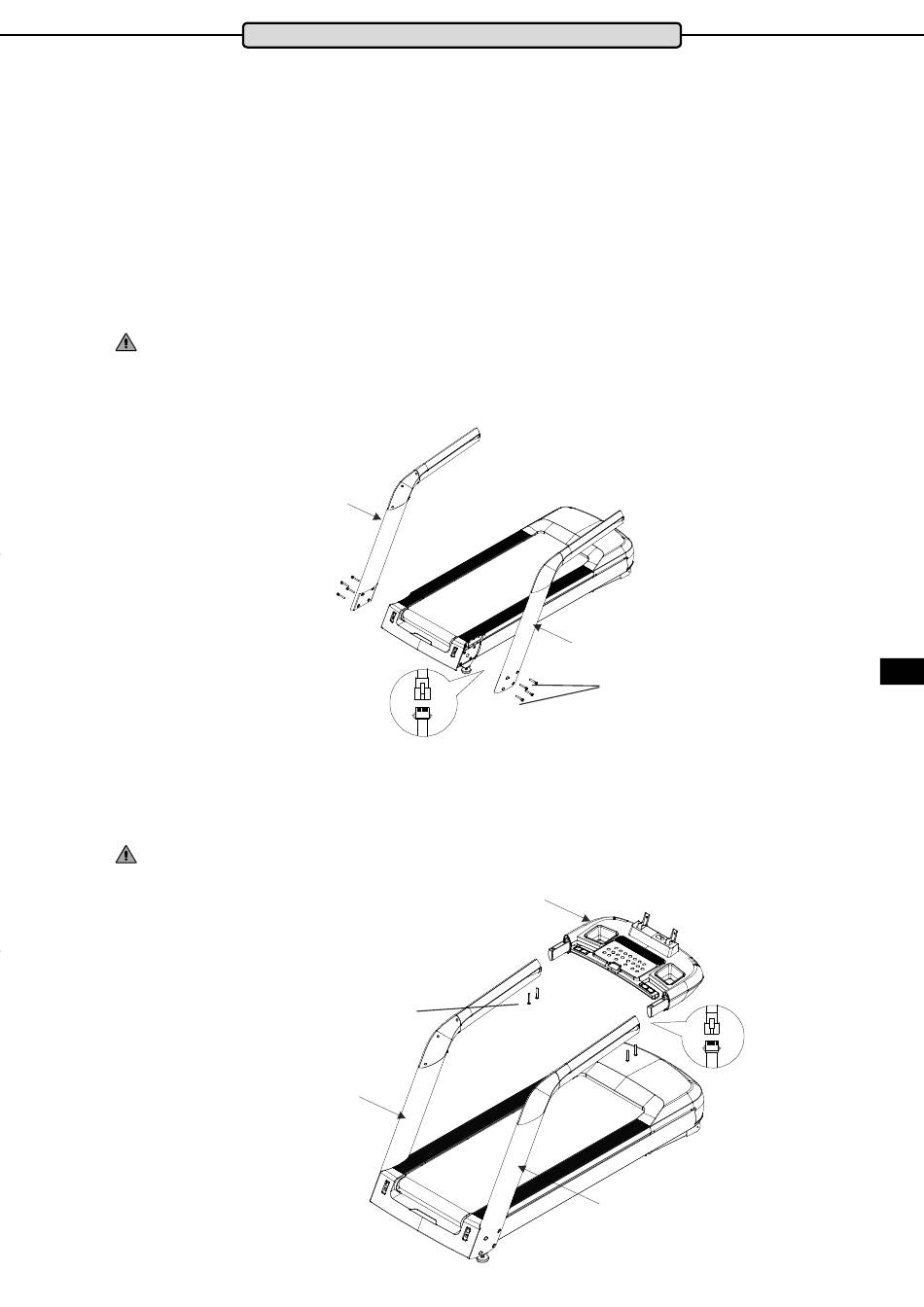

Step 1 - Mounting the side frames:
Connect the cockpit cable protruding from the right side frame with the cable protruding from the base frame.
Then insert the right side frame into the right frame of the base frame and fix it with four Allen screws M10x50.
WARNING: Make sure that you do not squeeze or damage the cables.
Now insert the left side frame into the left frame of the base frame and fix it as well with four hexagon socket
screws M10x50.
Side frame, left
Step 2 - Mounting the cockpit frame:
Connect the cable that protrudes from the front side frame to the cable coming out of the right cockpit handrail
holder. Insert the cockpit frame into the side frames from the front and fasten each side with two hexagon socket
screws M8x75.
Warning: Be sure not to squeeze or damage the cables.
Hexagon socket screw, M8x75
Side frame, left
Assembly
Side frame, right
Cockpit frame
5
Hexagon socket screw,
M10x50
Side frame, right
ENG
