Daikin FTKD24HV2S Service Manual page 6

Removal of Air Filters / Front Panel
Step

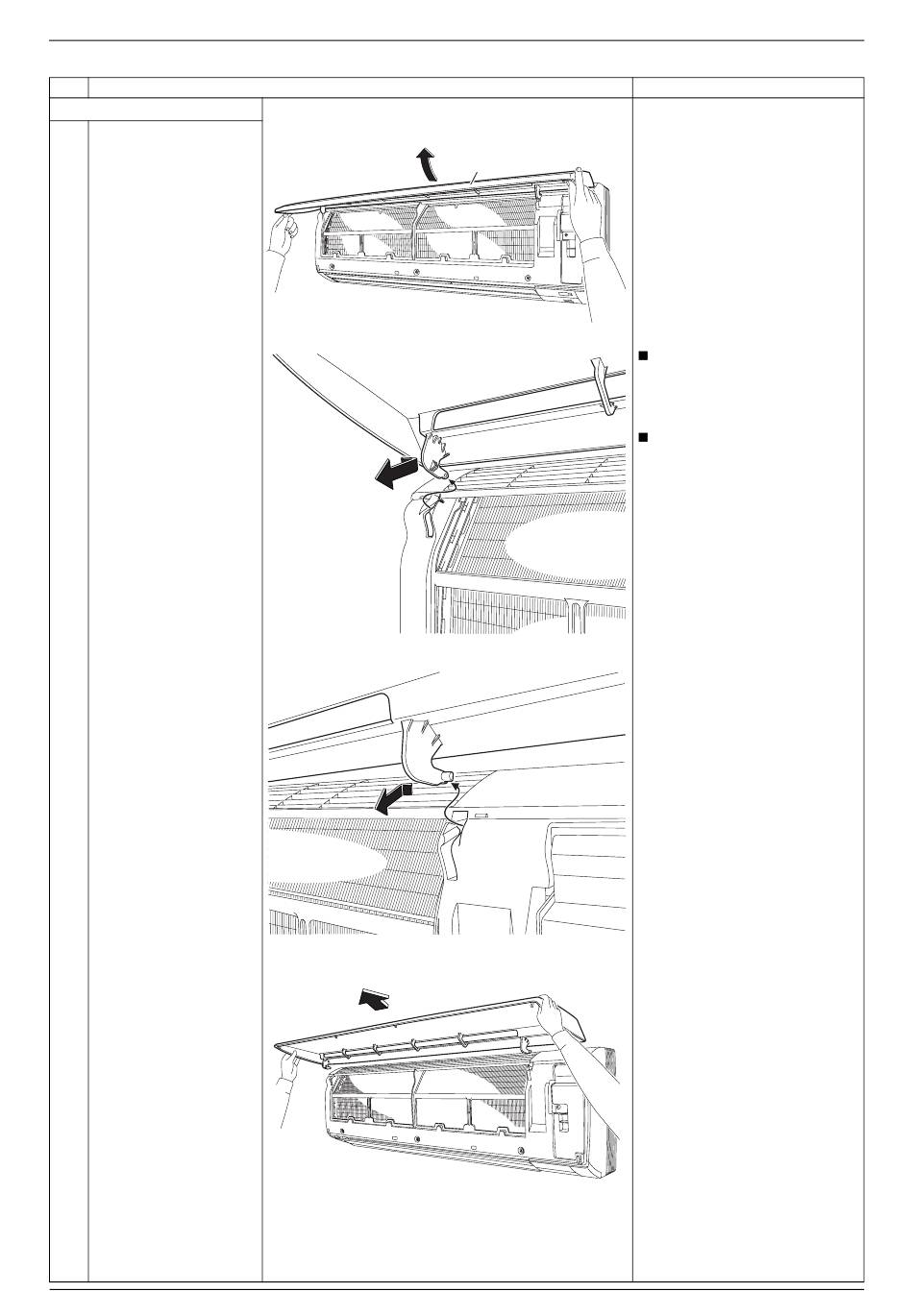

4. Remove the front panel.
1 While opening the front
panel further than it
stops, release both the
shafts.
Remove the front panel.
2
4
Procedure
Front Panel
Points
(R16456)
Slide the front panel from
side to side to release each
shaft.
Align the right and left shafts
with grooves in turn and
insert them to the end when
reassembling.
(R9480)
(R9481)
(R16451)
Removal Procedure
Si041144
