Removal of Indoor Heat Exchanger
Step

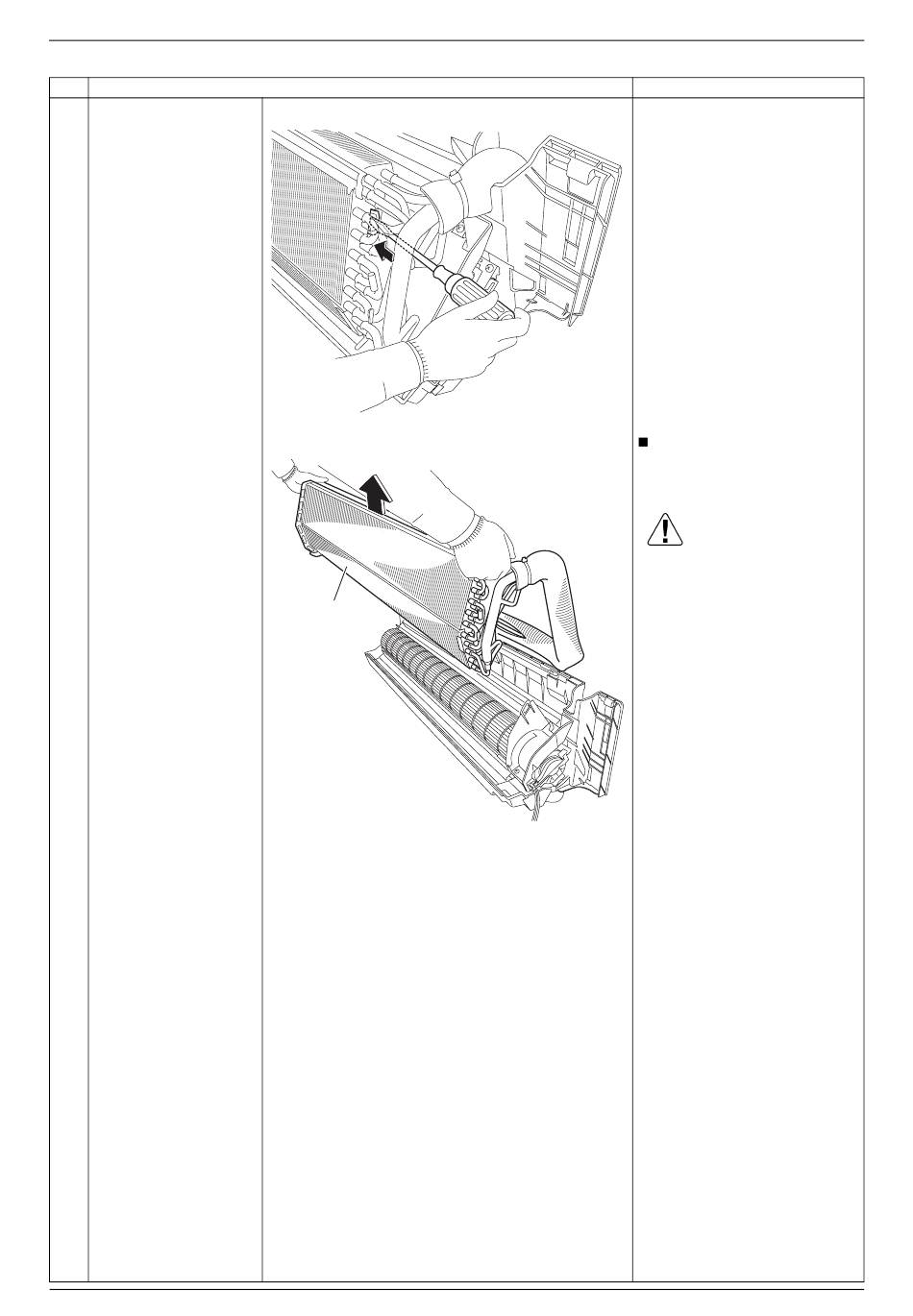

Push the hook on the
3
right side and unfasten
it.
Lift up and remove the
4
indoor heat exchanger.
30
Procedure
Indoor heat
exchanger
Points
(R16310)
Press the right side of the
indoor heat exchanger, and
lift it up from the left side.
Caution
When removing or
reassembling the indoor heat
exchanger, be sure to wear
gloves or wrap the indoor
heat exchanger with cloths.
(You may be injured by the
fins.)
(R16311)
Removal Procedure
Si041144
