Daikin FTKD24HV2S Service Manual page 26

5.0/6.0/7.1 kw class 15000/18000/24000/28000 btu/h class removal procedure

Advertisement

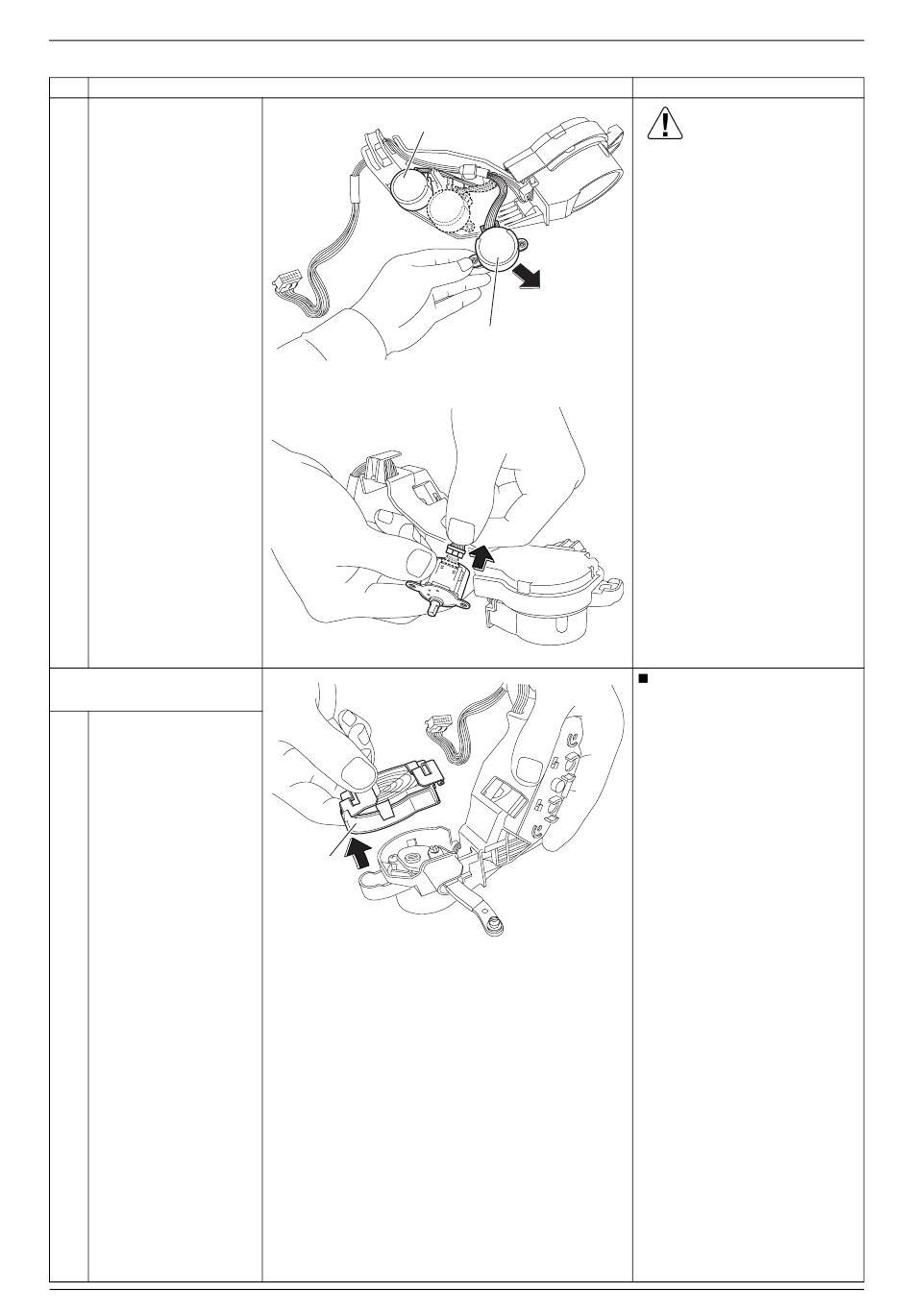

Removal of Horizontal Blades / Swing Motors
Step
Remove the swing
7
motors.
8
Disconnect the
connector to remove
the swing motor.
5. Remove the swing motor
for vertical blades.
Remove the link cover.
1
24
Procedure
Swing motor (upper blade)
Swing motor (lower blade)
Link cover
Points
Caution
When reassembling, do not
confuse the installing order of
the 2 motors and the colors of
the connectors.
If you set the connectors or
motors opposite, the
horizontal blades do not
move smoothly or noise may
be heard.
(1) Set the swing motor of the
upper blade first.
(R16079)
(connector: white)
(2) Then, set the swing motor of
the lower blade.
(connector: red)
(3) Fix both swing motors with a
screw.
(R9551)
Some models have no swing
motor for vertical blade.
(R9552)
Removal Procedure
Si041144
