Daikin FTKD24HV2S Service Manual page 11

Si041144
Step

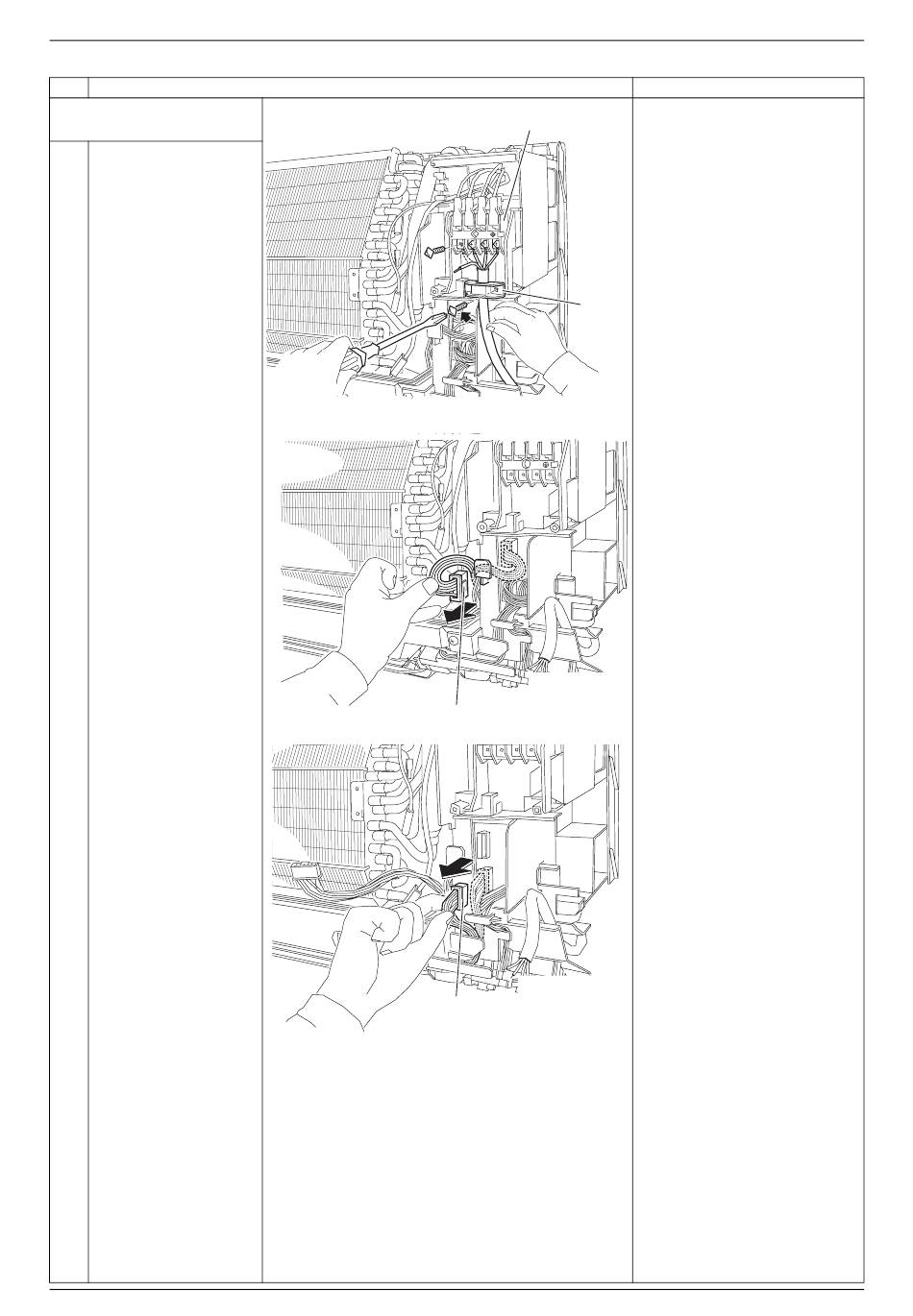

4. Remove the electrical
box.
Remove the 4 screws
1
and disconnect the
connection wires on the
terminal board.
Remove the screw and
remove the wire
retainer.
2 Disconnect the
connector for the fan
motor [S1] and release
the harness from the
hook.
3 Disconnect the
connector for the swing
motors [S41].
Removal Procedure
Procedure
Terminal board
3
1 2
[S1]
[S41]
Wire
retainer
(R16277)
1 2 3
(R16278)
(R16279)
Removal of Electrical Box
Points
9
