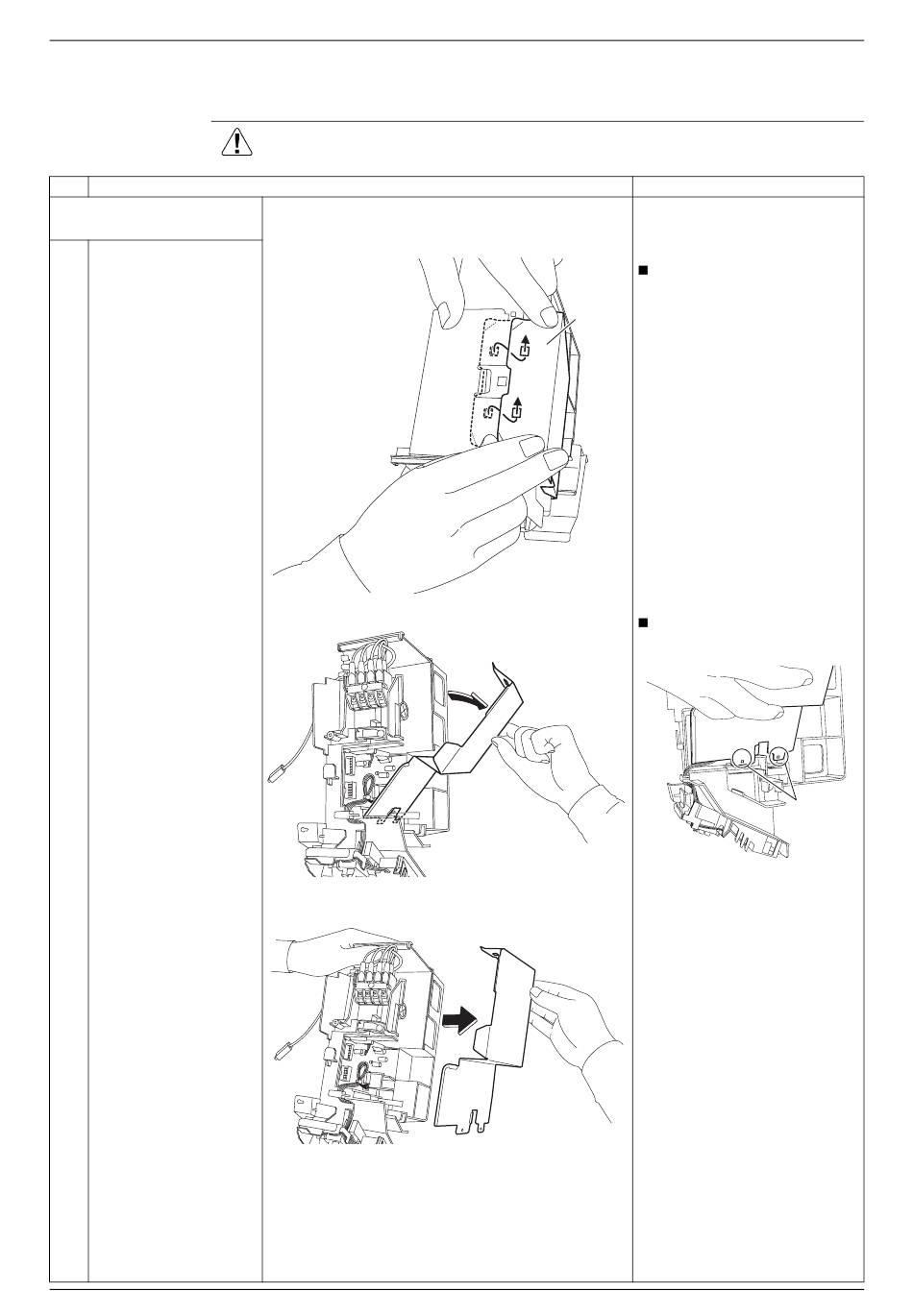

4. Removal of PCBs
Procedure
Step
1. Remove the signal
receiver PCB.
Unfasten the hooks of
1
the shield plate.
2
Open the shield plate.
Remove the shield
3
plate.
Removal Procedure
Warning
Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Procedure
Removal of PCBs
Points
Preparation
Remove the electrical box
according to the "Removal of
Electrical Box."
Shield
plate
(R9506)
The shield plate has 2 hooks
at the lower part also.
(R16283)
(R16284)
Hook
(R16498)
