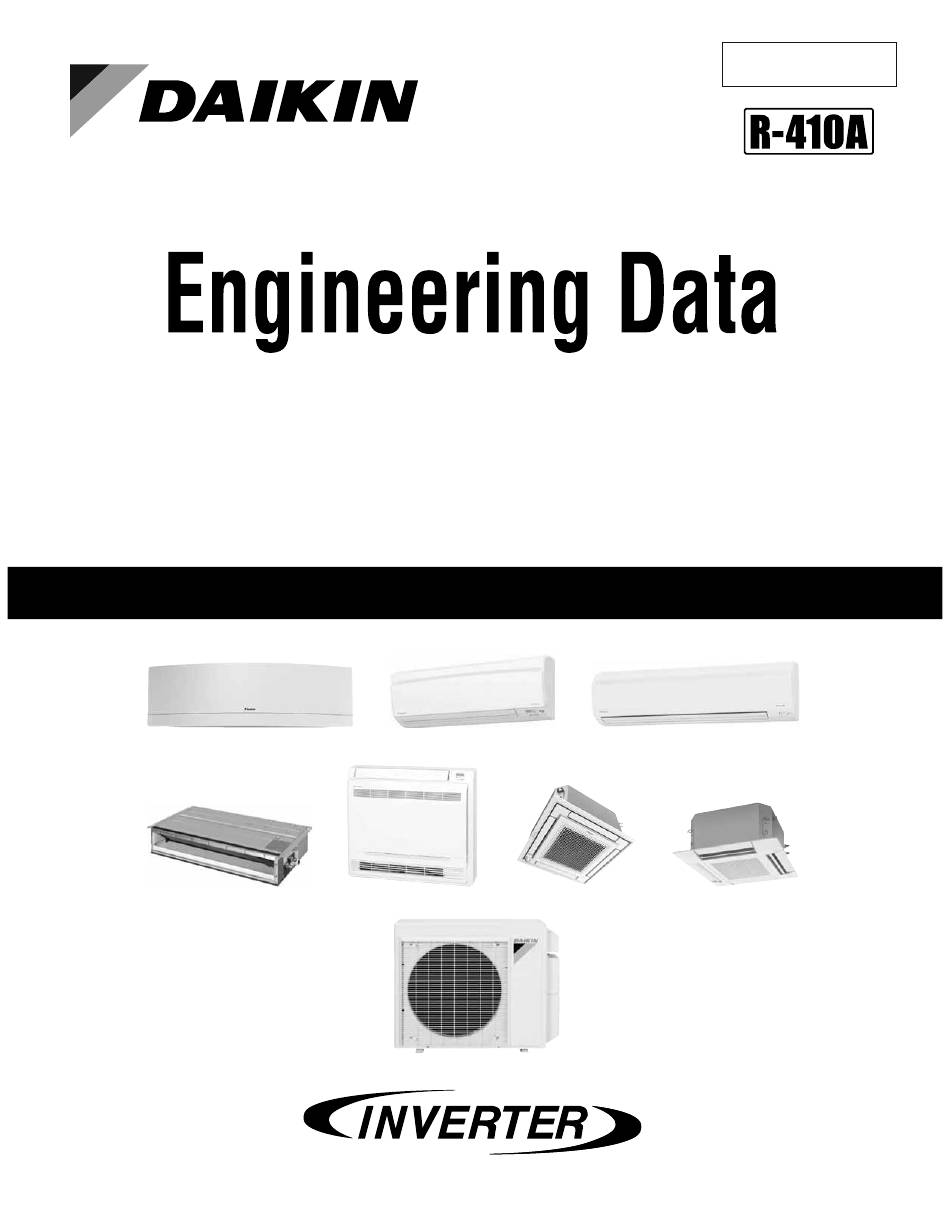

EDUS121503A
- Heat Pump -
Multi-Split Type Air Conditioners
2/3/4MXS-N Series

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2MXS-N Series and is the answer not in the manual?

Questions and answers

Jeff Grillion
May 16, 2025

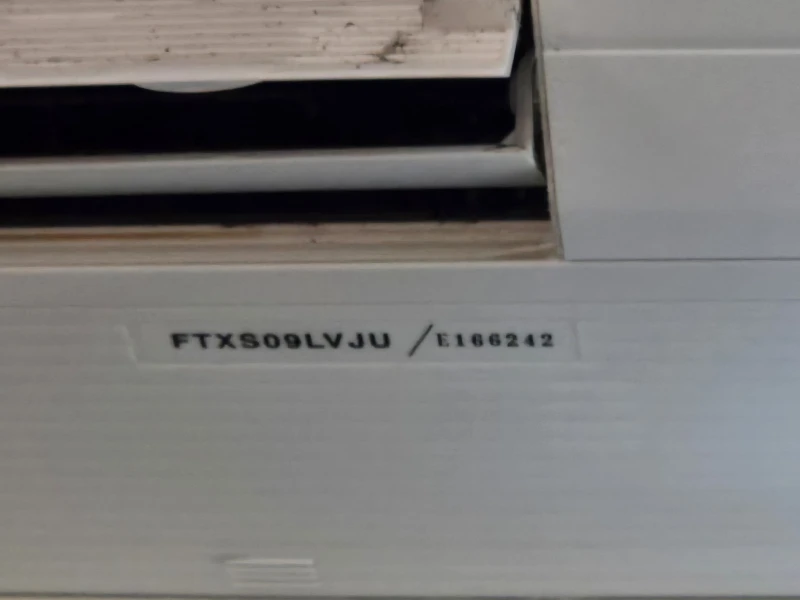

I can't figure out how to remove the drain line and the AC is been leaking a ton of water.

User image 68279d9dbc36a
0

Subscribe to Our Youtube Channel

Related Manuals for Daikin 2MXS-N Series

Summary of Contents for Daikin 2MXS-N Series

  • Page 1 EDUS121503A - Heat Pump - Multi-Split Type Air Conditioners 2/3/4MXS-N Series...
  • Page 2 EDUS121503A Part 1 Multi-Split Type Air Conditioners 2/3/4MXS-N Series ... 1 1. Power Supply ....................3 2. Functions..................... 4 3. Specifications ....................11 3.1 Indoor Unit....................11 3.2 Outdoor Unit ....................18 3.3 Combination Capacity: 2MXS18NMVJU ............ 21 3.4 Combination Capacity: 3MXS24NMVJU ............ 25 3.5 Combination Capacity: 4MXS36NMVJU ............
  • Page 3 EDUS121503A 4.3 <BYFQ60C2W1W(S)> Decoration Panel..........390 4.4 <BRC1E73> Wired Remote Controller............. 393 4.5 <BRC082A41W, BRC082A42W(S)> Wireless Remote Controller... 413 5. Outdoor Unit.................... 420 5.1 2MXS18NMVJU, 3MXS24NMVJU, 4MXS36NMVJU....... 420 Part 3 Operation Manual .............. 439 1. CTXG, CTXS, FTXS, CDXS, FDXS, FVXS Series ......... 440 1.1 Manual Contents and Reference Page ............
  • Page 4 EDUS121503A 3. Options for Indoor Unit ................645 3.1 <KDT25N32, KDT25N50> Insulation Kit for High Humidity ..... 645 3.2 <BRYQ60A2W(S)> Sensor Kit..............646 3.3 <KDBQ44BA60A> Panel Spacer ............. 648 3.4 <KDDQ44XA60> Fresh Air Intake Kit ............650 4. Options for Outdoor Unit ................. 652 4.1 <KPW063A4>...
  • Page 5 EDUS121503A Multi-Split Type Air Conditioners 2/3/4MXS-N Series...

  • Page 6: Table Of Contents

    EDUS121503A Part 1 Multi-Split Type Air Conditioners 2/3/4MXS-N Series CTXG09QVJUW FDXS09LVJU 2MXS18NMVJU CTXG09QVJUS FDXS12LVJU 3MXS24NMVJU CTXG12QVJUW CDXS15LVJU 4MXS36NMVJU CTXG12QVJUS CDXS18LVJU CTXG18QVJUW CDXS24LVJU CTXG18QVJUS FVXS09NVJU CTXS07LVJU FVXS12NVJU FTXS09LVJU FVXS15NVJU FTXS12LVJU FVXS18NVJU FTXS15LVJU FFQ09Q2VJU FTXS18LVJU FFQ12Q2VJU FTXS24LVJU FFQ15Q2VJU 1. Power Supply ....................3 2.
  • Page 7 EDUS121503A 7. Capacity Tables ..................93 7.1 2MXS18NMVJU ..................93 7.2 3MXS24NMVJU ..................102 7.3 4MXS36NMVJU ..................148 7.4 Capacity Correction Factor by the Length of Refrigerant Piping (Reference) ....................288 8. Operation Limit..................289 9. Fan Characteristics .................290 10.Sound Level .................... 292 10.1 Measuring Location ..................

  • Page 8: Power Supply

    EDUS121503A Power Supply 1. Power Supply Indoor Unit Outdoor Unit Power Supply CTXG, CTXS, FTXS Series CTXG09QVJUW 2MXS18NMVJU 1 phase, 208 - 230 V, 60 Hz 3MXS24NMVJU CTXG09QVJUS 4MXS36NMVJU CTXG12QVJUW CTXG12QVJUS CTXG18QVJUW CTXG18QVJUS CTXS07LVJU FTXS09LVJU FTXS12LVJU FTXS15LVJU FTXS18LVJU FTXS24LVJU CDXS, FDXS Series FDXS09LVJU FDXS12LVJU CDXS15LVJU...

  • Page 9: Functions

    Functions EDUS121503A 2. Functions Category Functions Category Functions Basic Inverter (with inverter power control) Health & Air-purifying filter — Functions Cleanliness Operation limit for cooling — Photocatalytic deodorizing filter — Operation limit for heating — Air-purifying filter with photocatalytic — deodorizing function PAM control —...
  • Page 10 EDUS121503A Functions Category Functions Category Functions Basic Inverter (with inverter power control) Health & Air-purifying filter — Functions Cleanliness Operation limit for cooling — Photocatalytic deodorizing filter — Operation limit for heating — Air-purifying filter with photocatalytic — deodorizing function PAM control —...
  • Page 11 Functions EDUS121503A Category Functions Category Functions Basic Inverter (with inverter power control) Health & Air-purifying filter — — Functions Cleanliness Operation limit for cooling — — Photocatalytic deodorizing filter — — Operation limit for heating — — Air-purifying filter with photocatalytic —...
  • Page 12 EDUS121503A Functions Category Functions Category Functions Basic Inverter (with inverter power control) Health & Air-purifying filter — — Functions Cleanliness Operation limit for cooling — — Photocatalytic deodorizing filter — — Operation limit for heating — — Air-purifying filter with photocatalytic —...
  • Page 13 Functions EDUS121503A Category Functions Category Functions Basic Inverter (with inverter power control) Health & Air-purifying filter — Functions Cleanliness Operation limit for cooling — Photocatalytic deodorizing filter — Operation limit for heating — Air-purifying filter with photocatalytic — deodorizing function PAM control —...
  • Page 14 EDUS121503A Functions Category Functions Category Functions Basic Inverter (with inverter power control) Health & Auto cleaning filter — — Functions Cleanliness Operation limit for cooling — — Air-purifying filter — — Operation limit for heating — — Photocatalytic deodorizing filter —...
  • Page 15 Functions EDUS121503A Category Functions Category Functions Basic Inverter (with inverter power control) Health & Air-purifying filter — — Functions Cleanliness Operation limit for cooling Photocatalytic deodorizing filter — — Refer to P. 289 Operation limit for heating Air-purifying filter with photocatalytic —...

  • Page 16: Specifications

    EDUS121503A Specifications 3. Specifications Indoor Unit 60 Hz, 208 - 230 V CTXG09QVJUW CTXG09QVJUS Model Cooling Heating Cooling Heating Rated Capacity 9 kBtu/h Class 9 kBtu/h Class Front Panel Color White Silver 279 (7.9) 367 (10.4) 279 (7.9) 367 (10.4) 212 (6.0) 265 (7.5) 212 (6.0)
  • Page 17 Specifications EDUS121503A 60 Hz, 208 - 230 V CTXG18QVJUW CTXG18QVJUS Model Cooling Heating Cooling Heating Rated Capacity 18 kBtu/h Class 18 kBtu/h Class Front Panel Color White Silver 364 (10.3) 438 (12.4) 364 (10.3) 438 (12.4) 286 (8.1) 350 (9.9) 286 (8.1) 350 (9.9) Airflow Rate...
  • Page 18 EDUS121503A Specifications 60 Hz, 208 - 230 V FTXS09LVJU FTXS12LVJU Model Cooling Heating Cooling Heating Rated Capacity 9 kBtu/h Class 12 kBtu/h Class Front Panel Color White White 381 (10.8) 420 (11.9) 403 (11.4) 438 (12.4) 279 (7.9) 321 (9.1) 307 (8.7) 335 (9.5) Airflow Rate...
  • Page 19 Specifications EDUS121503A 60 Hz, 208 - 230 V FTXS24LVJU Model Cooling Heating Rated Capacity 24 kBtu/h Class Front Panel Color White 643 (18.2) 699 (19.8) 494 (14.0) 572 (16.2) Airflow Rate (m³/min) 350 (9.9) 445 (12.6) 328 (9.3) 403 (11.4) Type Cross Flow Fan Motor Output...
  • Page 20 EDUS121503A Specifications 60 Hz, 208 - 230 V CDXS15LVJU CDXS18LVJU Model Cooling Heating Cooling Heating Rated Capacity 15 kBtu/h Class 18 kBtu/h Class External Static Pressure inAq (Pa) 0.16 (40) 0.16 (40) 424 (12.0) 424 (12.0) 424 (12.0) 424 (12.0) 388 (11.0) 388 (11.0) 388 (11.0)
  • Page 21 Specifications EDUS121503A 60 Hz, 208 - 230 V FVXS09NVJU FVXS12NVJU Model Cooling Heating Cooling Heating Rated Capacity 9 kBtu/h Class 12 kBtu/h Class Front Panel Color White White 290 (8.2) 311 (8.8) 300 (8.5) 332 (9.4) 230 (6.5) 244 (6.9) 237 (6.7) 258 (7.3) Airflow Rate...
  • Page 22 EDUS121503A Specifications 60 Hz, 208 - 230 V FFQ09Q2VJU FFQ12Q2VJU Model Cooling Heating Cooling Heating Rated Capacity 9 kBtu/h Class 12 kBtu/h Class Model BYFQ60B3W1 BYFQ60B3W1 Color White White Decoration Panel Dimensions (H × W × D) 2-3/16 × 27-9/16 × 27-9/16 (55 × 700 × 700) 2-3/16 ×...

  • Page 23: Outdoor Unit

    Specifications EDUS121503A Outdoor Unit 60 Hz, 208 - 230 V 2MXS18NMVJU Model Cooling Heating Capacity 1 — Power Consumption 1 — Running Current 1 — COP 2 — EER 2 Btu/h·W 12.5 — SEER / HSPF 14.0 18.9 10.7 Casing Color Ivory White Type Hermetically Sealed Swing Type...
  • Page 24 EDUS121503A Specifications 60 Hz, 208 - 230 V 3MXS24NMVJU Model Cooling Heating Capacity 1 — Power Consumption 1 — Running Current 1 — COP 2 — EER 2 Btu/h·W 12.7 — SEER / HSPF 14.0 17.9 12.5 Casing Color Ivory White Type Hermetically Sealed Swing Type Compressor...
  • Page 25 Specifications EDUS121503A 60 Hz, 208 - 230 V 4MXS36NMVJU Model Cooling Heating Capacity 1 — Power Consumption 1 — Running Current 1 — COP 2 — EER 2 Btu/h·W — SEER / HSPF 14.0 17.7 12.2 Casing Color Ivory White Type Hermetically Sealed Swing Type Compressor...

  • Page 26: Combination Capacity: 2Mxs18Nmvju

    EDUS121503A Specifications Combination Capacity: 2MXS18NMVJU Cooling [60 Hz, 208 V] Capacity of each indoor unit Combination Type of indoor unit Power Each capacity (kBtu/h) Total capacity (kBtu/h) Total input (W) Total current (A) factor (%) indoor unit A room B room —...
  • Page 27 Specifications EDUS121503A Heating [60 Hz, 208 V] Capacity of each indoor unit Combination Type of indoor unit Power Each capacity (kBtu/h) Total capacity (kBtu/h) Total input (W) Total current (A) factor (%) indoor unit A room B room — — A rom B room —...
  • Page 28 EDUS121503A Specifications Cooling [60 Hz, 230 V] Capacity of each indoor unit Combination Type of indoor unit Power Each capacity (kBtu/h) Total capacity (kBtu/h) Total input (W) Total current (A) factor (%) indoor unit A room B room — — A room B room —...
  • Page 29 Specifications EDUS121503A Heating [60 Hz, 230 V] Capacity of each indoor unit Combination Type of indoor unit Power Each capacity (kBtu/h) Total capacity (kBtu/h) Total input (W) Total current (A) factor (%) indoor unit A room B room — — A room B room —...

  • Page 30: Combination Capacity: 3Mxs24Nmvju

    EDUS121503A Specifications Combination Capacity: 3MXS24NMVJU Cooling [60 Hz, 208 V] Capacity of each indoor unit Combination Type of indoor unit Power Each capacity (kBtu/h) Total capacity (kBtu/h) Total input (W) Total current (A) factor (%) indoor unit A room B room C room —...
  • Page 31 Specifications EDUS121503A Capacity of each indoor unit Combination Type of indoor unit Power Each capacity (kBtu/h) Total capacity (kBtu/h) Total input (W) Total current (A) factor (%) indoor unit A room B room C room — A room B room C room —...
  • Page 32 EDUS121503A Specifications Capacity of each indoor unit Combination Type of indoor unit Power Each capacity (kBtu/h) Total capacity (kBtu/h) Total input (W) Total current (A) factor (%) indoor unit A room B room C room — A room B room C room —...
  • Page 33 Specifications EDUS121503A Heating [60 Hz, 208 V] Capacity of each indoor unit Combination Type of indoor unit Power Each capacity (kBtu/h) Total capacity (kBtu/h) Total input (W) Total current (A) factor (%) indoor unit A room B room C room —...
  • Page 34 EDUS121503A Specifications Capacity of each indoor unit Combination Type of indoor unit Power Each capacity (kBtu/h) Total capacity (kBtu/h) Total input (W) Total current (A) factor (%) indoor unit A room B room C room — A room B room C room —...
  • Page 35 Specifications EDUS121503A Capacity of each indoor unit Combination Type of indoor unit Power Each capacity (kBtu/h) Total capacity (kBtu/h) Total input (W) Total current (A) factor (%) indoor unit A room B room C room — A room B room C room —...
  • Page 36 EDUS121503A Specifications Cooling [60 Hz, 230 V] Capacity of each indoor unit Combination Type of indoor unit Power Each capacity (kBtu/h) Total capacity (kBtu/h) Total input (W) Total current (A) factor (%) indoor unit A room B room C room —...
  • Page 37 Specifications EDUS121503A Capacity of each indoor unit Combination Type of indoor unit Power Each capacity (kBtu/h) Total capacity (kBtu/h) Total input (W) Total current (A) factor (%) indoor unit A room B room C room — A room B room C room —...
  • Page 38 EDUS121503A Specifications Capacity of each indoor unit Combination Type of indoor unit Power Each capacity (kBtu/h) Total capacity (kBtu/h) Total input (W) Total current (A) factor (%) indoor unit A room B room C room — A room B room C room —...
  • Page 39 Specifications EDUS121503A Heating [60 Hz, 230 V] Capacity of each indoor unit Combination Type of indoor unit Power Each capacity (kBtu/h) Total capacity (kBtu/h) Total input (W) Total current (A) factor (%) indoor unit A room B room C room —...
  • Page 40 EDUS121503A Specifications Capacity of each indoor unit Combination Type of indoor unit Power Each capacity (kBtu/h) Total capacity (kBtu/h) Total input (W) Total current (A) factor (%) indoor unit A room B room C room — A room B room C room —...
  • Page 41 Specifications EDUS121503A Capacity of each indoor unit Combination Type of indoor unit Power Each capacity (kBtu/h) Total capacity (kBtu/h) Total input (W) Total current (A) factor (%) indoor unit A room B room C room — A room B room C room —...

  • Page 42: Combination Capacity: 4Mxs36Nmvju

    EDUS121503A Specifications Combination Capacity: 4MXS36NMVJU Cooling [60 Hz, 208 V] Capacity of each indoor unit Combination Type of indoor unit Power Each capacity (kBtu/h) Total capacity (kBtu/h) Total input (W) Total current (A) factor (%) indoor unit A room B room C room D room A room B room C room D room Rating (min ~ max) Rating...
  • Page 43 Specifications EDUS121503A Capacity of each indoor unit Combination Type of indoor unit Power Each capacity (kBtu/h) Total capacity (kBtu/h) Total input (W) Total current (A) factor (%) indoor unit A room B room C room D room A room B room C room D room Rating (min ~ max) Rating...
  • Page 44 EDUS121503A Specifications Capacity of each indoor unit Combination Type of indoor unit Power Each capacity (kBtu/h) Total capacity (kBtu/h) Total input (W) Total current (A) factor (%) indoor unit A room B room C room D room A room B room C room D room Rating (min ~ max) Rating...
  • Page 45 Specifications EDUS121503A Capacity of each indoor unit Combination Type of indoor unit Power Each capacity (kBtu/h) Total capacity (kBtu/h) Total input (W) Total current (A) factor (%) indoor unit A room B room C room D room A room B room C room D room Rating (min ~ max) Rating...
  • Page 46 EDUS121503A Specifications Capacity of each indoor unit Combination Type of indoor unit Power Each capacity (kBtu/h) Total capacity (kBtu/h) Total input (W) Total current (A) factor (%) indoor unit A room B room C room D room A room B room C room D room Rating (min ~ max) Rating...
  • Page 47 Specifications EDUS121503A Capacity of each indoor unit Combination Type of indoor unit Power Each capacity (kBtu/h) Total capacity (kBtu/h) Total input (W) Total current (A) factor (%) indoor unit A room B room C room D room A room B room C room D room Rating (min ~ max) Rating...
  • Page 48 EDUS121503A Specifications Capacity of each indoor unit Combination Type of indoor unit Power Each capacity (kBtu/h) Total capacity (kBtu/h) Total input (W) Total current (A) factor (%) indoor unit A room B room C room D room A room B room C room D room Rating (min ~ max) Rating...
  • Page 49 Specifications EDUS121503A Capacity of each indoor unit Combination Type of indoor unit Power Each capacity (kBtu/h) Total capacity (kBtu/h) Total input (W) Total current (A) factor (%) indoor unit A room B room C room D room A room B room C room D room Rating (min ~ max) Rating...
  • Page 50 EDUS121503A Specifications Notes: 1. Cooling capacity is based on 80°FDB (26.7°CDB) / 67°FWB (19.4°CWB) (Indoor temperature), 95°FDB (35°CDB) / 75°FWB (24°CWB) (Outdoor temperature). Heating capacity is based on 70°FDB (21°CDB) / 60°FWB (15.6°CWB) (Indoor temperature), 47°FDB (8.3°CDB) / 43°FWB (6°CWB) (Outdoor temperature). 2.
  • Page 51 Specifications EDUS121503A Heating [60 Hz, 208 V] Capacity of each indoor unit Combination Type of indoor unit Power Each capacity (kBtu/h) Total capacity (kBtu/h) Total input (W) Total current (A) factor (%) indoor unit A room B room C room D room A room B room C room D room...
  • Page 52 EDUS121503A Specifications Capacity of each indoor unit Combination Type of indoor unit Power Each capacity (kBtu/h) Total capacity (kBtu/h) Total input (W) Total current (A) factor (%) indoor unit A room B room C room D room A room B room C room D room Rating...
  • Page 53 Specifications EDUS121503A Capacity of each indoor unit Combination Type of indoor unit Power Each capacity (kBtu/h) Total capacity (kBtu/h) Total input (W) Total current (A) factor (%) indoor unit A room B room C room D room A room B room C room D room Rating...
  • Page 54 EDUS121503A Specifications Capacity of each indoor unit Combination Type of indoor unit Power Each capacity (kBtu/h) Total capacity (kBtu/h) Total input (W) Total current (A) factor (%) indoor unit A room B room C room D room A room B room C room D room Rating...
  • Page 55 Specifications EDUS121503A Capacity of each indoor unit Combination Type of indoor unit Power Each capacity (kBtu/h) Total capacity (kBtu/h) Total input (W) Total current (A) factor (%) indoor unit A room B room C room D room A room B room C room D room Rating...
  • Page 56 EDUS121503A Specifications Capacity of each indoor unit Combination Type of indoor unit Power Each capacity (kBtu/h) Total capacity (kBtu/h) Total input (W) Total current (A) factor (%) indoor unit A room B room C room D room A room B room C room D room Rating...
  • Page 57 Specifications EDUS121503A Capacity of each indoor unit Combination Type of indoor unit Power Each capacity (kBtu/h) Total capacity (kBtu/h) Total input (W) Total current (A) factor (%) indoor unit A room B room C room D room A room B room C room D room Rating...
  • Page 58 EDUS121503A Specifications Capacity of each indoor unit Combination Type of indoor unit Power Each capacity (kBtu/h) Total capacity (kBtu/h) Total input (W) Total current (A) factor (%) indoor unit A room B room C room D room A room B room C room D room Rating...
  • Page 59 Specifications EDUS121503A Notes: 1. Cooling capacity is based on 80°FDB (26.7°CDB) / 67°FWB (19.4°CWB) (Indoor temperature), 95°FDB (35°CDB) / 75°FWB (24°CWB) (Outdoor temperature). Heating capacity is based on 70°FDB (21°CDB) / 60°FWB (15.6°CWB) (Indoor temperature), 47°FDB (8.3°CDB) / 43°FWB (6°CWB) (Outdoor temperature). 2.
  • Page 60 EDUS121503A Specifications Cooling [60 Hz, 230 V] Capacity of each indoor unit Combination Type of indoor unit Power Each capacity (kBtu/h) Total capacity (kBtu/h) Total input (W) Total current (A) factor (%) indoor unit A room B room C room D room A room B room C room D room Rating (min ~ max) Rating...
  • Page 61 Specifications EDUS121503A Capacity of each indoor unit Combination Type of indoor unit Power Each capacity (kBtu/h) Total capacity (kBtu/h) Total input (W) Total current (A) factor (%) indoor unit A room B room C room D room A room B room C room D room Rating (min ~ max) Rating...
  • Page 62 EDUS121503A Specifications Capacity of each indoor unit Combination Type of indoor unit Power Each capacity (kBtu/h) Total capacity (kBtu/h) Total input (W) Total current (A) factor (%) indoor unit A room B room C room D room A room B room C room D room Rating (min ~ max) Rating...
  • Page 63 Specifications EDUS121503A Capacity of each indoor unit Combination Type of indoor unit Power Each capacity (kBtu/h) Total capacity (kBtu/h) Total input (W) Total current (A) factor (%) indoor unit A room B room C room D room A room B room C room D room Rating (min ~ max) Rating...
  • Page 64 EDUS121503A Specifications Capacity of each indoor unit Combination Type of indoor unit Power Each capacity (kBtu/h) Total capacity (kBtu/h) Total input (W) Total current (A) factor (%) indoor unit A room B room C room D room A room B room C room D room Rating (min ~ max) Rating...
  • Page 65 Specifications EDUS121503A Capacity of each indoor unit Combination Type of indoor unit Power Each capacity (kBtu/h) Total capacity (kBtu/h) Total input (W) Total current (A) factor (%) indoor unit A room B room C room D room A room B room C room D room Rating (min ~ max) Rating...
  • Page 66 EDUS121503A Specifications Capacity of each indoor unit Combination Type of indoor unit Power Each capacity (kBtu/h) Total capacity (kBtu/h) Total input (W) Total current (A) factor (%) indoor unit A room B room C room D room A room B room C room D room Rating (min ~ max) Rating...
  • Page 67 Specifications EDUS121503A Capacity of each indoor unit Combination Type of indoor unit Power Each capacity (kBtu/h) Total capacity (kBtu/h) Total input (W) Total current (A) factor (%) indoor unit A room B room C room D room A room B room C room D room Rating (min ~ max) Rating...
  • Page 68 EDUS121503A Specifications Notes: 1. Cooling capacity is based on 80°FDB (26.7°CDB) / 67°FWB (19.4°CWB) (Indoor temperature), 95°FDB (35°CDB) / 75°FWB (24°CWB) (Outdoor temperature). Heating capacity is based on 70°FDB (21°CDB) / 60°FWB (15.6°CWB) (Indoor temperature), 47°FDB (8.3°CDB) / 43°FWB (6°CWB) (Outdoor temperature). 2.
  • Page 69 Specifications EDUS121503A Heating [60 Hz, 230 V] Capacity of each indoor unit Combination Type of indoor unit Power Each capacity (kBtu/h) Total capacity (kBtu/h) Total input (W) Total current (A) factor (%) indoor unit A room B room C room D room A room B room C room D room Rating ( min ~ max ) Rating...
  • Page 70 EDUS121503A Specifications Capacity of each indoor unit Combination Type of indoor unit Power Each capacity (kBtu/h) Total capacity (kBtu/h) Total input (W) Total current (A) factor (%) indoor unit A room B room C room D room A room B room C room D room Rating ( min ~ max ) Rating...
  • Page 71 Specifications EDUS121503A Capacity of each indoor unit Combination Type of indoor unit Power Each capacity (kBtu/h) Total capacity (kBtu/h) Total input (W) Total current (A) factor (%) indoor unit A room B room C room D room A room B room C room D room Rating ( min ~ max ) Rating...
  • Page 72 EDUS121503A Specifications Capacity of each indoor unit Combination Type of indoor unit Power Each capacity (kBtu/h) Total capacity (kBtu/h) Total input (W) Total current (A) factor (%) indoor unit A room B room C room D room A room B room C room D room Rating ( min ~ max ) Rating...
  • Page 73 Specifications EDUS121503A Capacity of each indoor unit Combination Type of indoor unit Power Each capacity (kBtu/h) Total capacity (kBtu/h) Total input (W) Total current (A) factor (%) indoor unit A room B room C room D room A room B room C room D room Rating ( min ~ max ) Rating...
  • Page 74 EDUS121503A Specifications Capacity of each indoor unit Combination Type of indoor unit Power Each capacity (kBtu/h) Total capacity (kBtu/h) Total input (W) Total current (A) factor (%) indoor unit A room B room C room D room A room B room C room D room Rating ( min ~ max ) Rating...
  • Page 75 Specifications EDUS121503A Capacity of each indoor unit Combination Type of indoor unit Power Each capacity (kBtu/h) Total capacity (kBtu/h) Total input (W) Total current (A) factor (%) indoor unit A room B room C room D room A room B room C room D room Rating ( min ~ max ) Rating...
  • Page 76 EDUS121503A Specifications Capacity of each indoor unit Combination Type of indoor unit Power Each capacity (kBtu/h) Total capacity (kBtu/h) Total input (W) Total current (A) factor (%) indoor unit A room B room C room D room A room B room C room D room Rating ( min ~ max ) Rating...
  • Page 77 Specifications EDUS121503A Notes: 1. Cooling capacity is based on 80°FDB (26.7°CDB) / 67°FWB (19.4°CWB) (Indoor temperature), 95°FDB (35°CDB) / 75°FWB (24°CWB) (Outdoor temperature). Heating capacity is based on 70°FDB (21°CDB) / 60°FWB (15.6°CWB) (Indoor temperature), 47°FDB (8.3°CDB) / 43°FWB (6°CWB) (Outdoor temperature). 2.

  • Page 78: Dimensions

    EDUS121503A Dimensions 4. Dimensions Indoor Unit CTXG09/12QVJUW(S) OPERATING STATE: REQUIRED SPACE NOTE) 1.THE MARK (→) SHOWS PIPING DIRECTION. GENERAL RATING 1) OFF FOR INSTALLATION NAME PLATE AIRFLOW (INDOOR) 39-5/16 (998) ↑ ↑ REAR REAR TERMINAL BLOCK ← WITH GROUND TERMINAL LEFT (INSIDE) 1-15/16 (50) MIN...
  • Page 79 Dimensions EDUS121503A CTXS07LVJU, FTXS09/12LVJU THE MARK (→) SHOWS PIPING DIRECTION AIRFLOW (INDOOR) 31-1/2 (800mm) REAR INCLUDING LEFT RIGHT MOUNTING PLATE 8-9/16 (217mm) 1-15/16 (50mm) MIN 8-7/16 (215mm) 1-15/16 (50mm) MIN (SPACE FOR REQUIRED SPACE MAINTENANCE) (SPACE FOR MAINTENANCE) NAME PLATE FRONT GRILLE FIXED SCREWS (INSIDE)
  • Page 80 EDUS121503A Dimensions FTXS24LVJU THE MARK ( → ) SHOWS PIPING DIRECTION AIRFLOW (INDOOR) REAR 41-5/16 (1050mm) LEFT RIGHT INCLUDING INSTALLATION PLATE 9-13/16 (250mm) 9-3/4 (248mm) MIN. 1-15/16 (50mm) MIN. 1-15/16 (50mm) (SPACE FOR (SPACE FOR REQUIRED SPACE NAME PLATE FRONT MAINTENANCE) MAINTENANCE) GRILLE...
  • Page 81 Dimensions EDUS121503A CDXS15/18LVJU 35-7/16 (900mm) 24-7/16 (620mm) 11-13/16 (300mm) OR MORE (SERVICE SPACE) 15-3/4 (400mm) OR MORE (1-3/4) (45mm) (IN CASE OF BOTTOM SUCTION) SIGNAL TRANSMITTER 11/16 (18mm) 2-5/16 (58mm) ROOM TEMP. 2-3/4 (13/16) 1-1/2 (38mm) SENSOR (20mm) (70mm) OPERATION LAMP CEILING TIMER LAMP <...
  • Page 82 EDUS121503A Dimensions FVXS09/12NVJU 27-9/16 (700mm) 26-1/4 (666mm) (HALF CONCEALED) NOTE) 1. THE MARK (→) SHOWS PIPING DIRECTION ↑ ↑ ← → OPERATION LAMP TIMER LAMP 8-1/4 (210mm) ROOM TEMP. THERMISTOR SIGNAL RECEIVER 3-3/4 (95mm) TERMINAL BLOCK (HALF CONCEALED) FIXED SCREWS FOR FRONT PANEL INDOOR UNIT ON/OFF SWITCH WITH GROUND TERMINAL 25-3/8 (644mm)
  • Page 83 Dimensions EDUS121503A FFQ09/12/15Q2VJU with BYFQ60B3W1 (Decoration Panel) 3D106040 FFQ09/12/15Q2VJU with BYFQ60C2W1W(S) (Decoration Panel) 3D106039 Multi-Split Type Air Conditioners 2/3/4MXS-N Series...
  • Page 84 EDUS121503A Dimensions BRC1E73 — Wired Remote Controller (Option) — NOTE)1. REMOTE CONTROLLER CODE AND STAPLE ARE NOT ATTACHED. UPPER CASE LOWER CASE • REMOTE CONTROLLER DIMENSIONS THEY ARE FIELD SUPPLIED PARTS. • SPECIFICATIONS OF CORD VINYL CORD WITH SHEATH OR CABLE TYPE (INSULATED THICKNESS: 1 mm OR MORE) SIZE...
  • Page 85 Dimensions EDUS121503A BRC082A42W(S) — Wireless Remote Controller (Option) — 3D082024 Multi-Split Type Air Conditioners 2/3/4MXS-N Series...

  • Page 86: Outdoor Unit

    EDUS121503A Dimensions Outdoor Unit 2MXS18NMVJU HANDLE 9/16 (14) 34-1/4 (870) 3-9/16 (90) ELECTRIC WIRE INTAKE 1/4 (7) 12-5/8 (320) 1-3/16 (30) OUTDOOR AIR THERMISTOR INTERCONNECTING PIPING BRAND NAME PLATE STOP VALVE COVER MANUFACTURER'S LABEL 4-HOLES FOR FOUNDATION BOLTS 9/16 (14.5) 5/16 OR 3/8 (M8 OR M10) 23-5/8 (600) 4-15/16 (125)
  • Page 87 Dimensions EDUS121503A 4MXS36NMVJU HANDLE 9/16 (14) 34-1/4 (870) 3-9/16 (90) ELECTRIC WIRE INTAKE 1/4 (7) 12-5/8 (320) 1-3/16 (30) OUTDOOR AIR THERMISTOR INTERCONNECTING PIPING BRAND NAME PLATE STOP VALVE COVER MANUFACTURER'S LABEL 4-HOLES FOR FOUNDATION BOLTS 9/16 (14.5) 5/16 OR 3/8 (M8 OR M10) 23-5/8 (600) 4-15/16 (125) 3-1/16 (78)

  • Page 88: Wiring Diagrams

    EDUS121503A Wiring Diagrams 5. Wiring Diagrams Indoor Unit CTXG09/12/18QVJUW(S) 3D103375 CTXS07LVJU, FTXS09/12LVJU PCB3 PCB1 LED1 OUTDOOR 3.15A C102 LED2 MR10 FIELD WIRING. LED3 C101 GRN/YLW TRANSMISSION CIRCUIT CAUTION NOTE THAT OPERATION WILL RESTART AUTOMATICALLY IF THE MAIN POWER SUPPLY IS TURNED OFF AND THEN BACK ON AGAIN. t˚...
  • Page 89 Wiring Diagrams EDUS121503A FTXS15/18/24LVJU WIRING DIAGRAM PCB3 PCB1 LED1 OUTDOOR 3.15A C102 LED2 MR10 FIELD WIRING. LED3 C101 GRN / YLW TRANSMISSION CAUTION CIRCUIT NOTE THAT OPERATION WILL RESTART AUTOMATICALLY IF THE MAIN POWER SUPPLY IS TURNED OFF AND THEN BACK ON AGAIN. t˚...
  • Page 90 EDUS121503A Wiring Diagrams FVXS09/12/15/18NVJU WIRING DIAGRAM PCB3 PCB2 → RECTIFIER S2W ( 4 ) 3.15A OUTDOOR GRN/YLW FIELD WIRING. MR10 WIRELESS TRANSMISSION REMOTE CIRCUIT CAUTION CONTROLLER PCB4 NOTE THAT OPERATION WILL SIGNAL RESTART AUTOMATICALLY IF RECEIVER THE MAIN POWER SUPPLY IS TURNED OFF AND THEN BACK LED1 LED2...

  • Page 91: Outdoor Unit

    Wiring Diagrams EDUS121503A Outdoor Unit 2MXS18NMVJU GRN/YLW PCB2 POWER SUPPLY IN CASE OF S501 S502 11 1 Z2C N=4 HEAT PUMP TYPE TO INDOOR UNIT ROOM B X11A Z5C N=2 PCB1 S201 S202 TO INDOOR UNIT ROOM A MRM20 MRM10 3.15A V401 3.15A...
  • Page 92 EDUS121503A Wiring Diagrams 4MXS36NMVJU GRN/YLW PCB2 POWER SUPPLY IN CASE OF S501 S502 Z2C N=4 HEAT PUMP TYPE TO INDOOR UNIT ROOM B X11A Z5C N=2 PCB1 11 1 S201 S202 TO INDOOR UNIT ROOM A MRM20 MRM10 TO INDOOR UNIT ROOM C 3.15A V401...

  • Page 93: Piping Diagrams

    Piping Diagrams EDUS121503A 6. Piping Diagrams Indoor Unit CTXG09/12QVJUW(S) CTXG18QVJUW(S) 4D101008 4D101010 CTXS07LVJU, FTXS09/12LVJU FTXS15/18LVJU INDOOR UNIT INDOOR UNIT 5/16 CuT 1/4 CuT DISTRIBUTOR HEAT EXCHANGER HEAT EXCHANGER THERMISTOR CROSS FLOW FAN ON HEAT EXCH. THERMISTOR FIELD PIPING CROSS FLOW FAN ON HEAT EXCH.
  • Page 94 EDUS121503A Piping Diagrams FTXS24LVJU FDXS09/12LVJU INDOOR UNIT INDOOR UNIT (1/4CuT) 5/16 CuT DISTRIBUTOR HEAT EXCHANGER HEAT EXCHANGER THERMISTOR FIELD PIPING ON HEAT THERMISTOR (1/4CuT) EXCH. CROSS FLOW FAN SIROCCO FAN ON HEAT EXCH. FIELD PIPING 1/4 CuT FAN MOTOR FAN MOTOR HEADER FIELD PIPING (3/8CuT)
  • Page 95 Piping Diagrams EDUS121503A FVXS09/12NVJU FVXS15/18NVJU INDOOR UNIT INDOOR UNIT MUFFLER ASSY HEAT EXCHANGER MUFFLER ASSY HEAT EXCHANGER 1/4 CuT 9/32 CuT 1/4 CuT 9/32 CuT 1/4 CuT 1/4 CuT 1/4 CuT THERMISTOR THERMISTOR ON HEAT EXCH. ON HEAT EXCH. 1/4 CuT 1/4 CuT FIELD PIPING 1/4 CuT...

  • Page 96: Outdoor Unit

    EDUS121503A Piping Diagrams Outdoor Unit 2MXS18NMVJU OUTDOOR UNIT ELECTRONIC EXPANSION VALVE LIQUID PIPE HEAT EXCHANGER THERMISTOR OUTDOOR AIR HEADER 5/16 CuT 1/4 CuT 5/16 CuT THERMISTOR ROOM A (1/4 CuT) FILTER FIELD PIPING 5/16 CuT 5/16 CuT 1/4 CuT LIQUID ROOM B HEAT EXCHANGER (1/4 CuT)
  • Page 97 Piping Diagrams EDUS121503A 4MXS36NMVJU OUTDOOR UNIT ELECTRONIC EXPANSION VALVE LIQUID PIPE HEAT EXCHANGER THERMISTOR OUTDOOR AIR HEADER 5/16 CuT 1/4 CuT 5/16 CuT THERMISTOR ROOM A (1/4 CuT) FILTER 5/16 CuT 5/16 CuT 1/4 CuT ROOM B HEAT EXCHANGER (1/4 CuT) 1/2 CuT FIELD 5/16 CuT...

  • Page 98: Capacity Tables

    EDUS121503A Capacity Tables 7. Capacity Tables 2MXS18NMVJU Cooling [60 Hz, 208 - 230 V] Indoor air temp. EWB (°F) Outdoor air 57.2 60.8 64.4 67.0 71.6 75.2 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h CTXS07L 68.0 8.40 0.47 8.78...
  • Page 99 Capacity Tables EDUS121503A Indoor air temp. EWB (°F) Outdoor air 57.2 60.8 64.4 67.0 71.6 75.2 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h FTXS15L 68.0 17.93 1.13 18.74 1.15 19.54 1.18 19.94 1.19 21.15 1.22 21.96 1.25 77.0 17.11...
  • Page 100 EDUS121503A Capacity Tables Indoor air temp. EWB (°F) Outdoor air 57.2 60.8 64.4 67.0 71.6 75.2 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h CTXS07L + 68.0 20.08 1.45 20.98 1.48 21.89 1.51 22.34 1.53 23.69 1.57 24.60 1.60 FDXS12L...
  • Page 101 Capacity Tables EDUS121503A Indoor air temp. EWB (°F) Outdoor air 57.2 60.8 64.4 67.0 71.6 75.2 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h FTXS09L + 68.0 21.51 1.50 22.48 1.53 23.45 1.56 23.93 1.58 25.38 1.62 26.35 1.65 FTXS12L...
  • Page 102 EDUS121503A Capacity Tables Indoor air temp. EWB (°F) Outdoor air 57.2 60.8 64.4 67.0 71.6 75.2 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h FDXS09L + 68.0 20.08 1.22 20.98 1.24 21.89 1.27 22.34 1.28 23.69 1.32 24.60 1.34 FTXS15L...
  • Page 103 Capacity Tables EDUS121503A Heating [60 Hz, 208 - 230 V] Outdoor air temp. EWB (°F) Indoor air 14.0 23.0 32.0 43.0 50.0 59.0 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h CTXS07L 60.8 5.44 0.57 6.54 0.60 7.63 0.63...
  • Page 104 EDUS121503A Capacity Tables Outdoor air temp. EWB (°F) Indoor air 14.0 23.0 32.0 43.0 50.0 59.0 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h CTXS07L + 60.8 12.45 1.16 14.96 1.22 17.47 1.28 19.98 1.34 22.98 1.41 24.99 1.45...
  • Page 105 Capacity Tables EDUS121503A Outdoor air temp. EWB (°F) Indoor air 14.0 23.0 32.0 43.0 50.0 59.0 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h FDXS09L + 60.8 14.03 1.76 16.85 1.85 19.67 1.94 22.49 2.03 25.88 2.14 28.14 2.21...
  • Page 106 EDUS121503A Capacity Tables Outdoor air temp. EWB (°F) Indoor air 14.0 23.0 32.0 43.0 50.0 59.0 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h FDXS09L + 60.8 14.03 1.66 16.85 1.74 19.67 1.83 22.49 1.91 25.88 2.01 28.14 2.08...

  • Page 107: 3Mxs24Nmvju

    Capacity Tables EDUS121503A 3MXS24NMVJU Cooling [60 Hz, 208 - 230 V] Indoor air temp. EWB (°F) Outdoor air 57.2 60.8 64.4 67.0 71.6 75.2 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h CTXS07L 68.0 8.61 0.47 8.99 0.48 9.38 0.48...
  • Page 108 EDUS121503A Capacity Tables Indoor air temp. EWB (°F) Outdoor air 57.2 60.8 64.4 67.0 71.6 75.2 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h FTXS15L 68.0 18.44 1.13 19.27 1.15 20.10 1.18 20.51 1.19 21.76 1.22 22.59 1.25 77.0 17.60...
  • Page 109 Capacity Tables EDUS121503A Indoor air temp. EWB (°F) Outdoor air 57.2 60.8 64.4 67.0 71.6 75.2 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h CTXS07L + 68.0 18.13 1.13 18.95 1.15 19.76 1.18 20.17 1.19 21.40 1.22 22.21 1.25 FDXS09L...
  • Page 110 EDUS121503A Capacity Tables Indoor air temp. EWB (°F) Outdoor air 57.2 60.8 64.4 67.0 71.6 75.2 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h CTXS07L + 68.0 28.17 2.18 29.44 2.22 30.71 2.26 31.34 2.28 33.24 2.35 34.51 2.39 CDXS18L...
  • Page 111 Capacity Tables EDUS121503A Indoor air temp. EWB (°F) Outdoor air 57.2 60.8 64.4 67.0 71.6 75.2 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h FDXS09L + 68.0 23.67 1.69 24.73 1.73 25.79 1.76 26.33 1.78 27.92 1.83 28.99 1.86 FTXS12L...
  • Page 112 EDUS121503A Capacity Tables Indoor air temp. EWB (°F) Outdoor air 57.2 60.8 64.4 67.0 71.6 75.2 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h FTXS09L + 68.0 30.74 2.16 32.12 2.20 33.50 2.25 34.19 2.27 36.26 2.33 37.65 2.38 FTXS18L...
  • Page 113 Capacity Tables EDUS121503A Indoor air temp. EWB (°F) Outdoor air 57.2 60.8 64.4 67.0 71.6 75.2 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h FDXS12L + 68.0 22.59 1.65 25.69 1.96 26.80 2.00 27.35 2.01 29.01 2.07 30.12 2.11 FDXS12L...
  • Page 114 EDUS121503A Capacity Tables Indoor air temp. EWB (°F) Outdoor air 57.2 60.8 64.4 67.0 71.6 75.2 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h FTXS12L + 68.0 29.20 2.29 30.51 2.33 31.82 2.38 32.48 2.40 34.45 2.47 35.76 2.52 CDXS18L...
  • Page 115 Capacity Tables EDUS121503A Indoor air temp. EWB (°F) Outdoor air 57.2 60.8 64.4 67.0 71.6 75.2 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h FTXS15L + 68.0 30.74 1.89 32.12 1.92 33.50 1.96 34.19 1.98 36.26 2.04 37.65 2.08 FTXS18L...
  • Page 116 EDUS121503A Capacity Tables Indoor air temp. EWB (°F) Outdoor air 57.2 60.8 64.4 67.0 71.6 75.2 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h CDXS18L + 68.0 27.66 2.06 28.91 2.10 30.15 2.14 30.77 2.16 32.64 2.22 33.88 2.26 CDXS18L...
  • Page 117 Capacity Tables EDUS121503A Indoor air temp. EWB (°F) Outdoor air 57.2 60.8 64.4 67.0 71.6 75.2 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h CTXS07L + 68.0 30.74 1.89 32.12 1.92 33.50 1.96 34.19 1.98 36.26 2.04 37.65 2.08 CTXS07L +...
  • Page 118 EDUS121503A Capacity Tables Indoor air temp. EWB (°F) Outdoor air 57.2 60.8 64.4 67.0 71.6 75.2 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h CTXS07L + 68.0 27.35 1.88 28.58 1.92 29.81 1.95 30.43 1.97 32.27 2.03 33.50 2.07 FDXS09L +...
  • Page 119 Capacity Tables EDUS121503A Indoor air temp. EWB (°F) Outdoor air 57.2 60.8 64.4 67.0 71.6 75.2 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h CTXS07L + 68.0 29.71 2.04 31.05 2.08 32.38 2.12 33.05 2.14 35.06 2.20 36.39 2.24 FTXS09L +...
  • Page 120 EDUS121503A Capacity Tables Indoor air temp. EWB (°F) Outdoor air 57.2 60.8 64.4 67.0 71.6 75.2 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h CTXS07L + 68.0 28.69 1.97 29.98 2.01 31.27 2.05 31.91 2.07 33.85 2.12 35.14 2.16 FDXS09L +...
  • Page 121 Capacity Tables EDUS121503A Indoor air temp. EWB (°F) Outdoor air 57.2 60.8 64.4 67.0 71.6 75.2 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h CTXS07L + 68.0 29.71 1.83 31.05 1.87 32.38 1.90 33.05 1.92 35.06 1.98 36.39 2.01 FDXS12L +...
  • Page 122 EDUS121503A Capacity Tables Indoor air temp. EWB (°F) Outdoor air 57.2 60.8 64.4 67.0 71.6 75.2 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h CTXS07L + 68.0 30.74 1.71 32.12 1.74 33.50 1.78 34.19 1.80 36.26 1.85 37.65 1.88 FTXS15L +...
  • Page 123 Capacity Tables EDUS121503A Indoor air temp. EWB (°F) Outdoor air 57.2 60.8 64.4 67.0 71.6 75.2 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h FDXS09L + 68.0 27.66 1.97 28.91 2.01 30.15 2.05 30.77 2.07 32.64 2.12 33.88 2.16 FDXS09L +...
  • Page 124 EDUS121503A Capacity Tables Indoor air temp. EWB (°F) Outdoor air 57.2 60.8 64.4 67.0 71.6 75.2 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h FDXS09L + 68.0 27.66 1.97 28.91 2.01 30.15 2.05 30.77 2.07 32.64 2.12 33.88 2.16 FDXS09L +...
  • Page 125 Capacity Tables EDUS121503A Indoor air temp. EWB (°F) Outdoor air 57.2 60.8 64.4 67.0 71.6 75.2 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h FDXS09L + 68.0 27.66 1.92 28.91 1.96 30.15 2.00 30.77 2.01 32.64 2.07 33.88 2.11 FDXS09L +...
  • Page 126 EDUS121503A Capacity Tables Indoor air temp. EWB (°F) Outdoor air 57.2 60.8 64.4 67.0 71.6 75.2 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h FDXS09L + 68.0 27.66 1.91 28.91 1.95 30.15 1.99 30.77 2.01 32.64 2.06 33.88 2.10 FDXS09L +...
  • Page 127 Capacity Tables EDUS121503A Indoor air temp. EWB (°F) Outdoor air 57.2 60.8 64.4 67.0 71.6 75.2 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h FDXS09L + 68.0 27.66 1.97 28.91 2.01 30.15 2.05 30.77 2.07 32.64 2.12 33.88 2.16 FDXS12L +...
  • Page 128 EDUS121503A Capacity Tables Indoor air temp. EWB (°F) Outdoor air 57.2 60.8 64.4 67.0 71.6 75.2 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h FDXS09L + 68.0 28.69 1.93 29.98 1.97 31.27 2.00 31.91 2.02 33.85 2.08 35.14 2.12 FTXS12L +...
  • Page 129 Capacity Tables EDUS121503A Indoor air temp. EWB (°F) Outdoor air 57.2 60.8 64.4 67.0 71.6 75.2 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h FTXS09L + 68.0 28.69 1.97 29.98 2.01 31.27 2.05 31.91 2.07 33.85 2.12 35.14 2.16 FDXS12L +...
  • Page 130 EDUS121503A Capacity Tables Indoor air temp. EWB (°F) Outdoor air 57.2 60.8 64.4 67.0 71.6 75.2 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h FTXS09L + 68.0 29.71 1.82 31.05 1.86 32.38 1.90 33.05 1.91 35.06 1.97 36.39 2.00 FTXS15L +...
  • Page 131 Capacity Tables EDUS121503A Indoor air temp. EWB (°F) Outdoor air 57.2 60.8 64.4 67.0 71.6 75.2 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h FTXS12L + 68.0 29.71 2.06 31.05 2.10 32.38 2.14 33.05 2.16 35.06 2.22 36.39 2.26 FTXS12L +...
  • Page 132 EDUS121503A Capacity Tables Indoor air temp. EWB (°F) Outdoor air 57.2 60.8 64.4 67.0 71.6 75.2 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h FTXS12L + 68.0 28.69 1.93 29.98 1.97 31.27 2.00 31.91 2.02 33.85 2.08 35.14 2.12 FDXS12L +...
  • Page 133 Capacity Tables EDUS121503A Heating [60 Hz, 208 - 230 V] Outdoor air temp. EWB (°F) Indoor air 14.0 23.0 32.0 43.0 50.0 59.0 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h CTXS07L 60.8 5.44 0.45 6.54 0.47 7.63 0.50...
  • Page 134 EDUS121503A Capacity Tables Outdoor air temp. EWB (°F) Indoor air 14.0 23.0 32.0 43.0 50.0 59.0 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h CDXS18L 60.8 14.03 2.22 16.85 2.33 19.67 2.45 22.49 2.56 25.88 2.70 28.14 2.79 30.96...
  • Page 135 Capacity Tables EDUS121503A Outdoor air temp. EWB (°F) Indoor air 14.0 23.0 32.0 43.0 50.0 59.0 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h CTXS07L + 60.8 20.20 2.44 24.26 2.57 28.33 2.69 32.39 2.82 37.27 2.97 40.52 3.07...
  • Page 136 EDUS121503A Capacity Tables Outdoor air temp. EWB (°F) Indoor air 14.0 23.0 32.0 43.0 50.0 59.0 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h FDXS09L + 60.8 15.32 2.18 18.40 2.29 21.48 2.40 24.56 2.51 28.26 2.65 30.73 2.74...
  • Page 137 Capacity Tables EDUS121503A Outdoor air temp. EWB (°F) Indoor air 14.0 23.0 32.0 43.0 50.0 59.0 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h FDXS09L + 60.8 17.95 2.49 21.57 2.62 25.18 2.75 28.79 2.88 33.13 3.03 36.02 3.13...
  • Page 138 EDUS121503A Capacity Tables Outdoor air temp. EWB (°F) Indoor air 14.0 23.0 32.0 43.0 50.0 59.0 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h FTXS12L + 60.8 20.20 2.40 24.26 2.53 28.33 2.65 32.39 2.77 37.27 2.92 40.52 3.02...
  • Page 139 Capacity Tables EDUS121503A Outdoor air temp. EWB (°F) Indoor air 14.0 23.0 32.0 43.0 50.0 59.0 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h FTXS15L + 60.8 19.07 2.30 22.91 2.42 26.75 2.54 30.59 2.65 35.20 2.79 38.27 2.89...
  • Page 140 EDUS121503A Capacity Tables Outdoor air temp. EWB (°F) Indoor air 14.0 23.0 32.0 43.0 50.0 59.0 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h CTXS07L + 60.8 17.73 1.99 21.30 2.09 24.86 2.19 28.43 2.29 32.72 2.41 35.57 2.49...
  • Page 141 Capacity Tables EDUS121503A Outdoor air temp. EWB (°F) Indoor air 14.0 23.0 32.0 43.0 50.0 59.0 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h CTXS07L + 60.8 19.13 2.24 22.98 2.35 26.83 2.46 30.68 2.58 35.30 2.72 38.38 2.81...
  • Page 142 EDUS121503A Capacity Tables Outdoor air temp. EWB (°F) Indoor air 14.0 23.0 32.0 43.0 50.0 59.0 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h CTXS07L + 60.8 19.47 2.28 23.39 2.39 27.30 2.51 31.22 2.62 35.92 2.76 39.06 2.86...
  • Page 143 Capacity Tables EDUS121503A Outdoor air temp. EWB (°F) Indoor air 14.0 23.0 32.0 43.0 50.0 59.0 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h CTXS07L + 60.8 18.68 2.32 22.44 2.44 26.20 2.56 29.96 2.68 34.47 2.82 37.48 2.92...
  • Page 144 EDUS121503A Capacity Tables Outdoor air temp. EWB (°F) Indoor air 14.0 23.0 32.0 43.0 50.0 59.0 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h CTXS07L + 60.8 18.68 2.27 22.44 2.38 26.20 2.50 29.96 2.62 34.47 2.76 37.48 2.85...
  • Page 145 Capacity Tables EDUS121503A Outdoor air temp. EWB (°F) Indoor air 14.0 23.0 32.0 43.0 50.0 59.0 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h FTXS09L + 60.8 20.20 2.38 24.26 2.50 28.33 2.62 32.39 2.75 37.27 2.89 40.52 2.99...
  • Page 146 EDUS121503A Capacity Tables Outdoor air temp. EWB (°F) Indoor air 14.0 23.0 32.0 43.0 50.0 59.0 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h FTXS09L + 60.8 19.47 2.29 23.39 2.41 27.30 2.53 31.22 2.64 35.92 2.78 39.06 2.88...
  • Page 147 Capacity Tables EDUS121503A Outdoor air temp. EWB (°F) Indoor air 14.0 23.0 32.0 43.0 50.0 59.0 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h FDXS09L + 60.8 18.68 2.15 22.44 2.27 26.20 2.38 29.96 2.49 34.47 2.62 37.48 2.71...
  • Page 148 EDUS121503A Capacity Tables Outdoor air temp. EWB (°F) Indoor air 14.0 23.0 32.0 43.0 50.0 59.0 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h FTXS09L + 60.8 20.20 2.52 24.26 2.65 28.33 2.78 32.39 2.91 37.27 3.07 40.52 3.17...
  • Page 149 Capacity Tables EDUS121503A Outdoor air temp. EWB (°F) Indoor air 14.0 23.0 32.0 43.0 50.0 59.0 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h FTXS09L + 60.8 20.20 2.50 24.26 2.63 28.33 2.76 32.39 2.88 37.27 3.04 40.52 3.14...
  • Page 150 EDUS121503A Capacity Tables Outdoor air temp. EWB (°F) Indoor air 14.0 23.0 32.0 43.0 50.0 59.0 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h FTXS09L + 60.8 20.20 2.52 24.26 2.65 28.33 2.77 32.39 2.90 37.27 3.06 40.52 3.16...
  • Page 151 Capacity Tables EDUS121503A Outdoor air temp. EWB (°F) Indoor air 14.0 23.0 32.0 43.0 50.0 59.0 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h FTXS12L + 60.8 18.68 2.22 22.44 2.33 26.20 2.45 29.96 2.56 34.47 2.70 37.48 2.79...
  • Page 152 EDUS121503A Capacity Tables Symbols: Notes: : Entering wet bulb temp. (°F) 1. Ratings shown are net capacities which include a deduction for indoor fan motor heat. : Entering dry bulb temp. (°F) shows max capacities and power input. 3. TC and PI must be calculated by interpolation using the figures in the : Total capacity (kBtu/h) above tables.

  • Page 153: 4Mxs36Nmvju

    Capacity Tables EDUS121503A 4MXS36NMVJU Cooling [60 Hz, 208 - 230 V] Indoor air temp. EWB (°F) Outdoor air 57.2 60.8 64.4 67.0 71.6 75.2 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h CTXS07L 68.0 8.61 0.54 8.99 0.55 9.38 0.56...
  • Page 154 EDUS121503A Capacity Tables Indoor air temp. EWB (°F) Outdoor air 57.2 60.8 64.4 67.0 71.6 75.2 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h FTXS15L 68.0 18.44 1.17 19.27 1.20 20.10 1.22 20.51 1.23 21.76 1.27 22.59 1.29 77.0 17.60...
  • Page 155 Capacity Tables EDUS121503A Indoor air temp. EWB (°F) Outdoor air 57.2 60.8 64.4 67.0 71.6 75.2 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h CTXS07L + 68.0 17.21 1.07 17.99 1.09 18.76 1.11 19.15 1.12 20.31 1.15 21.08 1.17 CTXS07L...
  • Page 156 EDUS121503A Capacity Tables Indoor air temp. EWB (°F) Outdoor air 57.2 60.8 64.4 67.0 71.6 75.2 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h CTXS07L + 68.0 25.31 1.89 26.44 1.92 27.58 1.96 28.15 1.98 29.86 2.04 31.00 2.08 CDXS15L...
  • Page 157 Capacity Tables EDUS121503A Indoor air temp. EWB (°F) Outdoor air 57.2 60.8 64.4 67.0 71.6 75.2 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h FTXS09L + 68.0 20.70 1.45 21.63 1.47 22.56 1.50 23.02 1.52 24.42 1.56 25.35 1.59 FDXS09L...
  • Page 158 EDUS121503A Capacity Tables Indoor air temp. EWB (°F) Outdoor air 57.2 60.8 64.4 67.0 71.6 75.2 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h FTXS09L + 68.0 29.51 2.09 30.83 2.13 32.16 2.17 32.82 2.19 34.81 2.25 36.14 2.30 FTXS15L...
  • Page 159 Capacity Tables EDUS121503A Indoor air temp. EWB (°F) Outdoor air 57.2 60.8 64.4 67.0 71.6 75.2 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h FDXS09L + 68.0 30.02 2.18 31.37 2.22 32.72 2.26 33.39 2.28 35.42 2.35 36.77 2.39 FTXS18L...
  • Page 160 EDUS121503A Capacity Tables Indoor air temp. EWB (°F) Outdoor air 57.2 60.8 64.4 67.0 71.6 75.2 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h FTXS12L + 68.0 29.51 2.38 30.83 2.43 32.16 2.48 32.82 2.50 34.81 2.58 36.14 2.62 FTXS12L...
  • Page 161 Capacity Tables EDUS121503A Indoor air temp. EWB (°F) Outdoor air 57.2 60.8 64.4 67.0 71.6 75.2 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h FDXS12L + 68.0 27.66 2.21 28.91 2.25 30.15 2.30 30.77 2.32 32.64 2.38 33.88 2.43 CDXS15L...
  • Page 162 EDUS121503A Capacity Tables Indoor air temp. EWB (°F) Outdoor air 57.2 60.8 64.4 67.0 71.6 75.2 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h FTXS12L + 68.0 36.37 3.08 38.01 3.15 39.64 3.21 40.46 3.24 42.91 3.33 44.55 3.39 CDXS24L...
  • Page 163 Capacity Tables EDUS121503A Indoor air temp. EWB (°F) Outdoor air 57.2 60.8 64.4 67.0 71.6 75.2 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h FTXS15L + 68.0 36.68 2.74 38.33 2.79 39.98 2.85 40.80 2.87 43.27 2.96 44.92 3.01 FTXS18L...
  • Page 164 EDUS121503A Capacity Tables Indoor air temp. EWB (°F) Outdoor air 57.2 60.8 64.4 67.0 71.6 75.2 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h CDXS15L + 68.0 36.57 2.72 38.22 2.78 39.86 2.83 40.69 2.86 43.15 2.94 44.80 2.99 FTXS24L...
  • Page 165 Capacity Tables EDUS121503A Indoor air temp. EWB (°F) Outdoor air 57.2 60.8 64.4 67.0 71.6 75.2 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h FTXS18L + 68.0 36.68 2.75 38.33 2.81 39.98 2.86 40.80 2.89 43.27 2.97 44.92 3.03 CDXS24L...
  • Page 166 EDUS121503A Capacity Tables Indoor air temp. EWB (°F) Outdoor air 57.2 60.8 64.4 67.0 71.6 75.2 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h CTXS07L + 68.0 25.82 1.66 26.98 1.70 28.14 1.73 28.72 1.75 30.46 1.79 31.62 1.83 CTXS07L +...
  • Page 167 Capacity Tables EDUS121503A Indoor air temp. EWB (°F) Outdoor air 57.2 60.8 64.4 67.0 71.6 75.2 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h CTXS07L + 68.0 32.17 2.38 33.62 2.42 35.06 2.47 35.79 2.50 37.96 2.57 39.40 2.61 CTXS07L +...
  • Page 168 EDUS121503A Capacity Tables Indoor air temp. EWB (°F) Outdoor air 57.2 60.8 64.4 67.0 71.6 75.2 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h CTXS07L + 68.0 29.30 2.08 30.62 2.12 31.94 2.16 32.60 2.18 34.57 2.25 35.89 2.29 FTXS09L +...
  • Page 169 Capacity Tables EDUS121503A Indoor air temp. EWB (°F) Outdoor air 57.2 60.8 64.4 67.0 71.6 75.2 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h CTXS07L + 68.0 35.24 2.57 36.83 2.62 38.41 2.67 39.21 2.70 41.58 2.77 43.17 2.83 FTXS09L +...
  • Page 170 EDUS121503A Capacity Tables Indoor air temp. EWB (°F) Outdoor air 57.2 60.8 64.4 67.0 71.6 75.2 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h CTXS07L + 68.0 35.76 2.66 37.36 2.71 38.97 2.76 39.78 2.79 42.19 2.87 43.79 2.92 FDXS09L +...
  • Page 171 Capacity Tables EDUS121503A Indoor air temp. EWB (°F) Outdoor air 57.2 60.8 64.4 67.0 71.6 75.2 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h CTXS07L + 68.0 35.24 2.74 36.83 2.79 38.41 2.85 39.21 2.87 41.58 2.96 43.17 3.01 FTXS12L +...
  • Page 172 EDUS121503A Capacity Tables Indoor air temp. EWB (°F) Outdoor air 57.2 60.8 64.4 67.0 71.6 75.2 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h CTXS07L + 68.0 34.12 2.74 35.65 2.79 37.18 2.85 37.95 2.87 40.25 2.96 41.79 3.01 FDXS12L +...
  • Page 173 Capacity Tables EDUS121503A Indoor air temp. EWB (°F) Outdoor air 57.2 60.8 64.4 67.0 71.6 75.2 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h CTXS07L + 68.0 37.39 2.76 39.08 2.82 40.76 2.87 41.60 2.90 44.12 2.98 45.80 3.04 FTXS12L +...
  • Page 174 EDUS121503A Capacity Tables Indoor air temp. EWB (°F) Outdoor air 57.2 60.8 64.4 67.0 71.6 75.2 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h CTXS07L + 68.0 38.93 2.73 40.68 2.78 42.43 2.84 43.31 2.87 45.93 2.95 47.68 3.00 FTXS15L +...
  • Page 175 Capacity Tables EDUS121503A Indoor air temp. EWB (°F) Outdoor air 57.2 60.8 64.4 67.0 71.6 75.2 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h CTXS07L + 68.0 35.96 2.77 37.58 2.83 39.19 2.88 40.00 2.91 42.43 2.99 44.05 3.05 CDXS18L +...
  • Page 176 EDUS121503A Capacity Tables Indoor air temp. EWB (°F) Outdoor air 57.2 60.8 64.4 67.0 71.6 75.2 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h FTXS09L + 68.0 32.89 2.55 34.37 2.60 35.84 2.65 36.58 2.67 38.80 2.75 40.28 2.80 FTXS09L +...
  • Page 177 Capacity Tables EDUS121503A Indoor air temp. EWB (°F) Outdoor air 57.2 60.8 64.4 67.0 71.6 75.2 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h FTXS09L + 68.0 35.04 2.76 36.61 2.82 38.19 2.87 38.98 2.90 41.34 2.98 42.92 3.04 FTXS09L +...
  • Page 178 EDUS121503A Capacity Tables Indoor air temp. EWB (°F) Outdoor air 57.2 60.8 64.4 67.0 71.6 75.2 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h FTXS09L + 68.0 37.19 2.75 38.86 2.81 40.53 2.86 41.37 2.89 43.88 2.97 45.55 3.03 FTXS09L +...
  • Page 179 Capacity Tables EDUS121503A Indoor air temp. EWB (°F) Outdoor air 57.2 60.8 64.4 67.0 71.6 75.2 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h FTXS09L + 68.0 37.39 2.76 39.08 2.82 40.76 2.87 41.60 2.90 44.12 2.98 45.80 3.04 FTXS09L +...
  • Page 180 EDUS121503A Capacity Tables Indoor air temp. EWB (°F) Outdoor air 57.2 60.8 64.4 67.0 71.6 75.2 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h FTXS09L + 68.0 35.04 2.77 36.61 2.83 38.19 2.88 38.98 2.91 41.34 2.99 42.92 3.05 FTXS12L +...
  • Page 181 Capacity Tables EDUS121503A Indoor air temp. EWB (°F) Outdoor air 57.2 60.8 64.4 67.0 71.6 75.2 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h FTXS09L + 68.0 37.19 2.77 38.86 2.83 40.53 2.88 41.37 2.91 43.88 2.99 45.55 3.05 FTXS12L +...
  • Page 182 EDUS121503A Capacity Tables Indoor air temp. EWB (°F) Outdoor air 57.2 60.8 64.4 67.0 71.6 75.2 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h FDXS09L + 68.0 33.81 2.73 35.33 2.78 36.85 2.84 37.61 2.87 39.89 2.95 41.41 3.00 FDXS12L +...
  • Page 183 Capacity Tables EDUS121503A Indoor air temp. EWB (°F) Outdoor air 57.2 60.8 64.4 67.0 71.6 75.2 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h FDXS09L + 68.0 35.76 2.74 37.36 2.79 38.97 2.85 39.78 2.87 42.19 2.96 43.79 3.01 FTXS12L +...
  • Page 184 EDUS121503A Capacity Tables Indoor air temp. EWB (°F) Outdoor air 57.2 60.8 64.4 67.0 71.6 75.2 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h FTXS09L + 68.0 36.06 2.74 37.68 2.79 39.31 2.85 40.12 2.87 42.55 2.96 44.17 3.01 FDXS12L +...
  • Page 185 Capacity Tables EDUS121503A Indoor air temp. EWB (°F) Outdoor air 57.2 60.8 64.4 67.0 71.6 75.2 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h FTXS09L + 68.0 37.29 2.76 38.97 2.82 40.65 2.87 41.48 2.90 44.00 2.98 45.68 3.04 FTXS15L +...
  • Page 186 EDUS121503A Capacity Tables Indoor air temp. EWB (°F) Outdoor air 57.2 60.8 64.4 67.0 71.6 75.2 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h FTXS09L + 68.0 37.39 2.75 39.08 2.81 40.76 2.86 41.60 2.89 44.12 2.97 45.80 3.03 FTXS15L +...
  • Page 187 Capacity Tables EDUS121503A Indoor air temp. EWB (°F) Outdoor air 57.2 60.8 64.4 67.0 71.6 75.2 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h FDXS09L + 68.0 34.32 2.71 35.86 2.77 37.41 2.82 38.18 2.85 40.49 2.93 42.04 2.98 CDXS15L +...
  • Page 188 EDUS121503A Capacity Tables Indoor air temp. EWB (°F) Outdoor air 57.2 60.8 64.4 67.0 71.6 75.2 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h FDXS09L + 68.0 36.17 2.74 37.79 2.79 39.42 2.85 40.23 2.87 42.67 2.96 44.30 3.01 FTXS15L +...
  • Page 189 Capacity Tables EDUS121503A Indoor air temp. EWB (°F) Outdoor air 57.2 60.8 64.4 67.0 71.6 75.2 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h FDXS09L + 68.0 37.50 2.77 39.18 2.83 40.87 2.88 41.71 2.91 44.24 2.99 45.93 3.05 FTXS18L +...
  • Page 190 EDUS121503A Capacity Tables Indoor air temp. EWB (°F) Outdoor air 57.2 60.8 64.4 67.0 71.6 75.2 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h FDXS12L + 68.0 33.81 2.73 35.33 2.78 36.85 2.84 37.61 2.87 39.89 2.95 41.41 3.00 FDXS12L +...
  • Page 191 Capacity Tables EDUS121503A Indoor air temp. EWB (°F) Outdoor air 57.2 60.8 64.4 67.0 71.6 75.2 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h FDXS12L + 68.0 34.12 2.78 35.65 2.83 37.18 2.89 37.95 2.92 40.25 3.00 41.79 3.06 FDXS12L +...
  • Page 192 EDUS121503A Capacity Tables Indoor air temp. EWB (°F) Outdoor air 57.2 60.8 64.4 67.0 71.6 75.2 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h FDXS12L + 68.0 34.32 2.77 35.86 2.83 37.41 2.88 38.18 2.91 40.49 2.99 42.04 3.05 FDXS12L +...
  • Page 193 Capacity Tables EDUS121503A Indoor air temp. EWB (°F) Outdoor air 57.2 60.8 64.4 67.0 71.6 75.2 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h FDXS12L + 68.0 34.83 2.76 36.40 2.82 37.97 2.87 38.75 2.90 41.10 2.98 42.67 3.04 FDXS12L +...
  • Page 194 EDUS121503A Capacity Tables Indoor air temp. EWB (°F) Outdoor air 57.2 60.8 64.4 67.0 71.6 75.2 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h FDXS12L + 68.0 34.32 2.72 35.86 2.78 37.41 2.83 38.18 2.86 40.49 2.94 42.04 2.99 CDXS15L +...
  • Page 195 Capacity Tables EDUS121503A Indoor air temp. EWB (°F) Outdoor air 57.2 60.8 64.4 67.0 71.6 75.2 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h FDXS12L + 68.0 36.06 2.74 37.68 2.79 39.31 2.85 40.12 2.87 42.55 2.96 44.17 3.01 FTXS15L +...
  • Page 196 EDUS121503A Capacity Tables Indoor air temp. EWB (°F) Outdoor air 57.2 60.8 64.4 67.0 71.6 75.2 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h FDXS12L + 68.0 37.60 2.71 39.29 2.77 40.98 2.82 41.83 2.85 44.36 2.93 46.05 2.98 FTXS18L +...
  • Page 197 Capacity Tables EDUS121503A Indoor air temp. EWB (°F) Outdoor air 57.2 60.8 64.4 67.0 71.6 75.2 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h CDXS15L + 68.0 34.63 2.77 36.19 2.83 37.74 2.88 38.52 2.91 40.86 2.99 42.41 3.05 CDXS15L +...
  • Page 198 EDUS121503A Capacity Tables Indoor air temp. EWB (°F) Outdoor air 57.2 60.8 64.4 67.0 71.6 75.2 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h CDXS15L + 68.0 34.83 2.75 36.40 2.81 37.97 2.86 38.75 2.89 41.10 2.97 42.67 3.03 CDXS15L +...
  • Page 199 Capacity Tables EDUS121503A Indoor air temp. EWB (°F) Outdoor air 57.2 60.8 64.4 67.0 71.6 75.2 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h CTXS07L + 68.0 38.93 2.72 40.68 2.78 42.43 2.83 43.31 2.86 45.93 2.94 47.68 2.99 CTXS07L +...
  • Page 200 EDUS121503A Capacity Tables Indoor air temp. EWB (°F) Outdoor air 57.2 60.8 64.4 67.0 71.6 75.2 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h CTXS07L + 68.0 35.96 2.63 37.58 2.68 39.19 2.73 40.00 2.76 42.43 2.84 44.05 2.89 CTXS07L +...
  • Page 201 Capacity Tables EDUS121503A Indoor air temp. EWB (°F) Outdoor air 57.2 60.8 64.4 67.0 71.6 75.2 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h CTXS07L + 68.0 35.65 2.75 37.26 2.81 38.86 2.86 39.66 2.89 42.07 2.97 43.67 3.03 CTXS07L +...
  • Page 202 EDUS121503A Capacity Tables Indoor air temp. EWB (°F) Outdoor air 57.2 60.8 64.4 67.0 71.6 75.2 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h CTXS07L + 68.0 37.80 2.75 39.50 2.81 41.20 2.86 42.05 2.89 44.60 2.97 46.30 3.03 CTXS07L +...
  • Page 203 Capacity Tables EDUS121503A Indoor air temp. EWB (°F) Outdoor air 57.2 60.8 64.4 67.0 71.6 75.2 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h CTXS07L + 68.0 36.88 2.74 38.54 2.79 40.20 2.85 41.03 2.87 43.52 2.96 45.18 3.01 CTXS07L +...
  • Page 204 EDUS121503A Capacity Tables Indoor air temp. EWB (°F) Outdoor air 57.2 60.8 64.4 67.0 71.6 75.2 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h CTXS07L + 68.0 37.80 2.77 39.50 2.83 41.20 2.88 42.05 2.91 44.60 2.99 46.30 3.05 CTXS07L +...
  • Page 205 Capacity Tables EDUS121503A Indoor air temp. EWB (°F) Outdoor air 57.2 60.8 64.4 67.0 71.6 75.2 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h CTXS07L + 68.0 38.93 2.76 40.68 2.82 42.43 2.87 43.31 2.90 45.93 2.98 47.68 3.04 CTXS07L +...
  • Page 206 EDUS121503A Capacity Tables Indoor air temp. EWB (°F) Outdoor air 57.2 60.8 64.4 67.0 71.6 75.2 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h CTXS07L + 68.0 36.88 2.75 38.54 2.81 40.20 2.86 41.03 2.89 43.52 2.97 45.18 3.03 CTXS07L +...
  • Page 207 Capacity Tables EDUS121503A Indoor air temp. EWB (°F) Outdoor air 57.2 60.8 64.4 67.0 71.6 75.2 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h CTXS07L + 68.0 37.70 2.72 39.40 2.78 41.09 2.83 41.94 2.86 44.48 2.94 46.18 2.99 FTXS09L +...
  • Page 208 EDUS121503A Capacity Tables Indoor air temp. EWB (°F) Outdoor air 57.2 60.8 64.4 67.0 71.6 75.2 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h CTXS07L + 68.0 37.70 2.76 39.40 2.82 41.09 2.87 41.94 2.90 44.48 2.98 46.18 3.04 FTXS09L +...
  • Page 209 Capacity Tables EDUS121503A Indoor air temp. EWB (°F) Outdoor air 57.2 60.8 64.4 67.0 71.6 75.2 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h CTXS07L + 68.0 37.80 2.75 39.50 2.81 41.20 2.86 42.05 2.89 44.60 2.97 46.30 3.03 FTXS09L +...
  • Page 210 EDUS121503A Capacity Tables Indoor air temp. EWB (°F) Outdoor air 57.2 60.8 64.4 67.0 71.6 75.2 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h CTXS07L + 68.0 37.70 2.73 39.40 2.78 41.09 2.84 41.94 2.87 44.48 2.95 46.18 3.00 FTXS09L +...
  • Page 211 Capacity Tables EDUS121503A Indoor air temp. EWB (°F) Outdoor air 57.2 60.8 64.4 67.0 71.6 75.2 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h CTXS07L + 68.0 37.80 2.77 39.50 2.83 41.20 2.88 42.05 2.91 44.60 2.99 46.30 3.05 FTXS09L +...
  • Page 212 EDUS121503A Capacity Tables Indoor air temp. EWB (°F) Outdoor air 57.2 60.8 64.4 67.0 71.6 75.2 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h CTXS07L + 68.0 35.55 2.73 37.15 2.78 38.75 2.84 39.55 2.87 41.95 2.95 43.54 3.00 FDXS09L +...
  • Page 213 Capacity Tables EDUS121503A Indoor air temp. EWB (°F) Outdoor air 57.2 60.8 64.4 67.0 71.6 75.2 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h CTXS07L + 68.0 36.78 2.74 38.43 2.79 40.09 2.85 40.91 2.87 43.40 2.96 45.05 3.01 FDXS09L +...
  • Page 214 EDUS121503A Capacity Tables Indoor air temp. EWB (°F) Outdoor air 57.2 60.8 64.4 67.0 71.6 75.2 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h CTXS07L + 68.0 37.91 2.75 39.61 2.80 41.32 2.86 42.17 2.88 44.73 2.97 46.43 3.02 FDXS09L +...
  • Page 215 Capacity Tables EDUS121503A Indoor air temp. EWB (°F) Outdoor air 57.2 60.8 64.4 67.0 71.6 75.2 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h CTXS07L + 68.0 35.55 2.74 37.15 2.79 38.75 2.85 39.55 2.87 41.95 2.96 43.54 3.01 FDXS12L +...
  • Page 216 EDUS121503A Capacity Tables Indoor air temp. EWB (°F) Outdoor air 57.2 60.8 64.4 67.0 71.6 75.2 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h CTXS07L + 68.0 35.76 2.73 37.36 2.78 38.97 2.84 39.78 2.87 42.19 2.95 43.79 3.00 FDXS12L +...
  • Page 217 Capacity Tables EDUS121503A Indoor air temp. EWB (°F) Outdoor air 57.2 60.8 64.4 67.0 71.6 75.2 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h FTXS09L + 68.0 38.93 2.75 40.68 2.80 42.43 2.86 43.31 2.88 45.93 2.97 47.68 3.02 FTXS09L +...
  • Page 218 EDUS121503A Capacity Tables Indoor air temp. EWB (°F) Outdoor air 57.2 60.8 64.4 67.0 71.6 75.2 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h FDXS09L + 68.0 35.35 2.69 36.94 2.74 38.52 2.80 39.32 2.82 41.70 2.90 43.29 2.96 FDXS09L +...
  • Page 219 Capacity Tables EDUS121503A Indoor air temp. EWB (°F) Outdoor air 57.2 60.8 64.4 67.0 71.6 75.2 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h FTXS09L + 68.0 36.68 2.75 38.33 2.81 39.98 2.86 40.80 2.89 43.27 2.97 44.92 3.03 FDXS09L +...
  • Page 220 EDUS121503A Capacity Tables Indoor air temp. EWB (°F) Outdoor air 57.2 60.8 64.4 67.0 71.6 75.2 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h FTXS09L + 68.0 37.91 2.71 39.61 2.77 41.32 2.82 42.17 2.85 44.73 2.93 46.43 2.98 FTXS09L +...
  • Page 221 Capacity Tables EDUS121503A Indoor air temp. EWB (°F) Outdoor air 57.2 60.8 64.4 67.0 71.6 75.2 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h FTXS09L + 68.0 38.93 2.75 40.68 2.81 42.43 2.86 43.31 2.89 45.93 2.97 47.68 3.03 FTXS09L +...
  • Page 222 EDUS121503A Capacity Tables Indoor air temp. EWB (°F) Outdoor air 57.2 60.8 64.4 67.0 71.6 75.2 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h FDXS09L + 68.0 36.68 2.77 38.33 2.83 39.98 2.88 40.80 2.91 43.27 2.99 44.92 3.05 FDXS09L +...
  • Page 223 Capacity Tables EDUS121503A Indoor air temp. EWB (°F) Outdoor air 57.2 60.8 64.4 67.0 71.6 75.2 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h FTXS09L + 68.0 36.78 2.75 38.43 2.81 40.09 2.86 40.91 2.89 43.40 2.97 45.05 3.03 FTXS09L +...
  • Page 224 EDUS121503A Capacity Tables Indoor air temp. EWB (°F) Outdoor air 57.2 60.8 64.4 67.0 71.6 75.2 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h FDXS09L + 68.0 35.76 2.74 37.36 2.79 38.97 2.85 39.78 2.87 42.19 2.96 43.79 3.01 FDXS09L +...
  • Page 225 Capacity Tables EDUS121503A Indoor air temp. EWB (°F) Outdoor air 57.2 60.8 64.4 67.0 71.6 75.2 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h FTXS09L + 68.0 36.88 2.74 38.54 2.79 40.20 2.85 41.03 2.87 43.52 2.96 45.18 3.01 FTXS09L +...
  • Page 226 EDUS121503A Capacity Tables Indoor air temp. EWB (°F) Outdoor air 57.2 60.8 64.4 67.0 71.6 75.2 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h FDXS09L + 68.0 35.86 2.73 37.47 2.78 39.08 2.84 39.89 2.87 42.31 2.95 43.92 3.00 FDXS09L +...
  • Page 227 Capacity Tables EDUS121503A Indoor air temp. EWB (°F) Outdoor air 57.2 60.8 64.4 67.0 71.6 75.2 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h FTXS09L + 68.0 37.91 2.78 39.61 2.83 41.32 2.89 42.17 2.92 44.73 3.00 46.43 3.06 FDXS09L +...
  • Page 228 EDUS121503A Capacity Tables Indoor air temp. EWB (°F) Outdoor air 57.2 60.8 64.4 67.0 71.6 75.2 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h FTXS09L + 68.0 38.93 2.75 40.68 2.81 42.43 2.86 43.31 2.89 45.93 2.97 47.68 3.03 FTXS12L +...
  • Page 229 Capacity Tables EDUS121503A Indoor air temp. EWB (°F) Outdoor air 57.2 60.8 64.4 67.0 71.6 75.2 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h FDXS09L + 68.0 35.76 2.75 37.36 2.80 38.97 2.86 39.78 2.88 42.19 2.97 43.79 3.02 FTXS12L +...
  • Page 230 EDUS121503A Capacity Tables Indoor air temp. EWB (°F) Outdoor air 57.2 60.8 64.4 67.0 71.6 75.2 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h FTXS09L + 68.0 36.88 2.75 38.54 2.81 40.20 2.86 41.03 2.89 43.52 2.97 45.18 3.03 FDXS12L +...
  • Page 231 Capacity Tables EDUS121503A Indoor air temp. EWB (°F) Outdoor air 57.2 60.8 64.4 67.0 71.6 75.2 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h FDXS09L + 68.0 35.86 2.63 37.47 2.68 39.08 2.73 39.89 2.76 42.31 2.84 43.92 2.89 FDXS12L +...
  • Page 232 EDUS121503A Capacity Tables Indoor air temp. EWB (°F) Outdoor air 57.2 60.8 64.4 67.0 71.6 75.2 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h FDXS12L + 68.0 34.83 2.72 36.40 2.78 37.97 2.83 38.75 2.86 41.10 2.94 42.67 2.99 FDXS12L +...
  • Page 233 Capacity Tables EDUS121503A Heating [60 Hz, 208 - 230 V] Outdoor air temp. EWB (°F) Indoor air 14.0 23.0 32.0 43.0 50.0 59.0 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h CTXS07L 60.8 5.44 0.39 6.54 0.41 7.63 0.43...
  • Page 234 EDUS121503A Capacity Tables Outdoor air temp. EWB (°F) Indoor air 14.0 23.0 32.0 43.0 50.0 59.0 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h CDXS18L 60.8 14.03 1.62 16.85 1.71 19.67 1.79 22.49 1.87 25.88 1.97 28.14 2.04 30.96...
  • Page 235 Capacity Tables EDUS121503A Outdoor air temp. EWB (°F) Indoor air 14.0 23.0 32.0 43.0 50.0 59.0 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h CTXS07L + 60.8 17.56 1.36 21.09 1.43 24.63 1.50 28.16 1.57 32.40 1.65 35.23 1.71...
  • Page 236 EDUS121503A Capacity Tables Outdoor air temp. EWB (°F) Indoor air 14.0 23.0 32.0 43.0 50.0 59.0 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h FDXS09L + 60.8 14.03 1.35 16.85 1.42 19.67 1.49 22.49 1.56 25.88 1.64 28.14 1.70...
  • Page 237 Capacity Tables EDUS121503A Outdoor air temp. EWB (°F) Indoor air 14.0 23.0 32.0 43.0 50.0 59.0 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h FDXS09L + 60.8 17.28 1.67 20.76 1.76 24.24 1.84 27.71 1.93 31.89 2.03 34.67 2.10...
  • Page 238 EDUS121503A Capacity Tables Outdoor air temp. EWB (°F) Indoor air 14.0 23.0 32.0 43.0 50.0 59.0 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h FDXS09L + 60.8 20.20 2.24 24.26 2.35 28.33 2.46 32.39 2.58 37.27 2.72 40.52 2.81...
  • Page 239 Capacity Tables EDUS121503A Outdoor air temp. EWB (°F) Indoor air 14.0 23.0 32.0 43.0 50.0 59.0 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h FTXS12L + 60.8 21.99 1.95 26.42 2.05 30.85 2.15 35.27 2.25 40.58 2.37 44.12 2.45...
  • Page 240 EDUS121503A Capacity Tables Outdoor air temp. EWB (°F) Indoor air 14.0 23.0 32.0 43.0 50.0 59.0 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h FTXS15L + 60.8 21.99 1.95 26.42 2.05 30.85 2.15 35.27 2.24 40.58 2.36 44.12 2.44...
  • Page 241 Capacity Tables EDUS121503A Outdoor air temp. EWB (°F) Indoor air 14.0 23.0 32.0 43.0 50.0 59.0 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h FTXS15L + 60.8 22.72 2.18 27.29 2.29 31.87 2.40 36.44 2.51 41.93 2.65 45.59 2.74...
  • Page 242 EDUS121503A Capacity Tables Outdoor air temp. EWB (°F) Indoor air 14.0 23.0 32.0 43.0 50.0 59.0 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h CDXS18L + 60.8 22.72 2.17 27.29 2.28 31.87 2.39 36.44 2.50 41.93 2.64 45.59 2.73...
  • Page 243 Capacity Tables EDUS121503A Outdoor air temp. EWB (°F) Indoor air 14.0 23.0 32.0 43.0 50.0 59.0 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h CTXS07L + 60.8 20.53 1.72 24.67 1.81 28.80 1.90 32.93 1.98 37.89 2.09 41.20 2.16...
  • Page 244 EDUS121503A Capacity Tables Outdoor air temp. EWB (°F) Indoor air 14.0 23.0 32.0 43.0 50.0 59.0 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h CTXS07L + 60.8 20.20 1.65 24.26 1.73 28.33 1.82 32.39 1.90 37.27 2.00 40.52 2.07...
  • Page 245 Capacity Tables EDUS121503A Outdoor air temp. EWB (°F) Indoor air 14.0 23.0 32.0 43.0 50.0 59.0 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h CTXS07L + 60.8 21.38 1.95 25.68 2.05 29.98 2.15 34.28 2.24 39.44 2.36 42.89 2.44...
  • Page 246 EDUS121503A Capacity Tables Outdoor air temp. EWB (°F) Indoor air 14.0 23.0 32.0 43.0 50.0 59.0 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h CTXS07L + 60.8 23.17 2.23 27.83 2.34 32.50 2.46 37.16 2.57 42.76 2.71 46.49 2.80...
  • Page 247 Capacity Tables EDUS121503A Outdoor air temp. EWB (°F) Indoor air 14.0 23.0 32.0 43.0 50.0 59.0 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h CTXS07L + 60.8 22.44 2.06 26.96 2.16 31.47 2.27 35.99 2.37 41.41 2.50 45.02 2.59...
  • Page 248 EDUS121503A Capacity Tables Outdoor air temp. EWB (°F) Indoor air 14.0 23.0 32.0 43.0 50.0 59.0 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h CTXS07L + 60.8 23.17 2.20 27.83 2.32 32.50 2.43 37.16 2.54 42.76 2.68 46.49 2.77...
  • Page 249 Capacity Tables EDUS121503A Outdoor air temp. EWB (°F) Indoor air 14.0 23.0 32.0 43.0 50.0 59.0 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h CTXS07L + 60.8 22.27 2.20 26.76 2.32 31.24 2.43 35.72 2.54 41.10 2.68 44.69 2.77...
  • Page 250 EDUS121503A Capacity Tables Outdoor air temp. EWB (°F) Indoor air 14.0 23.0 32.0 43.0 50.0 59.0 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h FTXS09L + 60.8 21.99 1.94 26.42 2.04 30.85 2.14 35.27 2.24 40.58 2.35 44.12 2.43...
  • Page 251 Capacity Tables EDUS121503A Outdoor air temp. EWB (°F) Indoor air 14.0 23.0 32.0 43.0 50.0 59.0 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h FTXS09L + 60.8 22.10 2.03 26.55 2.14 31.00 2.24 35.45 2.35 40.79 2.47 44.35 2.56...
  • Page 252 EDUS121503A Capacity Tables Outdoor air temp. EWB (°F) Indoor air 14.0 23.0 32.0 43.0 50.0 59.0 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h FDXS09L + 60.8 22.27 2.06 26.76 2.16 31.24 2.27 35.72 2.37 41.10 2.50 44.69 2.59...
  • Page 253 Capacity Tables EDUS121503A Outdoor air temp. EWB (°F) Indoor air 14.0 23.0 32.0 43.0 50.0 59.0 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h FTXS09L + 60.8 23.06 2.09 27.70 2.20 32.34 2.30 36.98 2.41 42.55 2.54 46.26 2.63...
  • Page 254 EDUS121503A Capacity Tables Outdoor air temp. EWB (°F) Indoor air 14.0 23.0 32.0 43.0 50.0 59.0 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h FTXS09L + 60.8 23.17 2.19 27.83 2.30 32.50 2.41 37.16 2.52 42.76 2.66 46.49 2.75...
  • Page 255 Capacity Tables EDUS121503A Outdoor air temp. EWB (°F) Indoor air 14.0 23.0 32.0 43.0 50.0 59.0 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h FTXS09L + 60.8 23.17 2.19 27.83 2.30 32.50 2.41 37.16 2.52 42.76 2.66 46.49 2.75...
  • Page 256 EDUS121503A Capacity Tables Outdoor air temp. EWB (°F) Indoor air 14.0 23.0 32.0 43.0 50.0 59.0 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h FTXS09L + 60.8 23.17 2.26 27.83 2.38 32.50 2.49 37.16 2.61 42.76 2.75 46.49 2.84...
  • Page 257 Capacity Tables EDUS121503A Outdoor air temp. EWB (°F) Indoor air 14.0 23.0 32.0 43.0 50.0 59.0 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h FTXS09L + 60.8 22.27 2.21 26.76 2.32 31.24 2.44 35.72 2.55 41.10 2.69 44.69 2.78...
  • Page 258 EDUS121503A Capacity Tables Outdoor air temp. EWB (°F) Indoor air 14.0 23.0 32.0 43.0 50.0 59.0 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h FDXS09L + 60.8 23.17 2.44 27.83 2.57 32.50 2.69 37.16 2.82 42.76 2.97 46.49 3.07...
  • Page 259 Capacity Tables EDUS121503A Outdoor air temp. EWB (°F) Indoor air 14.0 23.0 32.0 43.0 50.0 59.0 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h FDXS09L + 60.8 23.17 2.56 27.83 2.70 32.50 2.83 37.16 2.96 42.76 3.12 46.49 3.22...
  • Page 260 EDUS121503A Capacity Tables Outdoor air temp. EWB (°F) Indoor air 14.0 23.0 32.0 43.0 50.0 59.0 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h FDXS09L + 60.8 22.27 2.15 26.76 2.26 31.24 2.37 35.72 2.48 41.10 2.61 44.69 2.70...
  • Page 261 Capacity Tables EDUS121503A Outdoor air temp. EWB (°F) Indoor air 14.0 23.0 32.0 43.0 50.0 59.0 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h FTXS12L + 60.8 23.17 2.19 27.83 2.31 32.50 2.42 37.16 2.53 42.76 2.67 46.49 2.76...
  • Page 262 EDUS121503A Capacity Tables Outdoor air temp. EWB (°F) Indoor air 14.0 23.0 32.0 43.0 50.0 59.0 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h FDXS12L + 60.8 22.27 2.06 26.76 2.16 31.24 2.27 35.72 2.37 41.10 2.50 44.69 2.59...
  • Page 263 Capacity Tables EDUS121503A Outdoor air temp. EWB (°F) Indoor air 14.0 23.0 32.0 43.0 50.0 59.0 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h FTXS12L + 60.8 24.12 2.85 28.98 3.00 33.84 3.15 38.69 3.29 44.52 3.47 48.40 3.59...
  • Page 264 EDUS121503A Capacity Tables Outdoor air temp. EWB (°F) Indoor air 14.0 23.0 32.0 43.0 50.0 59.0 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h FTXS12L + 60.8 23.17 2.39 27.83 2.51 32.50 2.63 37.16 2.75 42.76 2.90 46.49 3.00...
  • Page 265 Capacity Tables EDUS121503A Outdoor air temp. EWB (°F) Indoor air 14.0 23.0 32.0 43.0 50.0 59.0 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h FTXS12L + 60.8 22.27 2.19 26.76 2.30 31.24 2.41 35.72 2.52 41.10 2.66 44.69 2.75...
  • Page 266 EDUS121503A Capacity Tables Outdoor air temp. EWB (°F) Indoor air 14.0 23.0 32.0 43.0 50.0 59.0 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h FTXS15L + 60.8 24.12 2.85 28.98 3.00 33.84 3.15 38.69 3.29 44.52 3.47 48.40 3.59...
  • Page 267 Capacity Tables EDUS121503A Outdoor air temp. EWB (°F) Indoor air 14.0 23.0 32.0 43.0 50.0 59.0 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h CTXS07L + 60.8 21.26 1.90 25.54 1.99 29.82 2.09 34.10 2.19 39.24 2.31 42.66 2.38...
  • Page 268 EDUS121503A Capacity Tables Outdoor air temp. EWB (°F) Indoor air 14.0 23.0 32.0 43.0 50.0 59.0 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h CTXS07L + 60.8 23.45 2.46 28.17 2.59 32.89 2.71 37.61 2.84 43.27 2.99 47.05 3.09...
  • Page 269 Capacity Tables EDUS121503A Outdoor air temp. EWB (°F) Indoor air 14.0 23.0 32.0 43.0 50.0 59.0 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h CTXS07L + 60.8 24.12 2.83 28.98 2.98 33.84 3.12 38.69 3.27 44.52 3.44 48.40 3.55...
  • Page 270 EDUS121503A Capacity Tables Outdoor air temp. EWB (°F) Indoor air 14.0 23.0 32.0 43.0 50.0 59.0 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h CTXS07L + 60.8 24.12 2.86 28.98 3.01 33.84 3.16 38.69 3.30 44.52 3.48 48.40 3.60...
  • Page 271 Capacity Tables EDUS121503A Outdoor air temp. EWB (°F) Indoor air 14.0 23.0 32.0 43.0 50.0 59.0 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h CTXS07L + 60.8 23.45 2.52 28.17 2.65 32.89 2.77 37.61 2.90 43.27 3.06 47.05 3.16...
  • Page 272 EDUS121503A Capacity Tables Outdoor air temp. EWB (°F) Indoor air 14.0 23.0 32.0 43.0 50.0 59.0 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h CTXS07L + 60.8 23.45 2.86 28.17 3.01 32.89 3.16 37.61 3.30 43.27 3.48 47.05 3.60...
  • Page 273 Capacity Tables EDUS121503A Outdoor air temp. EWB (°F) Indoor air 14.0 23.0 32.0 43.0 50.0 59.0 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h CTXS07L + 60.8 21.99 2.03 26.42 2.13 30.85 2.23 35.27 2.34 40.58 2.46 44.12 2.54...
  • Page 274 EDUS121503A Capacity Tables Outdoor air temp. EWB (°F) Indoor air 14.0 23.0 32.0 43.0 50.0 59.0 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h CTXS07L + 60.8 24.12 2.86 28.98 3.01 33.84 3.16 38.69 3.30 44.52 3.48 48.40 3.60...
  • Page 275 Capacity Tables EDUS121503A Outdoor air temp. EWB (°F) Indoor air 14.0 23.0 32.0 43.0 50.0 59.0 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h CTXS07L + 60.8 23.45 2.70 28.17 2.84 32.89 2.98 37.61 3.12 43.27 3.28 47.05 3.39...
  • Page 276 EDUS121503A Capacity Tables Outdoor air temp. EWB (°F) Indoor air 14.0 23.0 32.0 43.0 50.0 59.0 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h CTXS07L + 60.8 22.72 2.15 27.29 2.27 31.87 2.38 36.44 2.49 41.93 2.62 45.59 2.71...
  • Page 277 Capacity Tables EDUS121503A Outdoor air temp. EWB (°F) Indoor air 14.0 23.0 32.0 43.0 50.0 59.0 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h CTXS07L + 60.8 22.72 2.38 27.29 2.50 31.87 2.62 36.44 2.75 41.93 2.89 45.59 2.99...
  • Page 278 EDUS121503A Capacity Tables Outdoor air temp. EWB (°F) Indoor air 14.0 23.0 32.0 43.0 50.0 59.0 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h CTXS07L + 60.8 22.72 2.40 27.29 2.53 31.87 2.65 36.44 2.77 41.93 2.92 45.59 3.02...
  • Page 279 Capacity Tables EDUS121503A Outdoor air temp. EWB (°F) Indoor air 14.0 23.0 32.0 43.0 50.0 59.0 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h CTXS07L + 60.8 24.12 2.73 28.98 2.87 33.84 3.00 38.69 3.14 44.52 3.31 48.40 3.42...
  • Page 280 EDUS121503A Capacity Tables Outdoor air temp. EWB (°F) Indoor air 14.0 23.0 32.0 43.0 50.0 59.0 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h CTXS07L + 60.8 22.72 2.38 27.29 2.50 31.87 2.62 36.44 2.75 41.93 2.89 45.59 2.99...
  • Page 281 Capacity Tables EDUS121503A Outdoor air temp. EWB (°F) Indoor air 14.0 23.0 32.0 43.0 50.0 59.0 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h FTXS09L + 60.8 23.45 2.34 28.17 2.46 32.89 2.58 37.61 2.70 43.27 2.84 47.05 2.94...
  • Page 282 EDUS121503A Capacity Tables Outdoor air temp. EWB (°F) Indoor air 14.0 23.0 32.0 43.0 50.0 59.0 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h FTXS09L + 60.8 23.45 2.60 28.17 2.73 32.89 2.86 37.61 3.00 43.27 3.16 47.05 3.26...
  • Page 283 Capacity Tables EDUS121503A Outdoor air temp. EWB (°F) Indoor air 14.0 23.0 32.0 43.0 50.0 59.0 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h FTXS09L + 60.8 23.45 2.59 28.17 2.72 32.89 2.85 37.61 2.99 43.27 3.15 47.05 3.25...
  • Page 284 EDUS121503A Capacity Tables Outdoor air temp. EWB (°F) Indoor air 14.0 23.0 32.0 43.0 50.0 59.0 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h FTXS09L + 60.8 23.45 2.41 28.17 2.54 32.89 2.66 37.61 2.78 43.27 2.93 47.05 3.03...
  • Page 285 Capacity Tables EDUS121503A Outdoor air temp. EWB (°F) Indoor air 14.0 23.0 32.0 43.0 50.0 59.0 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h FTXS09L + 60.8 24.12 2.85 28.98 2.99 33.84 3.14 38.69 3.28 44.52 3.46 48.40 3.58...
  • Page 286 EDUS121503A Capacity Tables Outdoor air temp. EWB (°F) Indoor air 14.0 23.0 32.0 43.0 50.0 59.0 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h FDXS09L + 60.8 22.72 2.51 27.29 2.64 31.87 2.77 36.44 2.89 41.93 3.05 45.59 3.15...
  • Page 287 Capacity Tables EDUS121503A Outdoor air temp. EWB (°F) Indoor air 14.0 23.0 32.0 43.0 50.0 59.0 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h FTXS09L + 60.8 23.45 2.85 28.17 3.00 32.89 3.15 37.61 3.29 43.27 3.47 47.05 3.59...
  • Page 288 EDUS121503A Capacity Tables Outdoor air temp. EWB (°F) Indoor air 14.0 23.0 32.0 43.0 50.0 59.0 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h FTXS09L + 60.8 24.12 3.21 28.98 3.37 33.84 3.54 38.69 3.70 44.52 3.90 48.16 3.97...
  • Page 289 Capacity Tables EDUS121503A Outdoor air temp. EWB (°F) Indoor air 14.0 23.0 32.0 43.0 50.0 59.0 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h FDXS09L + 60.8 21.32 2.16 25.61 2.27 29.90 2.38 34.19 2.50 39.34 2.63 42.77 2.72...
  • Page 290 EDUS121503A Capacity Tables Outdoor air temp. EWB (°F) Indoor air 14.0 23.0 32.0 43.0 50.0 59.0 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h FDXS09L + 60.8 21.32 2.00 25.61 2.10 29.90 2.21 34.19 2.31 39.34 2.43 42.77 2.51...
  • Page 291 Capacity Tables EDUS121503A Outdoor air temp. EWB (°F) Indoor air 14.0 23.0 32.0 43.0 50.0 59.0 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h FDXS09L + 60.8 22.72 2.44 27.29 2.56 31.87 2.69 36.44 2.81 41.93 2.96 45.59 3.06...
  • Page 292 EDUS121503A Capacity Tables Outdoor air temp. EWB (°F) Indoor air 14.0 23.0 32.0 43.0 50.0 59.0 Combination temp. (Capacity) EDB (°F) kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h FTXS12L + 60.8 22.05 2.07 26.49 2.17 30.92 2.28 35.36 2.38 40.69 2.51 44.24 2.60...

  • Page 293: Capacity Correction Factor By The Length Of Refrigerant Piping (Reference)

    Capacity Tables EDUS121503A Capacity Correction Factor by the Length of Refrigerant Piping (Reference) The cooling capacity and the heating capacity of the unit have to be corrected in accordance with the length of refrigerant piping — the distance between the indoor unit and the outdoor unit. <—...

  • Page 294: Operation Limit

    EDUS121503A Operation Limit 8. Operation Limit 2MXS18NMVJU, 3MXS24NMVJU, 4MXS36NMVJU Heating Cooling 114.8 59.9 ( 5˚FDB ) 57.2 73.4 82.4 Notes: Indoor temp. ( ˚FWB ) The graphs are based Indoor temp. (˚FDB) on the following conditions. • Equivalent piping length 25ft •...

  • Page 295: Fan Characteristics

    Fan Characteristics EDUS121503A 9. Fan Characteristics FDXS09/12LVJU 0.25 0.20 0.15 0.10 0.05 Airflow rate ( cfm ) 3D074625 CDXS15/18LVJU 0.25 0.20 0.15 0.10 0.05 Airflow rate (cfm) 3D075306 Multi-Split Type Air Conditioners 2/3/4MXS-N Series...
  • Page 296 EDUS121503A Fan Characteristics CDXS24LVJU 0.25 0.20 0.15 0.10 0.05 Air flow rate ( cfm ) 3D080595 Multi-Split Type Air Conditioners 2/3/4MXS-N Series...

  • Page 297: Sound Level

    Sound Level EDUS121503A 10. Sound Level 10.1 Measuring Location Indoor Unit CTXG, CTXS, FTXS series CDXS, FDXS series 6.6 ft 3.3 ft 3.3 ft (2 m) (1 m) (1 m) DUCT DUCT MICROPHONE MICROPHONE FVXS series FFQ series 3.3 ft (1 m) MICROPHONE 4.9 ft...

  • Page 298: Indoor Unit

    EDUS121503A Sound Level 10.2 Indoor Unit CTXG09QVJUW(S) COOLING HEATING OVER ALL ( dB ) OVER ALL ( dB ) NC-70 NC-70 60 Hz 60 Hz 60 Hz 60 Hz 208/230 V 208/230 V SCALE 208/230 V SCALE 208/230 V NC-60 NC-60 ( B.G.N IS ALREADY RECTIFIED ) ( B.G.N IS ALREADY RECTIFIED )
  • Page 299 Sound Level EDUS121503A FTXS09LVJU COOLING HEATING OVER ALL ( dB ) OVER ALL ( dB ) NC-70 NC-70 60Hz 60Hz 60Hz 60Hz 208/230V 208/230V SCALE 208/230V 208/230V SCALE ( H ) ( L ) ( H ) ( L ) NC-60 NC-60 ( B.G.N IS ALREADY RECTIFIED )
  • Page 300 EDUS121503A Sound Level FTXS24LVJU COOLING HEATING OVER ALL ( dB ) OVER ALL ( dB ) NC-70 NC-70 60Hz 60Hz 60Hz 60Hz 208/230V 208/230V SCALE 208/230V SCALE 208/230V NC-60 NC-60 ( B.G.N IS ALREADY RECTIFIED ) ( B.G.N IS ALREADY RECTIFIED ) NC-50 NC-50 OPERATING CONDITIONS...
  • Page 301 Sound Level EDUS121503A FVXS09NVJU COOLING HEATING OVER ALL ( dB ) OVER ALL ( dB ) NC-70 NC-70 60Hz 60Hz 60Hz 60Hz SCALE 208/230V 208/230V SCALE 208/230V 208/230V ( H ) ( L ) ( H ) ( L ) NC-60 NC-60 ( B.G.N IS ALREADY RECTIFIED )
  • Page 302 EDUS121503A Sound Level FFQ12Q2VJU COOLING HEATING OVER ALL ( dB ) OVER ALL ( dB ) NC-70 NC-70 60Hz 60Hz 60Hz 60Hz 208/230V 208/230V SCALE 208/230V 208/230V SCALE NC-60 NC-60 ( B.G.N IS ALREADY RECTIFIED ) ( B.G.N IS ALREADY RECTIFIED ) NC-50 NC-50 OPERATING CONDITIONS...

  • Page 303: Outdoor Unit

    Sound Level EDUS121503A 10.3 Outdoor Unit 2MXS18NMVJU COOLING HEATING OVER ALL ( dB ) OVER ALL ( dB ) NC-70 NC-70 SCALE SCALE 208-230V 60Hz 208-230V 60Hz NC-60 NC-60 ( B.G.N IS ALREADY RECTIFIED ) ( B.G.N IS ALREADY RECTIFIED ) OPERATING CONDITIONS OPERATING CONDITIONS NC-50...

  • Page 304: Electric Characteristics

    EDUS121503A Electric Characteristics 11. Electric Characteristics Power Supply Compressor Outdoor Unit Hz - Volts Voltage Range 60 - 208 Max. 60 Hz 253 V 2MXS18NMVJU 15.8 14.0 14.0 0.37 Min. 60 Hz 187 V 60 - 230 60 - 208 Max.
  • Page 305 Electric Characteristics EDUS121503A Multi-Split Type Air Conditioners 2/3/4MXS-N Series...
  • Page 306 EDUS121503A Part 2 Installation Manual 1. CTXG Series ................... 302 1.1 CTXG09/12/18QVJUW(S)................ 302 2. CTXS, FTXS, CDXS, FDXS Series............316 2.1 Safety Considerations ................316 2.2 CTXS07LVJU, FTXS09/12LVJU .............. 318 2.3 FTXS15/18/24LVJU ................. 329 2.4 FDXS09/12LVJU, CDXS15/18/24LVJU ........... 339 3. FVXS Series.................... 350 3.1 FVXS09/12/15/18NVJU................

  • Page 307: Ctxg Series

    CTXG Series EDUS121503A 1. CTXG Series CTXG09/12/18QVJUW(S) Installation Manual...
  • Page 308 EDUS121503A CTXG Series Installation Manual...
  • Page 309 CTXG Series EDUS121503A Installation Manual...
  • Page 310 EDUS121503A CTXG Series Installation Manual...
  • Page 311 CTXG Series EDUS121503A Installation Manual...
  • Page 312 EDUS121503A CTXG Series Installation Manual...
  • Page 313 CTXG Series EDUS121503A Installation Manual...
  • Page 314 EDUS121503A CTXG Series Installation Manual...
  • Page 315 CTXG Series EDUS121503A Installation Manual...
  • Page 316 EDUS121503A CTXG Series Installation Manual...
  • Page 317 CTXG Series EDUS121503A Installation Manual...
  • Page 318 EDUS121503A CTXG Series Installation Manual...
  • Page 319 CTXG Series EDUS121503A Installation Manual...
  • Page 320 EDUS121503A CTXG Series 3P436087-1 Installation Manual...

  • Page 321: Ctxs, Ftxs, Cdxs, Fdxs Series

    CTXS, FTXS, CDXS, FDXS Series EDUS121503A 2. CTXS, FTXS, CDXS, FDXS Series Safety Considerations Installation Manual...
  • Page 322 EDUS121503A CTXS, FTXS, CDXS, FDXS Series Installation Manual...

  • Page 323: Ctxs07Lvju, Ftxs09/12Lvju

    CTXS, FTXS, CDXS, FDXS Series EDUS121503A CTXS07LVJU, FTXS09/12LVJU Installation Manual...
  • Page 324 EDUS121503A CTXS, FTXS, CDXS, FDXS Series Installation Manual...
  • Page 325 CTXS, FTXS, CDXS, FDXS Series EDUS121503A Installation Manual...
  • Page 326 EDUS121503A CTXS, FTXS, CDXS, FDXS Series Installation Manual...
  • Page 327 CTXS, FTXS, CDXS, FDXS Series EDUS121503A Installation Manual...
  • Page 328 EDUS121503A CTXS, FTXS, CDXS, FDXS Series Installation Manual...
  • Page 329 CTXS, FTXS, CDXS, FDXS Series EDUS121503A Installation Manual...
  • Page 330 EDUS121503A CTXS, FTXS, CDXS, FDXS Series Installation Manual...
  • Page 331 CTXS, FTXS, CDXS, FDXS Series EDUS121503A Installation Manual...
  • Page 332 EDUS121503A CTXS, FTXS, CDXS, FDXS Series Installation Manual...
  • Page 333 CTXS, FTXS, CDXS, FDXS Series EDUS121503A 3P297301-1 Installation Manual...

  • Page 334: Ftxs15/18/24Lvju

    EDUS121503A CTXS, FTXS, CDXS, FDXS Series FTXS15/18/24LVJU Installation Manual...
  • Page 335 CTXS, FTXS, CDXS, FDXS Series EDUS121503A Installation Manual...
  • Page 336 EDUS121503A CTXS, FTXS, CDXS, FDXS Series Installation Manual...
  • Page 337 CTXS, FTXS, CDXS, FDXS Series EDUS121503A Installation Manual...
  • Page 338 EDUS121503A CTXS, FTXS, CDXS, FDXS Series Installation Manual...
  • Page 339 CTXS, FTXS, CDXS, FDXS Series EDUS121503A Installation Manual...
  • Page 340 EDUS121503A CTXS, FTXS, CDXS, FDXS Series Installation Manual...
  • Page 341 CTXS, FTXS, CDXS, FDXS Series EDUS121503A Installation Manual...
  • Page 342 EDUS121503A CTXS, FTXS, CDXS, FDXS Series Installation Manual...
  • Page 343 CTXS, FTXS, CDXS, FDXS Series EDUS121503A 3P297301-2 Installation Manual...

  • Page 344: Fdxs09/12Lvju, Cdxs15/18/24Lvju

    EDUS121503A CTXS, FTXS, CDXS, FDXS Series FDXS09/12LVJU, CDXS15/18/24LVJU Installation Manual...
  • Page 345 CTXS, FTXS, CDXS, FDXS Series EDUS121503A Installation Manual...
  • Page 346 EDUS121503A CTXS, FTXS, CDXS, FDXS Series Installation Manual...
  • Page 347 CTXS, FTXS, CDXS, FDXS Series EDUS121503A Installation Manual...
  • Page 348 EDUS121503A CTXS, FTXS, CDXS, FDXS Series Installation Manual...
  • Page 349 CTXS, FTXS, CDXS, FDXS Series EDUS121503A Installation Manual...
  • Page 350 EDUS121503A CTXS, FTXS, CDXS, FDXS Series Installation Manual...
  • Page 351 CTXS, FTXS, CDXS, FDXS Series EDUS121503A Installation Manual...
  • Page 352 EDUS121503A CTXS, FTXS, CDXS, FDXS Series Installation Manual...
  • Page 353 CTXS, FTXS, CDXS, FDXS Series EDUS121503A Installation Manual...
  • Page 354 EDUS121503A CTXS, FTXS, CDXS, FDXS Series 3P297301-3C Installation Manual...

  • Page 355: Fvxs Series

    FVXS Series EDUS121503A 3. FVXS Series FVXS09/12/15/18NVJU Installation Manual...
  • Page 356 EDUS121503A FVXS Series Installation Manual...
  • Page 357 FVXS Series EDUS121503A Installation Manual...
  • Page 358 EDUS121503A FVXS Series Installation Manual...
  • Page 359 FVXS Series EDUS121503A Installation Manual...
  • Page 360 EDUS121503A FVXS Series Installation Manual...
  • Page 361 FVXS Series EDUS121503A Installation Manual...
  • Page 362 EDUS121503A FVXS Series Installation Manual...
  • Page 363 FVXS Series EDUS121503A Installation Manual...
  • Page 364 EDUS121503A FVXS Series Installation Manual...
  • Page 365 FVXS Series EDUS121503A Installation Manual...
  • Page 366 EDUS121503A FVXS Series Installation Manual...
  • Page 367 FVXS Series EDUS121503A Installation Manual...
  • Page 368 EDUS121503A FVXS Series Installation Manual...
  • Page 369 FVXS Series EDUS121503A Installation Manual...
  • Page 370 EDUS121503A FVXS Series Installation Manual...
  • Page 371 FVXS Series EDUS121503A 3P379970-7B Installation Manual...

  • Page 372: Ffq Series

    EDUS121503A FFQ Series 4. FFQ Series FFQ09/12/15Q2VJU Installation Manual...
  • Page 373 FFQ Series EDUS121503A Installation Manual...
  • Page 374 EDUS121503A FFQ Series Installation Manual...
  • Page 375 FFQ Series EDUS121503A Installation Manual...
  • Page 376 EDUS121503A FFQ Series Installation Manual...
  • Page 377 FFQ Series EDUS121503A Installation Manual...
  • Page 378 EDUS121503A FFQ Series Installation Manual...
  • Page 379 FFQ Series EDUS121503A Installation Manual...
  • Page 380 EDUS121503A FFQ Series Installation Manual...
  • Page 381 FFQ Series EDUS121503A Installation Manual...
  • Page 382 EDUS121503A FFQ Series Installation Manual...
  • Page 383 FFQ Series EDUS121503A Installation Manual...
  • Page 384 EDUS121503A FFQ Series Installation Manual...
  • Page 385 FFQ Series EDUS121503A Installation Manual...
  • Page 386 EDUS121503A FFQ Series Installation Manual...
  • Page 387 FFQ Series EDUS121503A Installation Manual...
  • Page 388 EDUS121503A FFQ Series Installation Manual...
  • Page 389 FFQ Series EDUS121503A Installation Manual...
  • Page 390 EDUS121503A FFQ Series Installation Manual...
  • Page 391 FFQ Series EDUS121503A 3P436085-1 Installation Manual...

  • Page 392: Byfq60B3W1> Decoration Panel

    EDUS121503A FFQ Series <BYFQ60B3W1> Decoration Panel Installation Manual...
  • Page 393 FFQ Series EDUS121503A Installation Manual...
  • Page 394 EDUS121503A FFQ Series 4P345302-1B Installation Manual...

  • Page 395: Byfq60C2W1W(S)> Decoration Panel

    FFQ Series EDUS121503A <BYFQ60C2W1W(S)> Decoration Panel Installation Manual...
  • Page 396 EDUS121503A FFQ Series Installation Manual...
  • Page 397 FFQ Series EDUS121503A 4P340850-1B Installation Manual...

  • Page 398: Brc1E73> Wired Remote Controller

    EDUS121503A FFQ Series <BRC1E73> Wired Remote Controller Installation Manual...
  • Page 399 FFQ Series EDUS121503A Installation Manual...
  • Page 400 EDUS121503A FFQ Series Installation Manual...
  • Page 401 FFQ Series EDUS121503A Installation Manual...
  • Page 402 EDUS121503A FFQ Series Installation Manual...
  • Page 403 FFQ Series EDUS121503A Installation Manual...
  • Page 404 EDUS121503A FFQ Series Installation Manual...
  • Page 405 FFQ Series EDUS121503A Installation Manual...
  • Page 406 EDUS121503A FFQ Series Installation Manual...
  • Page 407 FFQ Series EDUS121503A Installation Manual...
  • Page 408 EDUS121503A FFQ Series Installation Manual...
  • Page 409 FFQ Series EDUS121503A Installation Manual...
  • Page 410 EDUS121503A FFQ Series Installation Manual...
  • Page 411 FFQ Series EDUS121503A Installation Manual...
  • Page 412 EDUS121503A FFQ Series Installation Manual...
  • Page 413 FFQ Series EDUS121503A Installation Manual...
  • Page 414 EDUS121503A FFQ Series Installation Manual...
  • Page 415 FFQ Series EDUS121503A Installation Manual...
  • Page 416 EDUS121503A FFQ Series Installation Manual...
  • Page 417 FFQ Series EDUS121503A 3P243521-7L Installation Manual...

  • Page 418: Brc082A41W, Brc082A42W(S)> Wireless Remote Controller

    EDUS121503A FFQ Series <BRC082A41W, BRC082A42W(S)> Wireless Remote Controller Installation Manual...
  • Page 419 FFQ Series EDUS121503A Installation Manual...
  • Page 420 EDUS121503A FFQ Series Installation Manual...
  • Page 421 FFQ Series EDUS121503A Installation Manual...
  • Page 422 EDUS121503A FFQ Series Installation Manual...
  • Page 423 FFQ Series EDUS121503A Installation Manual...
  • Page 424 EDUS121503A FFQ Series 3P444567-1 Installation Manual...

  • Page 425: Outdoor Unit

    Outdoor Unit EDUS121503A 5. Outdoor Unit 2MXS18NMVJU, 3MXS24NMVJU, 4MXS36NMVJU Installation Manual...
  • Page 426 EDUS121503A Outdoor Unit Installation Manual...
  • Page 427 Outdoor Unit EDUS121503A Installation Manual...
  • Page 428 EDUS121503A Outdoor Unit Installation Manual...
  • Page 429 Outdoor Unit EDUS121503A Installation Manual...
  • Page 430 EDUS121503A Outdoor Unit Installation Manual...
  • Page 431 Outdoor Unit EDUS121503A Installation Manual...
  • Page 432 EDUS121503A Outdoor Unit Installation Manual...
  • Page 433 Outdoor Unit EDUS121503A Installation Manual...
  • Page 434 EDUS121503A Outdoor Unit Installation Manual...
  • Page 435 Outdoor Unit EDUS121503A Installation Manual...
  • Page 436 EDUS121503A Outdoor Unit Installation Manual...
  • Page 437 Outdoor Unit EDUS121503A Installation Manual...
  • Page 438 EDUS121503A Outdoor Unit Installation Manual...
  • Page 439 Outdoor Unit EDUS121503A Installation Manual...
  • Page 440 EDUS121503A Outdoor Unit Installation Manual...
  • Page 441 Outdoor Unit EDUS121503A Installation Manual...
  • Page 442 EDUS121503A Outdoor Unit 3P379970-4 Installation Manual...
  • Page 443 Outdoor Unit EDUS121503A Installation Manual...
  • Page 444 EDUS121503A Part 3 Operation Manual 1. CTXG, CTXS, FTXS, CDXS, FDXS, FVXS Series ......... 440 1.1 Manual Contents and Reference Page ............ 440 1.2 Safety Considerations ................441 1.3 Names of Parts..................443 1.4 Preparation before Operation..............459 1.5 AUTO · DRY · COOL · HEAT · FAN Operation ........463 1.6 Adjusting the Airflow Direction and Rate ..........

  • Page 445: Ctxg, Ctxs, Ftxs, Cdxs, Fdxs, Fvxs Series

    CTXG, CTXS, FTXS, CDXS, FDXS, FVXS Series EDUS121503A 1. CTXG, CTXS, FTXS, CDXS, FDXS, FVXS Series Manual Contents and Reference Page Model Series CTXG Series CTXS, FTXS Series Read Before Operation Safety Considerations Names of Parts Preparation before Operation Operation AUTO ·...

  • Page 446: Safety Considerations

    EDUS121503A CTXG, CTXS, FTXS, CDXS, FDXS, FVXS Series Safety Considerations Operation Manual...
  • Page 447 CTXG, CTXS, FTXS, CDXS, FDXS, FVXS Series EDUS121503A Operation Manual...

  • Page 448: Names Of Parts

    EDUS121503A CTXG, CTXS, FTXS, CDXS, FDXS, FVXS Series Names of Parts CTXG Series Operation Manual...
  • Page 449 CTXG, CTXS, FTXS, CDXS, FDXS, FVXS Series EDUS121503A Operation Manual...
  • Page 450 EDUS121503A CTXG, CTXS, FTXS, CDXS, FDXS, FVXS Series Operation Manual...
  • Page 451 CTXG, CTXS, FTXS, CDXS, FDXS, FVXS Series EDUS121503A Operation Manual...
  • Page 452 EDUS121503A CTXG, CTXS, FTXS, CDXS, FDXS, FVXS Series CTXS, FTXS Series Operation Manual...
  • Page 453 CTXG, CTXS, FTXS, CDXS, FDXS, FVXS Series EDUS121503A Operation Manual...
  • Page 454 EDUS121503A CTXG, CTXS, FTXS, CDXS, FDXS, FVXS Series Operation Manual...
  • Page 455 CTXG, CTXS, FTXS, CDXS, FDXS, FVXS Series EDUS121503A Operation Manual...
  • Page 456 EDUS121503A CTXG, CTXS, FTXS, CDXS, FDXS, FVXS Series CDXS, FDXS Series Operation Manual...
  • Page 457 CTXG, CTXS, FTXS, CDXS, FDXS, FVXS Series EDUS121503A Operation Manual...
  • Page 458 EDUS121503A CTXG, CTXS, FTXS, CDXS, FDXS, FVXS Series Operation Manual...
  • Page 459 CTXG, CTXS, FTXS, CDXS, FDXS, FVXS Series EDUS121503A Operation Manual...
  • Page 460 EDUS121503A CTXG, CTXS, FTXS, CDXS, FDXS, FVXS Series FVXS Series Operation Manual...
  • Page 461 CTXG, CTXS, FTXS, CDXS, FDXS, FVXS Series EDUS121503A Operation Manual...
  • Page 462 EDUS121503A CTXG, CTXS, FTXS, CDXS, FDXS, FVXS Series Operation Manual...
  • Page 463 CTXG, CTXS, FTXS, CDXS, FDXS, FVXS Series EDUS121503A Operation Manual...

  • Page 464: Preparation Before Operation

    EDUS121503A CTXG, CTXS, FTXS, CDXS, FDXS, FVXS Series Preparation before Operation CTXG, FVXS Series Operation Manual...
  • Page 465 CTXG, CTXS, FTXS, CDXS, FDXS, FVXS Series EDUS121503A Operation Manual...
  • Page 466 EDUS121503A CTXG, CTXS, FTXS, CDXS, FDXS, FVXS Series CTXS, FTXS, CDXS, FDXS Series Operation Manual...
  • Page 467 CTXG, CTXS, FTXS, CDXS, FDXS, FVXS Series EDUS121503A Operation Manual...

  • Page 468: Auto · Dry · Cool · Heat · Fan Operation

    EDUS121503A CTXG, CTXS, FTXS, CDXS, FDXS, FVXS Series AUTO · DRY · COOL · HEAT · FAN Operation CTXG Series Operation Manual...
  • Page 469 CTXG, CTXS, FTXS, CDXS, FDXS, FVXS Series EDUS121503A CTXS, FTXS, CDXS, FDXS, FVXS Series Operation Manual...
  • Page 470 EDUS121503A CTXG, CTXS, FTXS, CDXS, FDXS, FVXS Series Operation Manual...

  • Page 471: Adjusting The Airflow Direction And Rate

    CTXG, CTXS, FTXS, CDXS, FDXS, FVXS Series EDUS121503A Adjusting the Airflow Direction and Rate CTXG Series Operation Manual...
  • Page 472 EDUS121503A CTXG, CTXS, FTXS, CDXS, FDXS, FVXS Series Operation Manual...
  • Page 473 CTXG, CTXS, FTXS, CDXS, FDXS, FVXS Series EDUS121503A CTXS07LVJU, FTXS09/12LVJU Operation Manual...
  • Page 474 EDUS121503A CTXG, CTXS, FTXS, CDXS, FDXS, FVXS Series Operation Manual...
  • Page 475 CTXG, CTXS, FTXS, CDXS, FDXS, FVXS Series EDUS121503A FTXS15/18/24LVJU Operation Manual...
  • Page 476 EDUS121503A CTXG, CTXS, FTXS, CDXS, FDXS, FVXS Series Operation Manual...
  • Page 477 CTXG, CTXS, FTXS, CDXS, FDXS, FVXS Series EDUS121503A CDXS, FDXS Series Operation Manual...
  • Page 478 EDUS121503A CTXG, CTXS, FTXS, CDXS, FDXS, FVXS Series FVXS Series Operation Manual...
  • Page 479 CTXG, CTXS, FTXS, CDXS, FDXS, FVXS Series EDUS121503A Operation Manual...
  • Page 480 EDUS121503A CTXG, CTXS, FTXS, CDXS, FDXS, FVXS Series Operation Manual...

  • Page 481: Comfort Airflow / Intelligent Eye Operation

    CTXG, CTXS, FTXS, CDXS, FDXS, FVXS Series EDUS121503A COMFORT AIRFLOW / INTELLIGENT EYE Operation CTXG Series Operation Manual...
  • Page 482 EDUS121503A CTXG, CTXS, FTXS, CDXS, FDXS, FVXS Series Operation Manual...
  • Page 483 CTXG, CTXS, FTXS, CDXS, FDXS, FVXS Series EDUS121503A Operation Manual...
  • Page 484 EDUS121503A CTXG, CTXS, FTXS, CDXS, FDXS, FVXS Series CTXS, FTXS Series Operation Manual...
  • Page 485 CTXG, CTXS, FTXS, CDXS, FDXS, FVXS Series EDUS121503A Operation Manual...

  • Page 486: Powerful Operation

    EDUS121503A CTXG, CTXS, FTXS, CDXS, FDXS, FVXS Series POWERFUL Operation Operation Manual...

  • Page 487: Powerful / Econo / Outdoor Unit Quiet Operation

    CTXG, CTXS, FTXS, CDXS, FDXS, FVXS Series EDUS121503A POWERFUL / ECONO / OUTDOOR UNIT QUIET Operation Operation Manual...
  • Page 488 EDUS121503A CTXG, CTXS, FTXS, CDXS, FDXS, FVXS Series Operation Manual...

  • Page 489: Econo / Outdoor Unit Quiet Operation

    CTXG, CTXS, FTXS, CDXS, FDXS, FVXS Series EDUS121503A 1.10 ECONO / OUTDOOR UNIT QUIET Operation Operation Manual...

  • Page 490: Outdoor Unit Quiet Operation

    EDUS121503A CTXG, CTXS, FTXS, CDXS, FDXS, FVXS Series 1.11 OUTDOOR UNIT QUIET Operation Operation Manual...

  • Page 491: Econo Operation

    CTXG, CTXS, FTXS, CDXS, FDXS, FVXS Series EDUS121503A 1.12 ECONO Operation Operation Manual...

  • Page 492: Timer Operation

    EDUS121503A CTXG, CTXS, FTXS, CDXS, FDXS, FVXS Series 1.13 TIMER Operation CTXG Series Operation Manual...
  • Page 493 CTXG, CTXS, FTXS, CDXS, FDXS, FVXS Series EDUS121503A Operation Manual...
  • Page 494 EDUS121503A CTXG, CTXS, FTXS, CDXS, FDXS, FVXS Series CTXS, FTXS, CDXS, FDXS, FVXS Series Operation Manual...
  • Page 495 CTXG, CTXS, FTXS, CDXS, FDXS, FVXS Series EDUS121503A Operation Manual...

  • Page 496: Weekly Timer Operation

    EDUS121503A CTXG, CTXS, FTXS, CDXS, FDXS, FVXS Series 1.14 WEEKLY TIMER Operation CTXG Series Operation Manual...
  • Page 497 CTXG, CTXS, FTXS, CDXS, FDXS, FVXS Series EDUS121503A Operation Manual...
  • Page 498 EDUS121503A CTXG, CTXS, FTXS, CDXS, FDXS, FVXS Series Operation Manual...
  • Page 499 CTXG, CTXS, FTXS, CDXS, FDXS, FVXS Series EDUS121503A Operation Manual...
  • Page 500 EDUS121503A CTXG, CTXS, FTXS, CDXS, FDXS, FVXS Series Operation Manual...
  • Page 501 CTXG, CTXS, FTXS, CDXS, FDXS, FVXS Series EDUS121503A Operation Manual...
  • Page 502 EDUS121503A CTXG, CTXS, FTXS, CDXS, FDXS, FVXS Series CTXS, FTXS, FVXS Series Operation Manual...
  • Page 503 CTXG, CTXS, FTXS, CDXS, FDXS, FVXS Series EDUS121503A Operation Manual...
  • Page 504 EDUS121503A CTXG, CTXS, FTXS, CDXS, FDXS, FVXS Series Operation Manual...
  • Page 505 CTXG, CTXS, FTXS, CDXS, FDXS, FVXS Series EDUS121503A Operation Manual...
  • Page 506 EDUS121503A CTXG, CTXS, FTXS, CDXS, FDXS, FVXS Series Operation Manual...
  • Page 507 CTXG, CTXS, FTXS, CDXS, FDXS, FVXS Series EDUS121503A Operation Manual...

  • Page 508: Note For Multi System

    EDUS121503A CTXG, CTXS, FTXS, CDXS, FDXS, FVXS Series 1.15 Note for Multi System Operation Manual...
  • Page 509 CTXG, CTXS, FTXS, CDXS, FDXS, FVXS Series EDUS121503A Operation Manual...

  • Page 510: Care And Cleaning

    EDUS121503A CTXG, CTXS, FTXS, CDXS, FDXS, FVXS Series 1.16 Care and Cleaning CTXG Series Operation Manual...
  • Page 511 CTXG, CTXS, FTXS, CDXS, FDXS, FVXS Series EDUS121503A Operation Manual...
  • Page 512 EDUS121503A CTXG, CTXS, FTXS, CDXS, FDXS, FVXS Series Operation Manual...
  • Page 513 CTXG, CTXS, FTXS, CDXS, FDXS, FVXS Series EDUS121503A Operation Manual...
  • Page 514 EDUS121503A CTXG, CTXS, FTXS, CDXS, FDXS, FVXS Series CTXS, FTXS Series Operation Manual...
  • Page 515 CTXG, CTXS, FTXS, CDXS, FDXS, FVXS Series EDUS121503A Operation Manual...
  • Page 516 EDUS121503A CTXG, CTXS, FTXS, CDXS, FDXS, FVXS Series Operation Manual...
  • Page 517 CTXG, CTXS, FTXS, CDXS, FDXS, FVXS Series EDUS121503A Operation Manual...
  • Page 518 EDUS121503A CTXG, CTXS, FTXS, CDXS, FDXS, FVXS Series Operation Manual...
  • Page 519 CTXG, CTXS, FTXS, CDXS, FDXS, FVXS Series EDUS121503A CDXS, FDXS Series Operation Manual...
  • Page 520 EDUS121503A CTXG, CTXS, FTXS, CDXS, FDXS, FVXS Series Operation Manual...
  • Page 521 CTXG, CTXS, FTXS, CDXS, FDXS, FVXS Series EDUS121503A FVXS Series Operation Manual...
  • Page 522 EDUS121503A CTXG, CTXS, FTXS, CDXS, FDXS, FVXS Series Operation Manual...
  • Page 523 CTXG, CTXS, FTXS, CDXS, FDXS, FVXS Series EDUS121503A Operation Manual...
  • Page 524 EDUS121503A CTXG, CTXS, FTXS, CDXS, FDXS, FVXS Series Operation Manual...
  • Page 525 CTXG, CTXS, FTXS, CDXS, FDXS, FVXS Series EDUS121503A Operation Manual...

  • Page 526: Troubleshooting

    EDUS121503A CTXG, CTXS, FTXS, CDXS, FDXS, FVXS Series 1.17 Troubleshooting CTXG Series Operation Manual...
  • Page 527 CTXG, CTXS, FTXS, CDXS, FDXS, FVXS Series EDUS121503A Operation Manual...
  • Page 528 EDUS121503A CTXG, CTXS, FTXS, CDXS, FDXS, FVXS Series Operation Manual...
  • Page 529 CTXG, CTXS, FTXS, CDXS, FDXS, FVXS Series EDUS121503A Operation Manual...
  • Page 530 EDUS121503A CTXG, CTXS, FTXS, CDXS, FDXS, FVXS Series Operation Manual...
  • Page 531 CTXG, CTXS, FTXS, CDXS, FDXS, FVXS Series EDUS121503A Operation Manual...
  • Page 532 EDUS121503A CTXG, CTXS, FTXS, CDXS, FDXS, FVXS Series CTXS, FTXS, CDXS, FDXS Series Operation Manual...
  • Page 533 CTXG, CTXS, FTXS, CDXS, FDXS, FVXS Series EDUS121503A Operation Manual...
  • Page 534 EDUS121503A CTXG, CTXS, FTXS, CDXS, FDXS, FVXS Series Operation Manual...
  • Page 535 CTXG, CTXS, FTXS, CDXS, FDXS, FVXS Series EDUS121503A Operation Manual...
  • Page 536 EDUS121503A CTXG, CTXS, FTXS, CDXS, FDXS, FVXS Series Operation Manual...
  • Page 537 CTXG, CTXS, FTXS, CDXS, FDXS, FVXS Series EDUS121503A FVXS Series Operation Manual...
  • Page 538 EDUS121503A CTXG, CTXS, FTXS, CDXS, FDXS, FVXS Series Operation Manual...
  • Page 539 CTXG, CTXS, FTXS, CDXS, FDXS, FVXS Series EDUS121503A Operation Manual...
  • Page 540 EDUS121503A CTXG, CTXS, FTXS, CDXS, FDXS, FVXS Series Operation Manual...
  • Page 541 CTXG, CTXS, FTXS, CDXS, FDXS, FVXS Series EDUS121503A Operation Manual...

  • Page 542: Quick Reference

    EDUS121503A CTXG, CTXS, FTXS, CDXS, FDXS, FVXS Series 1.18 Quick Reference Operation Manual...

  • Page 543: Ffq Series

    FFQ Series EDUS121503A 2. FFQ Series Operation Manual...
  • Page 544 EDUS121503A FFQ Series Operation Manual...
  • Page 545 FFQ Series EDUS121503A Operation Manual...
  • Page 546 EDUS121503A FFQ Series Operation Manual...
  • Page 547 FFQ Series EDUS121503A Operation Manual...
  • Page 548 EDUS121503A FFQ Series Operation Manual...
  • Page 549 FFQ Series EDUS121503A Operation Manual...
  • Page 550 EDUS121503A FFQ Series 3P436084-1 Operation Manual...

  • Page 551: With Wired Remote Controller

    FFQ Series EDUS121503A With <BRC1E73> Wired Remote Controller Operation Manual...
  • Page 552 EDUS121503A FFQ Series Operation Manual...
  • Page 553 FFQ Series EDUS121503A Operation Manual...
  • Page 554 EDUS121503A FFQ Series Operation Manual...
  • Page 555 FFQ Series EDUS121503A Operation Manual...
  • Page 556 EDUS121503A FFQ Series Operation Manual...
  • Page 557 FFQ Series EDUS121503A Operation Manual...
  • Page 558 EDUS121503A FFQ Series Operation Manual...
  • Page 559 FFQ Series EDUS121503A Operation Manual...
  • Page 560 EDUS121503A FFQ Series Operation Manual...
  • Page 561 FFQ Series EDUS121503A Operation Manual...
  • Page 562 EDUS121503A FFQ Series Operation Manual...
  • Page 563 FFQ Series EDUS121503A Operation Manual...
  • Page 564 EDUS121503A FFQ Series Operation Manual...
  • Page 565 FFQ Series EDUS121503A Operation Manual...
  • Page 566 EDUS121503A FFQ Series Operation Manual...
  • Page 567 FFQ Series EDUS121503A Operation Manual...
  • Page 568 EDUS121503A FFQ Series Operation Manual...
  • Page 569 FFQ Series EDUS121503A Operation Manual...
  • Page 570 EDUS121503A FFQ Series Operation Manual...
  • Page 571 FFQ Series EDUS121503A Operation Manual...
  • Page 572 EDUS121503A FFQ Series Operation Manual...
  • Page 573 FFQ Series EDUS121503A Operation Manual...
  • Page 574 EDUS121503A FFQ Series Operation Manual...
  • Page 575 FFQ Series EDUS121503A Operation Manual...
  • Page 576 EDUS121503A FFQ Series Operation Manual...
  • Page 577 FFQ Series EDUS121503A Operation Manual...
  • Page 578 EDUS121503A FFQ Series Operation Manual...
  • Page 579 FFQ Series EDUS121503A Operation Manual...
  • Page 580 EDUS121503A FFQ Series Operation Manual...
  • Page 581 FFQ Series EDUS121503A Operation Manual...
  • Page 582 EDUS121503A FFQ Series Operation Manual...
  • Page 583 FFQ Series EDUS121503A Operation Manual...
  • Page 584 EDUS121503A FFQ Series Operation Manual...
  • Page 585 FFQ Series EDUS121503A Operation Manual...
  • Page 586 EDUS121503A FFQ Series Operation Manual...
  • Page 587 FFQ Series EDUS121503A Operation Manual...
  • Page 588 EDUS121503A FFQ Series Operation Manual...
  • Page 589 FFQ Series EDUS121503A Operation Manual...
  • Page 590 EDUS121503A FFQ Series Operation Manual...
  • Page 591 FFQ Series EDUS121503A Operation Manual...
  • Page 592 EDUS121503A FFQ Series Operation Manual...
  • Page 593 FFQ Series EDUS121503A Operation Manual...
  • Page 594 EDUS121503A FFQ Series Operation Manual...
  • Page 595 FFQ Series EDUS121503A Operation Manual...
  • Page 596 EDUS121503A FFQ Series Operation Manual...
  • Page 597 FFQ Series EDUS121503A Operation Manual...
  • Page 598 EDUS121503A FFQ Series Operation Manual...
  • Page 599 FFQ Series EDUS121503A Operation Manual...
  • Page 600 EDUS121503A FFQ Series 3P243520-7Q Operation Manual...

  • Page 601: With Wireless Remote Controller

    FFQ Series EDUS121503A With <BRC082A41W, BRC082A42W(S)> Wireless Remote Controller Operation Manual...
  • Page 602 EDUS121503A FFQ Series Operation Manual...
  • Page 603 FFQ Series EDUS121503A Operation Manual...
  • Page 604 EDUS121503A FFQ Series Operation Manual...
  • Page 605 FFQ Series EDUS121503A Operation Manual...
  • Page 606 EDUS121503A FFQ Series Operation Manual...
  • Page 607 FFQ Series EDUS121503A Operation Manual...
  • Page 608 EDUS121503A FFQ Series Operation Manual...
  • Page 609 FFQ Series EDUS121503A 3P444561-1 Operation Manual...
  • Page 610 EDUS121503A Part 4 Options 1. Option List ....................606 1.1 Indoor Unit....................606 1.2 Outdoor Unit ..................... 608 2. Control Devices..................609 2.1 <BRP072A43> Wireless LAN Connection Adaptor........609 2.2 <BRC944B2> Wired Remote Controller........... 617 2.3 <KRP413AB1S> Wiring Adaptor for Timer Clock / Remote Controller ..................

  • Page 611: Option List

    Option List EDUS121503A 1. Option List Indoor Unit CTXG Series Option Name Model Name Wired remote controller BRC944B2 Length 9.8 ft (3 m) BRCW901A03 Wired remote controller cord (shielded wire) Length 26.3 ft (8 m) BRCW901A08 Wireless LAN connection adaptor BRP072A43 Wiring adaptor for timer clock / remote controller KRP413AB1S...
  • Page 612 EDUS121503A Option List CDXS, FDXS Series Option Name 09/12 Class 15/18/24 Class Wired remote controller BRC944B2 Length 9.8 ft (3 m) BRCW901A03 Wired remote controller cord (shielded wire) Length 26.3 ft (8 m) BRCW901A08 Wiring adaptor for timer clock / remote controller KRP413AB1S (normal open pulse contact / normal open contact) Central remote controller...

  • Page 613: Outdoor Unit

    Option List EDUS121503A FFQ Series Option Name Model Name New design (white) BYFQ60C2W1W Decoration panel (required) New design (silver) BYFQ60C2W1S Current design (white) BYFQ60B3W1 Wired type BRC1E73 BRC082A42W Remote controller (required) Wireless type BRC082A42S BRC082A41W Sensor kit BRYQ60A2W / BRYQ60A2S Sealing member of air discharge outlet BDBHQ44C60 Panel spacer...

  • Page 614: Control Devices

    EDUS121503A Control Devices 2. Control Devices <BRP072A43> Wireless LAN Connection Adaptor Options...
  • Page 615 Control Devices EDUS121503A Options...
  • Page 616 EDUS121503A Control Devices Options...
  • Page 617 Control Devices EDUS121503A Options...
  • Page 618 EDUS121503A Control Devices Options...
  • Page 619 Control Devices EDUS121503A Options...
  • Page 620 EDUS121503A Control Devices Options...
  • Page 621 Control Devices EDUS121503A 3P427537-1A Options...

  • Page 622: Brc944B2> Wired Remote Controller

    EDUS121503A Control Devices <BRC944B2> Wired Remote Controller 2.2.1 Installation Manual Options...
  • Page 623 Control Devices EDUS121503A 3P202923-2B Options...
  • Page 624 EDUS121503A Control Devices 2.2.2 Operation Manual Options...
  • Page 625 Control Devices EDUS121503A Options...
  • Page 626 EDUS121503A Control Devices Options...
  • Page 627 Control Devices EDUS121503A Options...
  • Page 628 EDUS121503A Control Devices Options...
  • Page 629 Control Devices EDUS121503A Options...
  • Page 630 EDUS121503A Control Devices Options...
  • Page 631 Control Devices EDUS121503A Options...
  • Page 632 EDUS121503A Control Devices Options...
  • Page 633 Control Devices EDUS121503A Options...
  • Page 634 EDUS121503A Control Devices Options...
  • Page 635 Control Devices EDUS121503A 3P202922-2B Options...

  • Page 636: Krp413Ab1S> Wiring Adaptor For Timer Clock / Remote Controller

    EDUS121503A Control Devices <KRP413AB1S> Wiring Adaptor for Timer Clock / Remote Controller Options...
  • Page 637 Control Devices EDUS121503A Options...
  • Page 638 EDUS121503A Control Devices Options...
  • Page 639 Control Devices EDUS121503A 3P248024-2 Options...

  • Page 640: Krp928Bb2S> Interface Adaptor For Diii-Net (Residential Air Conditioner)

    EDUS121503A Control Devices <KRP928BB2S> Interface Adaptor for DIII-NET (Residential Air Conditioner) Options...
  • Page 641 Control Devices EDUS121503A 3P248024-1E Options...
  • Page 642 EDUS121503A Control Devices Connection to Remote Control PC-board 3P248024-3D Options...

  • Page 643: Krp1C75> Adaptor For Wiring

    Control Devices EDUS121503A <KRP1C75> Adaptor for Wiring Accessories Check if the following accessories are included in the kit. Name Adaptor for wiring Harness PCB support Clamp Installation manual Shape Quantity ×1 ×1 ×4 ×3 ×1 <Caution> • All wiring must be performed by an authorized electrician. •...

  • Page 644: Krp4A74> Wiring Adaptor For Electrical Appendices

    EDUS121503A Control Devices <KRP4A74> Wiring Adaptor for Electrical Appendices Accessories Check if the following accessories are included in the kit. Adaptor Relay harness PCB support ×4 Clamp ×3 ×1 ×1 each Installation manual ×1 System outline This kit enables remote control (ON/OFF control, temperature setting, operation display, error display) and can be used with the following systems though it cannot be used in conjunction with other optional controllers for centralized control.

  • Page 645: Krp1Ba101> Installation Box For Adaptor Pcb

    Control Devices EDUS121503A <KRP1BA101> Installation Box for Adaptor PCB Accessories Check the following accessories are included in this kit. Lid of Name Installation box Clamp Screw Cord sticker Installation manual Screw installation box English KRP1B101 Quantity Englishx1, Japanesex1 KRP1BA101 Shape (This manual) Method of attaching the adaptor Attach the adaptor...
  • Page 646 EDUS121503A Control Devices Attach the lid of installation box Attach the lid of installation box 2 to indoor unit with two screws. If two adaptors are installed, the second adaptor is attached to side of first one. Lid of installation box 2 for second PCB Lid of installation box 2 for first PCB...

  • Page 647: Krcs01-4B> Remote Sensor

    Control Devices EDUS121503A <KRCS01-4B> Remote Sensor Notes • Please check applicable kit model name by catalog etc. • When installed on Skyair Round-flow type models, the dehumidification by detection of humidity does not operate. Accessories Check the following accessories. Installation Remote sensor Extension cable Mounting screw...
  • Page 648 EDUS121503A Control Devices (a) When mounting on the wall Thermal insulation material Knockout hole for cable Sensor box Mounting screw Air hole Released paper 2-M4 Sensor box cover Wall surface mounting holes (unit: mm) • Break open the knockout hole in the sensor box with a nipper or a similar tool. Pass the extension wires through the hole and fasten the wires to the terminals with screws.
  • Page 649 Control Devices EDUS121503A Wiring method Connect the extension cable connector side to the indoor unit PCB (printed circuit board) For connection to the indoor unit, follow the procedure shown below. Caution 1) Make sure to turn off the power supply before starting the wiring work and do not turn on until all the work is completed. Read also the installation manual and the wiring diagram of the indoor unit when carrying out the work.

  • Page 650: Options For Indoor Unit

    EDUS121503A Options for Indoor Unit 3. Options for Indoor Unit <KDT25N32, KDT25N50> Insulation Kit for High Humidity Caution This kit can be installed to the Ceiling mounted Built-in Type Air Conditioners.<Slim duct type> When the Installation box for adapter PCB(KRP1BA101)is used together, mount this kit before Installation box. It is recommended to mount this kit before installing the indoor unit.

  • Page 651: Bryq60A2W(S)> Sensor Kit

    Options for Indoor Unit EDUS121503A <BRYQ60A2W(S)> Sensor Kit Options...
  • Page 652 EDUS121503A Options for Indoor Unit 4P343368-1A Options...

  • Page 653: Kdbq44Ba60A> Panel Spacer

    Options for Indoor Unit EDUS121503A <KDBQ44BA60A> Panel Spacer Contents of kit Caution • When the Panel Spacer is installed , it is not possible Check if following parts are included with your kit. to have 2-way air outlet. Name Panel spacer frame Resin corner part Fixing metal Screw...
  • Page 654 EDUS121503A Options for Indoor Unit Assembly of panel spacer ( 1 ) Assemble the panel spacer frame ( 2 ) Fix with the screws from the top. ( 4 screws in each corner ) and the plastic corner joint temporarily. Insert Insert Fixing to the decoration panel...

  • Page 655: Kddq44Xa60> Fresh Air Intake Kit

    Options for Indoor Unit EDUS121503A <KDDQ44XA60> Fresh Air Intake Kit Remarks : 1. This kit can be installed to the Ceiling mounted cassette type ( Multi-flow ) . 2. When installing this kit , duct ( Nominal dia. : φ100 ) is required on site. ·...
  • Page 656 EDUS121503A Options for Indoor Unit for opening of unit to the opening. ( Fig. 2 ) 2. Adhere the insulation Put the insulation to be suitable for the hole of the insulation and hole of the indoor unit. However , put the insulation so as not to conceal the screw hole of the indoor unit.

  • Page 657: Options For Outdoor Unit

    Options for Outdoor Unit EDUS121503A 4. Options for Outdoor Unit <KPW063A4> Air Direction Adjustment Grille Component parts Be sure to check that the following parts are included before installation. Component parts Name 1 Air direction adjustment grille 2 Screw Spacer 4 Installation Manual Illustration 1 sheet ( this sheet )
  • Page 658 EDUS121503A Options for Outdoor Unit Installation of air direction adjustment grille Caution Install the air direction adjustment grille on top of the outlet grille. Be sure to install the outlet grille as installing only the air direction adjustment grille would allow a person to reach his or her hand into the outdoor unit far enough to come into contact with the rotating fan.

  • Page 659: Kkg063A42> Back Protection Wire Net

    Options for Outdoor Unit EDUS121503A <KKG063A42> Back Protection Wire Net 2P403095-1 Options...

  • Page 660: Kkg063A43> Side Protection Wire Net

    EDUS121503A Options for Outdoor Unit <KKG063A43> Side Protection Wire Net 2P403025-1 Options...
  • Page 661 Improper installation can result in water or refrigerant leakage, electrical shock, fire or explosion. Use only those parts and accessories supplied or specified by Daikin. Ask a qualified installer or contractor to install those parts and accessories. Use of unauthorized parts and accessories or improper installation of parts and accessories can result in water or refrigerant leakage, electrical shock, fire or explosion.

This manual is also suitable for:

Ctxg09qvjuwCtxg09qvjusCtxg12qvjuwCtxg12qvjusCtxg18qvjuwCtxg18qvjus ... Show all

Table of Contents

Save PDF
