• The 4-20ma option is used with the 4-20mA temperature sensor
(HT# 904160-00) . These sensors can be configured to read temperatures
up to 480°F / 268°C . The user must set the 4ma and 20ma temperature
range to match the sensor configuration . These sensors' ranges must be
set by Heat-Timer . See "4-20mA Temperature Sensor Wiring" on page 18 .
• Values that are higher than 21 .6mA shall read SHORT . Values that are
lower than 2 .4mA shall read OPEN .

eMS INPuT MODe

(Available In Sensor Type = °F, °C, and any of the PSI options)
Setback, eMS Control
4mA Adjustable from 70ºF/21ºC to 200ºF/93ºC
20mA Adjustable from 90ºF/32ºC to 240ºF/116ºC
PReSS TO SeleCT: /<System Startup>/..../Sensor Type/EMS Input Mode/ EMS 4mA SP/..
• Setback allows the Set Point to be adjusted manually .
• EMS Control allows the set point to be sent remotely using 4-20mA
signal . The set point range must be set to match the EMS signal's set
point range using the 4mA and the 20mA temperature settings . See
"External Set Point Wiring" on page 22 .
• An active signal must be between 2 and 22mA . Any signal out of this
range shuts down the system and displays "Shutdown by EMS" .

STAGe INTeRFACe

Normal, MODBuS-Monitor Only, MODBuS-Full Control
Stage Modbus from 0 to 247
PReSS TO SeleCT: /<System Startup>/.../Stage Interface/ Stage A Modbus Add/ ...
• These options are designed for Modbus operating burners equipped
with the Siemens LMV controller . If the burner did not have Modbus
communication, then select Normal .
• The MODBUS-Monitor Only option receives the alarm lockout status
through the Siemens LMV Interface .
• The MODBUS-Full Control option sends the modulation percent and
receives the lockout status through the Siemens LMV Interface .
• Order the LMV Interface for each of the MODBUS burners
(HT# 926621-00) . In addition, order the Interface Power Supply
(HT #926622-00) for every 10 burners . See LMV-Interface Manual .
• When any of the Modbus options is selected from the Stage Interface
menu, the Stage Modbus Address will follow .
• Each Stage address must be unique on the Modbus network .
• To exit the Stage Modbus Address, enter an address of 0 for the stage
following the last stage .
OuTPuT TYPe
135Ω, 0-10V, 0-5V, 2-10V, 1-5V, 4-20mA
PReSS TO SeleCT: /<System Startup>/ Sensor Type/.../Output Type A&B
• The Multi-MOD Platinum has two Modulating Output Cards . Each card
modulates two stages . Both stages must use the same modulating
signal . See "Modulating Output Card Installation" on page 23 .
• Output Cards can be either 135Ω Cards for 135 ohm modulating motors
or Current/Voltage Cards for current or voltage signal operating motors .
Multi-MOD Platinum with Space and Scheduling Installation and Operation Manual
Default: Setback
Default: 140ºF/ 60ºC
Default: 200ºF/ 93ºC
[
[
Default: Normal
Default: 0
Default: 0-10V, 135Ω

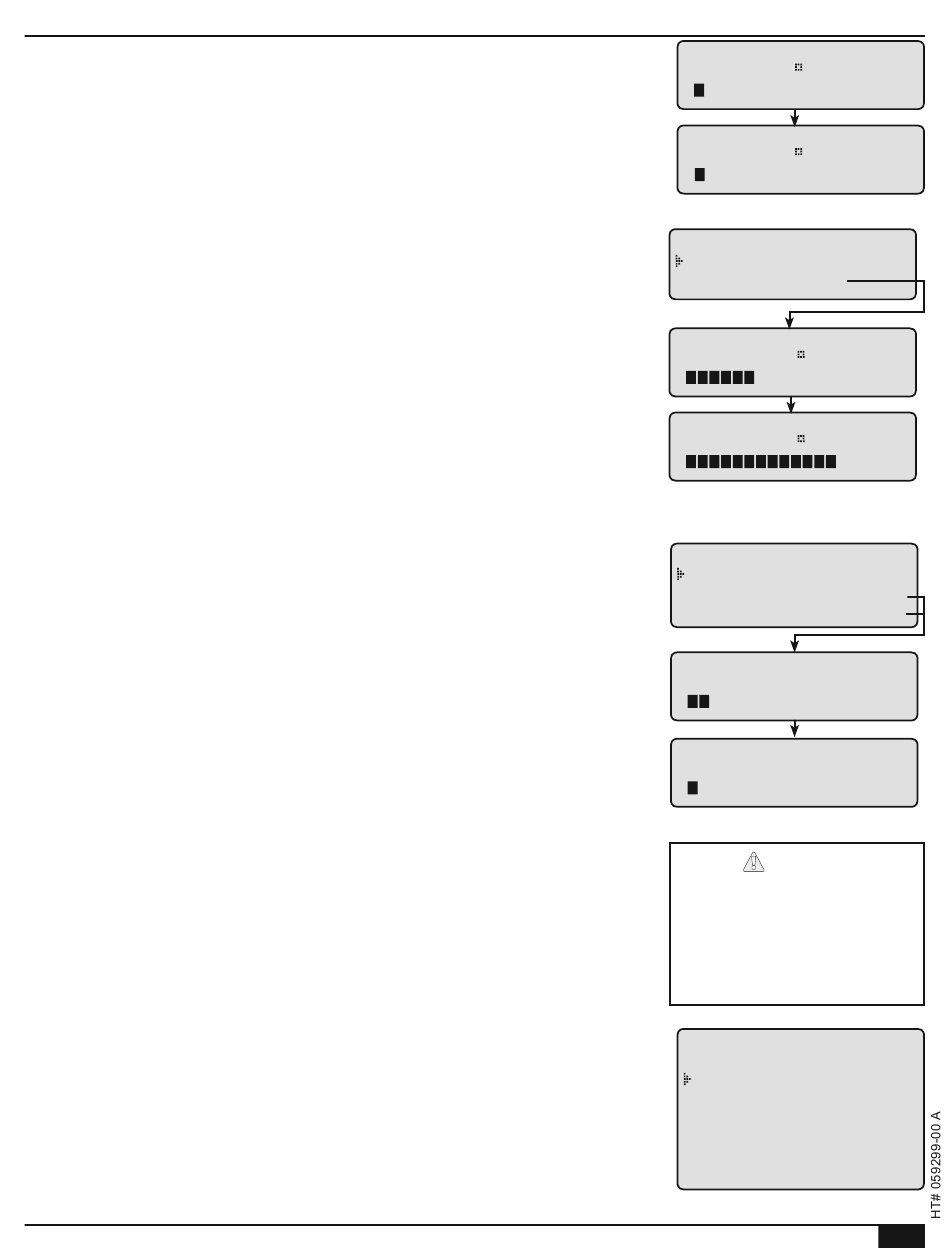

SENSOR 4mA VALUE
0 F
[
SENSOR 20mA VALUE
0 F
[
- EMS INPUT MODE -
Setback
EMS Control
EMS 4mA SETPOINT
140 F
EMS 20mA SETPOINT
200 F
- STAGE INTERFACE -
Normal
MODBUS-Monitor Only
MODBUS-Full Control
STAGE A MODBUS ADD
1
[
STAGE B MODBUS ADD
0
[
AleRT
Regardless of the Modbus
options selected, the
Multi-MOD Platinum will also
send a modulation signal to
every active boiler through the
Modulation Output terminals .
-OUTPUT TYPE A&B-
Not Installed
135ohm
0-10v
0-5v
2-10v
1-5v
4-20ma
]
]
]
]
]
]
