CONNeCTING MulTI-MOD PlATINuM TO exTeNSIONS

(RS485 on Back of Motherboard)
• When an application requires more than 4 modulating stages, up to two Extension
Modules can be used to add 16 additional stages . Each extension can connect to
8 stages with lockout inputs . The Multi-MOD Platinum can manage the Extension
panels using an RS485 connection .
• Each extension is supplied with all the necessary cables to connect to the
Multi-MOD Platinum and the other extension . The Round-to-Round cable
connects one enclosure to the other (HT# 900065-00) .
• The Flat-to-Round cable connects the main PCB board to the enclosure
(HT# 900048-00) .
• A set of dip switches on the back of the Extension Module is used to configure the
Extensions ID . See Dip Switch settings on the right .
• The connection from the Multi-MOD to the Extensions can be either in parallel or
in series . See diagrams
To connect to the Extension, use the RS485 connector on the Multi-MOD's main PCB
board . DO NOT use the RS485 connector on the BACnet communication board
• Note that, Extension panels do not come with Modulating Output Cards or relays .
These items must be purchased separately .

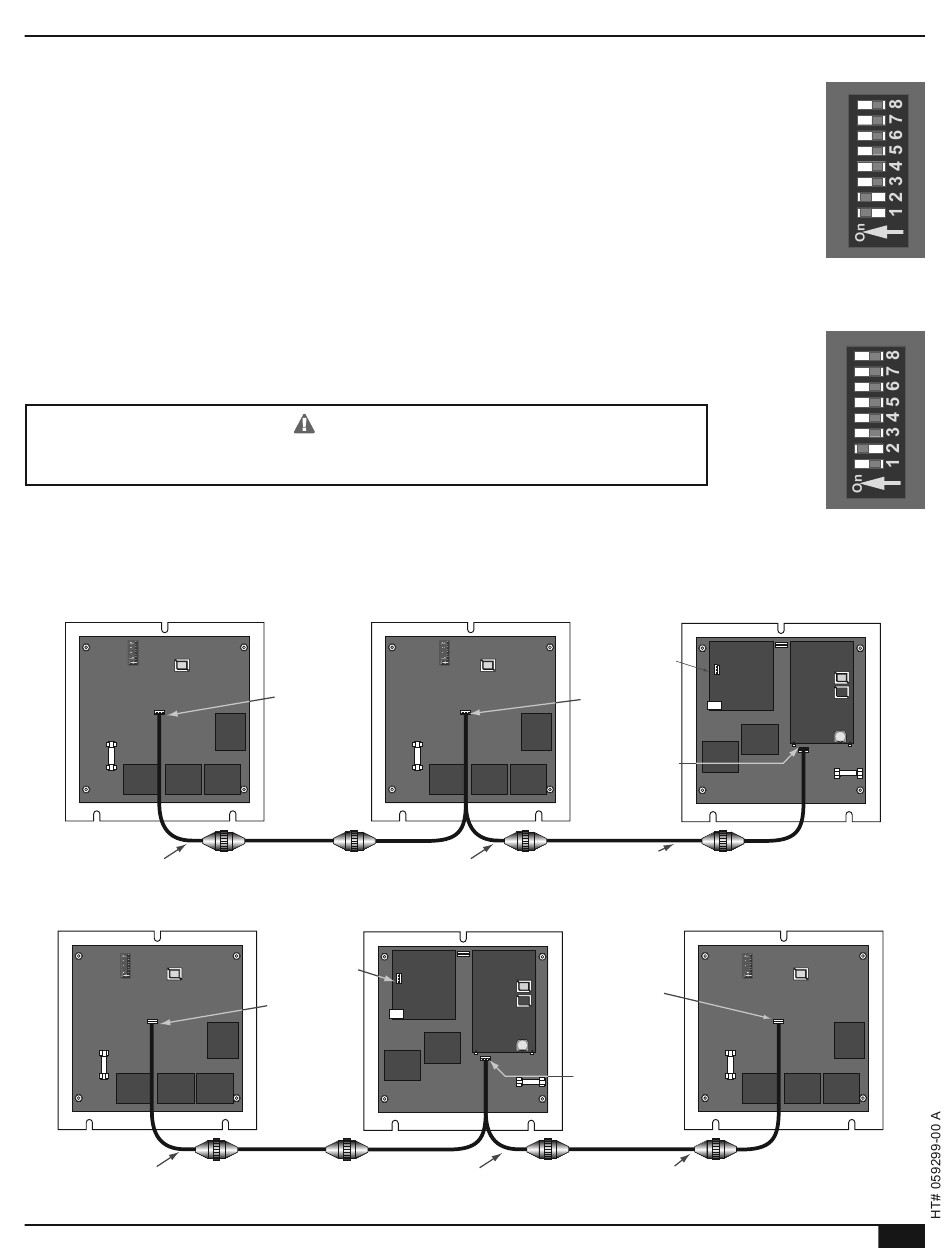

DIFFERENT WAYS OF CONNECTING Multi-MOD TO TWO EXTENSION PANELS
DIFFERENT WAYS OF CONNECTING Multi-MOD TO TWO EXTENSION PANELS
EXTENSION PANEL 2
EXTENSION PANEL 2
CPU to one
Enclosure Cable
(HT# 900048-00)
CPU to one
Enclosure Cable
(HT# 900048-00)
EXTENSION PANEL 2
EXTENSION PANEL 2
CPU to one
Enclosure Cable
(HT# 900048-00)
CPU to one
Enclosure Cable
(HT# 900048-00)
Multi-MOD Platinum with Space and Scheduling Installation and Operation Manual
WARNING
Connecting two Extension Panels in Series
Connecting two Extension Panels in Series
EXTENSION PANEL 1
EXTENSION PANEL 1
Connect to
RS485
Connect to
RS485
CPU to two
Enclosure Cable
(HT# 900049-00)
CPU to two
Enclosure Cable
(HT# 900049-00)
Connecting two Extension Panels in Parallel
Multi-MOD PANEL
Connecting two Extension Panels in Parallel
Multi-MOD PANEL
RS485 for Remote
communication only
RS485 for Remote
communication only
Connect to
RS485
Connect to
RS485
CPU to two
Enclosure Cable
(HT# 900049-00)
CPU to two
Enclosure Cable
(HT# 900049-00)
EXTENSI
EXTENS
Multi-MOD PANEL
Multi-MOD PANEL
RS485 for Remote
communication only
RS485 for Remote
communication only
Connect to
RS485
Connect to
RS485
RS485 Flat Cable
comes with Extension
RS485 Flat Cable
Motherboard
comes with Extension
Motherboard
Interconnect Cables
Round-to-Round
(HT# 900065-00)
Interconnect Cables
Round-to-Round
(HT# 900065-00)
EXTENSION PANEL 1
EXTENSION PANEL 1
Connect to
RS485
Connect to
RS485
RS485 Flat Cable
comes with Extension
RS485 Flat Cable
comes with Extension
Interconnect Cables
Round-to-Round
(HT# 900065-00)
Interconnect Cables
Round-to-Round
(HT# 900065-00)
extension 1
Dip Switch Setting
extension 2
Dip Switch Setting
