heat-timer Multi-MOD Platinum Installation And Operation Manual page 15

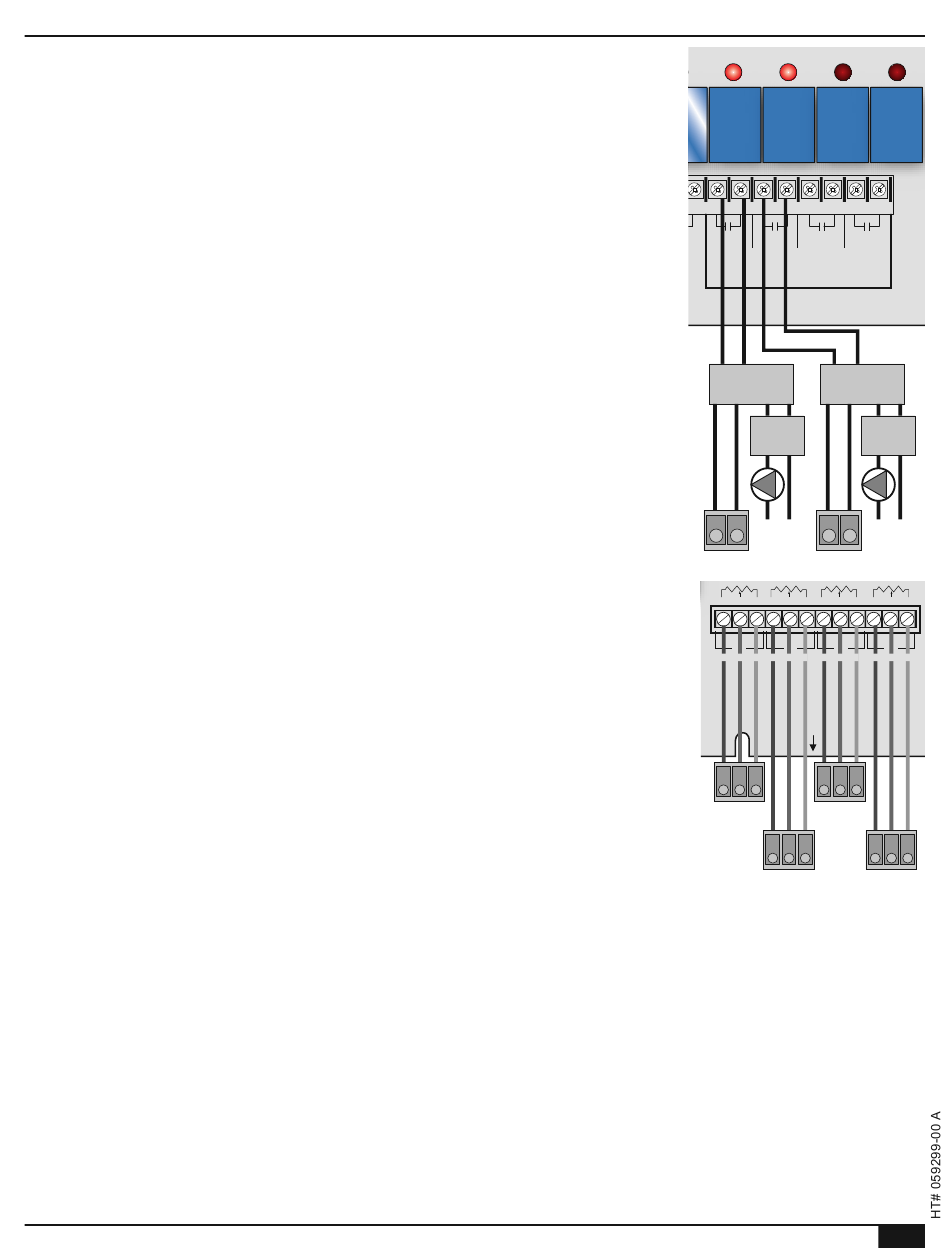

STAGe OuTPuT AND BOIleR PuMP WIRING
• To have the Multi-MOD Platinum operate the boilers and their pumps, use
SPDT relays (Single-Pole Double-Throw) and TDR relays (Time-Delay
relay) .
• The SPDT relay sends the activation signal from the Multi-MOD Platinum
stage activation output to the boiler Interlock (TT) and its pump .
• The TDR relay receives the SPDT pump activation signal and send it to the
pump . When the SPDT relay signal ends, the TDR keeps the pump running
for an additional period . This additional delay acts as the Run-On delay
available for the System output . See "System Run-On" on page 34 .
135Ω MODulATING MOTOR WIRING
Stage1 (Terminals C1, C2, C3), Stage2 (Terminals C4, C5, C6),
Stage3 (Terminals C7, C8, C9), Stage4 (Terminals C10, C11, C12)
• The Multi-MOD Platinum can operate up to four 135 Ω modulating motors
(Multi-MOD ordered with 135-Ohm Output cards .) Each 135 Ohm Output
card operates two stages . See "Modulating Output Card Installation" on
page 23 .
• Terminals C1, C4, C7, and C10 on the Multi-MOD Platinum connects to the
modulation decreasing terminals on the burners (Blue/Black modulating
wires) .
• Terminals C3, C6, C9, and C12 on the Multi-MOD Platinum connects to the
modulation increasing on the burners (White modulating wires) .
• Terminals C2, C5, C8, and C11 on the Multi-MOD Platinum connects to the
modulation common terminals on the burners (Red modulating wires) .
WIRING TO 4-20 MA MODulATING MOTORS
Stage1 (Terminals C1, C2), Stage2 (Terminals C4, C5),
Stage3 (Terminals C7, C8), Stage4 (Terminals C10, C11)
• The Multi-MOD Platinum can operate up to four 4-20 mA modulating
motors (Multi-MOD ordered with C/V (Current/Voltage) output cards) . See
"Modulating Output Card Installation" on page 23 .
• To program the control for 4-20 mA output, See "Output Type" on page 27 .
• Apply the supplied label marked Current/Voltage below the modulating
terminals .
• The Multi-MOD sources 24VDC excitation voltage for the 4-20mA signal .
Multi-MOD Platinum with Space and Scheduling Installation and Operation Manual
MENU FUNCTIONS
SELECT enters menus or accepts changes
ADJUST selects menu items or changes settings
BACK
returns to previous menu
STAGE selects stage menus or next stage
DAY selects next day
PREV./NEXT steps through stage status
DEL
deletes schedule settings
ENCLOSED
ENERGY
MANAGEMENT
EQUIPMENT
LISTED
99RA
OUTPUT RATINGS:
SYSTEM
120VAC, 6A RESISTIVE
1A PILOT DUTY
15A TOTAL
FOR ALL CIRCUITS
INPUT RATINGS:
115VAC 60Hz
30VA MAX
USE COPPER WIRE,
CLASS 1 WIRE ONLY
1 2 3 4
SYS
SAFETY
GROUND
MUST BE
CONNECTED
MADE IN U.S.A.
ENCLOSED
ENERGY
MANAGEMENT
EQUIPMENT
LISTED
99RA
OUTPUT RATINGS:
SYSTEM
120VAC, 6A RESISTIVE
1A PILOT DUTY
15A TOTAL
FOR ALL CIRCUITS
INPUT RATINGS:
115VAC 60Hz
30VA MAX
FULL MODULATION
USE COPPER WIRE,
CLASS 1 WIRE ONLY
SEQUENCING CONTROL
1 2
MULTI-MOD
Platinum
SAFETY
GROUND
MUST BE
CONNECTED
<A> B C
MADE IN U.S.A.
100% 50% ---
HELP PREV. STAGE
(DEL) (DAY)
A B C D
5 6 7 8 9 10 11 12
A B C D
OPERATING LIMIT
OUTPUTS
HELP PREV.
(DEL)
A B C
3 4 5 6 7 8 9 10
DO NOT APPLY ANY VOLTAGE
TO SENSOR TERMINALS
INPUTS
A B C
SYS ADJUST
OPERATING LIMIT
OUTPUTS
PRESS TO
SELECT
D
---
BACK
SPDT SPDT
Relay 1 Relay 2
NEXT
TDR
Relay 1
LOCKOUT
INPUTS
EMS
L N
120VAC
Boiler1 Pump1 Boiler2 Pump2
SIGNAL
+
SHIELD
C1 C2 C3 C4 C5 C6 C7 C8
A B C
B R W B R W B R
MODULATION OUTPUTS
ROUTE SENSOR AND AUXILIARY WIRES
THROUGH THIS KNOCKOUT ONLY
B R W B R W
Boiler1 Boiler3
135Ω 135Ω
Signal Signal
B R W
Boiler2
135Ω
Signal
Boiler 135Ω
Modulation Signal
STAGE NEXT
(DAY)
D
EM
SIGN
+
11 12
C1 C2 C3 C4
A
T
A1
SYSTEM
TEMP
MOD
D
A2
A3
SHUTDOWN
A4
ROUTE S
S
A5
PRESS
THRO
4-20 mA
A6
+
A7
NETWORK
A8
A9
PROVE
/DHW
A10
T
A11
OUT
TEMP
A12
TDR
Relay 2
B1
STAGE
A
B2
B3
STAGE
B
B4
B5
STAGE
L N C
B6
120VAC
B7
STAGE
D
B8
C9 C10 C11 C12
D
W B R W
B R W
Boiler4
135Ω
Signal
