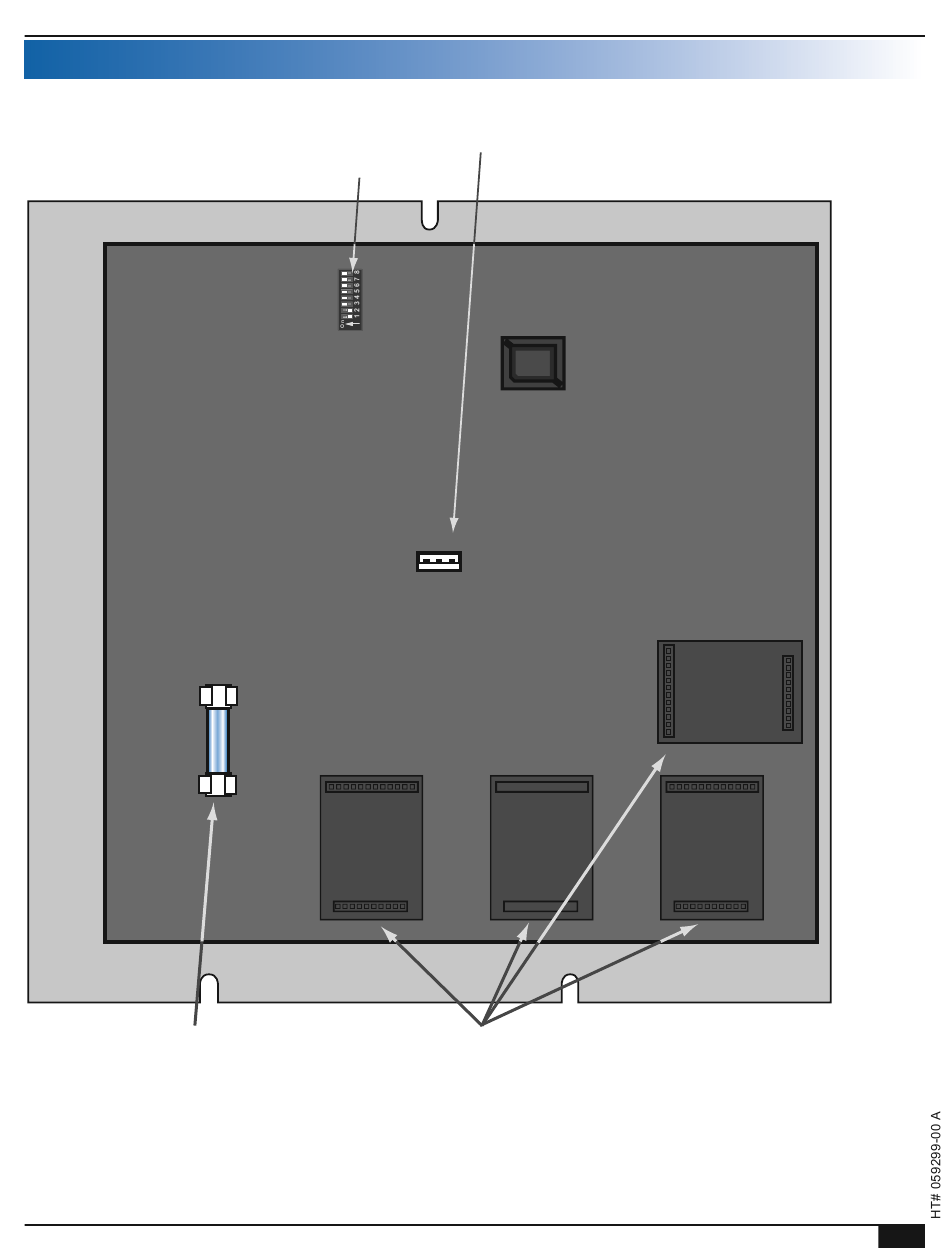

exTeNSION BACk CHART
Fuse
Multi-MOD Platinum with Space and Scheduling Installation and Operation Manual
Dip Switches
determine Extension
number
EXT1 Dip1=ON, DIP2=ON
EXT2 Dip1=OFF, DIP2=ON
Control Stages
7 & 8
Modulating Output Cards:
• 135Ω Output Card (HT# 900203-135)
• Current and Volt Output Cards
(HT# 900203-C/V)
RS485 connects to
(MMOD, HWRQ, or
MPCQ Platinum)
Control Stages
5 & 6
Control Stages
1 & 2
Control Stages
3 & 4
11
