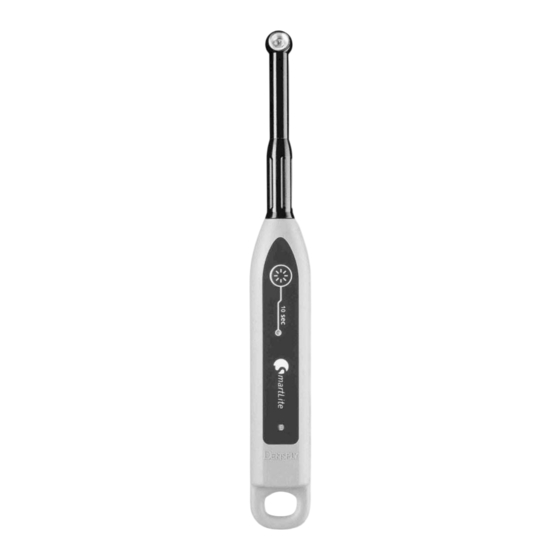

Pen-style high power led curing light
Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading

Related Manuals for DENTSPLY DeTrey SmartLite PS

Summary of Contents for DENTSPLY DeTrey SmartLite PS

  • Page 2: Table Of Contents

    Table of contents Introduction ................. 3 SmartLite PS Design ..............3 LED-Tip ......................3 Hand piece.....................4 Charger ......................4 Intensity and Spectral Output ............ 4 Light output stability ..............6 Thermal radiation ................ 7 In-vitro tooth heating study................7 Temperature of the LED Tip .................8 Curing performance ..............

  • Page 3: Introduction

    SmartLite™ PS Scientific Compendium Introduction Unlike conventional halogen lamps, light emitting diodes (LED) produce light in the visible range of the electromagnetic spectrum via quantum mechanical effects using doped semiconductors. LED lamps emit highly efficient light in a limited wavelength range. The LED needs less power than a halogen light bulb, in which the light is generated by heating a tungsten filament in the presence of a halogen gas.

  • Page 4: Hand Piece

    SmartLite™ PS Scientific Compendium Hand piece Due to the compact design of the hand piece the SmartLite PS is very easy and precise to handle. Pressing the ON/OFF button activates the 10-sec standard cure. Several visual and acoustic signals give the operator information on the battery status and/or if the LED-tip is not properly connected to the hand piece.
  • Page 5 SmartLite™ PS Scientific Compendium Light intensity determined with CureRite SmartLite PS Epilar FreeLight 2 Starlight Pro L.E.Demetron I * Spectrum800@800 1000 1250 Light intensity [mW/cm Figure 1 Light intensity of SmartLite PS compared to other curing lights The SmartLite PS does not - unlike the widely used Quartz-Tungsten-Halogen (QTH) lamp - emit light with wavelengths beyond the absorbance range of camphorchinone (CQ).

  • Page 6: Light Output Stability

    SmartLite™ PS Scientific Compendium Light output stability It is well known from conventional halogen lights (QTH) that the curing performance is strongly dependent on the bulb. Towards the end of the bulb’s lifetime the output is seen to drop dramatically. As this can not be checked automatically, it is of outmost importance to test the QTH curing lamp on a regular basis in order to detect any deterioration in its curing performance.

  • Page 7: Thermal Radiation

    SmartLite™ PS Scientific Compendium Thermal radiation Besides the emission of visible light in the spectral range of approximately 400-500 nm all curing lamps radiate heat as well. The amount of heat that is radiated towards the tooth depends on the output power and the exposure time. A balance between high light power and low heat irradiation is needed to avoid the risk that heat may have on the pulp tissue and the oral mucosa.

  • Page 8: Temperature Of The Led Tip

    SmartLite™ PS Scientific Compendium PEAK INTRAPULPAL TEMPERATURE RISE PEAK INTRAPULPAL TEMPERATURE RISE PEAK INTRAPULPAL TEMPERATURE RISE SIMULATING A 10 SEC CURE SIMULATING A 10 SEC CURE SIMULATING A 10 SEC CURE CURING CONDITION CURING CONDITION Elipar Freelight 2 FreeLight 2 FreeLight 2 Spectrum 800 Spectrum 800@800...

  • Page 9: Curing Performance

    SmartLite™ PS Scientific Compendium Curing performance Depth of Cure according to ISO 4049:2000 The depth of cure of a restorative material correlates directly with the light output of a curing light. The higher the intensity of a curing light the more efficient the depth of cure. This usually is the result of a higher degree of conversion, which leads to a stronger material and an increase in durability of the resulting restoration.

  • Page 10: Barcol Hardness

    SmartLite™ PS Scientific Compendium SmartLite PS Starlight Pro L.E.Demetron I Spectrum 800 @800 Figure 7 Depth of Cure (ISO 4049:2000) of Spectrum TPH A4 after a 10sec cure with various curing units The above data demonstrate that even for dark shades such as Spectrum A4 a depth of cure of 2mm thickness can be achieved with SmartLite PS after 10sec exposure .

  • Page 11: Compressive Strength

    SmartLite™ PS Scientific Compendium Barcol hardness: Spectrum TPH A2 (10 sec exposure) SmartLite PS Epilar FreeLight 2 Starlight Pro L.E.Demetron I Spectrum 800@800 top hardness bottom hardness bottom/top [%] Figure 8 Barcol hardness of Spectrum TPH A2 after a 10sec cure with various curing units Barcol hardness: Spectrum TPH A4 (10 sec exposure) SmartLite PS...

  • Page 12: Clinical Data

    SmartLite™ PS Scientific Compendium TPH A2 TPH A4 Esthet.X A2 Esthet.X A4 Spectrum800@800 SmartLite PS Figure 10 Compressive strength of Spectrum TPH A2, A4, EsthetX A2, A4 cured with SmartLite PS and Spectrum 800@800. Clinical data 7.1 Consumer preference evaluation General dental practitioners were given the opportunity to use SmartLite PS for standard restorative treatment over a time period of several weeks.
  • Page 13 SmartLite™ PS Scientific Compendium Consumer Preference Evaluation Very Good Satis- Poor Very good factor Poor Functionality of charging unit Ergonomics of hand piece with LED tip attached Battery capacity Overall rating of design and function Table 1 Consumer Preferences Consumer Preference Evaluation: What practitioners liked about SmartLite PS •...

  • Page 14: Clinical Post-Marketing Surveillance Study, Republic Of South Africa

    SmartLite™ PS Scientific Compendium Consumer Preference Evaluation: If presently in need for an additional curing light, would practitioners purchase SmartLite PS? Extremely likely Very likely Somewhat likely Not very likely Not at all likely Table 3 Preference for additional curing light 7.2 Clinical post-marketing surveillance study, Republic of South Africa Main Investigator Dr.
  • Page 15 Light output was measured immediately after treatment and exceeded 300mW/cm² for the halogen curing light and 720 mW/cm² for SmartLite PS. Reporting Reports to DENTSPLY are provided by the investigators by means of a set of forms for each restoration to be monitored. Interim report August 2003:...

  • Page 16: Conclusion

    SmartLite™ PS Scientific Compendium Figure 11 Postmarketing Surveillance Study – Interim Report as of August 2003 Conclusion The information that is provided in this document represents a small excerpt of all investigations performed internally and externally, proving that the SmartLite PS fully equals strong QTH curing lights like the Spectrum 800 with regard to curing performance.
  • Page 17 Do not use a device which has not been properly disinfected (see Chapter Maintenance). Protect LED Tip from contamination by applying a disposable, single patient use sleeve ® (DENTSPLY Disposa-Shield Never aim the light directly at unprotected soft tissues, as this may cause injury or irritation. Do not aim the light at eyes.

  • Page 18: Directions For Use

    SmartLite™ PS Scientific Compendium Light reflected from the tooth surface may also injure eyes. Use the protective shield supplied with the unit or suitable safety glasses, which shield effectively against blue spectrum light. If time intervals between exposures are too short, the LED tip may overheat and potentially cause soft tissue injury.

  • Page 19: Operation

    Attach the LED Tip [2] to the hand piece [1]. The device is now ready for operation. Protect LED Tip from contamination by applying a disposable, single patient use sleeve ® (DENTSPLY Disposa-Shield Attach the eye protecting shield to the tip or use safety glasses which shield effectively against blue spectrum light.

  • Page 20: Maintenance

    The end of 10-second exposure cycle is likewise indicated by an acoustic signal. For detailed information on curing times for DENTSPLY light cured products, please see the Curing Guide supplied. For products other than those from DENTSPLY, please refer to the curing times given by the respective manufacturer.

  • Page 21: Guarantee Terms

    LED Tip commencing on the date of purchase. Within the guarantee period, DENTSPLY will eliminate free of charge any defects in the appliance resulting from faults in material or workmanship either by repairing or exchanging parts or exchanging the whole device at DENTSPLY's discretion.

  • Page 22: Specifications

    SmartLite™ PS Scientific Compendium Specifications AC Supply connection: 90…110 V~ 50…60 Hz 2.5W 110…130 V~ 50…60 Hz 2.5 W 220…240 V~ 50…60 Hz 2.5 W Power input: 2.5 W Protection from ingress of liquids: IP X4 Operation: Continuous operation with intermittent loading, duty cycle of 10 seconds ON/30 seconds OFF Ambient temperature: 10 –...
